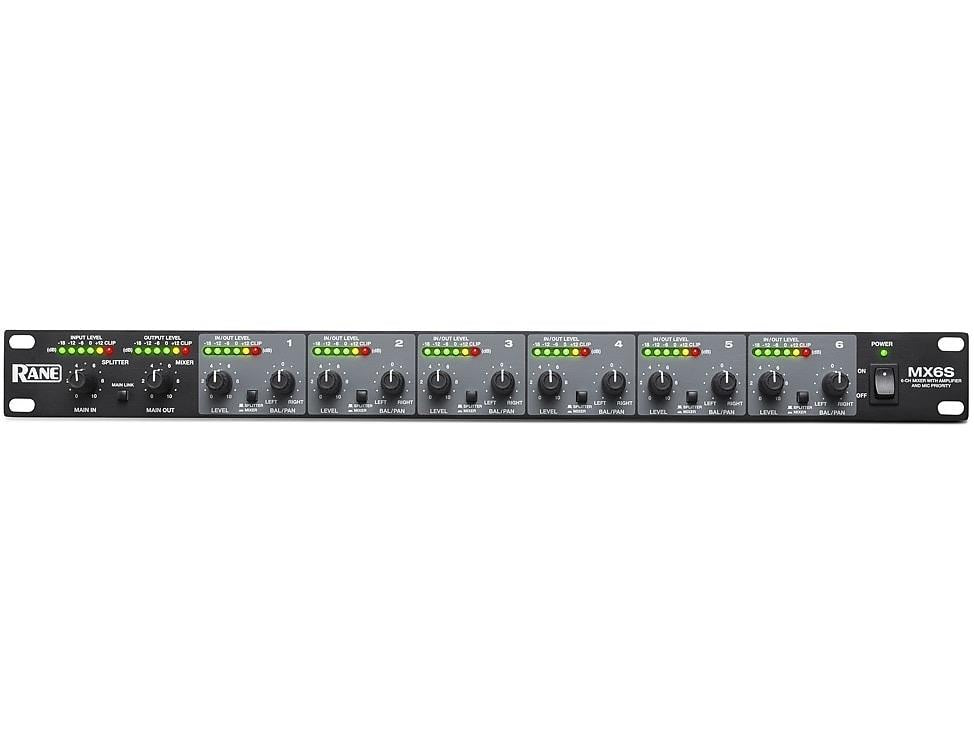

Rane MX6S Mixer 6ch Rack Mixer Splitter XLR Install

Description

The MX6S is a versatile, one-rack space routing device that can be utilized as a 6-channel mixer or a splitter with up to 8 outputs. In Splitter Mode, a stereo input signal can be sent to up to 8 discreet outputs.  In Mixer Mode, a stereo input signal can be mixed with up to 6 mono signals - and at the same time, have separate direct outs for the mono inputs. This audio tool is very useful for distributed audio in Splitter mode, or in creating custom mixes in Mixer mode.

Used as a 6-channel mixer or 8-output splitter
Perfect for sending a stereo program to separate zones or amplified speaker systems
Create custom mixes utilizing mixed and separate audio feeds

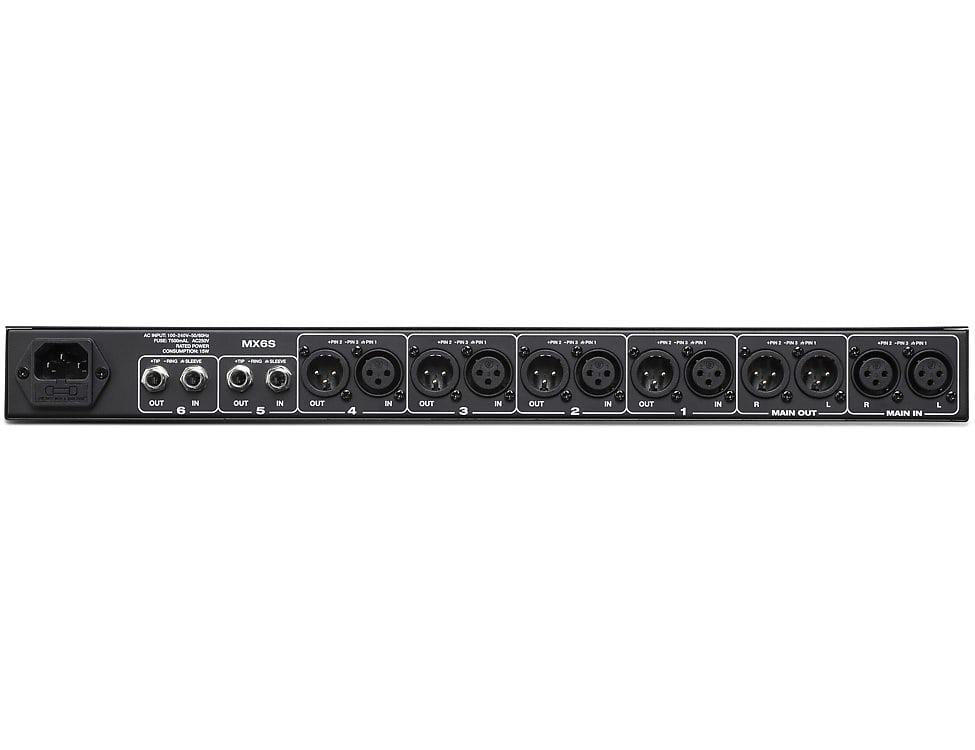

Balanced and unbalanced inputs and outputs (XLR and TRS)
Balance / Pan and level controls with 6-segment LED meters on each mono input channel
Main Link function allows routing the Main Input signal to the Main Output
Main input and output level controls with 6-segment LED meters for each

Connectors: XLR and 1/4" TRS Type: RF filtered, servo-balanced input Impedance: 50kΩ balanced, 25kΩ unbalanced Nominal Operating Level: -10 dBV to +4 dBu Max Input Level: +21dBu balanced and unbalanced CMMR (Common Mode Rejection Ratio): typically 40dB, > 55dB @ 1kHz

Connectors: XLR and 1/4" TRS Type Electronically servo-balanced output stage Impedance: 60Ω balanced / 30Ω unbalanced Max output level: +22dBu balanced and unbalanced
Frequency Response: 5Hz - 20kHz, ±3dBu

Signal-to-Noise Ratio: >95dBu, unweighted (20 - 20kHz)

THD: <0.002% typ @ +4dBu, 1kHz

Main Link: Links main input signal to the main output Split/Mix: Changes from Split mode to Mix mode for each channel
General

Power Supply
USA/Canada: 120VAC, 60Hz
U.K. / Australia: 240VAC, 50Hz
Europe: 230VAC, 50Hz
Power Consumption Max 15 W
Fuse
100 – 120 V: T 315 mA H
220 – 240 V: T 200 mA H
Dimensions: 19 x 7.5 x 1.7" (483 x 195 x 44mm)

Weight: 5.7 lbs (2.6kg)
