RCF COMPACT M 12 Speaker 12" Woofer 300W RMS

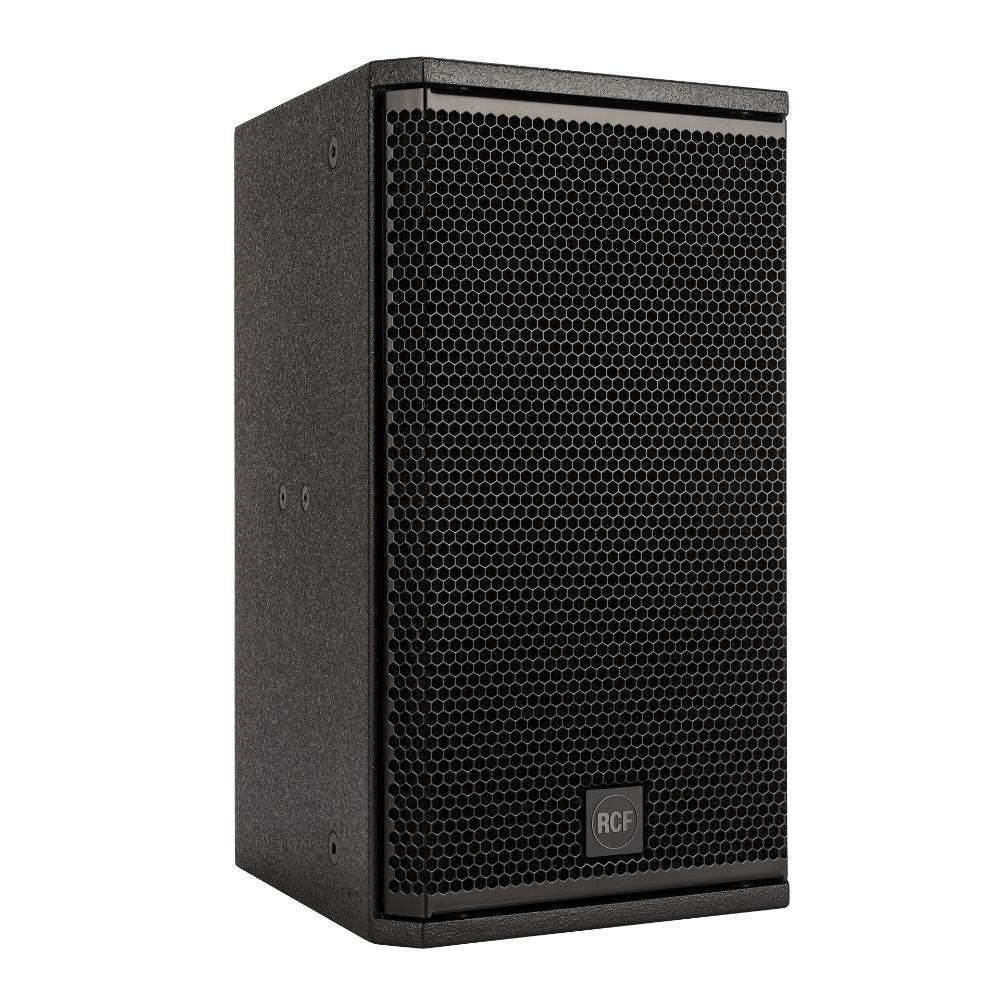

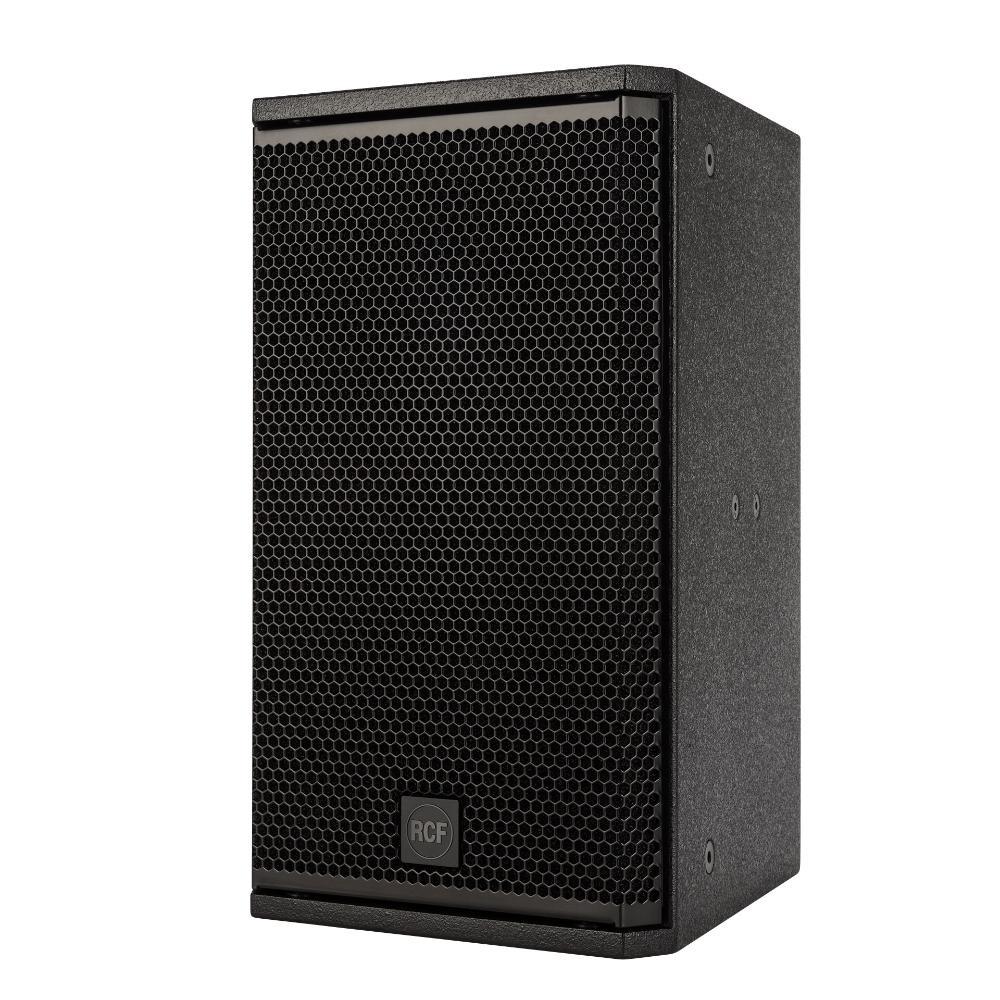

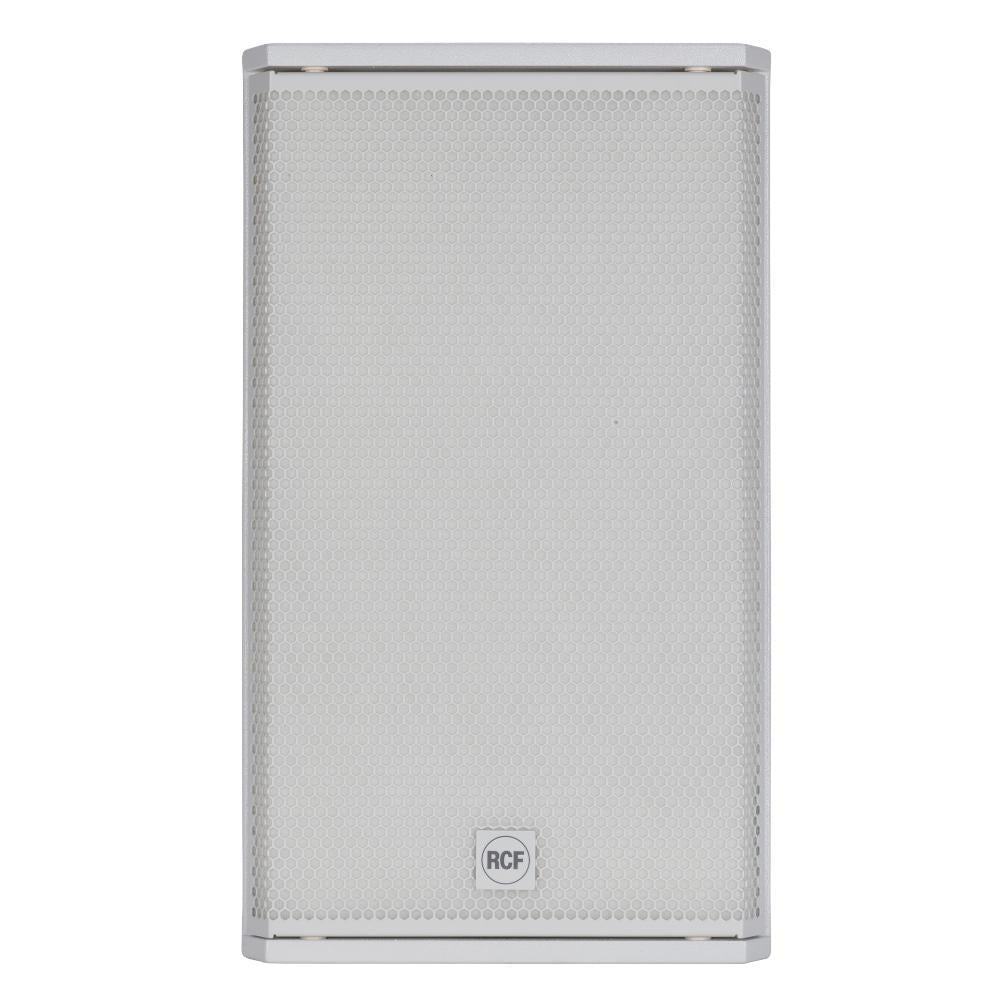

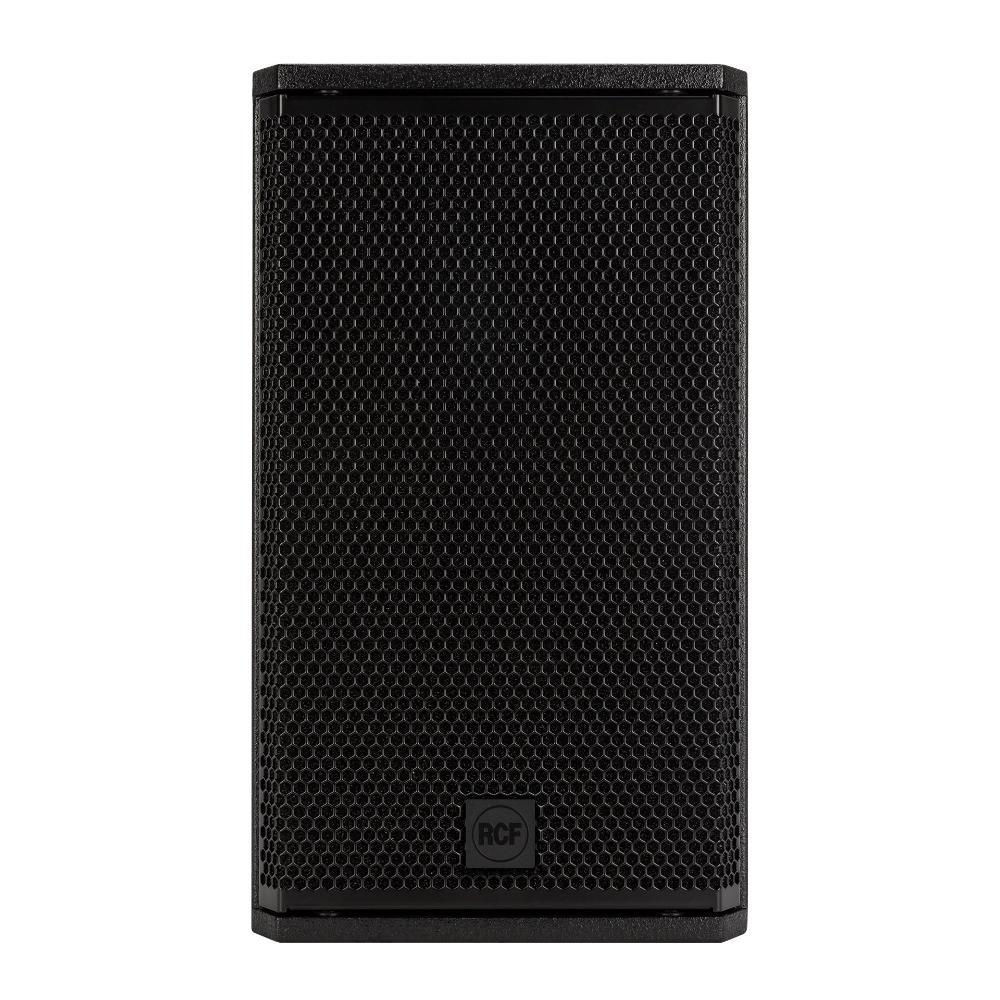

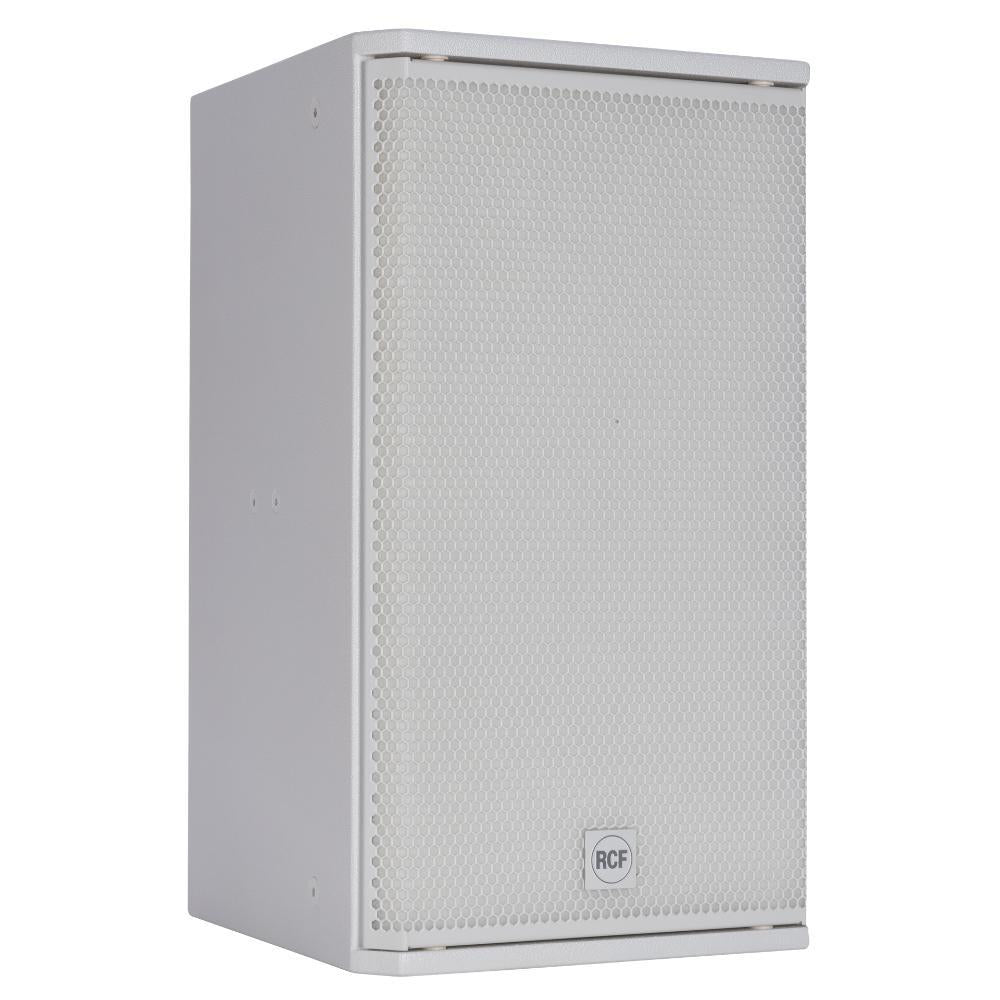

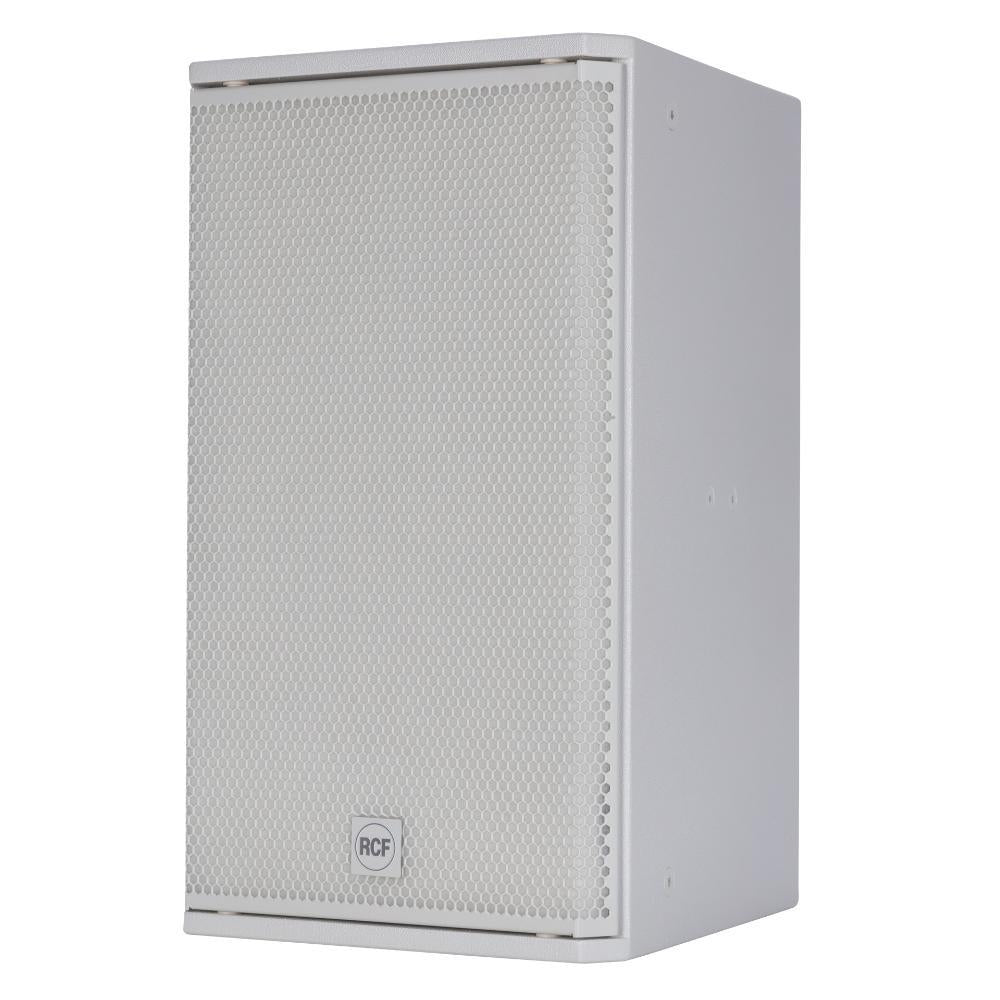

The RCF COMPACT M 12 is a versatile two-way full-range speaker system designed for a wide array of professional applications. With a robust 12" high-power woofer and a 1.4" voice coil compression driver, it delivers 300W RMS power handling and achieves a maximum SPL of 129 dB. The speaker's frequency response spans from 55 Hz to 20,000 Hz, ensuring clear and balanced sound reproduction. Its 90° x 70° constant directivity coverage angle, coupled with a rotatable horn, allows for flexible dispersion tailoring to suit various installation requirements. The high-quality plywood cabinet, complemented by a steel front grille with cloth backing, ensures durability and an elegant aesthetic, making it suitable for environments with architectural considerations. Multiple installation points on the rear, top, and bottom panels, along with a 4-pole EUROBLOCK connector for audio input and parallel link output, facilitate seamless integration into diverse setups.

Features

• 300W RMS power handling​

• 129 dB maximum SPL​

• Frequency range: 55 Hz – 20,000 Hz​

• 90° x 70° constant directivity coverage with rotatable horn​

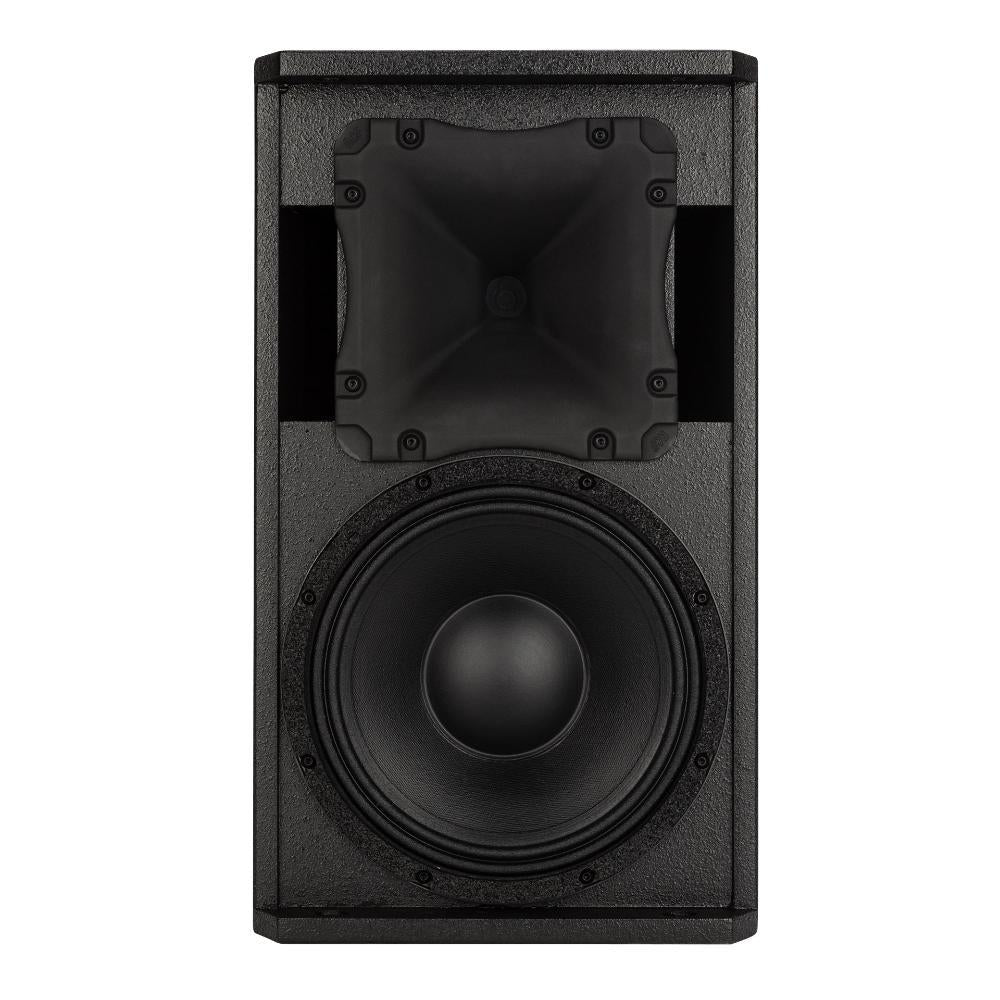

• 12" high-power woofer​

• 1.4" voice coil compression driver​

• Durable plywood cabinet with steel grille​

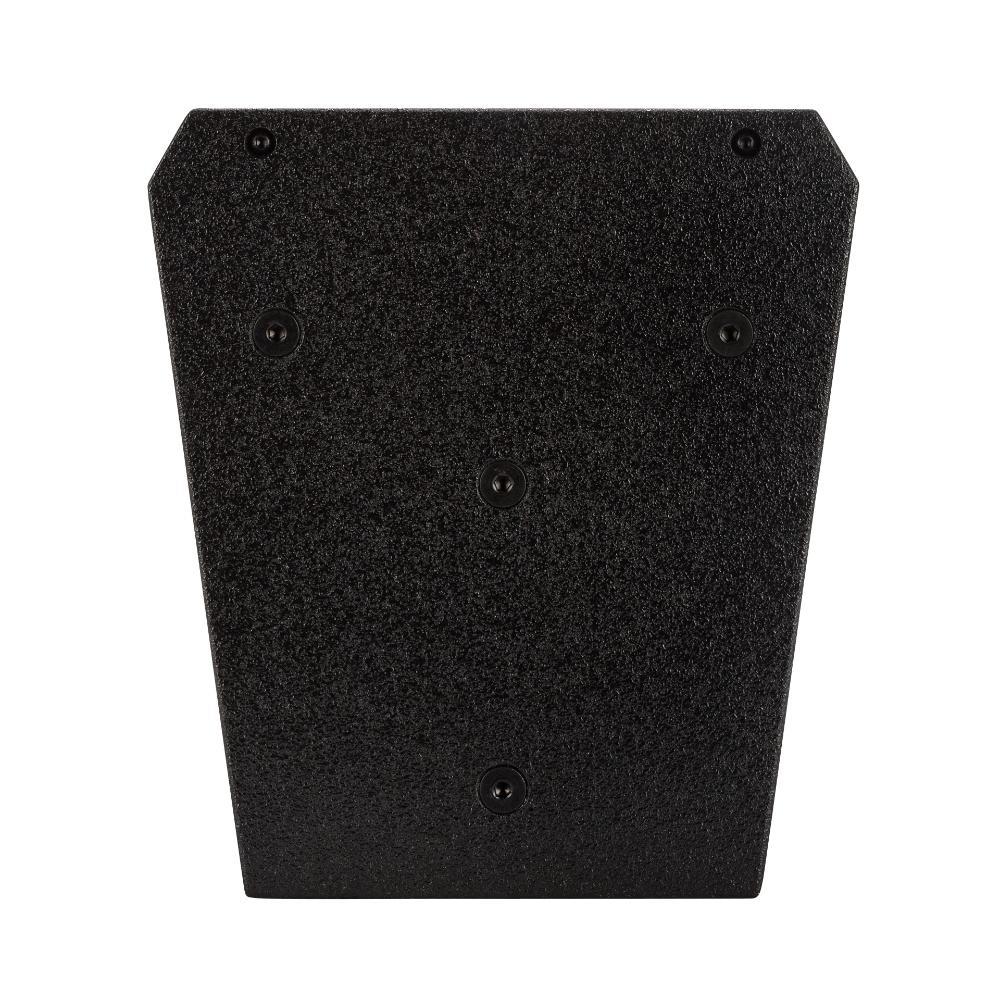

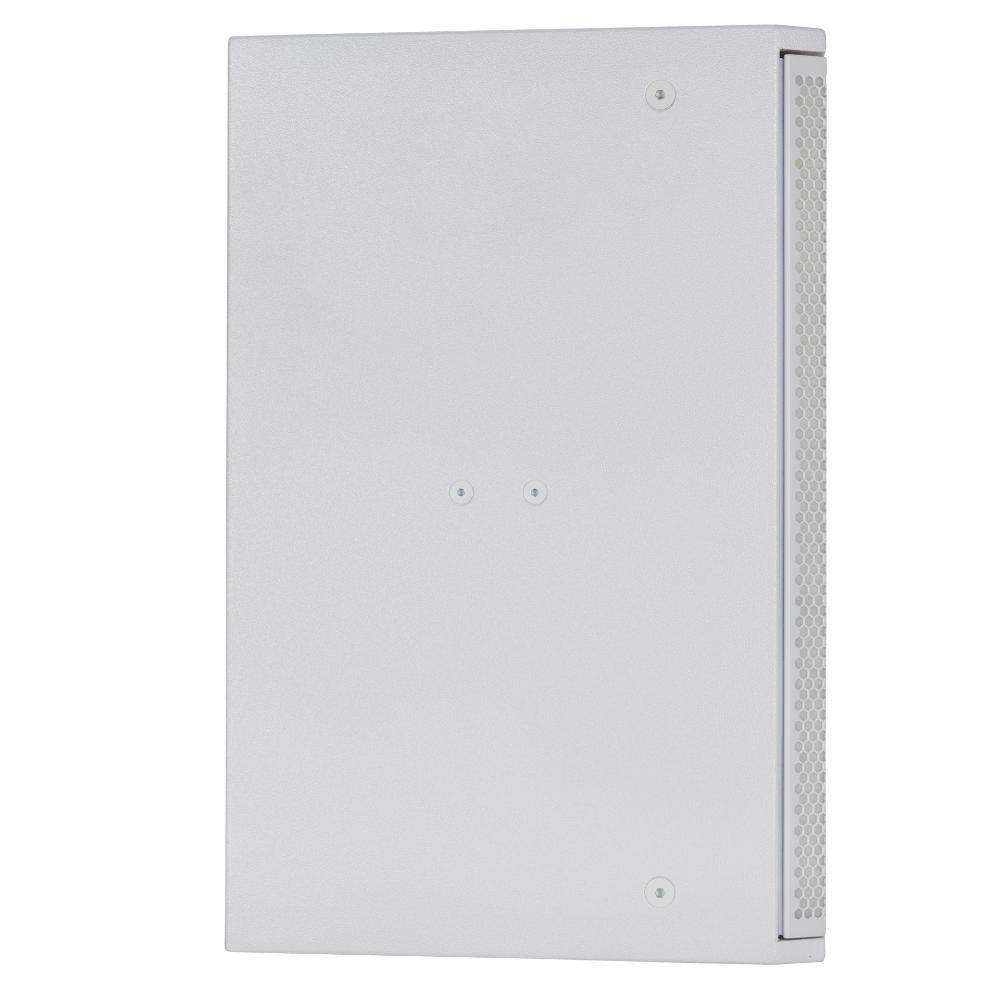

• Installation points on rear, top, and bottom panels​

• 4-pole EUROBLOCK connector for input and parallel output​

Specifications

• Power Handling: 300W RMS​

• Maximum SPL: 129 dB​

• Frequency Response: 55 Hz – 20,000 Hz​

• Coverage Angle: 90° x 70° (rotatable horn)​

• Low-Frequency Transducer: 12" high-power woofer​

• High-Frequency Transducer: 1.4" voice coil compression driver​

• Cabinet Material: High-quality plywood​

• Grille: Steel with cloth backing​

• Connectors: 4-pole EUROBLOCK (audio input and parallel link output)​

• Mounting Options: Installation points on rear, top, and bottom panel

Dimensions:

Height: 620 mm (24.41 inches)
Width: 362 mm (14.25 inches)
Depth: 404 mm (15.91 inches)
Weight: 22 kg (48.5 lbs)
