This bundle includes:

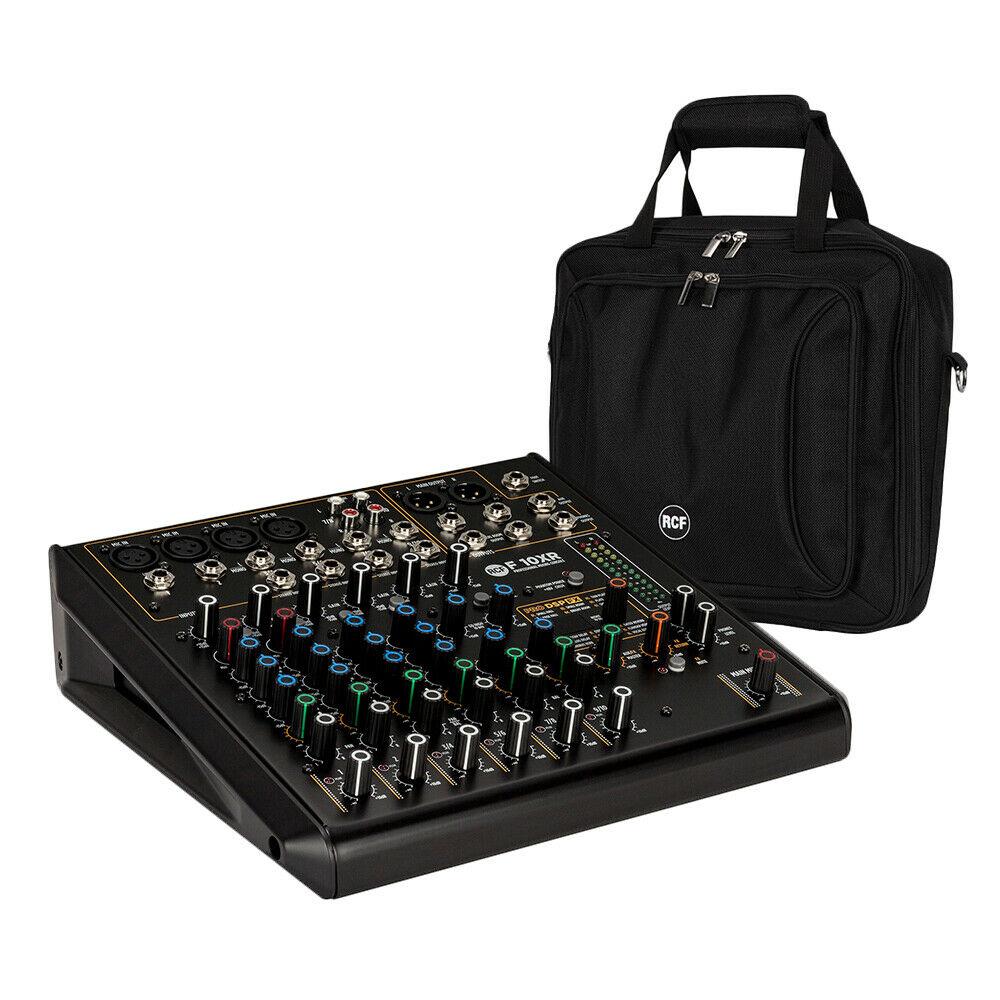

1x RCF F-10XR 10 Channel Mixing Console
1x RCF Carry Case Bag
RCF’s next-generation F Series mixers build on the rich analogue legacy found in the professional E Series, featuring high-quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include a USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
4 Mic preamp inputs, 2 mono line inputs
4 Stereo line inputs
PRO DSP FX onboard with 16 presets
Stereo recording and playback via USB port
2 single control compressors
Balanced main output +28 dB (Stereo XLR + TRS)
1 aux/FX (post)
Sturdy metal chassis
External universal power supply
Designed and engineered in Italy
Specifications
Electronic specifications Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out <0,02
Inputs Mic: 4
Gain Range: 0 dB ÷ -50 dB
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 2
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 15 kohm
Outputs Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Output: 1
Phones: 1
Outputs specifications Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
Compressors RCF Compressors: n° 2 Single Control compressors on
channels 1&2
EQ Input Channels EQ: 2 Shelving / 1 Generic
Description: High:+/-15 dB @ 10 kHz Shelving
Mid:+/-15 dB @ 1,250 kHz Bell
Low:+/-15 dB @ 100 Hz Shelving
Auxiliary sends FX POST: 1
Internal Effects Send Effects: 1
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
USB audio Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0
Other features Footswitch: Yes
Electrical specifications Power supply: External
Voltage requirements: 100 V - 240 V
Power consumption (MAX): 18 W
Standard compliance CE marking: Yes
Physical specifications Cabinet/Case Material: Metal
Colour: Black
Dimensions
82 x 294 x 275 mm
Weight
2.8 kg
RCF Carry Case Bag
Padded duffle bag for mixers RCF F 10XR with handle and shoulder carrying strap. Wide front pocket with separated compartment for tablet computers or other accessories.
Specifications
Matched Mixers F 10XR
CE marking: Yes
Colour: Black
Dimensions
Not specified
Weight
0.6 kg
