This bundle includes:

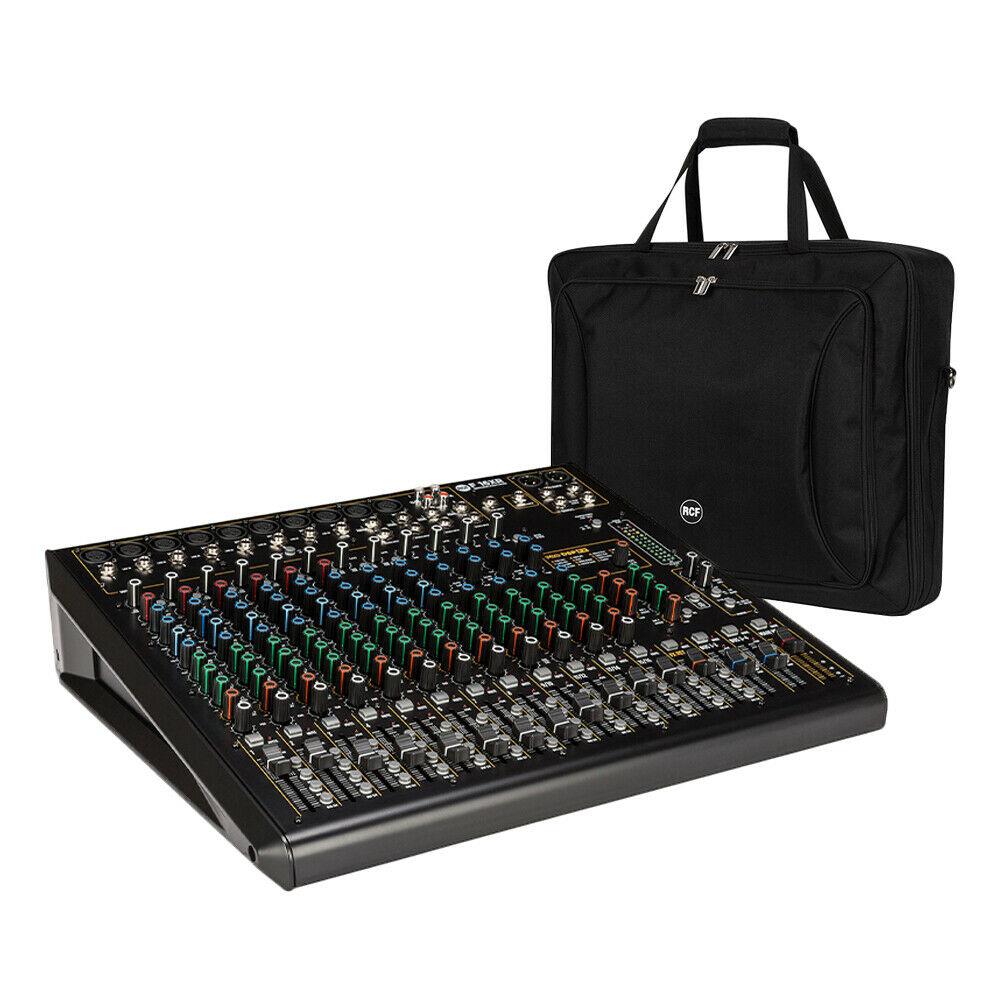

1x RCF F-16XR 12 Channel Mixing Console
1x RCF Carry Case Bag
The F 16XR features 10 mic preamp inputs, 4 mono line inputs, 4 stereo line inputs plus multi-FX and Recording via USB port, with balanced main output (Stereo XLR + TRS) and 6 single control compressors. The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.
10 Mic preamp inputs, 4 mono line inputs
4 Stereo line inputs
PRO DSP FX onboard with 16 presets
Stereo recording and playback via USB port
6 single control compressors
Balanced main output +28 dB (Stereo XLR + TRS)
Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
60 mm faders
Internal universal power supply
Designed and engineered in Italy
Specifications
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out <0,02
Mic: 10
Gain Range: 0 dB ÷ -50 dB
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 8
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
HI-Z Line Inputs: 1
HI-Z Line Inputs Impedance (Mohm): 1 Mohm
Stereo Line: 4
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 14 kohm
Main MIX: 1
Control Room: Yes
FX Send: 1
AUX Send: 3
AUX Output: 4
Group Out: 4
Phones: 1
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Group Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
Phones Out Level: 10 dBm
RCF Compressors: n°6 Single Control Compressors on
Channels 1 to 6
Input Channels EQ: 1 Semi-Parametric / 2 Shelving
Description: High: +/-15 dB @ 10 kHz Shelving
Mid: +/-15 dB @ Freq. sel. from 100Hz to
8kHz - Bell
Low: +/-15 dB @ 100 Hz Shelving
AUX: 2 PRE / 1 PRE/POST
FX POST: 1
Send Effects: 1
Type: B
Play trk: 2
Rec trk: 2
Supported Sample Rate: 44.1, 48.0
Footswitch: Yes
Power supply: Internal
Voltage requirements: 100 V - 240 V
Power consumption (MAX): 30 W
CE marking: Yes
Cabinet/Case Material: Metal
Color: Black
Dimensions
107 x 479 x 406 mm
Weight
6.4 kg
RCF Carry Case Bag
Padded duffle bag for mixers RCF F 16XR with handle and shoulder carrying strap. Wide front pocket with separated compartment for tablet computers or other accessories.
Specifications
Matched Mixers F 16XR
Standard compliance CE marking: Yes
Physical specifications Color: Black
Dimensions
Not specified
Weight
1 kg
