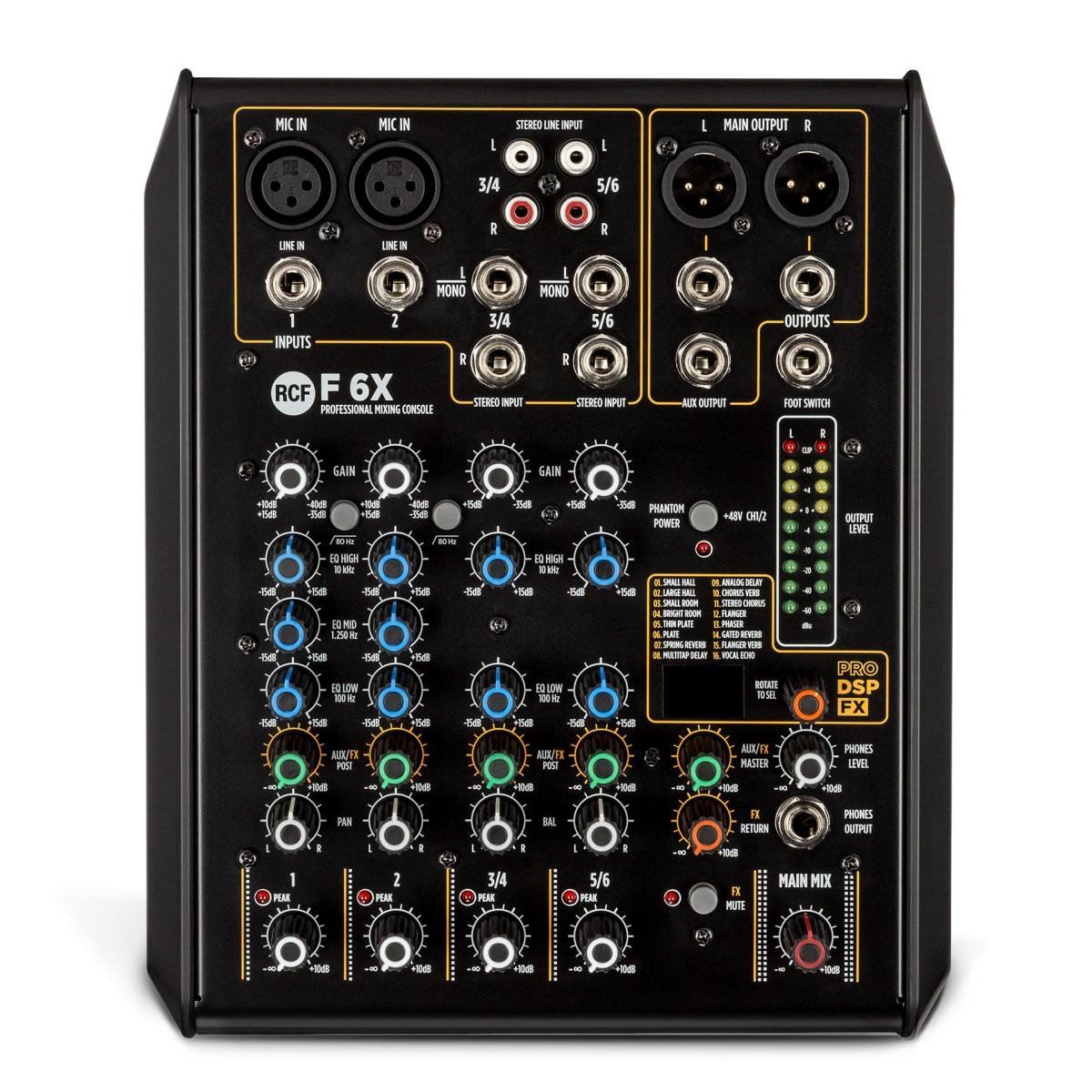

RCF F-6X 6 Channel Mixing Console Recording Karaoke Multi FX Mixing Desk

RCF’s next-generation F Series mixers build on the rich analogue legacy found in the professional E Series, featuring high-quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include a USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.

2 Mic/Line inputs
2 stereo line inputs
One Aux/FX (post)
Balanced main output audio path from input to output
16 presets PRO DSP internal FX
Sturdy metal chassis
External universal power supply
Designed and engineered in Italy

Specifications
Frequency Response: 20 Hz ÷ 20 kHz
THD+N, 20dB gain, 0dBu out <0,02
Mic: 2
Gain Range: 0 dB ÷ -50 dB
Mic Inputs Impedance: 14 kohm
Low Cut: 80 Hz
Phantom Power +48V: Yes
Mono Line: 2
Gain Selection: 20 dB ÷ -30 dB
Line Input Impedance: 21 kohm
Stereo Line: 2
Gain Selection: 20 dB ÷ -30 dB
Stereo Line Input Impedance (kOhm) 15 kohm
Main MIX: 1
FX Send: 1
AUX Output: 1
Phones: 1
Main Out Level: 28 dBu
Aux Out Level: 28 dBu
Phones Out impedance (ohm): 150 ohm
Input Channels EQ: 2 Shelving / 1 Generic
Description: High:+/-15 dB @ 10 kHz Shelving,
Mid:+/-15 dB @ 1,250 kHz, Bell
Low:+/-15 dB @ 100 Hz Shelving.
FX POST: 1
Send Effects: 1
Footswitch: Yes
DATASHEET
RCF products are continually improved. All specifications are therefore subject to change without notice.
Power supply: External
Voltage requirements: 100 V - 240 V
Power consumption (MAX): 12 W
CE marking: Yes
Cabinet/Case Material: Metal
Colour: Black

Dimensions
79 x 210 x 255 mm

Weight
1.8 kg
