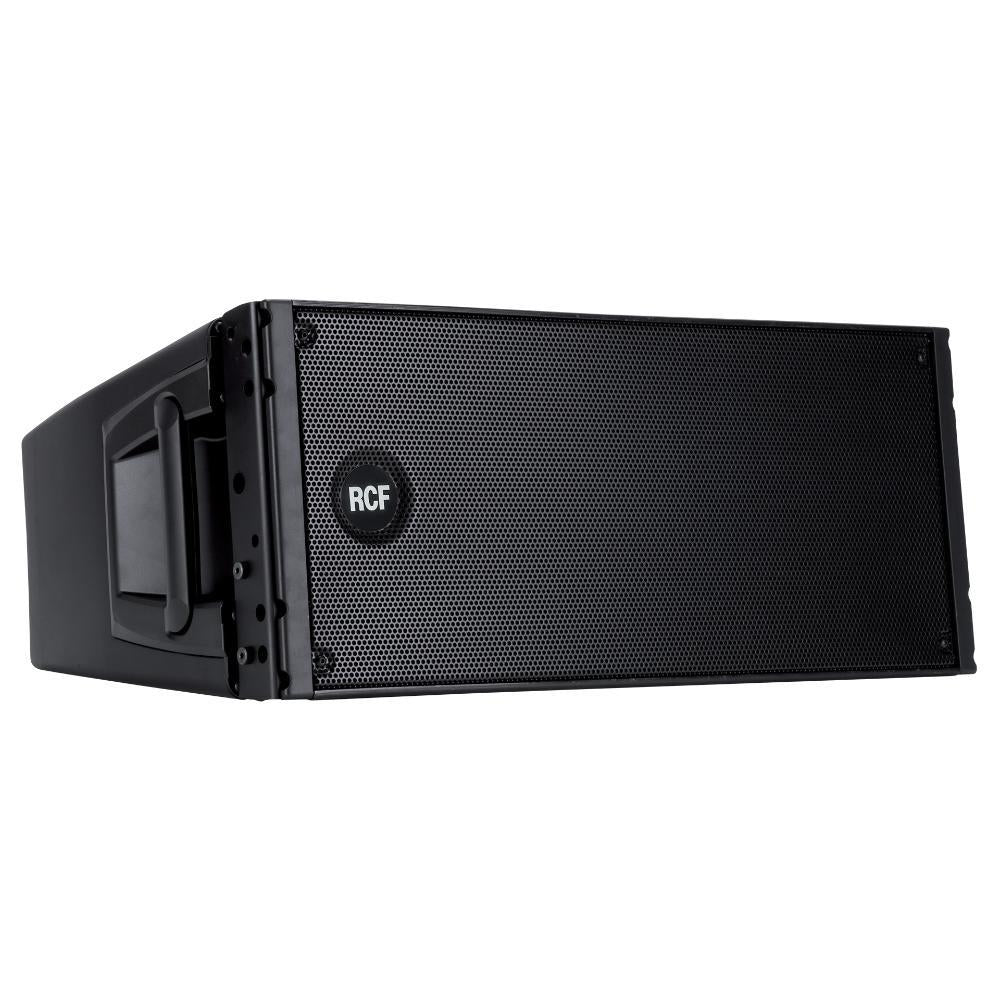

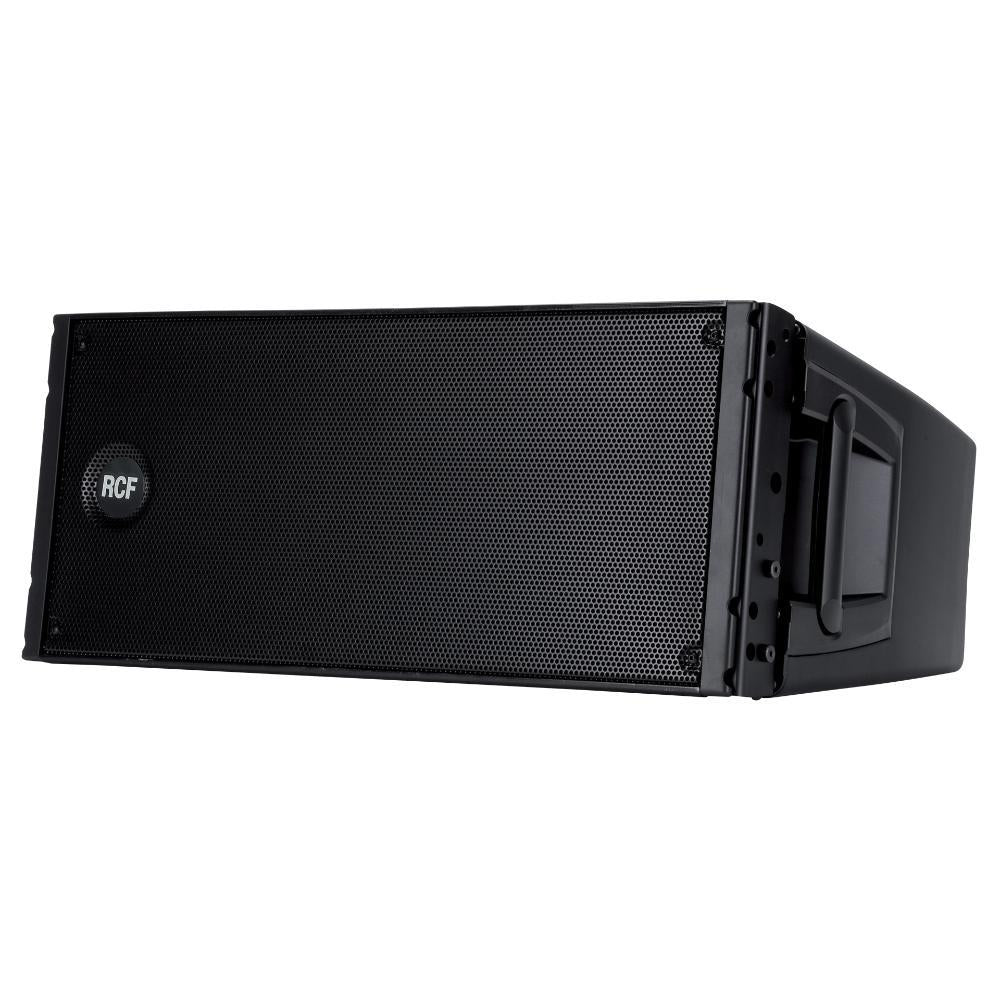

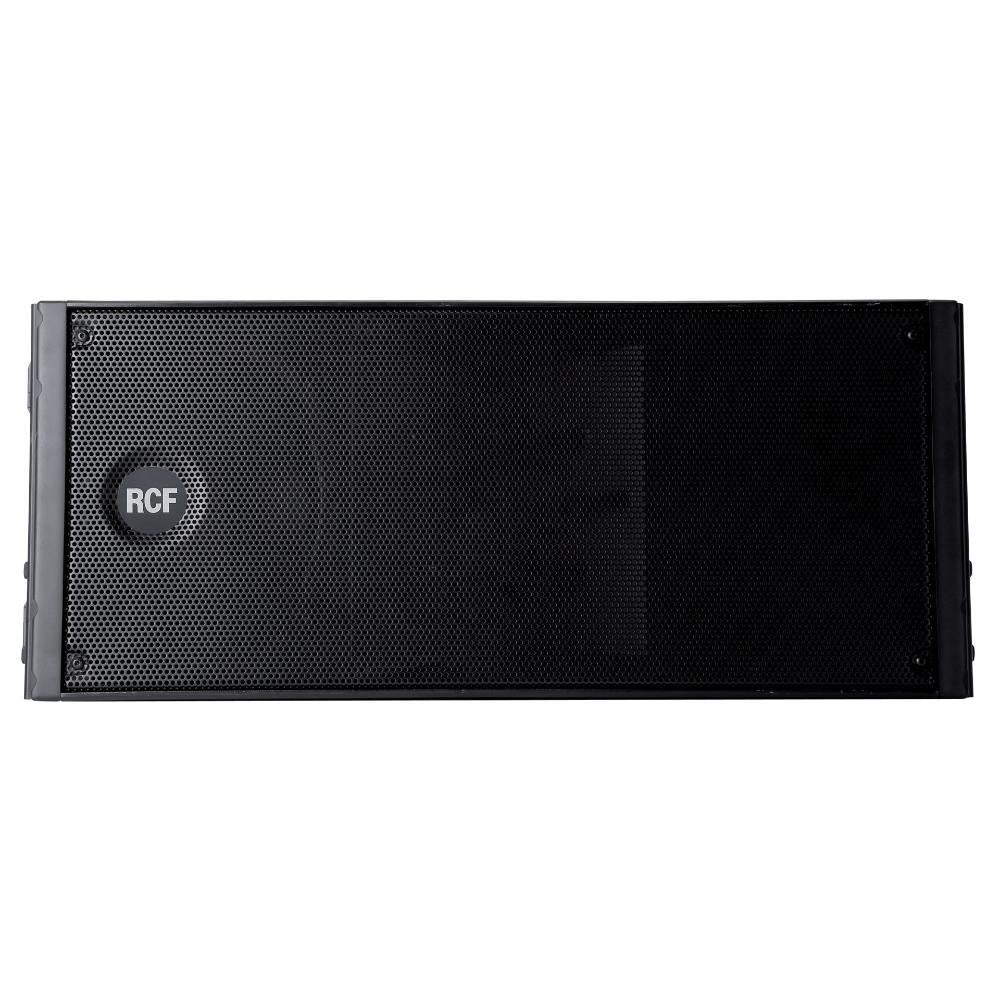

RCF HDL 20-A Active Line Array Speaker 1400W

The RCF HDL 20-A is a high-powered active line array module designed for demanding live sound reinforcement and fixed installations. Featuring 1400 watts of peak power and a max SPL of 135 dB, this compact yet powerful system is built around two precision 10" woofers and a large-format 3" voice coil compression driver for exceptional vocal clarity and full-range performance. Advanced DSP with selectable presets and HF projection correction ensures optimal sound in every environment. Housed in a rugged composite cabinet with integrated rigging hardware, the HDL 20-A offers the perfect balance of sound quality, durability, and fast deployment—making it the go-to choice for touring professionals.

Features
1400 W peak power (700 W RMS) 2-way digital amplifier
Max SPL of 135 dB for high-impact sound projection
55 Hz to 20 kHz frequency response for full-range clarity

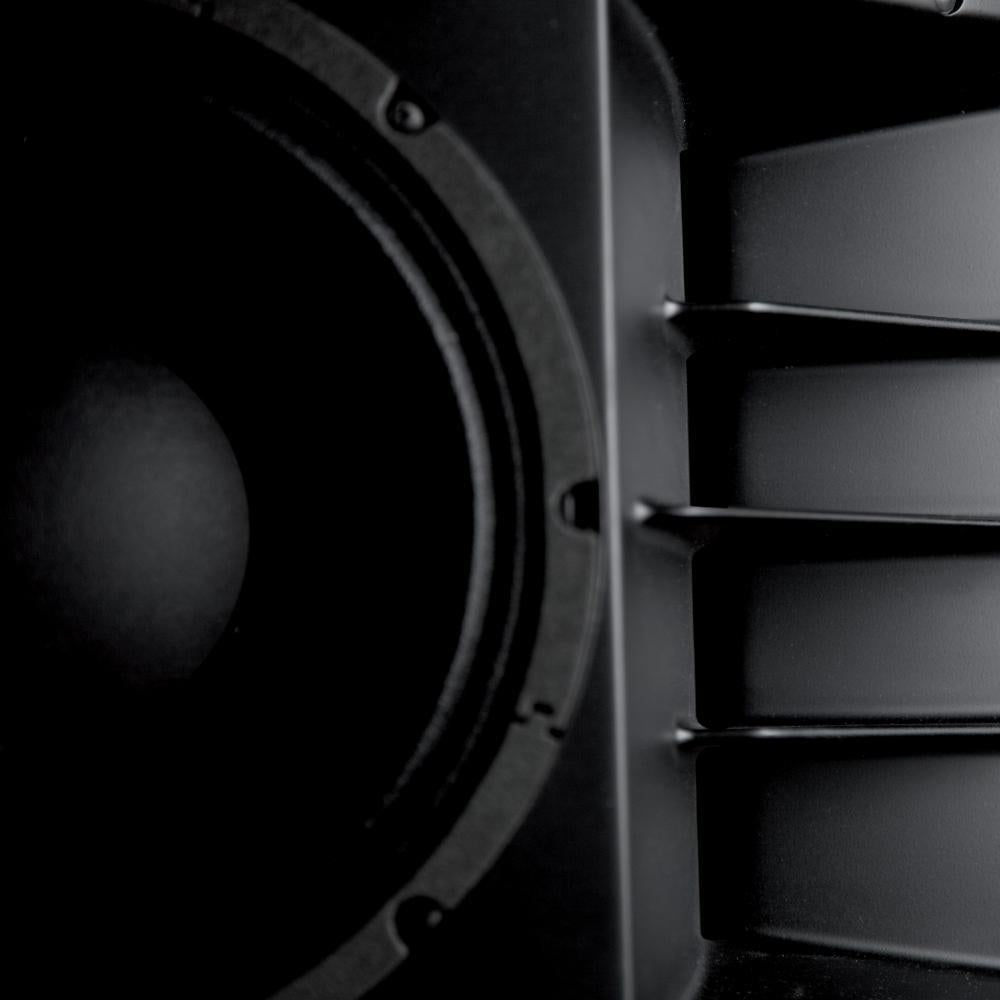

Dual 10" RCF woofers for powerful and defined low-end
Large-format 3" compression driver for high-frequency precision
DSP-controlled input section with selectable presets for various applications
Indoor and high-curving preset modes, cluster correction, and HF projection tuning

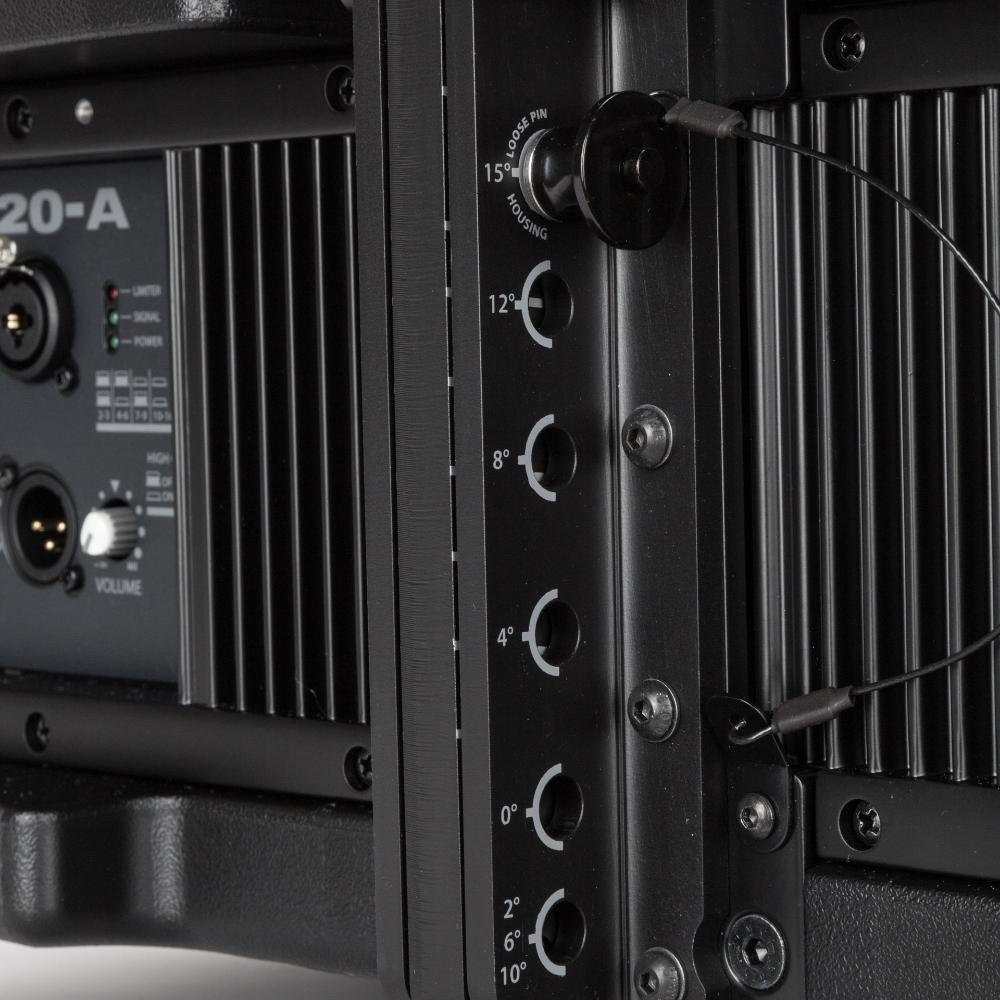

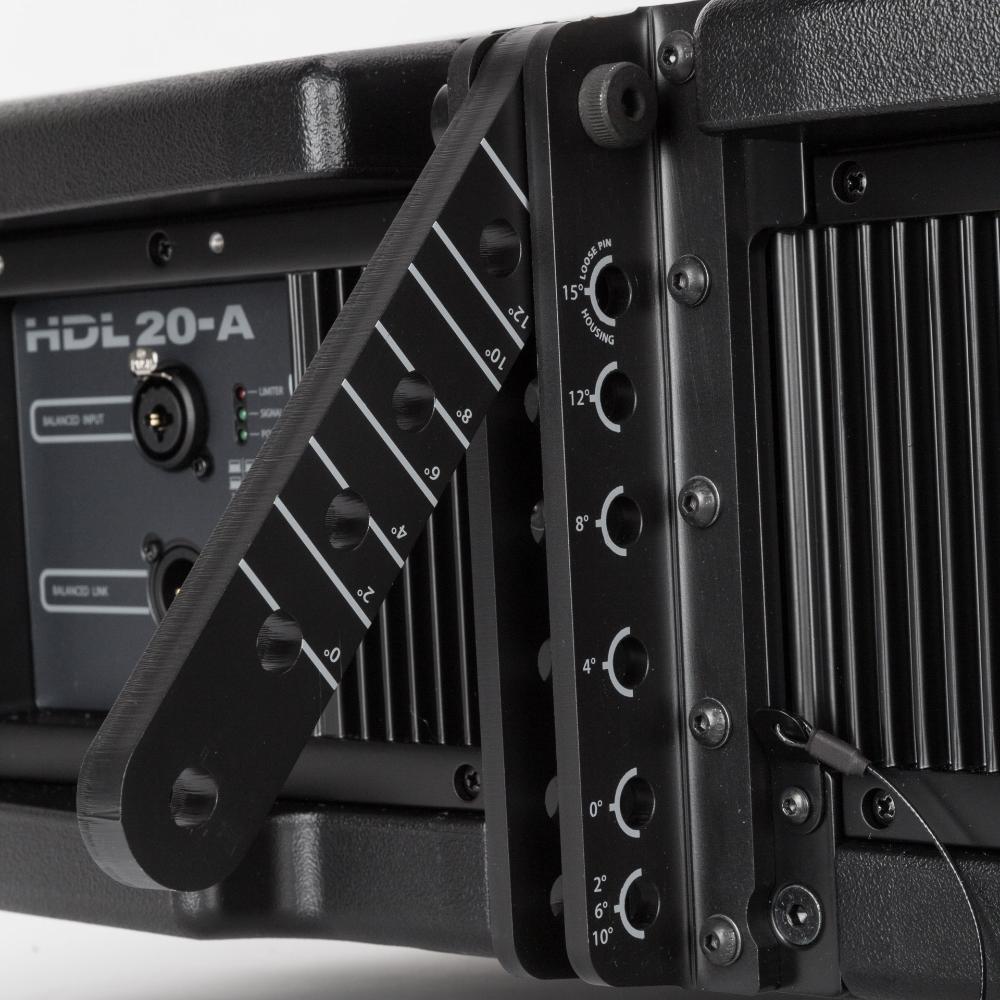

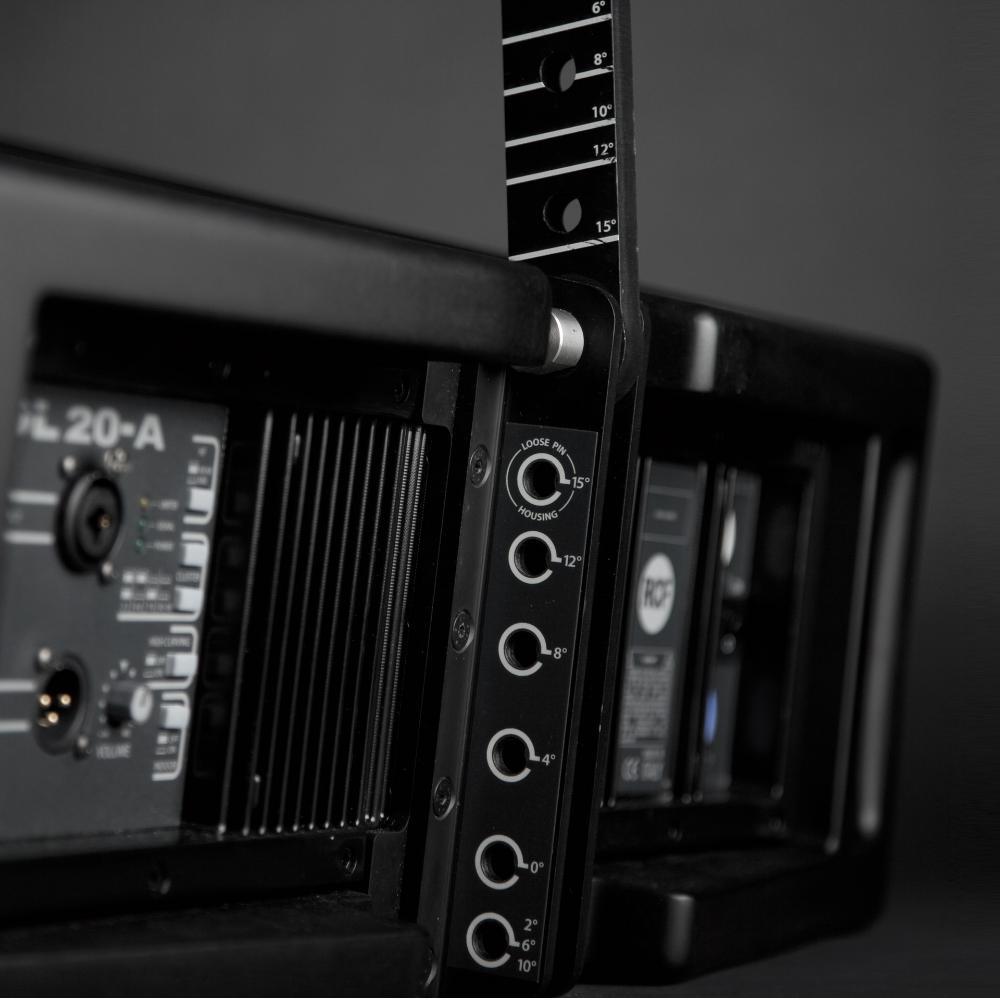

Tour-grade variable rigging hardware for flexible flying configurations
Reinforced PP composite enclosure with steel grille
PowerCON in/out connectors for reliable power linking
Ideal for both live sound touring and installed applications
Perfect match with HDL 18-AS flyable subwoofer for extended low-end

Specifications
Total Power: 1400 W Peak / 700 W RMS
– High Frequencies: 400 W Peak / 200 W RMS
– Low Frequencies: 1000 W Peak / 500 W RMS
Frequency Response: 55 Hz – 20,000 Hz
Max SPL @ 1m: 135 dB
Horizontal Coverage Angle: 100°
Vertical Coverage Angle: 15°
Amplifier Type: 2-Way Digital
DSP: Advanced processing with presets for various array configurations
Cooling: Convection

Transducers
– LF: 2 x 10" Woofer
– HF: 1 x 3" Compression Driver

Cabinet & Hardware
Cabinet Material: Composite PP, Structurally Reinforced
Grille: Steel
Color: Black

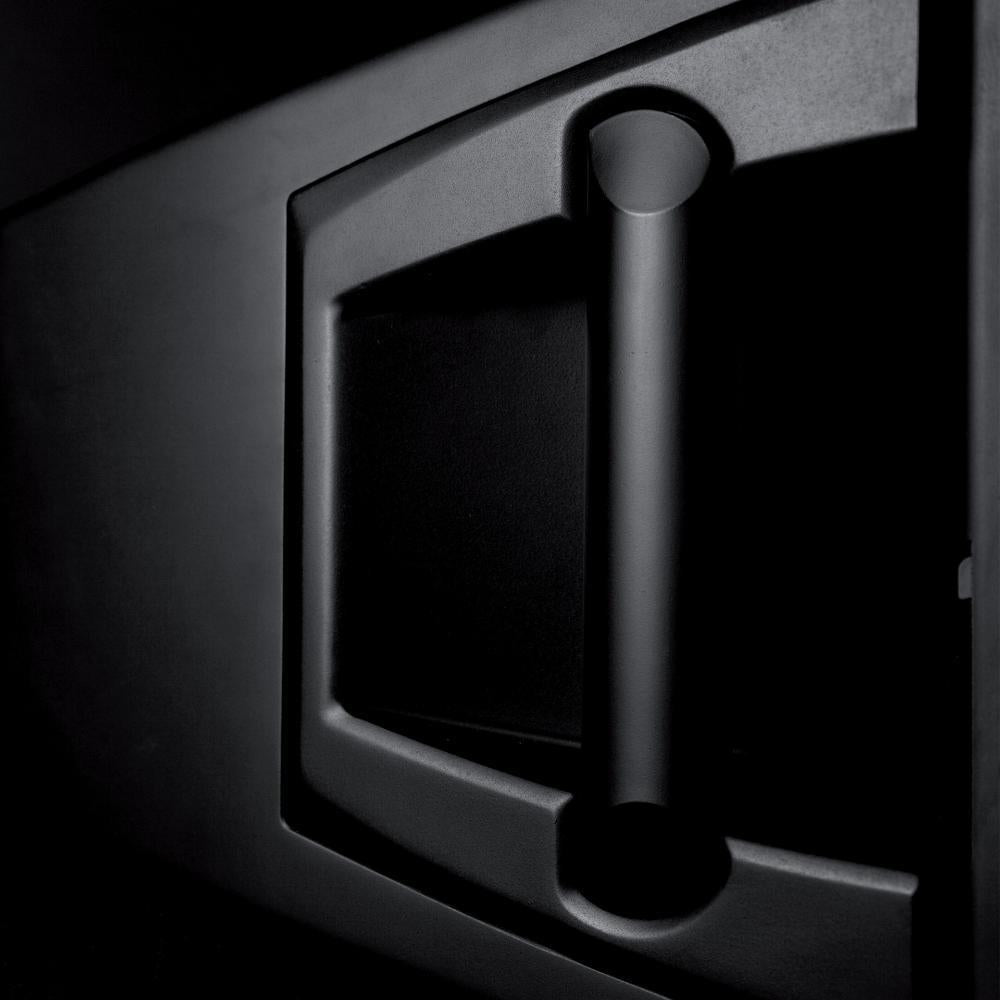

Handles: 2 Side, 2 Back
Rigging: Integrated Flyware

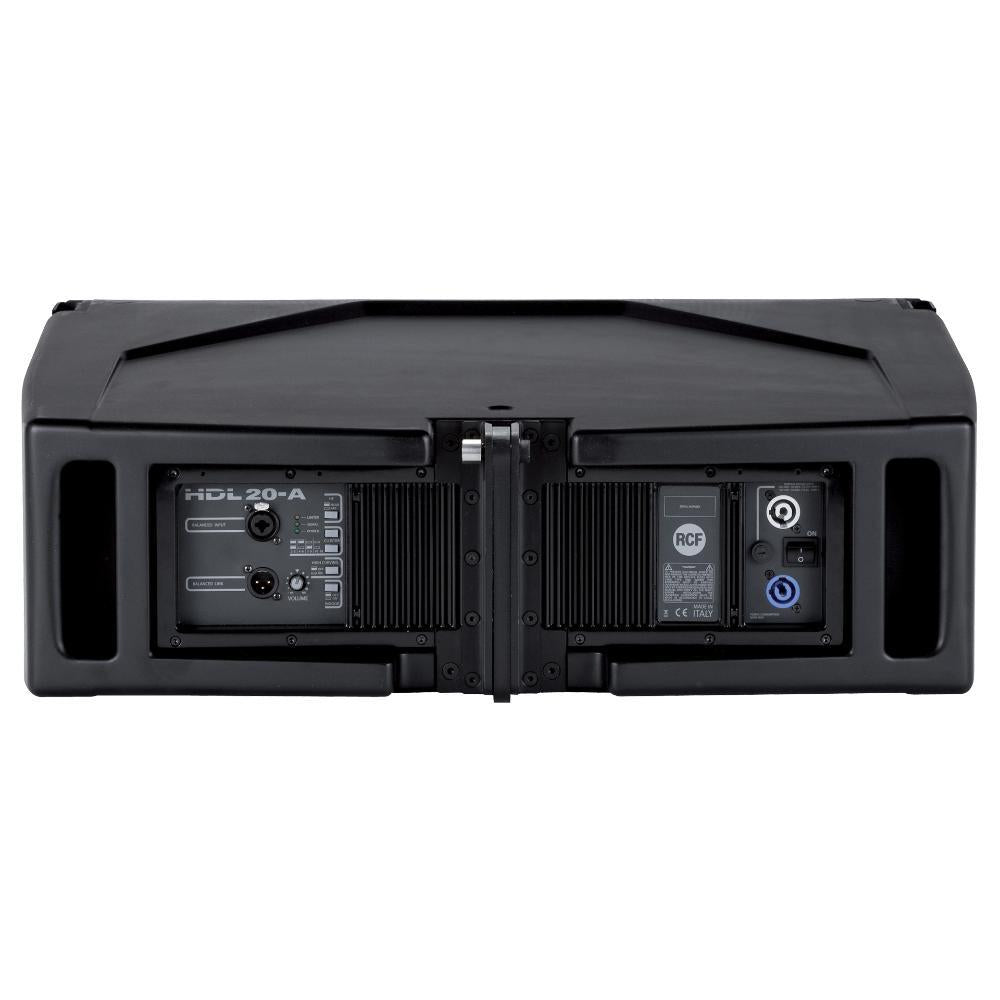

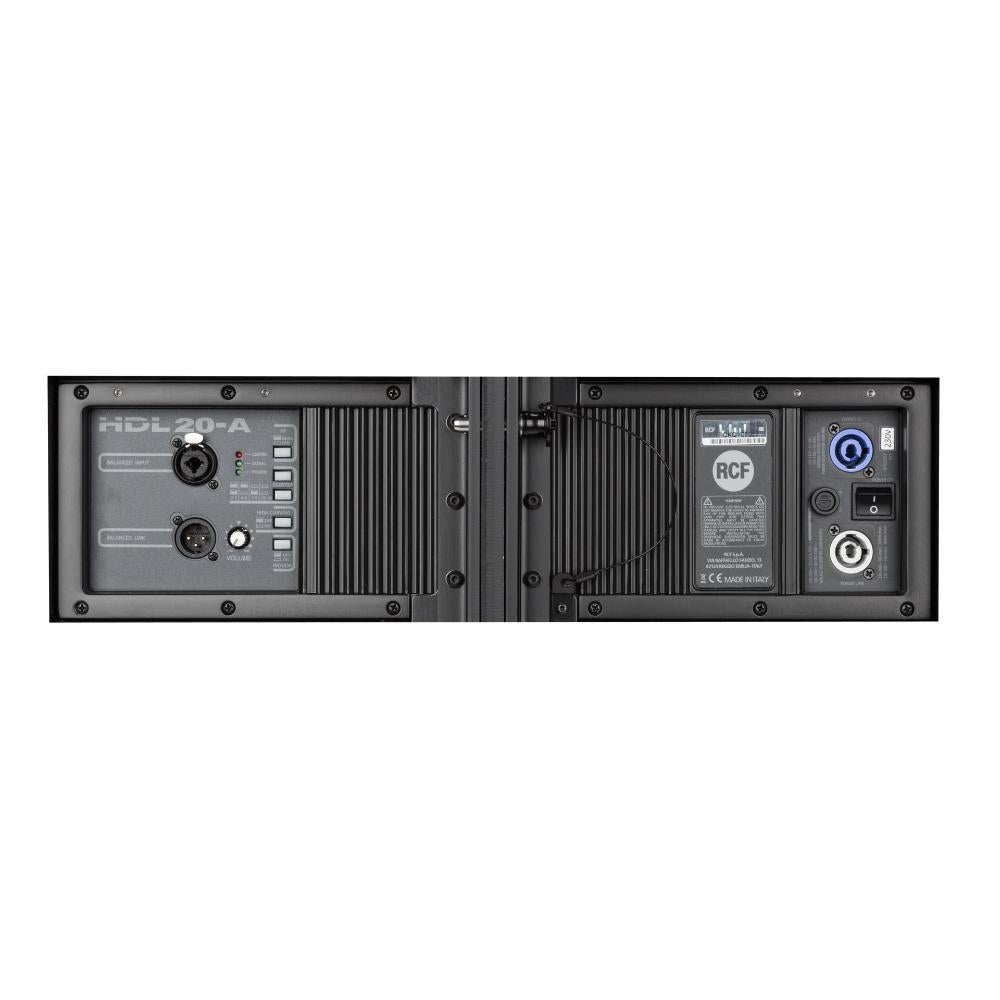

Connections
Power: PowerCON IN/OUT
Audio Input: XLR

Dimensions & Weight
Height: 294 mm / 11.57 in
Width: 705 mm / 27.76 in
Depth: 445 mm / 17.52 in
Weight: 30.2 kg / 66.58 lbs
