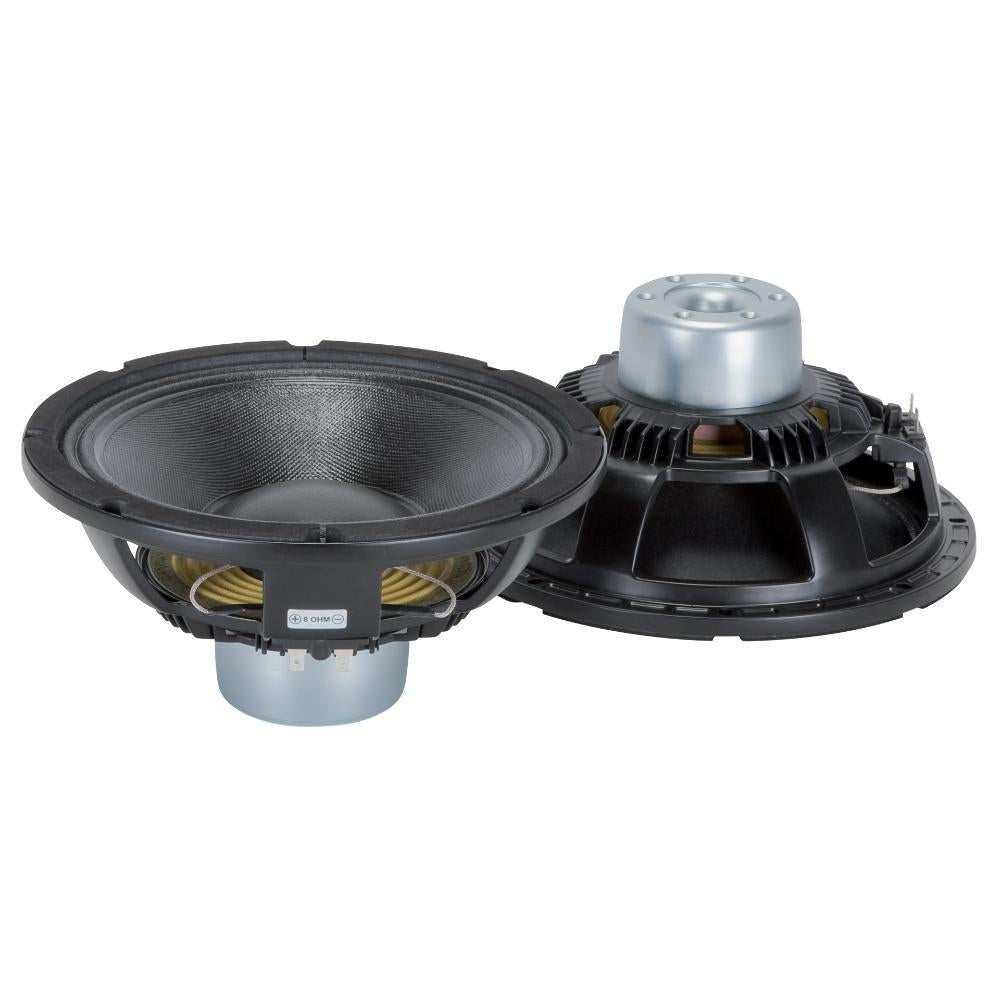

RCF MB10N251 10" 300W 8 ohm Neodymium Mid-Bass Speaker Driver

The RCF MB10N251 is a lightweight, high-efficiency 10" neodymium mid-bass speaker designed for professional sound systems where linearity, precision, and durability are key. Delivering 600W program power with 97 dB sensitivity, it features a 2.5" aluminum voice coil on a fiberglass former for excellent thermal and mechanical performance. With a wide frequency range of 50 Hz to 3.5 kHz, the MB10N251 is ideal for compact, full-range enclosures or mid-bass applications. Forced air ventilation, an M-roll polycotton surround, and exponential cone geometry ensure precise low-frequency reproduction and extended reliability under heavy use.

Features
2.5" aluminum voice coil on fiberglass former for efficient power handling
600W program / 300W AES continuous power handling
97 dB sensitivity for strong acoustic output
50 Hz – 3.5 kHz frequency range for broad mid-bass coverage
Neodymium magnet and aluminum basket for reduced weight and increased thermal dissipation
M-roll surround and exponential cone geometry for smooth excursion and low distortion
Forced air ventilation to reduce power compression during long performances
Curved cone design for accurate low-frequency reproduction
CE compliant for professional use

Specifications
Nominal Diameter: 10" / 254 mm
Rated Impedance: 8 Ohm
Program Power: 600 W
AES Power Handling: 300 W
Sensitivity: 97 dB
Frequency Range: 50 – 3500 Hz
Minimum Impedance: 6.4 Ohm
Effective Piston Diameter: 210 mm / 8.27 in
Max Excursion Before Damage: 40 mm / 1.57 in

Voice Coil
– Diameter: 2.5" / 63 mm
– Length: 14 mm / 0.55 in
– Material: Aluminum
– Former: Fiberglass
– Layers: 1 (Outside Winding)

Mechanical Design
– Magnet Type: Neodymium
– Basket Material: Aluminum
– Surround Material: Polycotton
– Surround Design: M-roll
– Cone Design: Curved
– Top Plate Thickness: 9 mm / 0.35 in
– Ventilation: Forced Air
– Spider: Single

Compliance
Standard: CE Compliant
Color: Black

Size & Weight
Height: 123 mm / 4.84 in
Diameter: 260 mm / 10.24 in
Weight: 2.5 kg / 5.51 lbs
