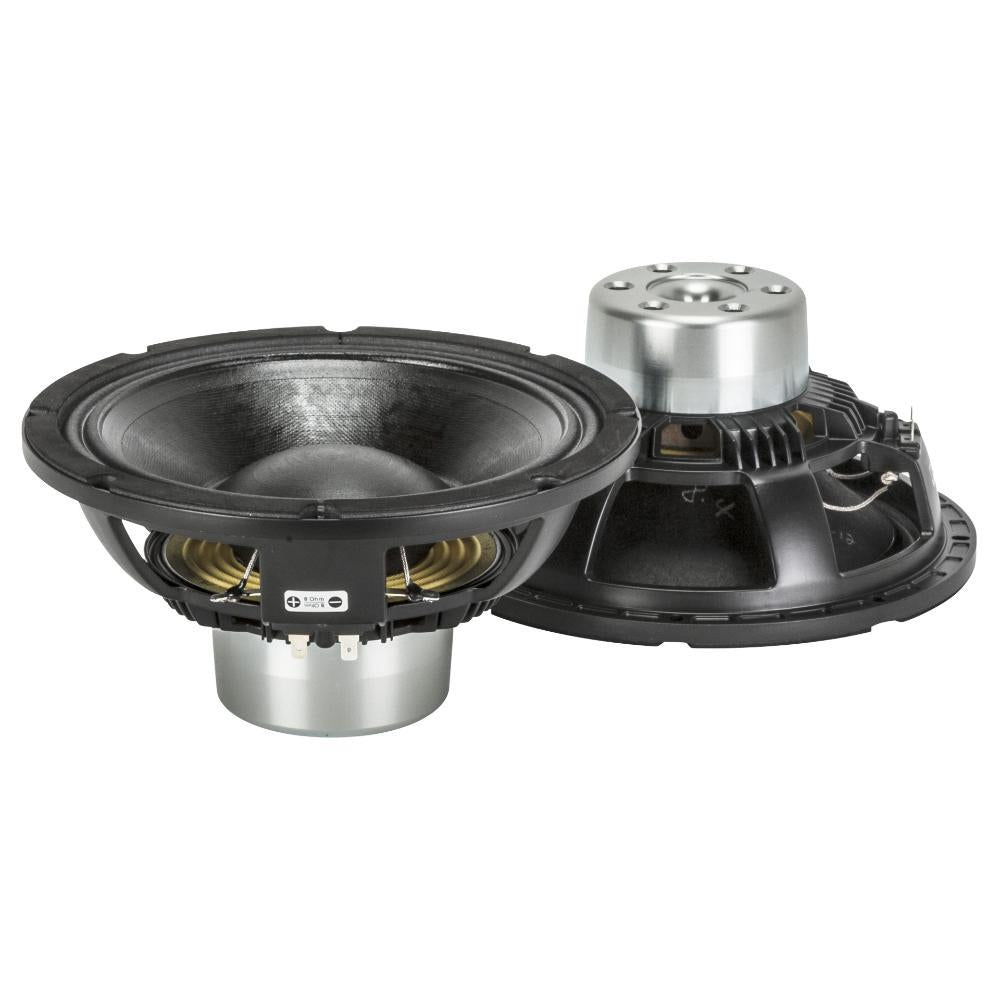

RCF MB10N305 10" Mid-Bass Speaker Driver 1000W Neodymium Magnet

The RCF MB10N305 is a high-output, hypervented 10" mid-bass speaker designed for applications requiring exceptional linearity, sensitivity, and power handling. Built with a 3-inch fiberglass inside/outside aluminum voice coil and a precision-engineered neodymium magnet assembly, the MB10N305 delivers 1000W program power while maintaining low distortion and minimal power compression. Its lightweight structure, M-roll polycotton surround, and exponential cone geometry offer smooth, controlled performance from 55 Hz up to 3.5 kHz, making it ideal for compact, high-performance sound reinforcement systems.

Features
3" fiberglass inside/outside aluminum voice coil for reliable thermal performance
1000W continuous program power / 500W AES power handling
97.5 dB sensitivity for efficient output in mid-bass applications
Wide frequency range from 55 Hz to 3.5 kHz
Hypervented neodymium magnet system for excellent heat dissipation
Dual-forced air ventilation for reduced power compression
Lightweight aluminum basket with optimized airflow design
Curved cone and M-roll polycotton surround for smooth excursion and accurate response
CE compliant for professional use

Specifications
Nominal Diameter: 10" / 254 mm
Rated Impedance: 8 Ohm
Program Power: 1000 W
AES Power Handling: 500 W
Sensitivity: 97.5 dB
Frequency Range: 55 – 3500 Hz
Minimum Impedance: 6.9 Ohm
Effective Piston Diameter: 210 mm / 8.27 in
Max Excursion Before Damage: 34 mm / 1.34 in

Voice Coil
– Diameter: 3.0" / 76 mm
– Length: 14 mm / 0.55 in
– Material: Aluminum
– Layers: 1 (Inside/Outside Winding)
– Former: Fiberglass

Mechanical Design
– Magnet Type: Neodymium
– Hypervented Magnetic Structure: Yes
– Ventilation: Dual Forced Air
– Surround Material: Polycotton
– Surround Design: M-roll
– Cone Design: Curved
– Top Plate Thickness: 10 mm / 0.39 in
– Spider: Single

Mounting Information
Overall Diameter: 260 mm / 10.24 in
Bolt Circle Diameter: 241–246 mm / 9.49–9.69 in
Bolt Hole Diameter: 6 mm / 0.24 in
Front/Rear Mount Baffle Cut-Out: 234 mm / 9.21 in
Volume Occupied by Driver: 1.4 liters / 0.06 ft³

Compliance
Standard: CE Compliant

Size & Weight
Height: 126 mm / 4.96 in
Diameter: 260 mm / 10.24 in
Weight: 3.2 kg / 7.05 lbs
