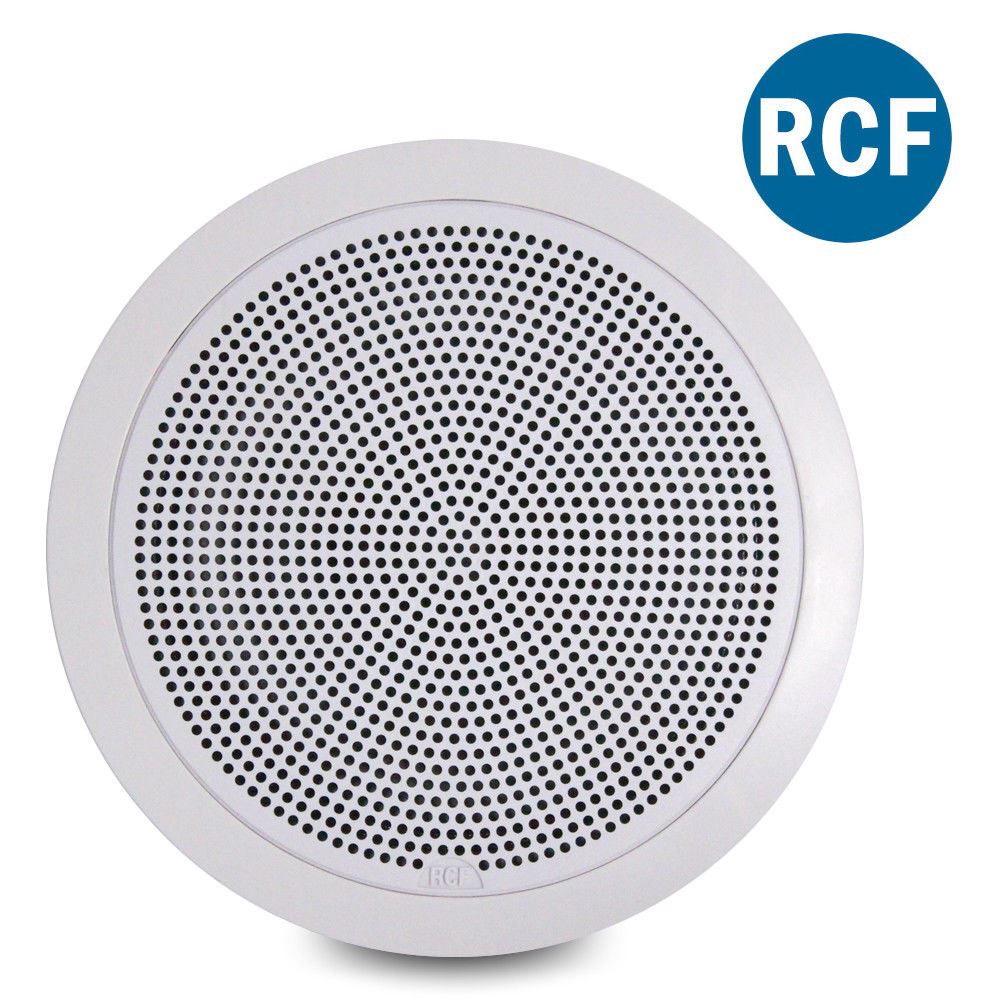

RCF 6W 100V Dual Cone Professional Ceiling Speaker (White)

PL 50 is a flush-mount ceiling 6” (dual-cone) loudspeaker. It has an internal transformer that allows direct connection to 100 V constant voltage lines. The transformer has 2 inputs for power tapping: 6 – 3 W. The false-ceiling installation is made through its 2 spring clamps without using tools and other additional attachment components.

For paging and background music
Music power / RMS: 6 / 3 W
6" dual cone wide-band loudspeaker
Sound pressure level at music power: 90 dB/1 m
100V
Built-in multi-tapped transformer for 100 constant voltage connection
Body in self-extinguishing plastic UL-94-H-B
Front plastic grille

Specifications

Acoustical
Frequency Response (-10dB): 100 Hz ÷ 20000 Hz
Max SPL @ 1m: 98 dB
Coverage angle: 150°
System Sensitivity: 90 dB

Power
Power Handling: 6 W RMS
Peak Power Handling: 24 W PEAK
Recommended Amplifier: 12 W
Transducers Full range: 6.0''

Input/Output
Input connectors: Screw Terminals
Output connectors: Screw Terminals
Constant Voltage Transformer: 100 V
Power selection 1 (100 V): 6 W - 1667 ohm
Power selection 2 (100 V): 3 W - 3333 ohm

Standard Compliance
CE marking: Yes

Physical
Cabinet/Case Material: Plastic
Hardware: Metal
Grille: Plastic
Colour: White

Dimensions
80 x 200 x 200 mm

Weight
0.6 kg
