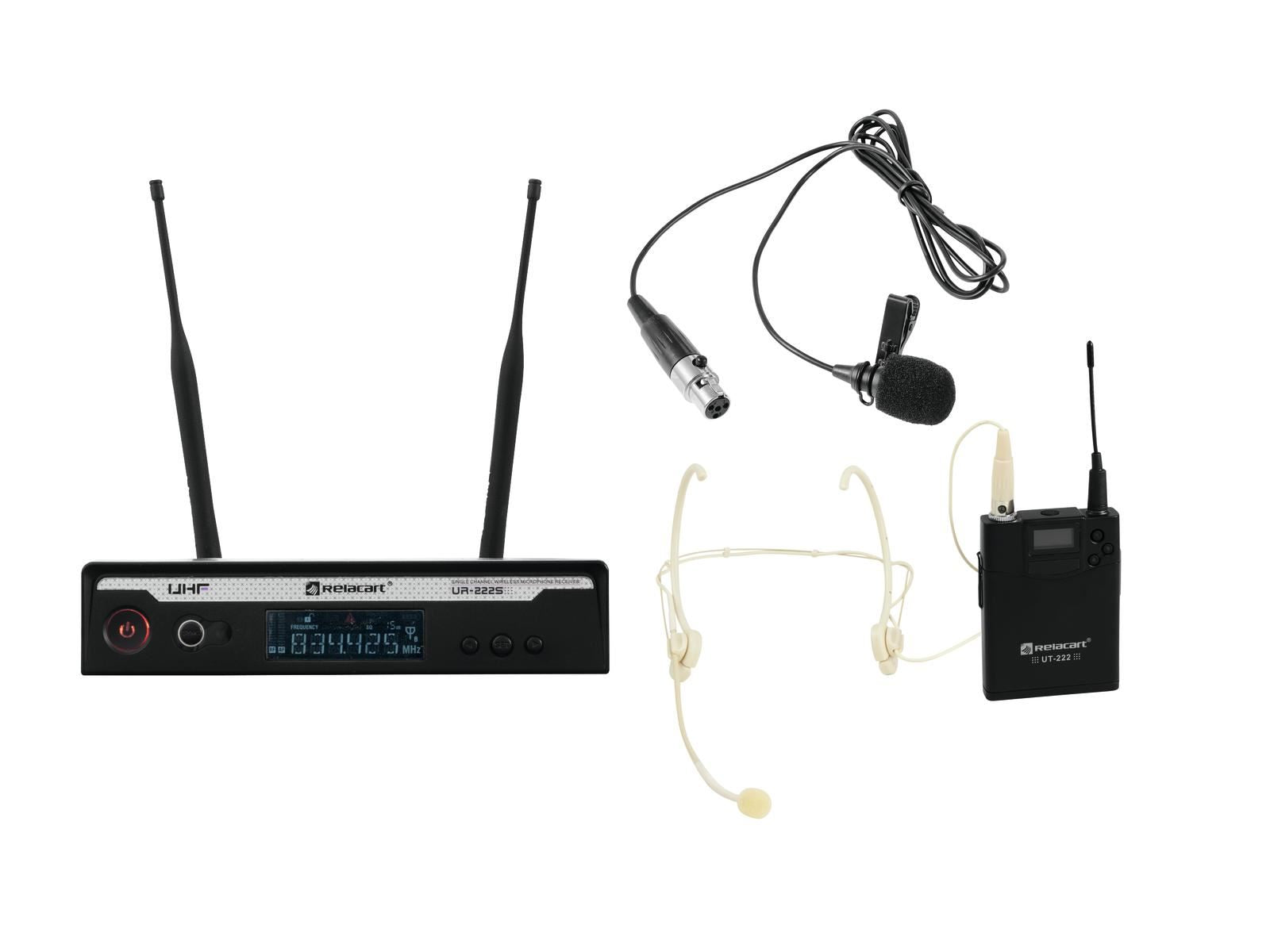

RELACART Set UR-222S Bodypack with Headset and Lavalier

RELACART UR-222S 1-Channel UHF Receiver

Multifrequency wireless receiver, True Diversity

• Multifrequency wireless receiver with high-quality true diversity reception
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free operation
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching hand-held microphone and pocket transmitter optionally available
• Delivery includes practical transport bag with jack cable and power adapter
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Use a operating range up to 80m
• Desktop console housing 1 U (19") 48.3 cm rack installation (provided)

RELACART UT-222 Bodypack with HM-800S Headset

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

• Pocket transmitter for receivers UR-222S/D and UR-260D
• Durable aluminum alloy housing, applicable for touring
• Incl. headset microphone HM-800S
• Lavalier microphone optional
• Pilot tone technology (PLL) for interference-free operation
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• OLED for battery status, frequency, channel and group
• Mute mode
• Adjustable input gain
• RF output power Hi/Low adjustable
• Lock function for prevents undesired changes to settings
• Long battery life for up to 11 hours continuous operation
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

transmitter

• Use a operating range up to 80m

Microphone

• Polar pattern: Omnidirectional

RELACART LM-C420 Lavalier unidirectional

Inconspicuous electret lavalier microphone

• For attaching to the user's tie, shirt or collar
• Provides high-quality voice pickup for public speaking, theater, or business presentations
• Connection via 4-pin mini XLR plug
• Delivery includes foam windscreen
• Polar pattern: Cardioid
• Weight: 2,17 kg
• RELACART UR-222S 1-Channel UHF Receiver
• Type: Receiver
• Power supply: 100-240 V AC, 50/60 Hz
• 12 V DC 1 A
• Power consumption: 2,6 W
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• Number of channels: 1
• Frequency range: 45 - 18000 Hz
• S/N ratio: >105 dB
• Connections: Antenna via 2 x BNC (F) 8 V
• Output: Microphone via 1 x 3-pin XLR
• Output: Microphone via 1 x 6.3 mm plug (unbal.)
• Frequency band: UHF 863 - 865 MHz UHF 823 - 832 MHz
• Frequency selection: 90 Switchable frequencys
• In 10 groups with up to 10 preset frequencies each
• Modulation: FM
• Frequency stability: ± 0,0005 %
• Range: 80 m
• Switching bandwidth: 11 MHz
• Switch: On/off switch
• Diversity: Antenna diversity
• Material: Metal
• Housing design: Desktop console housing 1 U
• (19") 48.3 cm rack installation (provided)
• Dimensions: Width: 20 cm
• Depth: 26 cm
• Height: 4,6 cm
• Weight: 1,95 kg
• RELACART UT-222 Bodypack with HM-800S Headset
• Transmitter
• Type: Bodypack with microphone
• Power supply: 3 V DC
• Power connection: Battery/battery pack
• Battery: 2 x Mignon (AA) (not included)
• Gain: -12 dB to +0 dB
• Display type: OLED display
• Connections: Output: Mini XLR (M) 4-pin mounting version
• Frequency band: UHF 823 - 832 MHz UHF 863 - 865 MHz
• Frequency selection: 90 Switchable frequencys
• In 10 groups with up to 10 preset frequencies each
• Modulation: FM
• RF power output: 10 mW (LO) 40 mW (HI)
• Range: 80 m
• Switching bandwidth: 11 MHz
• Switch: On/off/mute switch
• Material: Aluminum
• Color: Black
• Dimensions: Width: 6,6 cm
• Depth: 2,3 cm
• Height: 8,4 cm
• Weight: 190 g
• Microphone
• Type: Headset
• Power supply: 2-10 V DC
• Cable length: 1,2 m
• Capsule type: Condenser
• Size: Ø 5 mm x 6 mm
• Polar pattern: Omnidirectional
• Frequency range: 50 - 20000 Hz
• Sensitivity: -47 dB
• Impedance: 1800 Ohm
• Connector type: Mini XLR (F) 4-pin
• Material: Metal
• Color: Skin-colored
• Weight: 18 g
• RELACART LM-C420 Lavalier unidirectional
• Type: Lavalier microphone
• Power supply: 2-10 V DC
• Power connection: Mains input Mini XLR (F) 4-pin
• Cable length: 1,2 m
• Capsule type: Electret
• Polar pattern: Cardioid
• Frequency range: 60 - 12000 Hz
• S/N ratio: >59 dB
• Sensitivity: -42 dB
• Impedance: 1800 Ohm
• Switch: Without
• Material: Aluminum
• Color: Black
• Dimensions: Length: 2,80 cm
• Diameter: Ø 1,10 cm
• Weight: 20 g
