Description

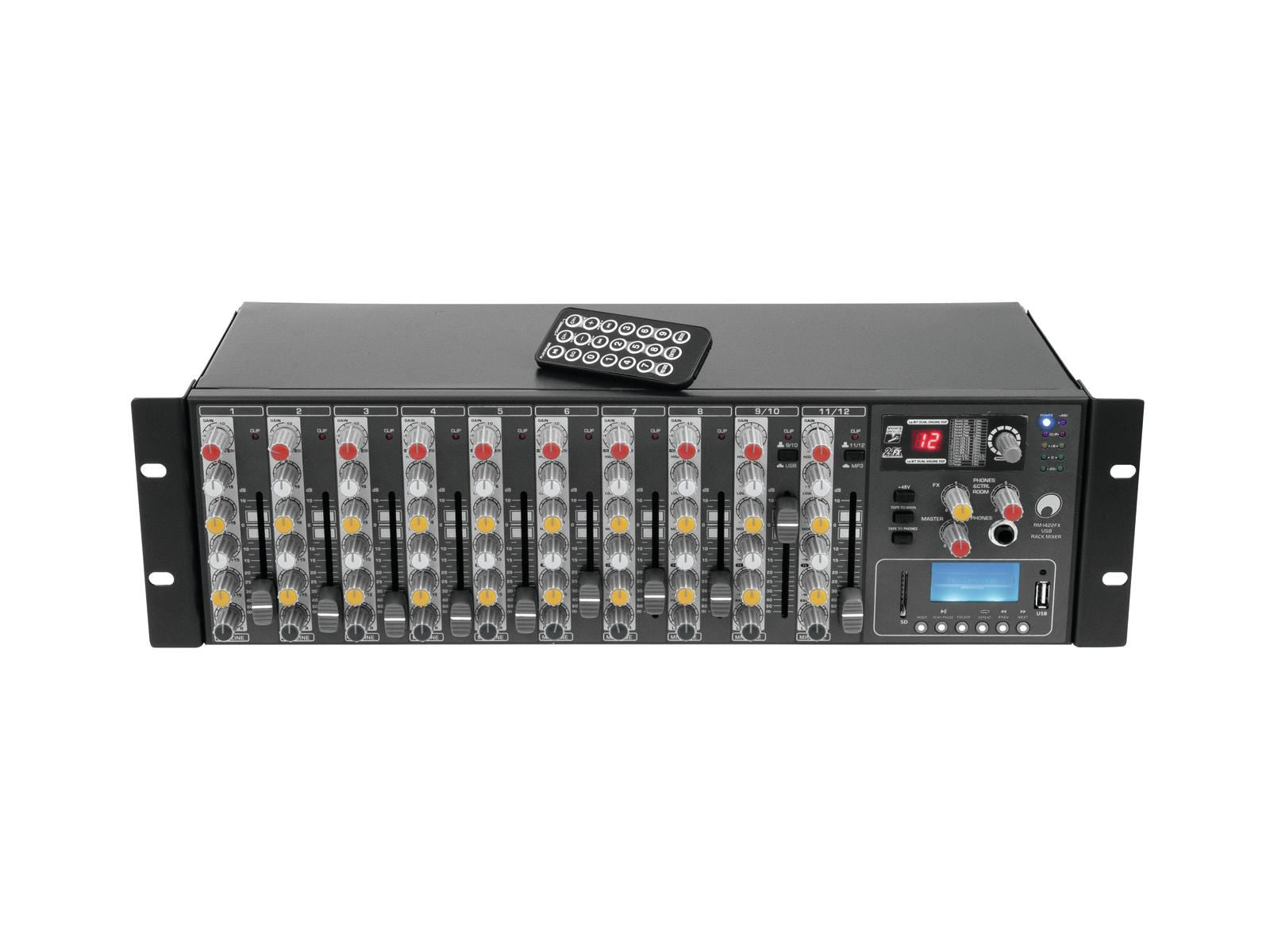

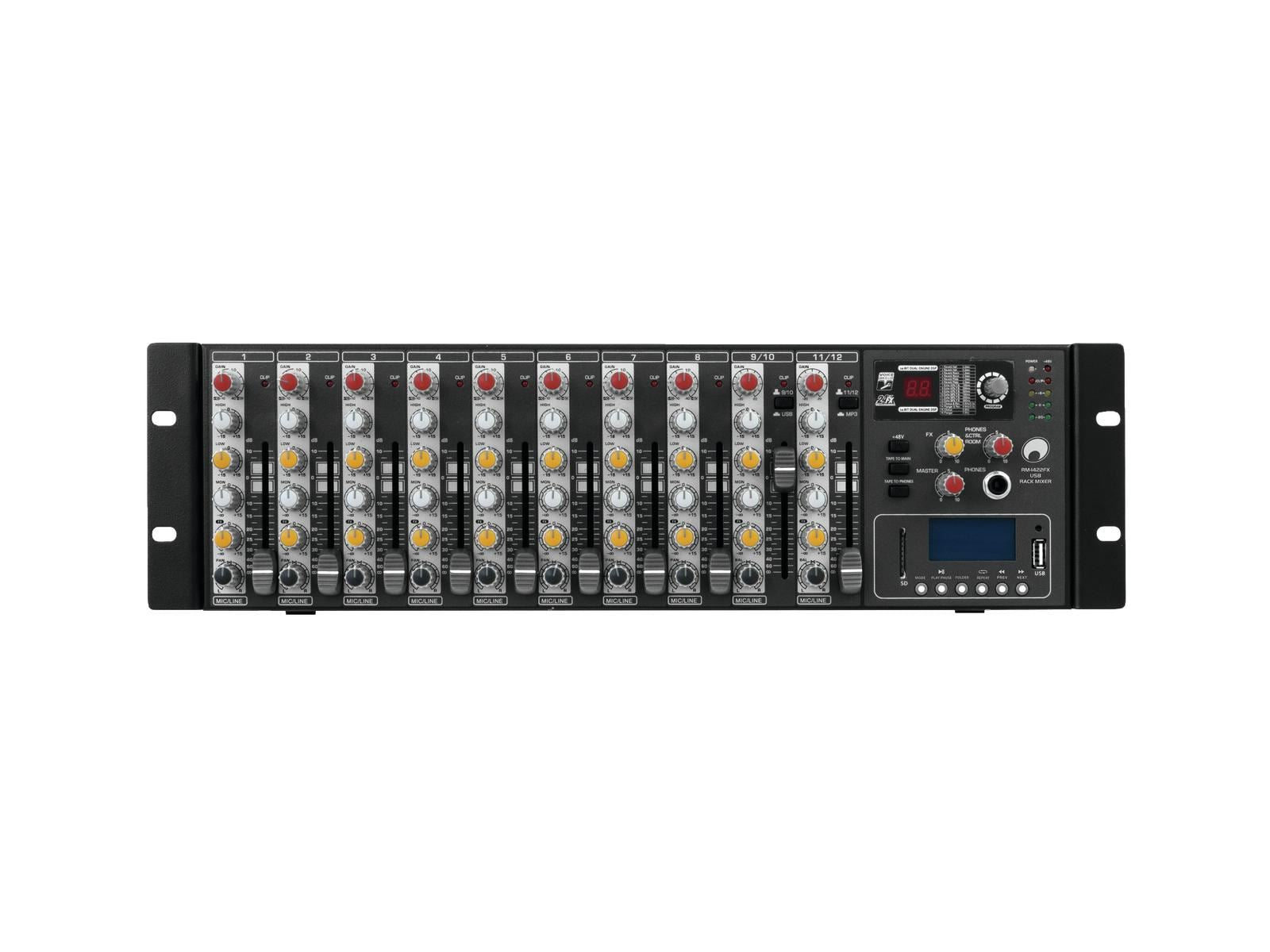

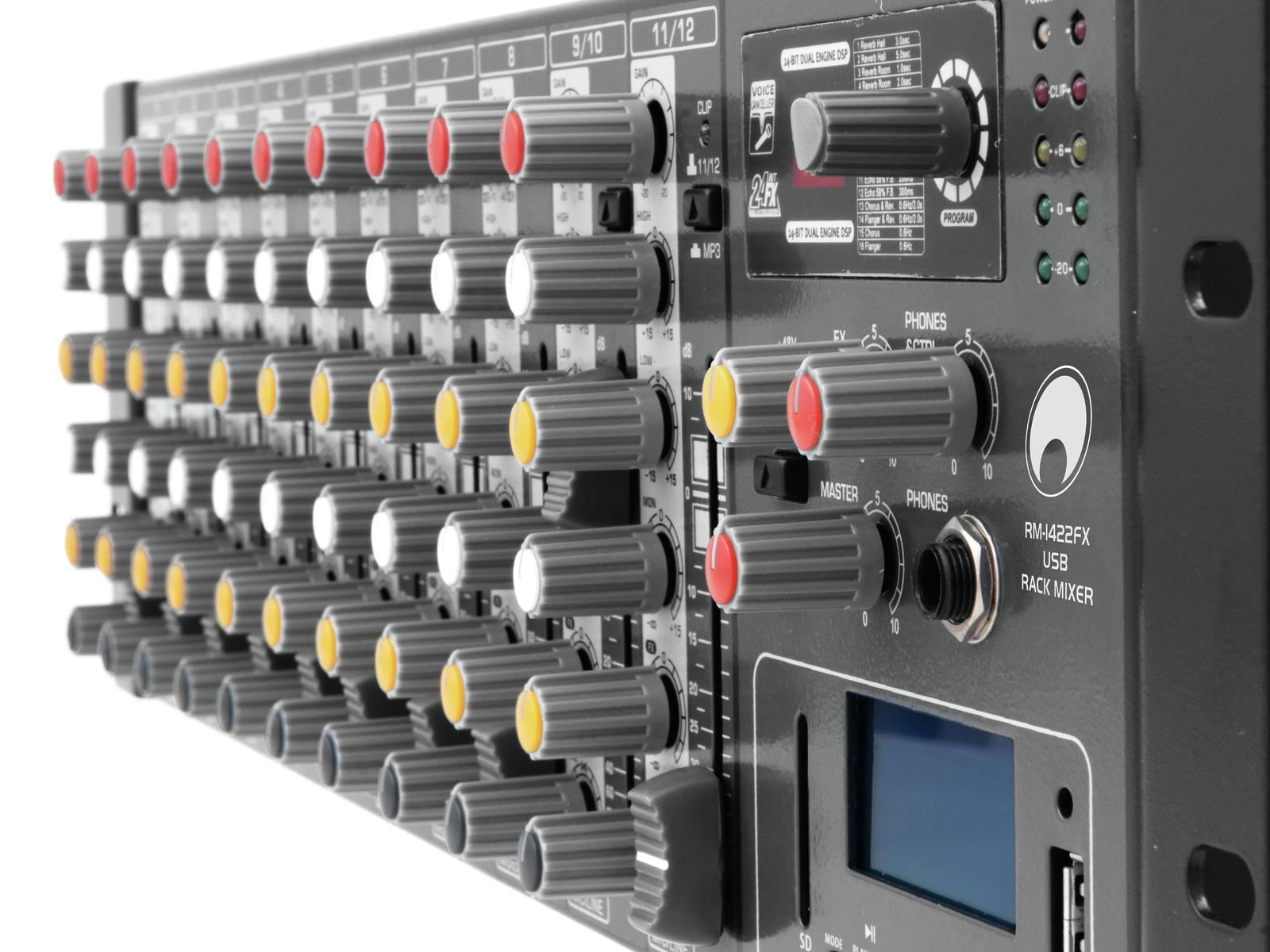

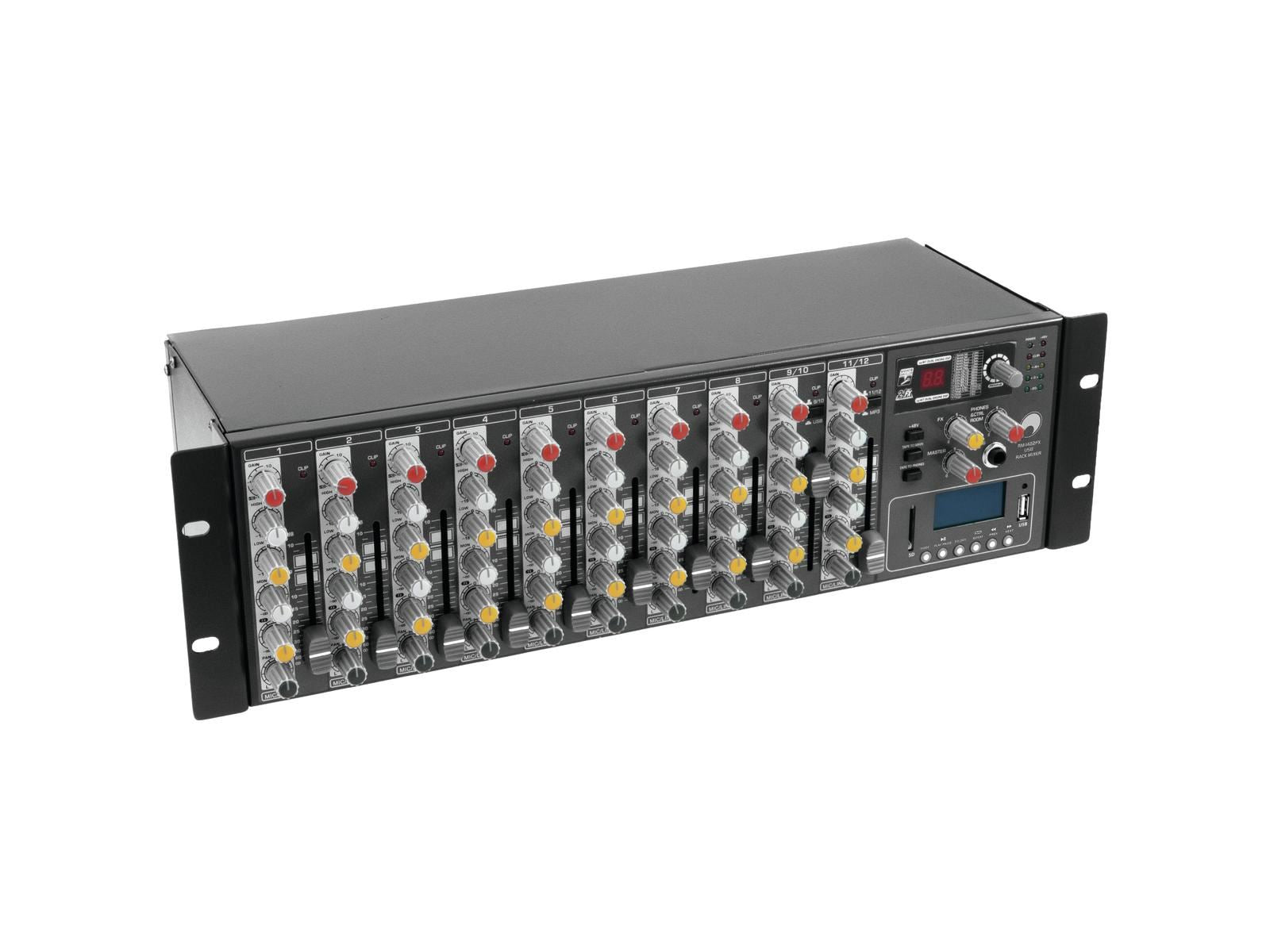

Compact all-rounderWhether it is used as small live mixer, recording studios or permanent installations-the RM--1422FX is the right answer for your 19" rack. Along with a full-fledge audio mixer, you'll get an FX unit, an MP3 player for external USB and SD storage media, and most importantly, a USB audio interface for recordings and playback with your computer in the smallest of spaces.
Professional 19" mixer with 12 channels, DSP FX unit and MP3 player
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 50 W |
Protection class: | Class I |
Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
Fuse: | Device fuse 5 x 20 mm, T 0.5 A Fuse replaceable |
Frequency range: | 20 - 20000 Hz |
S/N ratio: | >89 dB |
THD: | <0.05 % at 1 kHz |
DSP: | Digital signal processor 24 bit with 16 effects |
Control: | IR remote control |
Audio player: | USB + SD |
Housing color: | Silver |
Display type: | Monochrome LCD display Monochrome 2 digits 7-segment LED display |
Control elements: | Phantom power switch, Audio player, encoder |
Status LED: | Power, master level meter, clip, phantom power |

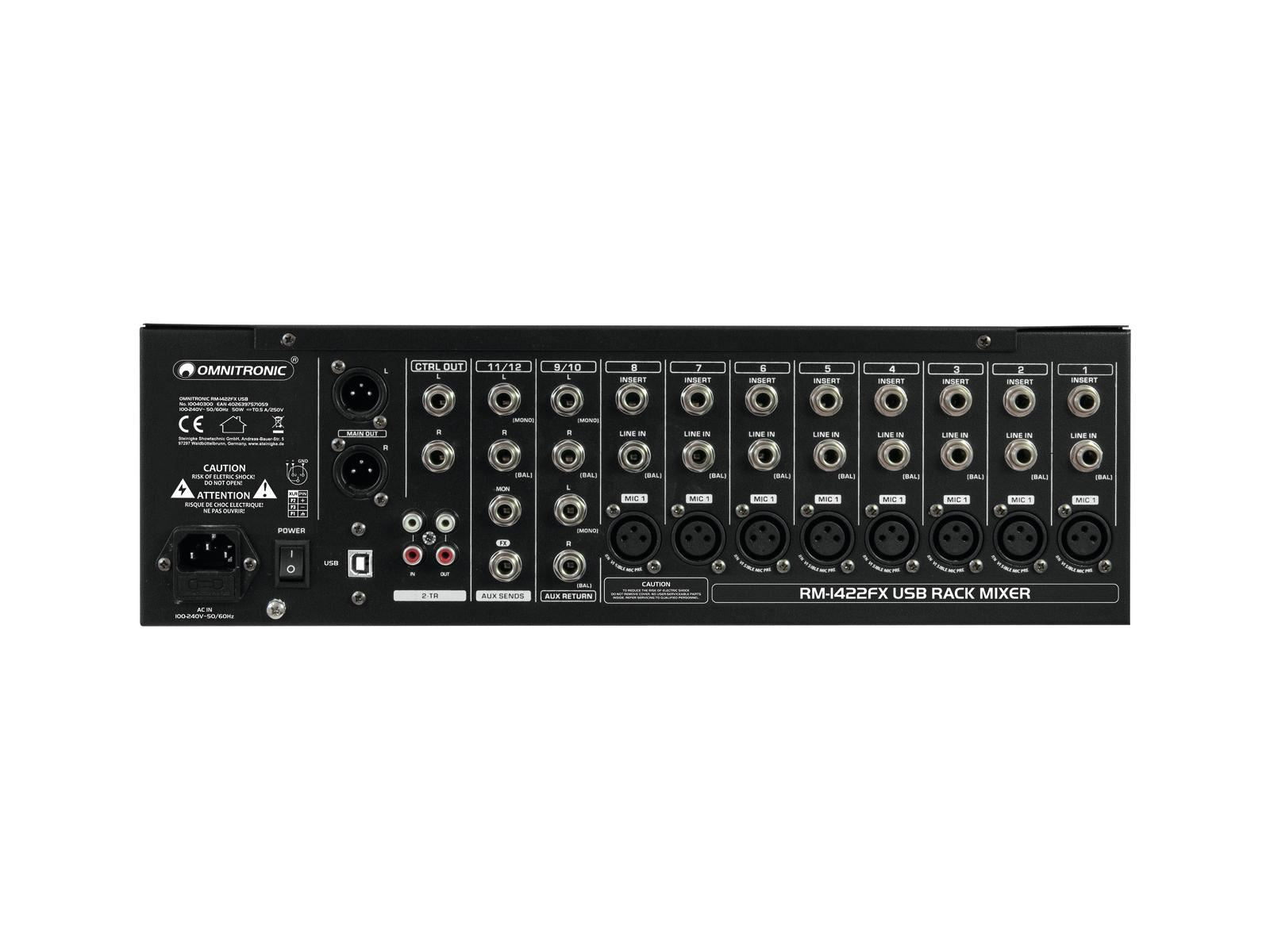

Connections: | Input: 8 x Microphone via 3-pin XLR Input: 12 x line via 6.3 mm jack socket (mono) mounting version Input: 1 x 2-Track via stereo RCA Input: 2 x AUX returns via 6.3 mm jack socket (mono) mounting version Output: 2 x AUX sends via 6.3 mm jack socket (stereo) mounting version Output: 1 x 2-Track via stereo RCA Output: 2 x master via 3-pin XLR Output: 1 x headphones via 6.3 mm jack socket (stereo) mounting version Output: 2 x control room via 6.3 mm plug (unbal.) Insert: 8 x via 6.3 mm jack socket (stereo) mounting version Link: 1 x line via USB B (W) mounting version |
Chanals: | Input chanel: 8 x mono via XLR or jack, channel control via fader, 2-band tone control EQ ?15dB at 80Hz/12kHz, 2 Send/AUX, gain control, panoramacontol, Input chanel: 1 x stereo with Line-USB switch via Plug 6,3mm/3,5mm (Jack), channel control via fader, 2-band tone control EQ ?15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, Input chanel: 1 x stereo with Line-player switch via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob, 2-band tone control EQ ?15dB at 80Hz/12kHz, 2 Send/AUX, gain control, balancecontrol, Master output: 1 x stereo via XLR, channel control via Rotary knob Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel control via Rotary knob |
USB port: | 1 x Typ A; 1 x USB 1.1, Typ B |
Material: | Metal |
Housing design: | (19") 48.3 cm rack installation 3 U |
Dimension: | Width: 48.3 cm Depth: 18 cm Height: 13.35 cm |
Weight: | 4.07 kg |
Remote control | |
Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
