Roar ARTNET NODE 8ch DMX 4096 Lighting Control Expander Network

Description

Roar 8 Way ArtNet to DMX512 Interface / Signal Splitter

Convert network lighting control into multiple hard-wired DMX universes with this 8-port Art-Net to DMX512 interface — ideal for lighting professionals, clubs, theatres, event producers, and rental companies. Supplied with UK P-Con power lead and manual.

Key Features

Art-Net to DMX512 Conversion
Receives lighting control via Art-Net (Ethernet) and reliably outputs up to 8 independent DMX512 universes for driving fixtures, dimmers, movers, LEDs, and other DMX devices.

Eight Fully Isolated DMX Outputs

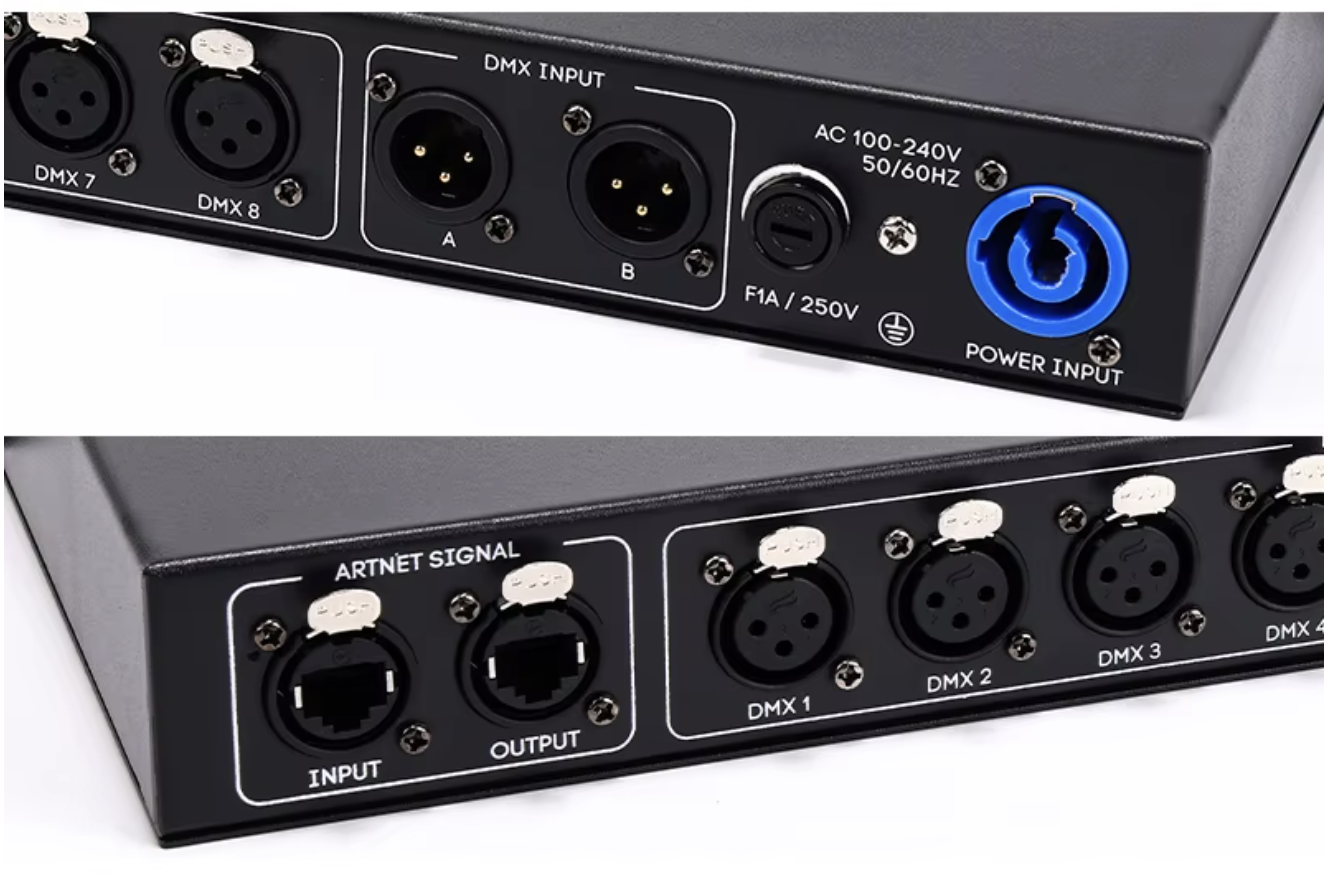

Each of the 8 DMX ports (XLR-3) is individually buffered and isolated to maintain signal integrity and prevent ground loops or interference between channels.

Dual DMX Input Options
Supports external DMX device chaining or backup input via two standard XLR DMX inputs. This enables flexible control paths and redundancy.

Robust Network Connectivity
RJ45 network interface(s) for Art-Net input with clear LED indicators showing network and signal status.

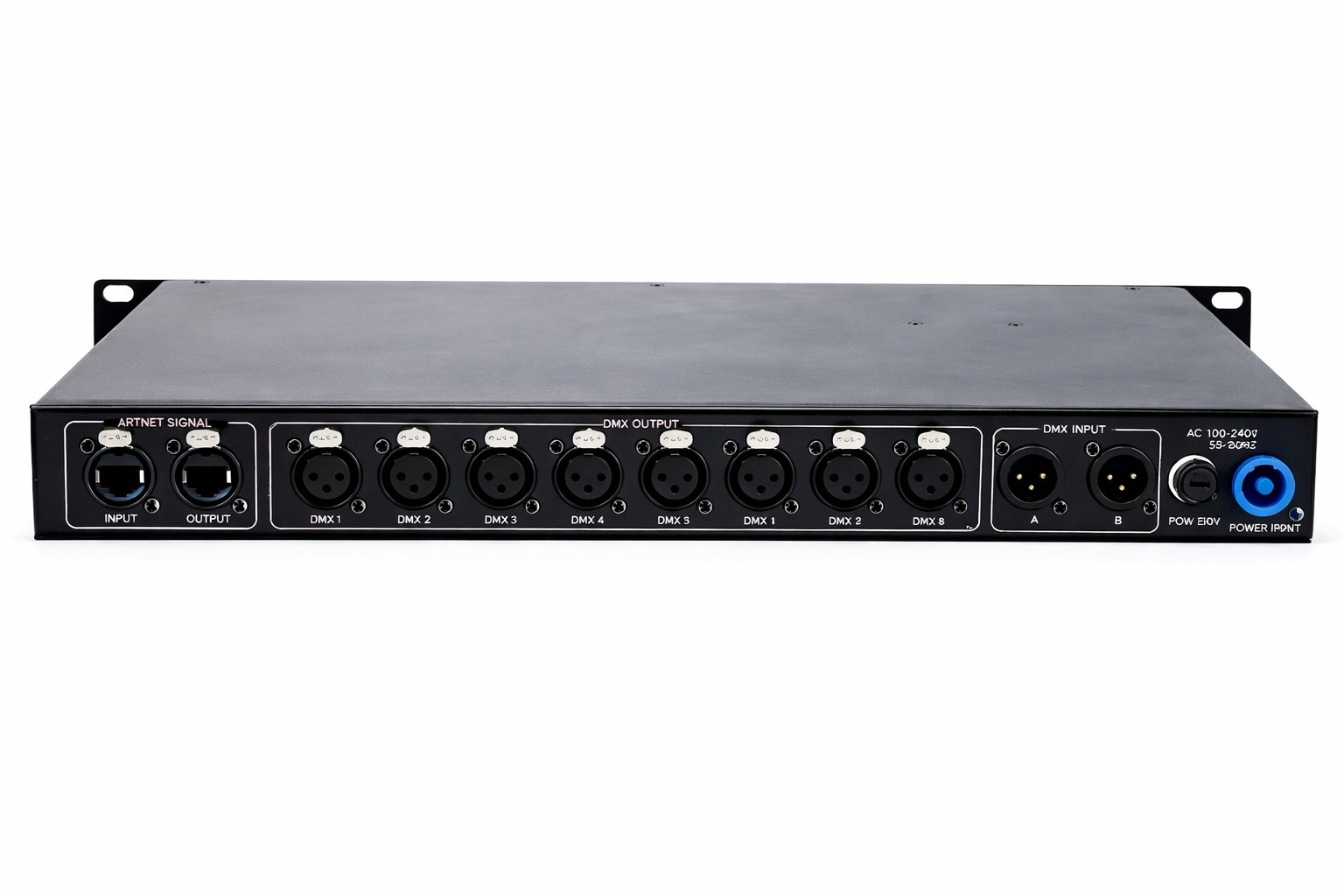

Rack-Mountable 1U Form Factor
Fits standard 19” racks with a low-profile 1U height — perfect for touring racks, control rooms, or install cabinets.

Clear Status Feedback
Front panel display and indicators show network, DMX activity and port statuses, enabling quick diagnostics during setup and operation.

Universal Power Input
Standard AC mains input with internal protection and power LED. Supplied with UK 13A plug cable.

Power Supply:
100–240 V AC, 50/60 Hz

Power Consumption:
5 W

DMX Channel:
8 × 512 channel = 4096

DMX512 Inputs:
2 × 3-pin XLR male

DMX512 Outputs:
8 × 3-pin XLR female

Ethernet:
2 × RJ45 10/100 Mbps (Neutrik etherCON)

Protocol:
Art-Net 3 / sACN

Dimensions (L × W × H):
483 × 170 × 44 mm

Weight:
2.4 kg
