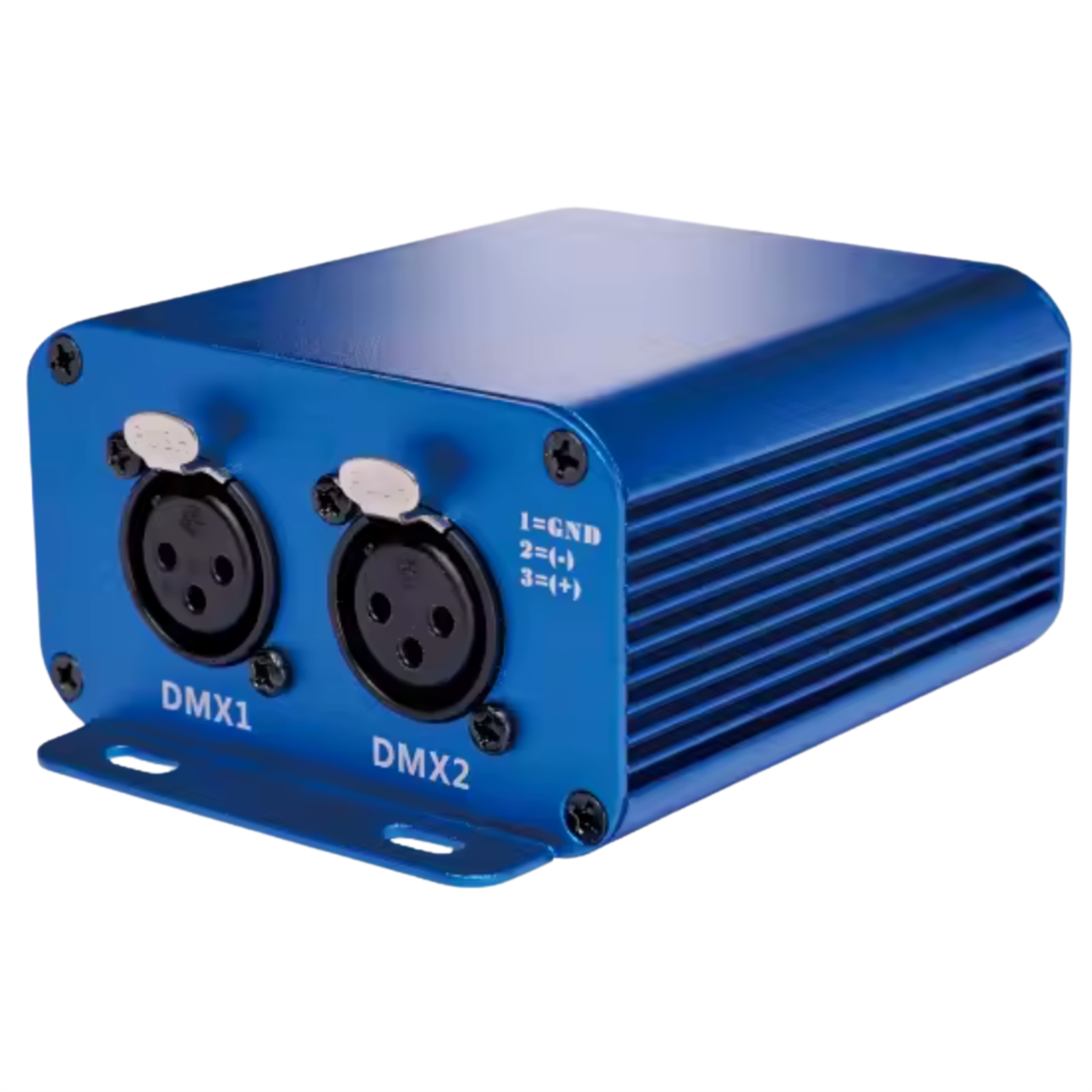

Roar Artnet to DMX Controller Ethernet XLR 3 Pin Interface

Description

DMX to Artnet Expander

ArtNet-DMX is a bi-directional Ethernet to DMX converter providing two-way network ArtNet to DMX512 serial bidirectional conversion capabilities.

Fitted with a high-speed ARM processor, it follows the standard ArtNet protocol provides a standard RJ45 network interface and DMX512 output interface. ArtNet-DMX2 highly compatible protocol standard, real-time , stable and reliable.

It has been designed to transmit DMX through Ethernet. DMX to Artnet Expander has two operating modes: NODE mode and
SERVER mode. NODE mode convert ArtNet signal into DMX512. Server mode route DMX512 (X2) signal into ArtNet via Ethernet transmission.

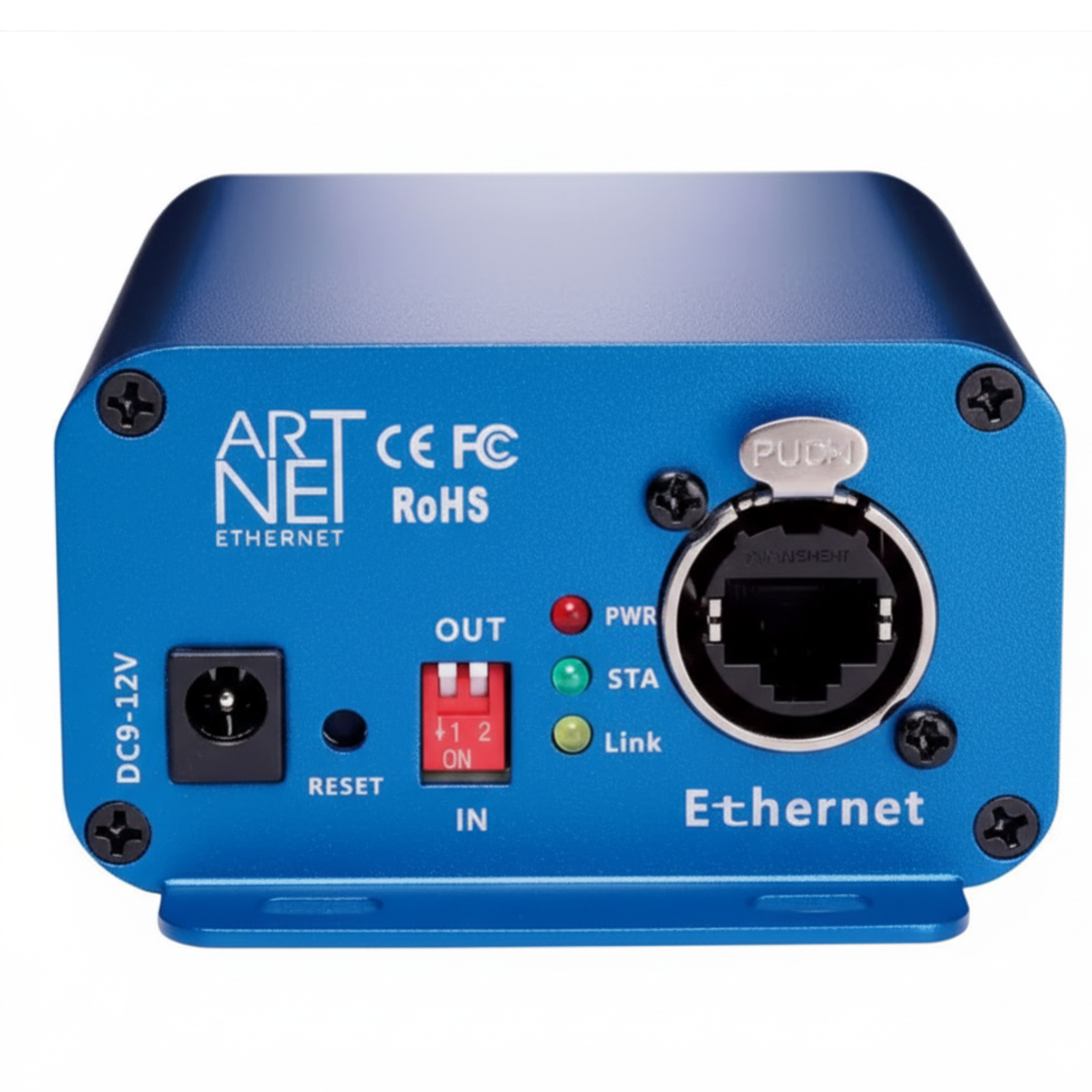

ArtNet-DMX2 factory-configure an IP address of 2.xxx and a subnet mask of 255.0.0.0, there is generally no need to amend, you can plug-and- play. Users or special network configuration can be modified using a PC configuration tools and WEB browser. The input / output mode is determined by
the dial switch on the panel.

Comes with UK power supply, USB pen for initial setup and RJ45 ethernet lead 1M to connect to computer.

Dimensions - 150mm x 100mm x 70mm
Weight - 0.4kg
