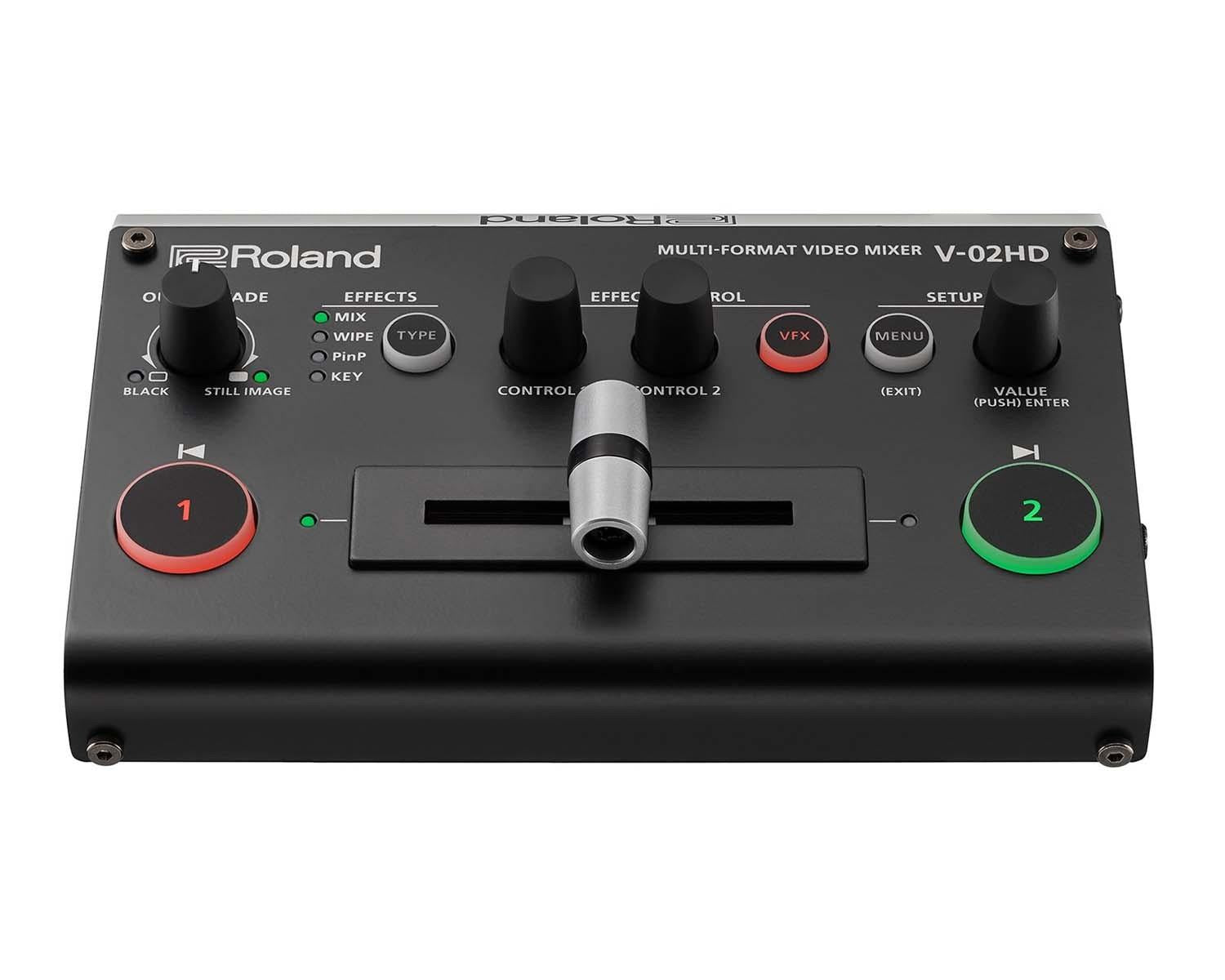

Roland V-02HD Multi Format HDMI Video Mixer Switcher Scaler Visual Effects

£449.00
£449.00

Roland’s versatile V-02HD multi-format video mixer replaces several standalone units; a simple switcher, high-quality scaler, input expander, audio solution and inline video effects/composition.

SKU: V-02HD
Icon In Stock In Stock
Icon Delivery Time

Roland’s versatile V-02HD multi-format video mixer replaces several standalone units; a simple switcher, high-quality scaler, input expander, audio solution and inline video effects/composition. Save on space and headaches by packing a V-02HD; the portable-yet-powerful device that lets you concentrate on producing your event or shooting your scenes, rather than troubleshooting your gear.

Roland V02HD
Dual camera/single operator productions
Simple, seamless switching
The input/output matchmaker
Embed and extract analogue audio to and from an HDMI signal
Onboard toolkit for fixing your audio
Two extremely low latency inputs


Specifications

Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors: INPUT 1--2: HDMI type A x 2 * HDCP Supported * Multi-format Supported
Output Connectors: PROGRAM OUT: HDMI type A PREVIEW OUT: HDMI type A * HDCP Supported * Multi-format Supported

Input Formats:
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

Output Formats:
480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* Conforms to VESA DMT Version 1.0 Revision 11.
* The output refresh rates of 800 x 600--1400 x 1050 are 75 Hz when the unit’s frame rate setting is 50 Hz.
* 1920 x 1200/60 Hz: Reduced blanking

Video Effects:
Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOZAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FINDEDGE, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Audio Processing: Sampling rate: 24 bits/48 kHz
Audio formats: Linear PCM, 24 bits/48 kHz, 2ch

Input Connectors:
INPUT 1--2: HDMI Type A x 2
AUDIO IN: Stereo miniature type

Output Connectors:
PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
PHONES: Stereo miniature type
Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
Input Impedance: AUDIO IN: 45 k ohms
Output Level: PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance: PHONES: 10 ohms
Audio Effects: Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
Other Connectors:
USB MEMORY: USB B Type (for backup from PC)
CTL/EXP:1/4-inch TRS phone type

Other Functions:
Preset Memory (8 types)
Panel lock function
EDID Emulator
Auto Scan
Auto Input Detect

Power Supply: AC Adaptor
Current Draw: 1.1 A
Power Consumption: 10.0 W
Operation Temperature: +0 to +40 degrees Celsius


Dimensions

51 x 160 x 108 mm


Weight
0.6 kg
