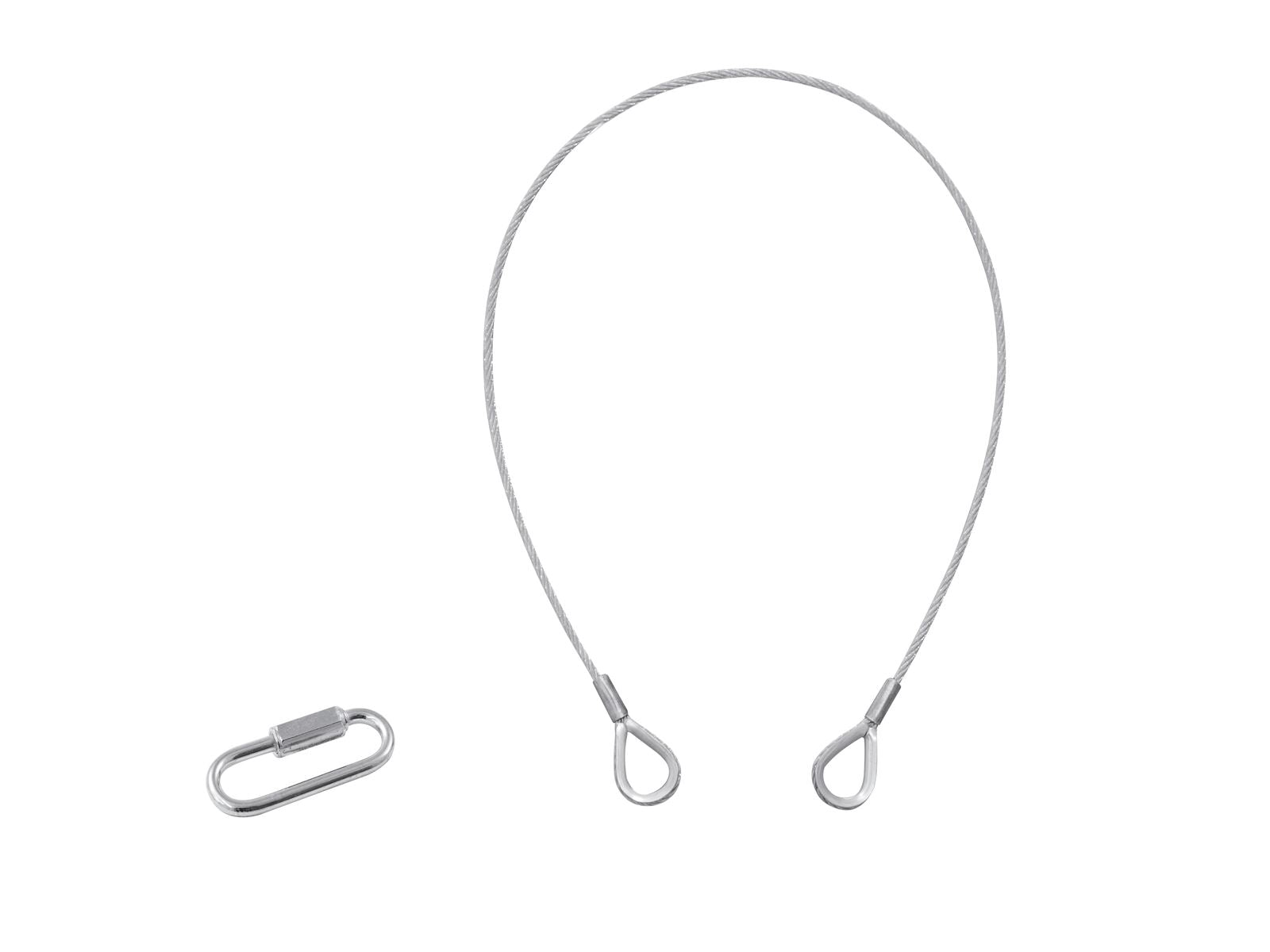

EUROLITE Safety Bond B 3x600mm up to 5kg silver

EUROLITE Steel Rope 600x3mm silver with Thimbles

Installation rope, safety bond, safety

• Round strand rope 6 x 19 with fibre core
• With two thimbles
• Suitable for installing and securing loads above persons
• 3 x 600 mm
• WLL 100 kg
• Test report according to DIN EN 10204 as download
• Rope with thimble

EUROLITE Quick Link Type B-90

Quick link

• Form B (long)
• Galvanized
• Identification number: 90
• Stamp: DIN 56927 B 90
• Test report according to DIN EN 10204 as download
• Weight: 50 g
• EUROLITE Steel Rope 600x3mm silver with Thimbles
• Maximum load WLL (5-fold): 100 kg
• Design of the core: 6 x 19 FC
• Strength classification: 1960
• Standard: DIN EN 12385-4:2008-06, DIN 56927:2009-03
• Nominal tensile strenght of rope: 1770 N/mm²
• Wire surface: Zinc-plated
• Color: Silver
• Temperature range: -40 °C - +100 °C
• Dimensions: Length: 60 cm
• Diameter: Ø 3 mm
• Weight: 30 g
• Length weigth: 0,0311 kg/m
• EUROLITE Quick Link Type B-90
• Maximum load WLL (10-fold): 90 kg
• Standard: DIN 56927:2009-03,
• Shape: B - big opening
• Opening: 0-11,5 mm
• Dimensions: Length: 4,50 cm
• Diameter: Ø 4 mm
• Weight: 20 g
