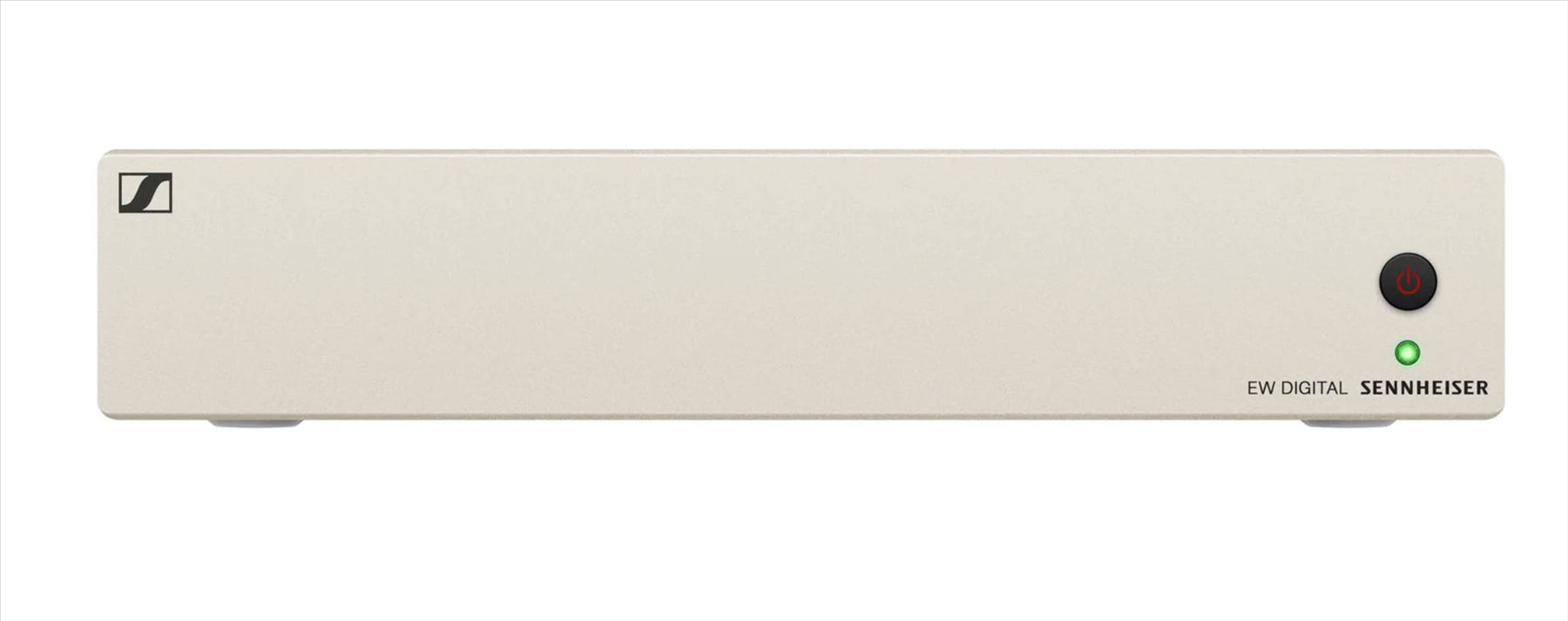

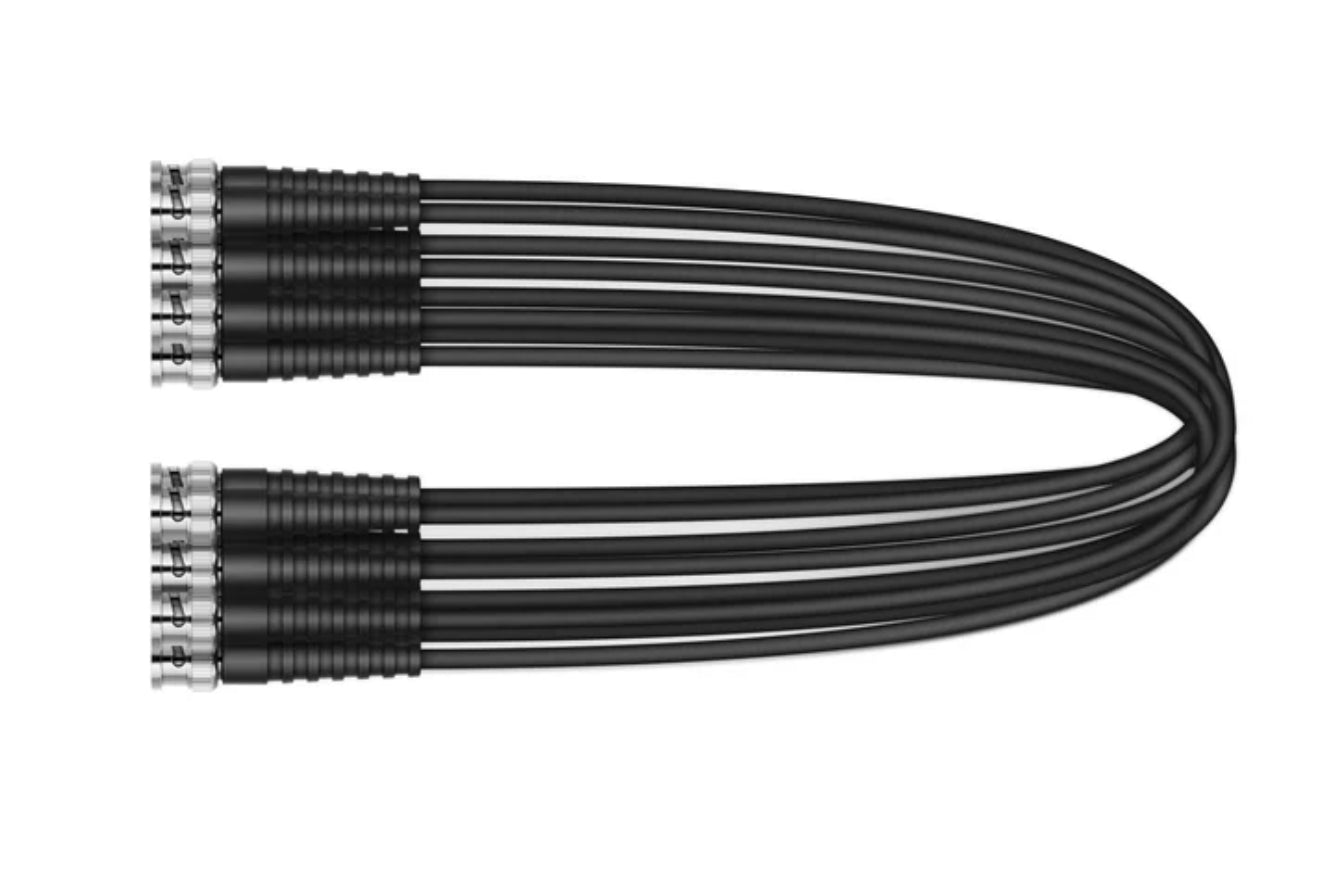

Sennheiser EW-D ASA Antenna Splitter CH38

Description

Active Antenna Splitter for use with Evolution Wireless Digital systems.

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.

Frequency ranges
EW-D ASA (Q-R-S): 470 – 694 MHz
EW-D ASA CN/ANZ (Q-R-S): 470 – 694 MHz
EW-D ASA (T-U-V-W): 694 – 1075 MHz
EW-D ASA (X-Y): 1350 – 1805 MHz

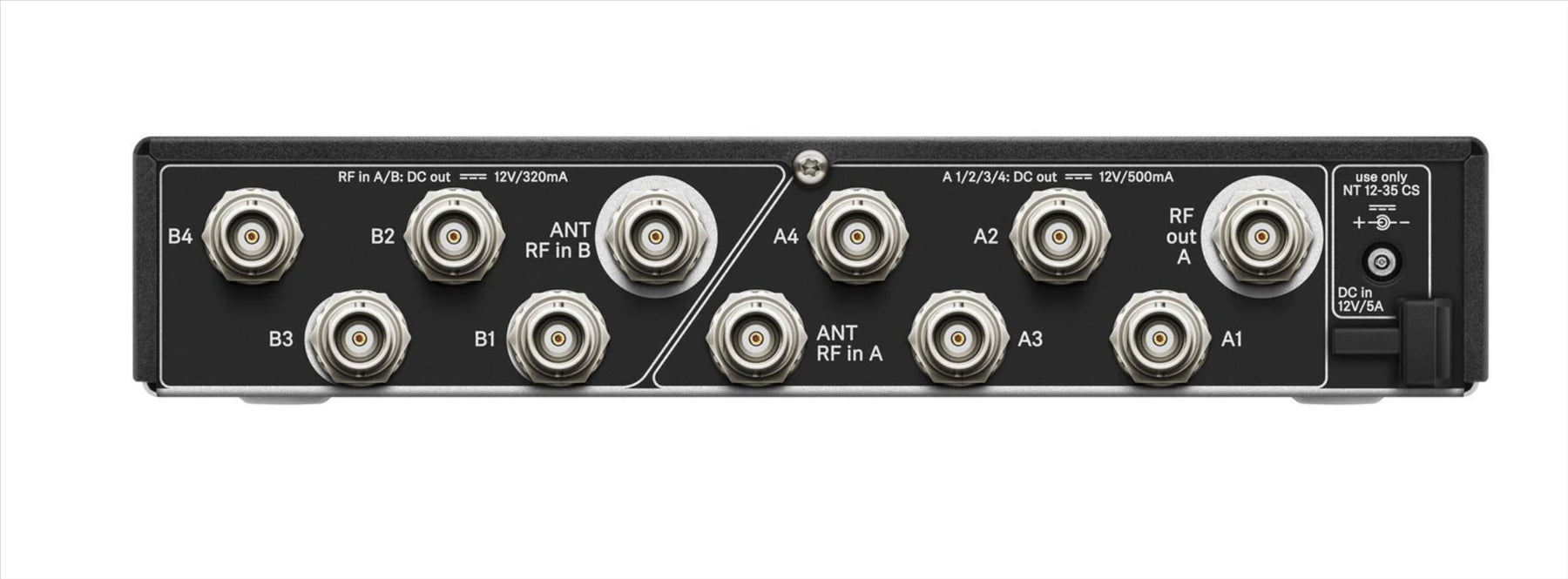

Antenna splitter: 2 x 1:4 or 1 x 1:8, active

Gain
in A – out A: 0 ± 1 dB
in A – out A1 ... A4: 0 ± 1 dB
in B – out B1 ... B4: 0 ± 1 dB

IIP3: > 25 dBm
Impedance: 50 Ω
Reflection loss: 10 dB (all RF outputs)

Operating voltage: DC +12 V from NT 12-35 CS power supply unit
Current consumption: 210 mA
Total current consumption: max. 3 A (with 4 EW-D EM and connected EW-D AB)
Supply for antenna boosters at ANT RF in A and ANT RF in B: DC 12 V; 320 mA
Supply for receivers at A1 to A4: DC 12 V, typically 350 mA, max. 500 mA

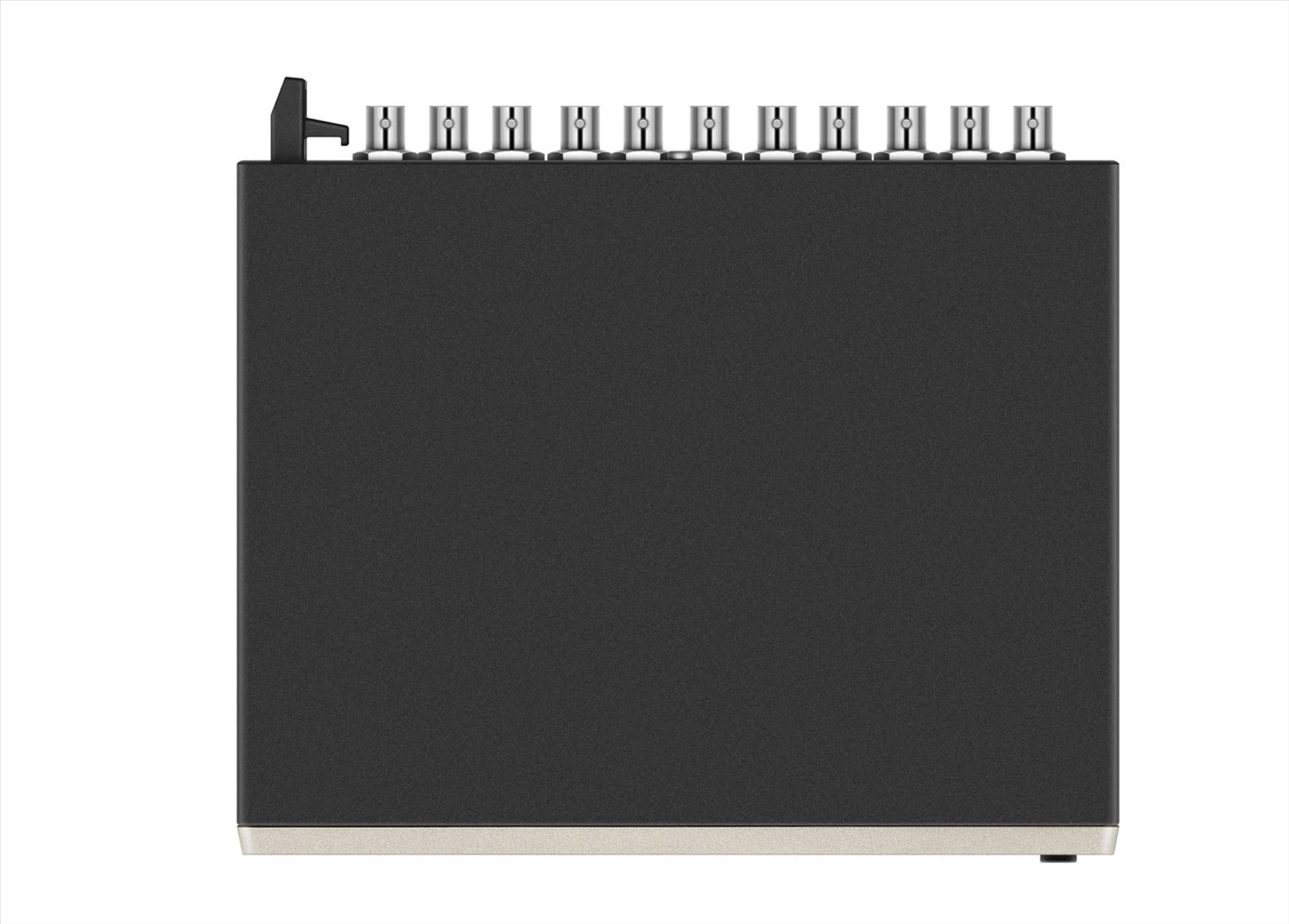

Dimensions: approx. 212 x 168 x 43 mm
Weight: approx. 1100 g

Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
Storage temperature range: -20 °C - +70 °C (-4 °F - 158 °F)
Relative humidity: 5 - 95 % (non-condensing)
