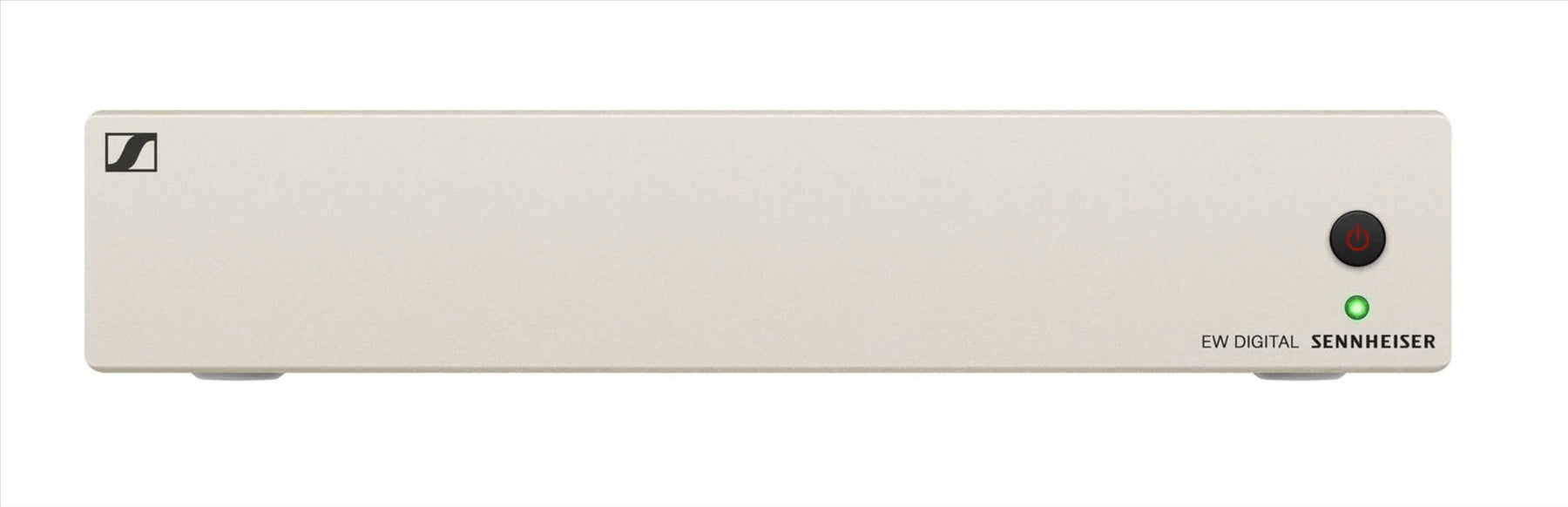

Sennheiser EW-D ASA Antenna Splitter CH70
- £659.00
- £659.00
- Unit price
- per
iFrame
Description
Active Antenna Splitter for use with Evolution Wireless Digital systems.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound.
The EW-D ASA does not supply power to EW-DX.
Digital wireless eliminates noise, interference and static bursts
UHF transmission greatly enhances range, reliability and scalability
Mobile App streamlines setup and operation and eliminates complicated menus
Automated setup creates reliable connections with minimal time and effort
Up to 2,240 selectable frequencies
56 MHz Bandwidth will allow for up to 90 channels
Frequency ranges
EW-D ASA (Q-R-S): 470 – 694 MHz
EW-D ASA CN/ANZ (Q-R-S): 470 – 694 MHz
EW-D ASA (T-U-V-W): 694 – 1075 MHz
EW-D ASA (X-Y): 1350 – 1805 MHz

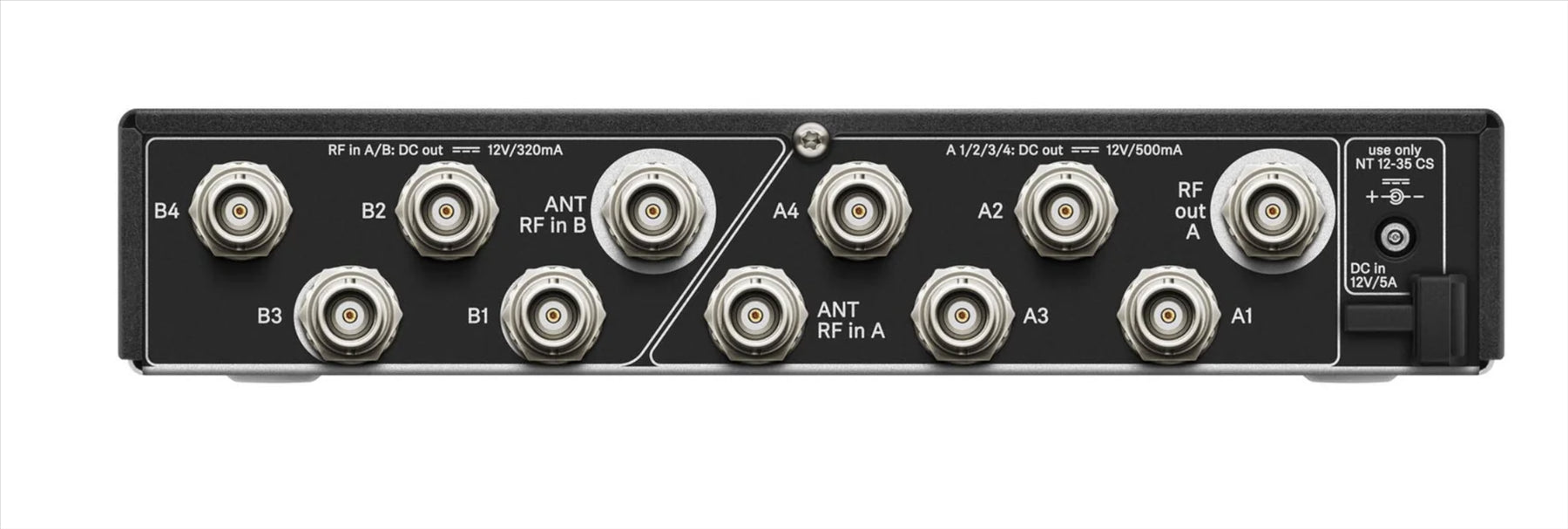

Antenna splitter: 2 x 1:4 or 1 x 1:8, active
Gain
in A – out A: 0 ± 1 dB
in A – out A1 ... A4: 0 ± 1 dB
in B – out B1 ... B4: 0 ± 1 dB
IIP3: > 25 dBm
Impedance: 50 Ω
Reflection loss: 10 dB (all RF outputs)
Operating voltage: DC +12 V from NT 12-35 CS power supply unit
Current consumption: 210 mA
Total current consumption: max. 3 A (with 4 EW-D EM and connected EW-D AB)
Supply for antenna boosters at ANT RF in A and ANT RF in B: DC 12 V; 320 mA
Supply for receivers at A1 to A4
DC 12 V
Typically 350 mA, max. 500 mA

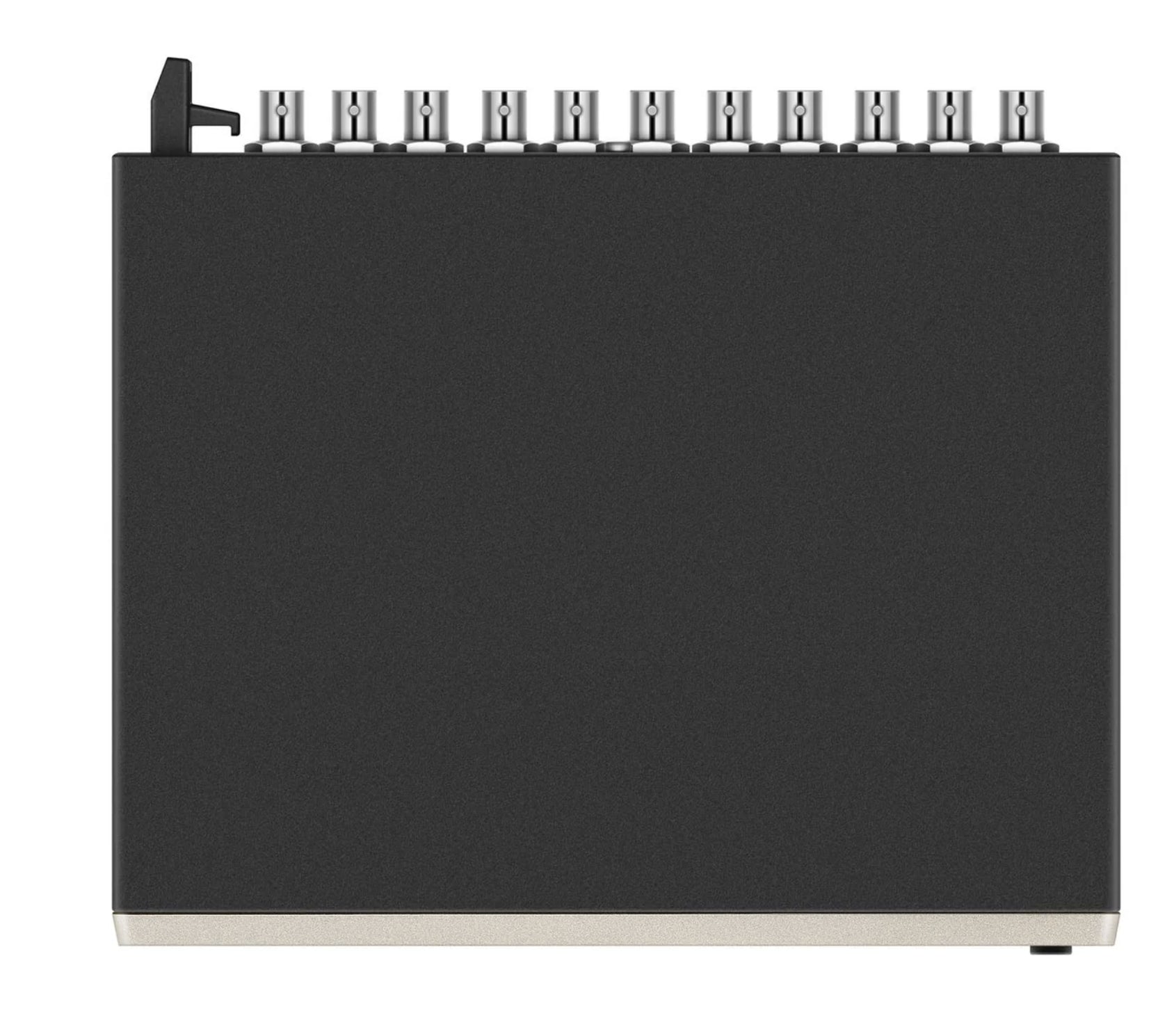

Dimensions: Approx. 212 x 168 x 43 mm
Weight: Approx. 1100 g
Operating temperature range: -10 °C - +55 °C (14 °F - 131 °F)
Storage temperature range: -20 °C - +70 °C (-4 °F - 158 °F)
Relative humidity: 5 - 95 % (non-condensing)
