Sennheiser EW100 G4-E Handheld Mic System with 935S Cardioid Txmitter CH70

Description:

Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems.

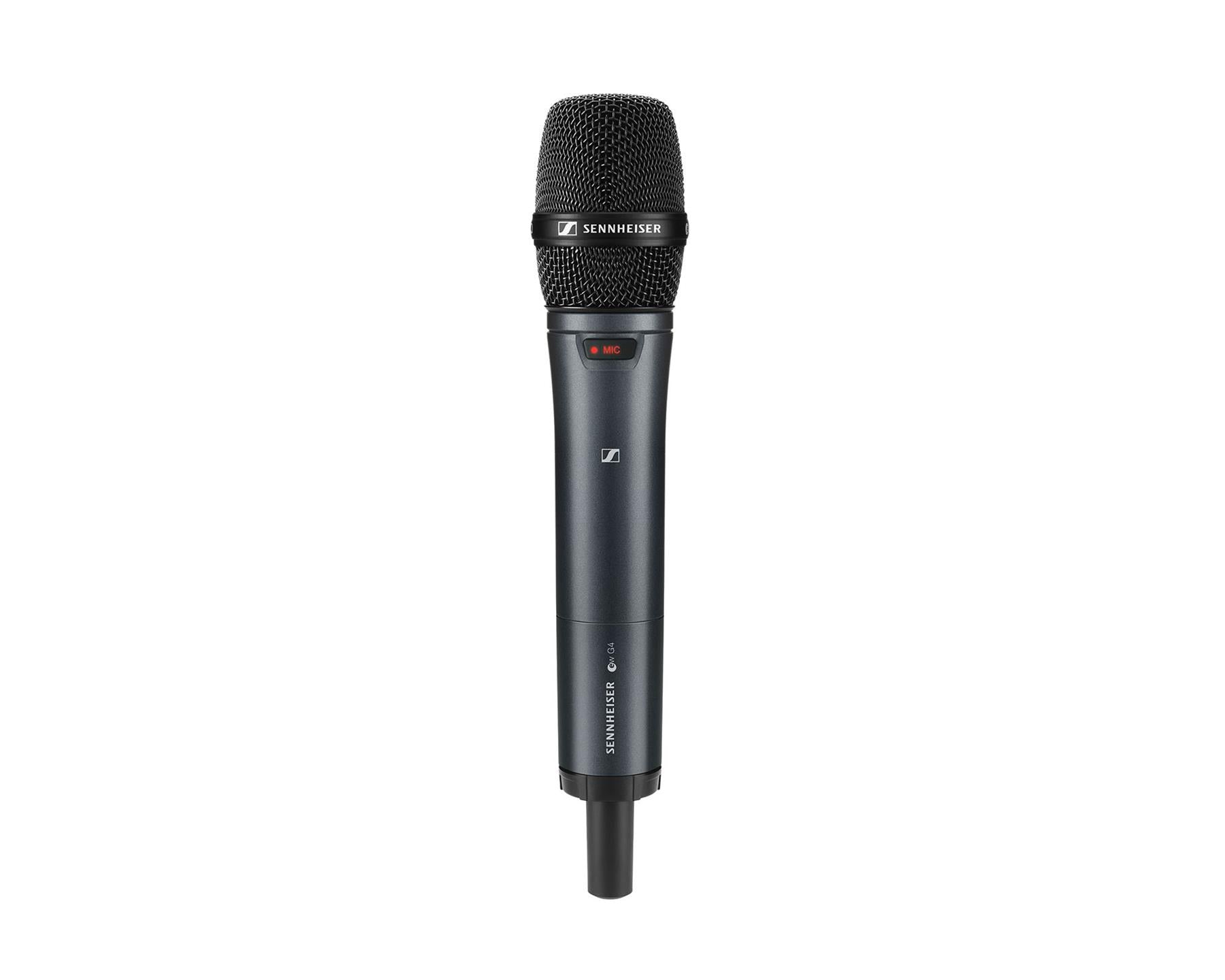

State-of-the-art live sound featuring Sennheiser‘s renowned e 935 capsule on a lightweight aluminum transmitter with integrated mute switch.

Features:

Engineered for professional live sound:  Rugged all-in-one wireless system for singers and presenters
State-of-the-art live sound featuring Sennheiser‘s renowned e 935 capsule on a lightweight aluminium transmitter with integrated mute switch

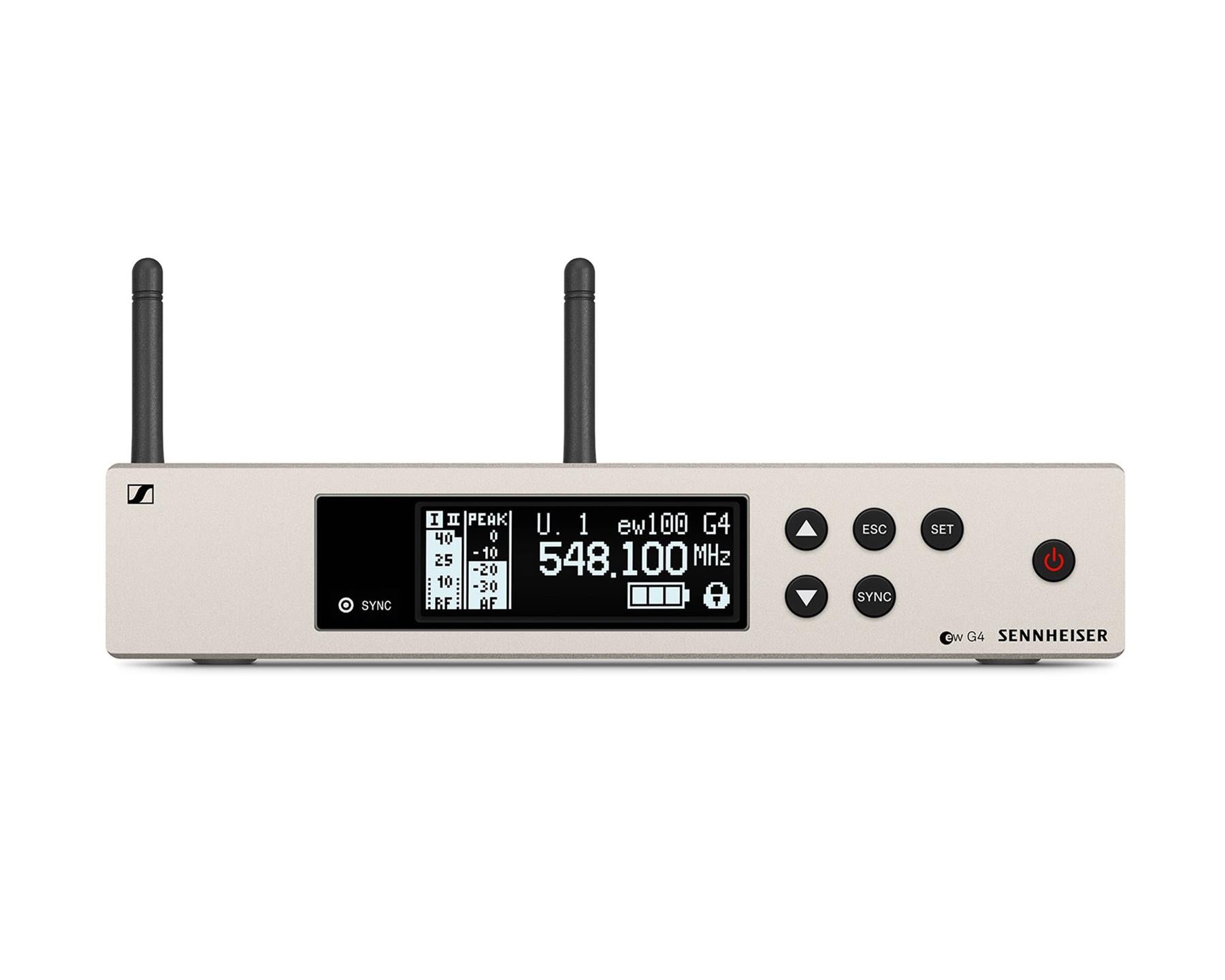

True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Fast frequency allocation for up to 12 receivers via new linking functionality
Up to 20 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 30 mW) depending on country regulations

Specifications:

THIS ITEM (NO. 507567) OPERATES ON CH70 (E: 823 - 865 MHz)

EM 100 G4 - General
Modulation: Wideband FM
Frequency rangesA1: 470 - 516 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
1G8: 1785 - 1800 MHz
Receiving frequenciesMax. 1680 receiving frequencies, adjustable in 25  kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth: up to 42 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Receiver principle: True diversity
Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
Adjacent channel selection: Typically ≥ 65 dB
Intermodulation attenuation: Typically ≥ 65 dB
Blocking: ≥ 70 dB
Squelchlow: 5 dBμV
middle: 15 dBμV
high: 25 dBμV
Pilot tone squelch: Can be switched off
Antenna inputs: 2 BNC sockets
Compander system: Sennheiser HDX
EQ presets (switchable, act on line and monitor outputs)Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
Total harmonic distortion (THD): ≤ 0.9 %
AF output voltage (at peak deviation, 1 kHz AF)
6.3 mm jack socket (unbalanced): +12 dBu
XLR socket (balanced): +18 dBu
Setting range “AF Out”: 48 dB (3 dB steps)
Temperature range -10 °C to +55 °C
Power supply 12 V DC
Current consumption 300 mA
EM 100 G4 - Physical & Dimensions
Height: 43mmm
Width: 212mm
Depth: 190mm
Weight: 980g
SKM 100 G4-S - General
Modulation: Wideband FM
Frequency rangesA1: 470 - 516 MHz
A: 516 - 558 MHz
AS: 520 - 558 MHz
G: 566 - 608 MHz
GB: 606 - 648 MHz
B: 626 - 668 MHz
C: 734 - 776 MHz
D: 780 - 822 MHz
E: 823 - 865 MHz
JB: 806 - 810 MHz
K+: 925 - 937.5 MHz
1G8: 1785 - 1800 MHz
Transmission frequenciesMax. 1680 receiving frequencies, adjustable in 25  kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching bandwidth: up to 42 MHz
Nominal/peak deviation: ±24 kHz / ±48 kHz
Frequency stability: ≤ ±15 ppm
RF output power at 50 Ω: Max. 30 mW
Pilot tone squelch: Can be switched off
Compander system: Sennheiser HDX
AF frequency response: 80 – 18,000 Hz
Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
Total harmonic distortion (THD): ≤ 0.9 %
Max. input voltage: 3 Veff
Input impedance: 40 kΩ
Input capacitance: Switchable
Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
Temperature range: -10 °C to +55 °C
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Nominal voltage: 3 V battery / 2.4 V rechargeable battery
Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
Operating time: Typically 8 h
SKM 100 G4-S - Physical & Dimensions
Dimensions Approx. Ø 50 x 265 mm
Weight: 450g
MMD 935 - General
Transducer principle: dynamic
Sensitivity: 2.5 mV/Pa
Sound pressure level: 154 dB SPL
Pick-up pattern: cardioid
