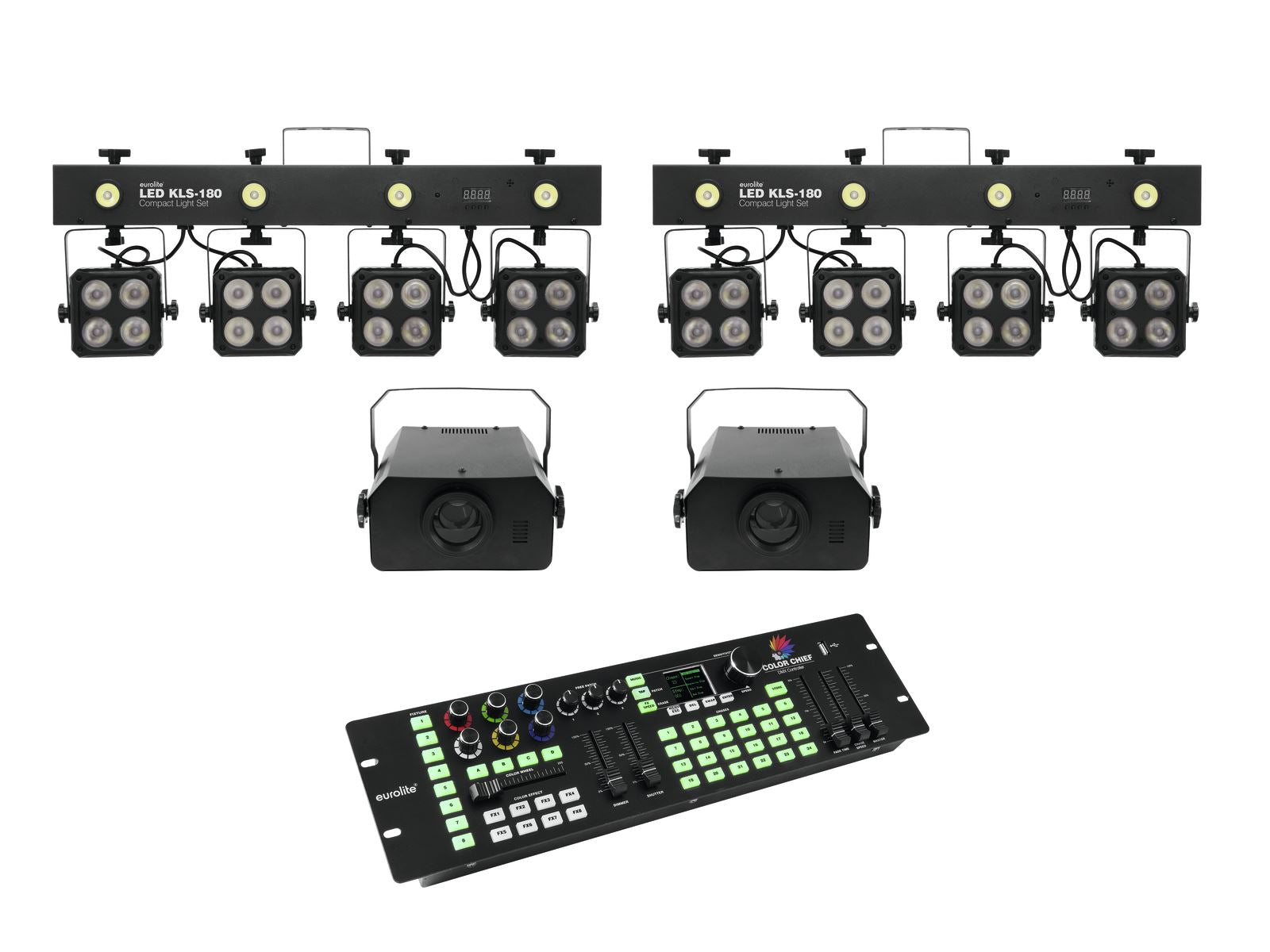

EUROLITE Set 2x LED KLS-180 + 2x LED WF-40 + DMX LED Color Chief Controller

2x Compact Light Set, 2x Projection effect for water reflections including DMX lighting desk

EUROLITE LED KLS-180 Compact Light Set

Bar with 4 RGBW spots and 4 white strobe LEDs, with QuickDMX connector (XLR)

• Crossbar with integrated DMX control unit and stand sleeve
• Ultra-light, ideally suited for mobile use
• Ideal for bands, mobile DJs and stages
• Suited for installation on a speaker stand (not included) or truss
• Comes pre-assembled with practical transport bag
• 4 high-power 4in1 LEDs per spot provide for an exquisite RGBW color mix
• Strobe effect with 4 white 1 W LEDs
• Movable and tiltable spotlights
• Each spot can be individually controlled via DMX
• Stand-alone, master/slave and DMX mode
• Supports QuickDMX - the wireless DMX system from Eurolite
• Built-in phantom-powered socket for QuickDMX receivers (optional)
• Stepless color blend, color change, preset colors, dimmer and strobe effect
• Control panel with LED display for easy configuration
• Convenient wireless control via included IR remote control
• Mains input and output for power linking up to 8 units
• LED: Spot 4 x separate controlling each with 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
• LED: Strobe effect separate controlling 4 x high-power 1 W cold white (CW)
• Can be operated in 3 4 8 21 CH mode
• The device is cooled by passive convection
• Controlling by stand-alone DMX IR remote control Sound to light via Microphone QuickDMX via 5-pin XLR (M) mounting version (optional)
• Preprogrammed in EASY SHOW LED PC-Control 512
• Flicker-free projection

EUROLITE LED WF-40 Water Effect

Projection effect for water reflections, with RGBW color mixing & DMX

• Static and moving water effects with a 3D look in vibrant colors
• 1 high-power 40 W RGBW LED (COB)
• Rotation speed variably adjustable
• Built-in auto and music show programs
• Electronic dimmer (0-100%)
• Direct color selection for 18 preset colors
• Variable color temperature
• Stepless color blend
• Rainbow effect
• Strobe effect 0-10 Hz
• Random strobe effect
• Manual focus
• Control panel with LED display for easy configuration
• Swivel mounting bracket
• LED: 1 x COB (chip-on-board) 40 W 4in1 QCL RGBW
• Can be operated in 9 CH mode
• The device is cooled by passive convection
• Controlling by DMX Sound to light via Microphone stand-alone Master/slave function
• Preprogrammed in Light´J LED PC-Control 512 EASY SHOW
• Effect: Single Beam

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for storing program data
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Programmable 24 sequencens
• Can transmit up to 240 DMX channels
• Controlling by DMX Sound to light via RCA (F) mounting version Sound to light via Microphone
• (19") 48.3 cm rack installation 3 U
• EUROLITE LED KLS-180 Compact Light Set
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 80 W
• IP classification: IP20
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Cable length: Approx. 1,1 m
• Power output: 1 x IEC connector (F) mounting version
• Lamp type: LED lamp
• LED: Spot 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
• Strobe effect 4 x high-power 1 W cold white (CW)
• DMX channels: 3 4 8 21
• DMX input: 3-pin XLR (M) mounting version
• DMX output: 3-pin XLR (F) mounting version
• Cooling: Passive convection
• Control: Stand-alone DMX IR remote control Sound to light via Microphone
• QuickDMX via 5-pin XLR (M) mounting version (optional) EASY SHOW LED
• PC-Control 512
• Beam angle: 9°
• Beam angle (1/2 peak): 9°
• Beam angle (1/10 peak): 18°
• Housing color: Black
• Display type: Monochrome 4 digits 7-segment LED display
• Dimensions: Width: 60,5 cm
• Depth: 14 cm
• Height: 23 cm
• Weight: 4,85 kg
• Noise classification: Class 0 (no noise at all)
• Remote control
• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• EUROLITE LED WF-40 Water Effect
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 25 W
• IP classification: IP20
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Device fuse: 5 x 20 mm, T 1 A Fuse replaceable
• Lamp type: LED lamp
• LED: 1 x COB (chip-on-board) 40 W 4in1 QCL RGBW
• Flash rate: 0 - 10 Hz
• DMX channels: 9
• DMX input: 1 x 3-pin XLR (M) mounting version
• DMX output: 1 x 3-pin XLR (F) mounting version
• Cooling: Passive convection
• Control: DMX Sound to light via Microphone stand-alone Master/slave
• function Light´J LED PC-Control 512 EASY SHOW
• Beam angle (1/2 peak): 30°
• Housing color: Black
• Dimensions: Width: 27,7 cm
• Depth: 25,2 cm
• Height: 18,7 cm
• Weight: 3,32 kg
• Noise classification: Class 2 (slight noise)
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• EUROLITE DMX LED Color Chief Controller
• Power supply: 100-240 V AC, 50/60 Hz
• 9 V DC 800 mA
• Power consumption: 10 W
• IP classification: IP20
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• Programs: Programmable
• 24 Sequences
• DMX channels: Output 240
• DMX output: 1 x 3-pin XLR (F) mounting version
• Control: DMX Sound to light via RCA (F) mounting version Sound to light via
• Microphone
• Housing color: Black
• Available storage media: USB devices (FAT 32)
• USB port: Typ A
• Color: Black
• Housing design: (19") 48.3 cm rack installation 3 U
• Dimensions: Width: 48,3 cm
• Depth: 13,35 cm
• Height: 8,5 cm
• Weight: 2,25 kg
