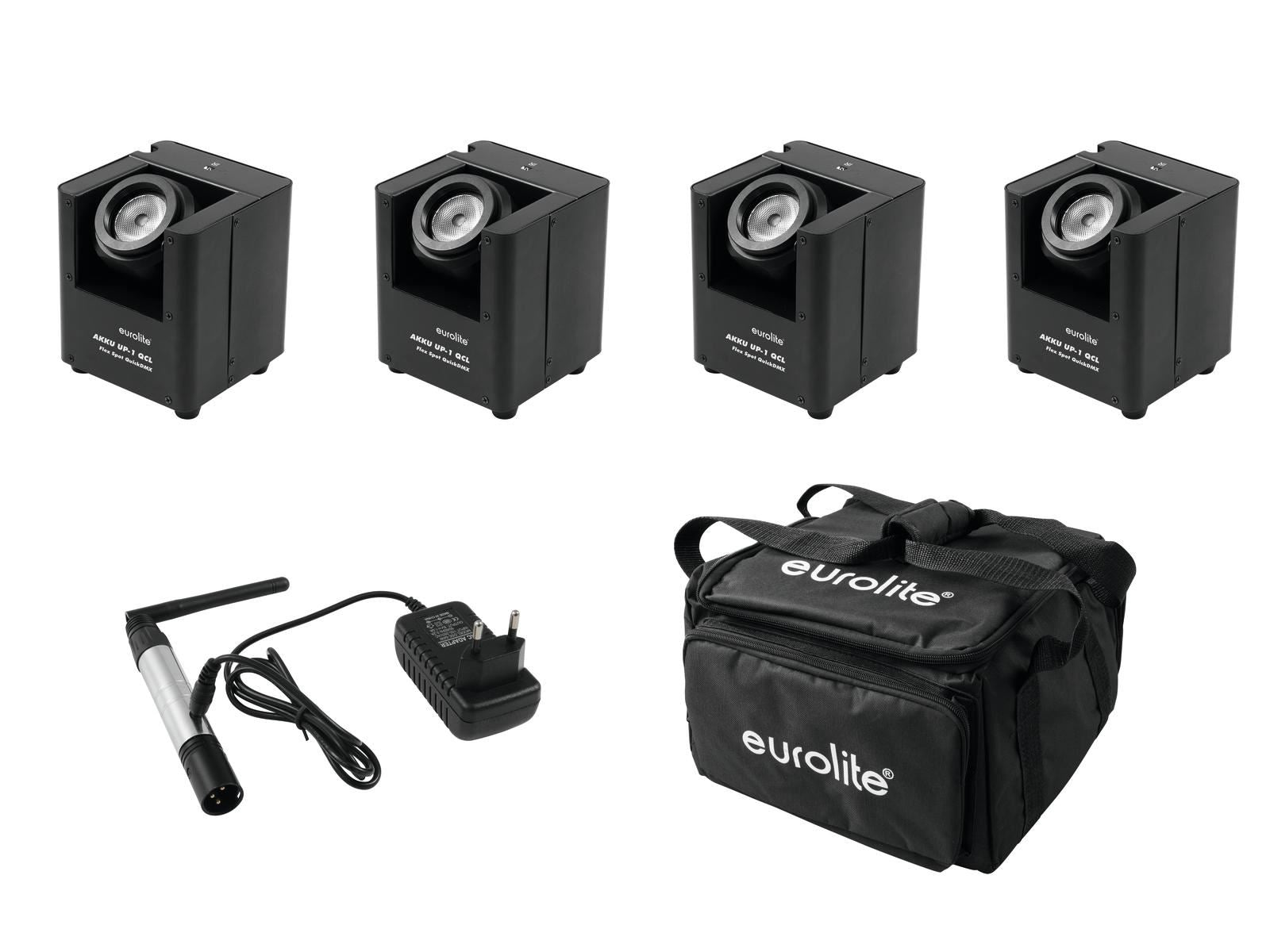

EUROLITE Set 4x AKKU UP-1 + SB-4 Soft-Bag + QuickDMX Wireless transmitter

4x LED Uplight with black soft bag and wireless DMX transmitter

EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX

LED Uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver

• Cordless and versatile
• Integrated QuickDMX transceiver for wireless DMX control
• One high-power 15 W RGBW LED (4in1)
• Inclination angle of the LED head manually adjustable
• Interchangeable front lens for 9° or 15° beam angle
• Operation via included power supply unit or built-in rechargeable lithium-ion battery with up to 18 hours operating time
• Integrated automatic charging of the battery with indicator
• Stepless color blend, color change, preset colors, dimmer and strobe effect
• Dimmer speed (step response) adjustable
• Control panel with LED display for easy configuration
• Charger included in delivery
• LED: 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
• Can be operated in 3 4 6 8 10 CH mode
• The device is cooled by passive convection
• Controlling by DMX stand-alone QuickDMX built-in Sound to light via Microphone IR remote control included
• Preprogrammed in Light´J LED PC-Control 512 Light Captain
• Flicker-free projection
• For application areas such as: Small lender Wedding/gala

EUROLITE SB-4 Soft Bag L

Black soft bag for up to 4 devices, 320 x 320 x 200 mm

• Practical transport bag offers enough space for several lighting effects and accessories
• Large interior, four times divisible and adaptable with foam dividers and pads
• Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
• External pocket stores accessories like cables, clamps, lamps and tape
• Dividers
• High-quality workmanship with nylon , black, water repellent
• Interior with foam padding
  cover with foam padding
• 2 Rugged carrying handles

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Operation via included power adapter
• 2.4 GHz - license-free worldwide
• Can transmit up to 512 DMX channels
• Controlling by QuickDMX built-in DMX
• Use a operating range up to 400m
• Weight: 9,51 kg
• EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX
• Power consumption: 15 W
• IP classification: IP20
• Protection class: Class III
• Power connection: Battery/battery pack
• Mains input Coaxial power connector (M) power supply cord with Euro plug
• (provided)
• Battery pack type: 1 x lithium ion 7,4 V, 8800 mAh, 65,12 Wh
• Battery pack: Battery operation up to 18h depending on program used
• Recharging time 6h
• Lamp type: LED lamp
• LED: 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
• DMX channels: 3 4 6 8 10
• DMX input: 1 x 3-pin XLR (M) mounting version
• DMX output: 1 x 3-pin XLR (F) mounting version
• Cooling: Passive convection
• Control: DMX stand-alone QuickDMX built-in Sound to light via Microphone
• IR remote control included Light´J LED PC-Control 512 Light Captain
• Beam angle: 9°
• Beam angle (1/2 peak): 9°
• 15°
• Beam angle (1/10 peak): 18°
• 30°
• Housing color: Black
• Carrier frequency: 2,4 GHz
• Dimensions: Width: 12 cm
• Depth: 12 cm
• Height: 14,2 cm
• Weight: 2,21 kg
• Noise classification: Class 0 (no noise at all)
• External mains adapter
• Power supply: 100-240 V AC, 50/60 Hz
• 8,4 V 3 A
• Remote control
• Battery: 1 x Button cell 3.0 V CR2032 lithium manganese built-in
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• EUROLITE SB-4 Soft Bag L
• Maximum load: 25 kg
• Carrying handle: 2 pc/pcs
• Material: Nylon
• Color: Black, water repellent
• Compartment dimensions: 15 cm x 15 cm x 19 cm
• Inside dimensions: 31 cm x 31 cm x 19 cm
• Dimensions: Width: 32 cm
• Depth: 41 cm
• Height: 20 cm
• Weight: 520 g
• EUROLITE QuickDMX Wireless Transmitter
• Power supply: 100-240 V AC, 50/60 Hz
• 5 V DC 1 A
• IP classification: IP20
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• DMX channels: Output 512
• DMX input: 1 x 3-pin XLR (M)
• Control: QuickDMX built-in DMX
• Carrier frequency: 2,4 GHz
• Modulation: GFSK
• Parallel mode: Max. 6 transmitter
• Range: 400 m
• Color: Silver
• Dimensions: Length: 21,2 cm
• Diameter: Ø 1,8 cm
• Weight: 150 g
