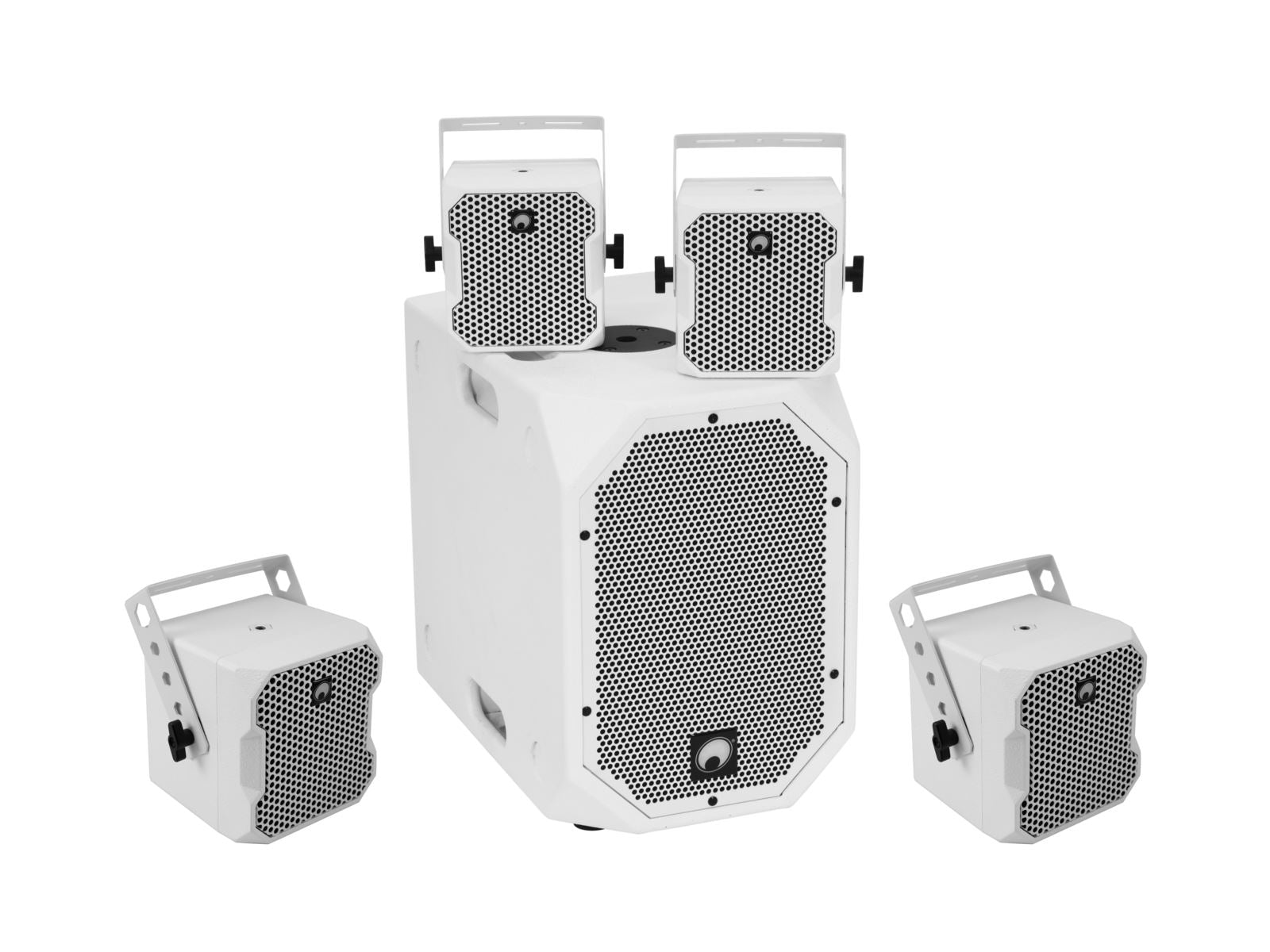

OMNITRONIC Set BOB-10A wh + 4x BOB-4 wh

BOB-10A Subwoofer active including 4 x 4" satellite speakers BOB-4

OMNITRONIC BOB-10A Subwoofer active white

10" subwoofer with DSP and Bluetooth for the BOB series

• 10" bassreflex subwoofer with DSP and 900 watts RMS power
• Flexibly extendable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
• DSP-controlled class D amplifier (300 W + 2 x 300 W)
• Integrated Bluetooth audio streaming
• 4 EQ presets with indicators
• Signal limiter and crossover
• Signal inputs via combo jacks (XLR/6.3 mm jack) and RCA
• Parallel XLR outputs for linking further BOB systems or active systems
• Separate volume controls for subwoofer and satellites L/R
• Stereo/mono selection
• Phase reversal switch
• Fault, limit, signal and power indicators
• Built-in protection circuits: soft start, short-circuit, limiter, overcurrent, overheat
• Two M20 metal flanges for mounting satellite speakers
• MDF enclosure (15 mm) with scratch-resistant lacquer surface and metal grille
• Built-in handles and low weight for ease of transport
• Stackable via recesses when set up horizontally
• Delivery includes two speaker cables
• For mobile live and DJ applications and installation in bars, stores, conference rooms and home theaters
• Digital signal processor
• Controlling by Bluetooth

OMNITRONIC BOB-4 Top 16 Ohm white 2x

2 x 4" satellite speakers with bracket for the BOB series

• 16-ohm speaker pair with 4" full-range speaker
• For use with BOB-10A subwoofers for 2.1, 4.1 and 8.1 configurations
• Incl. 2 x U-bracket for wall, ceiling and stand installation
• Optional stand adaptor required for stand mounting
• Extension U-bracket and cable available for connecting 2 satellite speakers
• Rated power: 75 W RMS/150 W program
• Connectors: 1 x speaker and screw plug terminal
• ABS plastic cabinet with M8 and M10 threaded inserts
• Scratch-resistant lacquer surface and steel grille
• Transport bag for 4 satellites, brackets and cables optional
• Weight: 25,00 kg
• OMNITRONIC BOB-10A Subwoofer active white
• Power supply: 230 V AC, 50 Hz
• Power consumption: 1060 W
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Rated power: 300 W RMS LF 2 x 300 W RMS HF
• Frequency range: 45 - 250 Hz
• Sensitivity: 100 dB
• Max. SPL: 125 dB
• DSP: Digital signal processor
• Control: Bluetooth
• Attachment system: M20 thread
• Circuitry: Class D
• Connections: Input: line via 2 x 3-pin XLR/6.35mm jack (F) combination
• socket (mounting version)
• Output: speakers via 2 x speaker built-in socket (F)
• Output: line via 1 x 3-pin XLR
• Input channels: 1 x stereo via Combination socket or RCA or Bluetooth,
• channel control via Rotary dial
• Speakers: 1 x woofer (10") approx. 25 cm
• Voice coil lows (2") approx. 5 cm
• Type of speaker: Subwoofer
• Type: Vented
• Material: MDF (Medium-density fibreboard)
• Color: White
• Dimensions: Width: 30 cm
• Depth: 47 cm
• Height: 43 cm
• Weight: 17,00 kg
• OMNITRONIC BOB-4 Top 16 Ohm white 2x
• Rated power: 75 W RMS
• Program power: 150 W
• Frequency range: 150 - 16000 Hz
• Sensitivity: 90 dB (1W/1m)
• Max. SPL: 109 dB
• Impedance: 16 ohms
• Attachment system: Mounting bracket
• Connections: Input: speakers via 1 x screw terminal
• Input: speakers via 1 x speaker built-in socket (F)
• Speakers: 1 x compression tweeter highs (4") approx. 10 cm
• 1 x Voice coil compression tweeter highs (1") approx. 2,5 cm
• Color: White, painted
• Dimensions: Width: 15 cm
• Depth: 16 cm
• Height: 15,8 cm
• Weight: 4,00 kg
