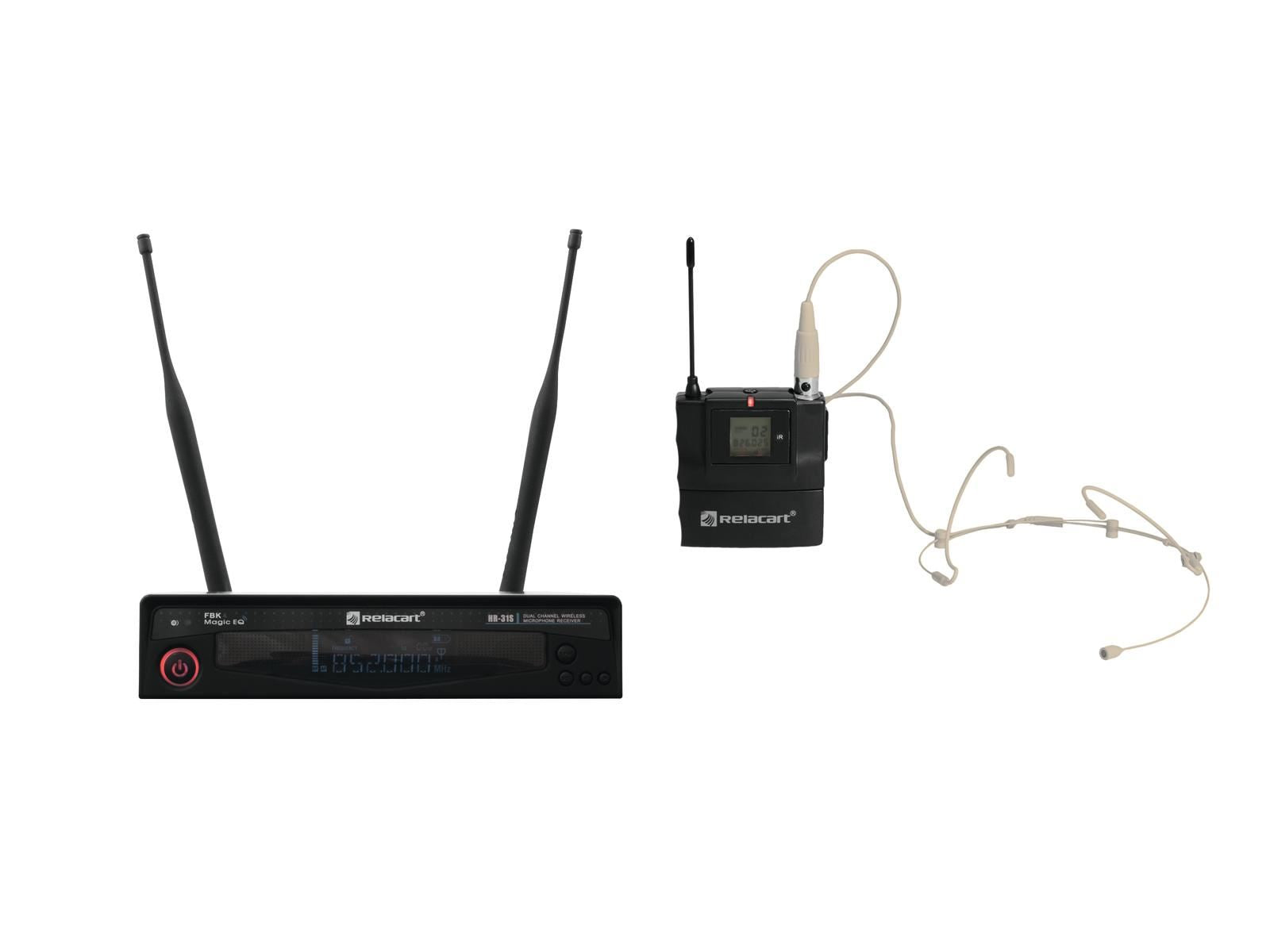

RELACART Set HR-31S Bodypack with Headset

Multifrequency wireless receiver with bodypack and headset

RELACART HR-31S 1-Channel True Diversity Receiver

True diversity wireless receiver with PC control

• Multifrequency wireless receiver with high-quality true diversity reception
• Real-time monitoring and data management using RWW PC software
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Parallel operation of up to 16 systems is possible without any interference
• Pilot tone technology (PLL) and noise squelch for interference-free operation
• Automatic frequency scan (AFS) finds interference-free channels
• Easy and error-free synchronization between receiver and transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
• Up to 32 units can be linked with network cables
• Lock function for prevents undesired changes to settings
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching hand-held microphone and pocket transmitter optionally available
• Delivery includes practical transport bag with jack cable and power adapter
• License-free and approved in large parts of the EU (please check on a country-by-country basis)
• Use a operating range up to 80m with line of sight
• The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the Dongle (optional)
• Desktop console housing 1 U (19") 48.3 cm rack installation (provided)

RELACART T-31 Bodypack for HR-31S with Headset

Bodypack transmitter with PLL multifrequency transmitter, 731-790 + 823-832 MHz

• Pocket transmitter for receiver HR-31S
• Durable aluminum alloy housing, applicable for touring
• Incl. headset microphone HM-800S
• Lavalier microphone LM-C400 optional
• Pilot tone technology (PLL) for interference-free operation
• 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
• 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
• 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
• Easy and error-free synchronization between receiver and transmitter via infrared signal
• LCD for battery status, frequency and channel
• Mute mode
• Switchable between microphone and instrument input
• License-free and approved in large parts of the EU (please check on a country-by-country basis)

transmitter

• Use a operating range up to 80m with line of sight

Microphone

• Polar pattern: Omnidirectional
• Weight: 2,01 kg
• RELACART HR-31S 1-Channel True Diversity Receiver
• Type: Receiver
• Power supply: 100-240 V AC, 50/60 Hz
• 12 V DC
• Power consumption: 3,5 W
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• Number of channels: 1
• Frequency range: 45 - 18000 Hz
• S/N ratio: >108 dB
• THD: <0,6 % at 1 kHz
• Display type: Monochrome LCD display
• Control elements: Menu, navigation keys
• Connections: Antenna via 2 x BNC (F) 8 V
• Output: line via 1 x 3-pin XLR (M) mounting version
• Output: line via 1 x 6.3 mm jack socket (stereo) mounting version
• Link: 2 x RJ14 (F) mounting version
• Frequency band: UHF 823 - 832 MHz UHF 731 - 790 MHz
• Frequency selection: 292 Switchable frequencys
• In 10 groups with up to 25 preset frequencies each and
• In 8 groups with up to 7 preset frequencies each
• Modulation: FM
• Frequency stability: ± 0,0005 %
• Range: 80 m with line of sight
• Switching bandwidth: 68 MHz
• Switch: On/off switch
• Diversity: True diversity
• Material: Metal
• Color: Black
• PC connect: RELACART RWW software with Dongle (optional) via RJ14 (F)
• mounting version
• Housing design: Desktop console housing 1 U
• (19") 48.3 cm rack installation (provided)
• Dimensions: Width: 20 cm
• Depth: 26 cm
• Height: 4,3 cm
• Weight: 1,89 kg
• RELACART T-31 Bodypack for HR-31S with Headset
• Type: Bodypack with microphone
• Switching bandwidth: 68 MHz
• Weight: 120 g
• Transmitter
• Type: Pocket transmitter
• Power supply: 1,5 V DC
• Battery: 1 x Mignon (AA) (not included)
• Frequency range: 45 - 18000 Hz
• Connections: Input: Microphone via 1 x Mini XLR (M) 4-pin mounting version
• 5 V
• Frequency band: UHF 731 - 790 MHz UHF 823 - 832 MHz
• Frequency selection: 292 Switchable frequencys
• In 10 groups with up to 25 preset frequencies each and
• In 8 groups with up to 7 preset frequencies each
• Modulation: FM
• RF power output: 50 mW
• Range: 80 m with line of sight
• Switch: Mute control on/off switch
• Material: Aluminum
• Color: Black
• Dimensions: Width: 6,3 cm
• Depth: 2 cm
• Height: 7,1 cm
• Microphone
• Type: Headset
• Power supply: 2-10 V DC
• Power connection: Mini XLR (F) 4-pin
• Cable length: 1 m
• Capsule type: Condenser
• Size: Ø 5 mm x 6 mm
• Polar pattern: Omnidirectional
• Sensitivity: -47 dB
• Impedance: 2200 Ohm
• Material: Metal
• Color: Skin-colored
• Weight: 20 g
