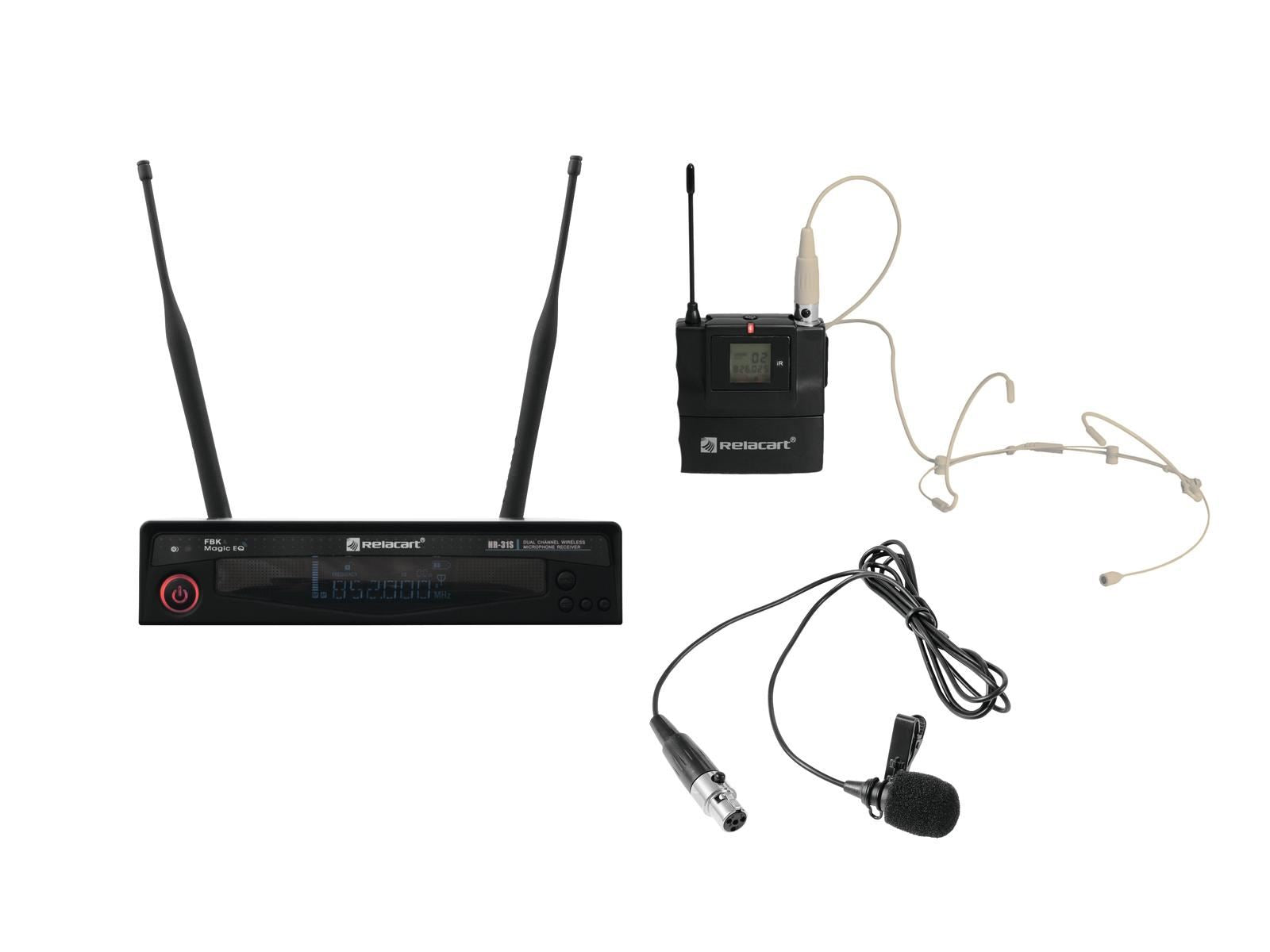

Multifrequency wireless receiver with bodypack, headset and lavalier microphone
RELACART HR-31S 1-Channel True Diversity Receiver
True diversity wireless receiver with PC control
- Multifrequency wireless receiver with high-quality true diversity reception
- Real-time monitoring and data management using RWW PC software
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
- Parallel operation of up to 16 systems is possible without any interference
- Pilot tone technology (PLL) and noise squelch for interference-free operation
- Automatic frequency scan (AFS) finds interference-free channels
- Easy and error-free synchronization between receiver and transmitters via infrared signal
- LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
- Serial RS-485 interface for connecting a computer with the optional USB/RS-485 converter U485
- Up to 32 units can be linked with network cables
- Lock function for prevents undesired changes to settings
- XLR and 6.3 mm jack output
- 2 detachable BNC antennas allow for use with the R-14D antenna divider
- Matching hand-held microphone and pocket transmitter optionally available
- Delivery includes practical transport bag with jack cable and power adapter
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
- Use a operating range up to 80m with line of sight
- The device can be connected via RJ14 (F) mounting version to the PC in connection with RELACART RWW software and the Dongle (optional)
- Desktop console housing 1 U (19") 48.3 cm rack installation (provided)
RELACART T-31 Bodypack for HR-31S with Headset
Bodypack transmitter with PLL multifrequency transmitter, 731-790 + 823-832 MHz
- Pocket transmitter for receiver HR-31S
- Durable aluminum alloy housing, applicable for touring
- Incl. headset microphone HM-800S
- Lavalier microphone LM-C400 optional
- Pilot tone technology (PLL) for interference-free operation
- 731-790 MHz (requires license in Germany) is lockable and offers 244 fixed frequencies (10 frequency banks with up to 25 frequencies each)
- 823-832 MHz (license-free in Germany) offers 48 fixed frequencies (8 frequency banks with up to 7 frequencies each)
- 292 frequencies manually adjustable in steps of 25 kHz within 68 MHz switching bandwidth
- Easy and error-free synchronization between receiver and transmitter via infrared signal
- LCD for battery status, frequency and channel
- Mute mode
- Switchable between microphone and instrument input
- License-free and approved in large parts of the EU (please check on a country-by-country basis)
transmitter
- Use a operating range up to 80m with line of sight
Microphone
- Polar pattern: Omnidirectional
RELACART LM-C420 Lavalier unidirectional
Inconspicuous electret lavalier microphone
- For attaching to the user's tie, shirt or collar
- Provides high-quality voice pickup for public speaking, theater, or business presentations
- Connection via 4-pin mini XLR plug
- Delivery includes foam windscreen
- Polar pattern: Cardioid
- Weight: 2,03 kg
- RELACART HR-31S 1-Channel True Diversity Receiver
- Type: Receiver
- Power supply: 100-240 V AC, 50/60 Hz
- 12 V DC
- Power consumption: 3,5 W
- Power connection: Mains input Coaxial power connector (M) power supply
- cord with AC adapter (provided)
- Number of channels: 1
- Frequency range: 45 - 18000 Hz
- S/N ratio: >108 dB
- THD: <0,6 % at 1 kHz
- Display type: Monochrome LCD display
- Control elements: Menu, navigation keys
- Connections: Antenna via 2 x BNC (F) 8 V
- Output: line via 1 x 3-pin XLR (M) mounting version
- Output: line via 1 x 6.3 mm jack socket (stereo) mounting version
- Link: 2 x RJ14 (F) mounting version
- Frequency band: UHF 823 - 832 MHz UHF 731 - 790 MHz
- Frequency selection: 292 Switchable frequencys
- In 10 groups with up to 25 preset frequencies each and
- In 8 groups with up to 7 preset frequencies each
- Modulation: FM
- Frequency stability: ± 0,0005 %
- Range: 80 m with line of sight
- Switching bandwidth: 68 MHz
- Switch: On/off switch
- Diversity: True diversity
- Material: Metal
- Color: Black
- PC connect: RELACART RWW software with Dongle (optional) via RJ14 (F)
- mounting version
- Housing design: Desktop console housing 1 U
- (19") 48.3 cm rack installation (provided)
- Dimensions: Width: 20 cm
- Depth: 26 cm
- Height: 4,3 cm
- Weight: 1,89 kg
- RELACART T-31 Bodypack for HR-31S with Headset
- Type: Bodypack with microphone
- Switching bandwidth: 68 MHz
- Weight: 120 g
- Transmitter
- Type: Pocket transmitter
- Power supply: 1,5 V DC
- Battery: 1 x Mignon (AA) (not included)
- Frequency range: 45 - 18000 Hz
- Connections: Input: Microphone via 1 x Mini XLR (M) 4-pin mounting version
- 5 V
- Frequency band: UHF 731 - 790 MHz UHF 823 - 832 MHz
- Frequency selection: 292 Switchable frequencys
- In 10 groups with up to 25 preset frequencies each and
- In 8 groups with up to 7 preset frequencies each
- Modulation: FM
- RF power output: 50 mW
- Range: 80 m with line of sight
- Switch: Mute control on/off switch
- Material: Aluminum
- Color: Black
- Dimensions: Width: 6,3 cm
- Depth: 2 cm
- Height: 7,1 cm
- Microphone
- Type: Headset
- Power supply: 2-10 V DC
- Power connection: Mini XLR (F) 4-pin
- Cable length: 1 m
- Capsule type: Condenser
- Size: Ø 5 mm x 6 mm
- Polar pattern: Omnidirectional
- Sensitivity: -47 dB
- Impedance: 2200 Ohm
- Material: Metal
- Color: Skin-colored
- Weight: 20 g
- RELACART LM-C420 Lavalier unidirectional
- Type: Lavalier microphone
- Power supply: 2-10 V DC
- Power connection: Mains input Mini XLR (F) 4-pin
- Cable length: 1,2 m
- Capsule type: Electret
- Polar pattern: Cardioid
- Frequency range: 60 - 12000 Hz
- S/N ratio: >59 dB
- Sensitivity: -42 dB
- Impedance: 1800 Ohm
- Switch: Without
- Material: Aluminum
- Color: Black
- Dimensions: Length: 2,80 cm
- Diameter: Ø 1,10 cm
- Weight: 20 g
