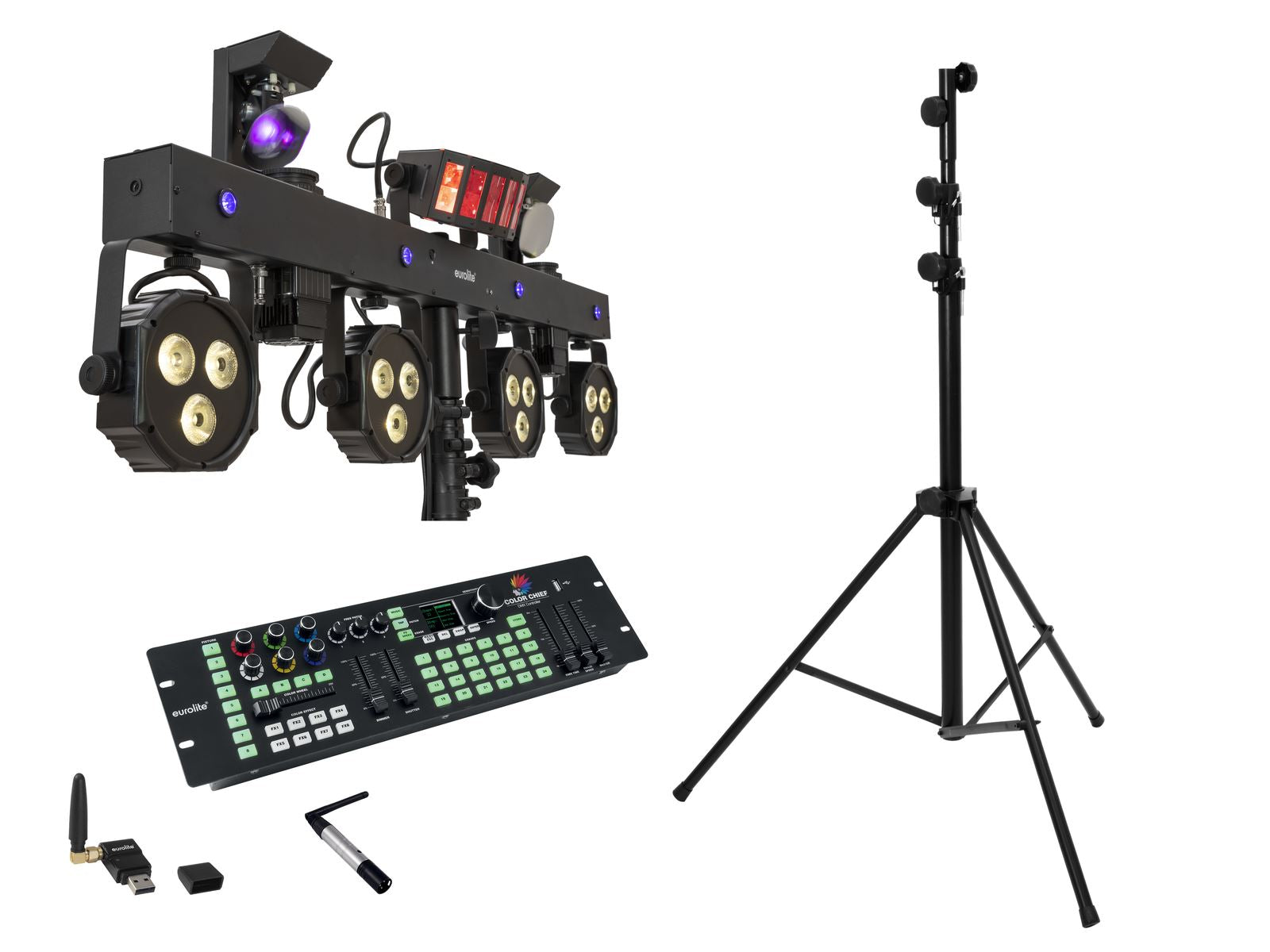

EUROLITE Set LED KLS Scan Next FX Compact Light Set + Controller + Steel stand

EUROLITE LED KLS Scan Next FX Compact Light Set

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

• DMX light effect bar with 1 rotating LED derby, 4 LED spots, 2 scanners and UV LEDs
• Ultra-light, ideally suited for mobile use
• Crossbar with integrated DMX control unit and TV spigot for tripod installation
• 2 swivel mounting brackets
• Comes pre-assembled with practical transport bag
• Convenient control via included IR remote control or optional wireless foot switch
• Several diverse DMX modes for various consoles and requirements
• LED derby and LED spots individually tiltable and controllable
• Spots with 15° beam angle
• Mirror movement can be inverted separately for both scanners (e.g. for common, counter-rotating control)
• Brand-new software design with smart programs
• 20 built-in auto and music show programs that include all 4 effect units
• Control panel with OLED display for easy configuration
• Supports QuickDMX - the wireless DMX system from Eurolite
• Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
• When fog is used, this effect becomes especially attractive
• Mains input and output for power linking up to 8 units
• Can be operated in 3 7 13 14 15 18 19 30 32 39 CH mode
• The device is cooled by cooling fan
• Controlling by DMX IR remote control (provided) Sound to light via Microphone stand-alone Master/slave function Wireless footswitch (optional) QuickDMX via USB (optional) W-DMX by wireless solution via USB (optional) CRMX by LumenRadio via USB (optional)
• Preprogrammed in Light Captain
• For application areas such as: Wedding/gala Lender Small lender

spotlight

• LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color mix)

light effect

• LED: Multi beam effect each 1 x 3 W R/G/B

moving light

• LED: Scanner each 1 x 15 W cold white (CW)

bar

• LED: 4 x high-power 1 W ultra violet (UV)

EUROLITE QuickDMX USB Wireless Transmitter/Receiver

Wireless miniature DMX transceiver 2.4 GHz, phantom powered

• User-friendly USB plug with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Operating range up to 400 m (with line-of-sight)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• 2.4 GHz - license-free worldwide
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Controlling by DMX QuickDMX built-in

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR plug (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Operation via included power adapter
• 2.4 GHz - license-free worldwide
• Can transmit up to 512 DMX channels
• Controlling by QuickDMX built-in DMX
• Use a operating range up to 400m

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Each device can occupy up to 30 channels
• Quick and easy programming
• Eurolite KLS systems and LED spotlights already in the library
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases can be run simultaneously
• USB port for storing program data
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• 3-pin XLR connector
• Firmware update via USB
• Desktop console
• Programmable 24 sequencens
• Can transmit up to 240 DMX channels
• Controlling by DMX Sound to light via RCA (F) mounting version Sound to light via Microphone
• (19") 48.3 cm rack installation 3 U

EUROLITE STV-60-WOT EU Steel Stand black

Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm

• Stable lighting stand (without T bar)
• For mobile use
• Steel/magnesium version
• Ø 29 mm attachment fits standard TV pins
• Carry bag available as accessory
• Available in black and white
• Made in Europe
• Weight: 20,86 kg
• EUROLITE LED KLS Scan Next FX Compact Light Set
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 115 W
• IP classification: IP20
• Protection class: Class I
• Power connection: Mains input P-Con (blue), mounting version power supply
• cord with safety plug (provided)
• Power output: P-Con (gray), mounting version
• Fuse: 5 x 20 mm, T 2 A Fuse replaceable
• Lamp type: LED lamp
• Equipment: Color wheel gobo wheel with static gobos
• DMX channels: 3 7 13 14 15 18 19 30 32 39
• DMX input: 1 x 3-pin XLR (M) mounting version
• DMX output: 1 x 3-pin XLR (F) mounting version
• Cooling: Cooling fan
• Control: DMX IR remote control (provided) Sound to light via Microphone
• stand-alone Master/slave function Wireless footswitch (optional) QuickDMX
• via USB (optional) W-DMX by wireless solution via USB (optional) CRMX by
• LumenRadio via USB (optional) Light Captain
• Beam angle: 15°
• Beam angle (1/2 peak): Spot 15°
• Beam angle (1/10 peak): Spot 28°
• Illuminance in Lux (lx): Red (R) 1m: 1022 lx, 3m: 125 lx, 6m: 33 lx
• Green (G) 1m: 2448 lx, 3m: 285 lx, 6m: 75 lx
• Blue (B) 1m: 395 lx, 3m: 47 lx, 6m: 13 lx
• Warm white (WW) 1m: 1892 lx, 3m: 219 lx, 6m: 58 lx
• All 1m: 4853 lx, 3m: 676 lx, 6m: 175 lx
• Housing color: Black
• Attachment system: TV spigot Ø 28mm
• Display type: OLED display
• Dimensions: Width: 1,1 m
• Depth: 15,5 cm
• Height: 43 cm
• Weight: 12,80 kg
• Spotlight
• LED: Spot each 3 x high-power 7 W 4in1 QCL RGB/WW (homogenous color
• mix)
• Light effect
• LED: Multi beam effect each 1 x 3 W R/G/B
• Moving light
• LED: Scanner each 1 x 15 W cold white (CW)
• Bar
• LED: 4 x high-power 1 W ultra violet (UV)
• Remote control
• Battery: 1 x Button cell 3.0 V CR2025 lithium manganese
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• EUROLITE QuickDMX USB Wireless Transmitter/Receiver
• Power supply: 5 V DC
• IP classification: IP20
• Power connection: Mains input USB A (M) connectable version
• DMX channels: Input 512
• Output 512
• DMX output: 1 x USB, type A
• Control: DMX QuickDMX built-in
• Carrier frequency: 2,4 GHz
• Modulation: GFSK
• Parallel mode: Max. 6 transmitter
• Color: Black
• Dimensions: Width: 8,6 cm
• Depth: 4 cm
• Height: 1,1 cm
• Weight: 10 g
• EUROLITE QuickDMX Wireless Transmitter
• Power supply: 100-240 V AC, 50/60 Hz
• 5 V DC 1 A
• IP classification: IP20
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• DMX channels: Output 512
• DMX input: 1 x 3-pin XLR (M)
• Control: QuickDMX built-in DMX
• Carrier frequency: 2,4 GHz
• Modulation: GFSK
• Parallel mode: Max. 6 transmitter
• Range: 400 m
• Color: Silver
• Dimensions: Length: 21,2 cm
• Diameter: Ø 1,8 cm
• Weight: 150 g
• EUROLITE DMX LED Color Chief Controller
• Power supply: 100-240 V AC, 50/60 Hz
• 9 V DC 800 mA
• Power consumption: 10 W
• IP classification: IP20
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (provided)
• Programs: Programmable
• 24 Sequences
• DMX channels: Output 240
• DMX output: 1 x 3-pin XLR (F) mounting version
• Control: DMX Sound to light via RCA (F) mounting version Sound to light via
• Microphone
• Housing color: Black
• Available storage media: USB devices (FAT 32)
• USB port: Typ A
• Color: Black
• Housing design: (19") 48.3 cm rack installation 3 U
• Dimensions: Width: 48,3 cm
• Depth: 13,35 cm
• Height: 8,5 cm
• Weight: 2,25 kg
• EUROLITE STV-60-WOT EU Steel Stand black
• Maximum carrying capacity: 30 kg
• Height: Maximum: 315 cm
• Minimum: 150 cm
• Attachment system: TV spigot Ø 28mm
• Type (general stands): Light stand/manual
• Material: Steel/magnesium
• Color: Black
• Transport dimensions: 1,26 m x 12 cm x 15 cm
• Weight: 5,65 kg
