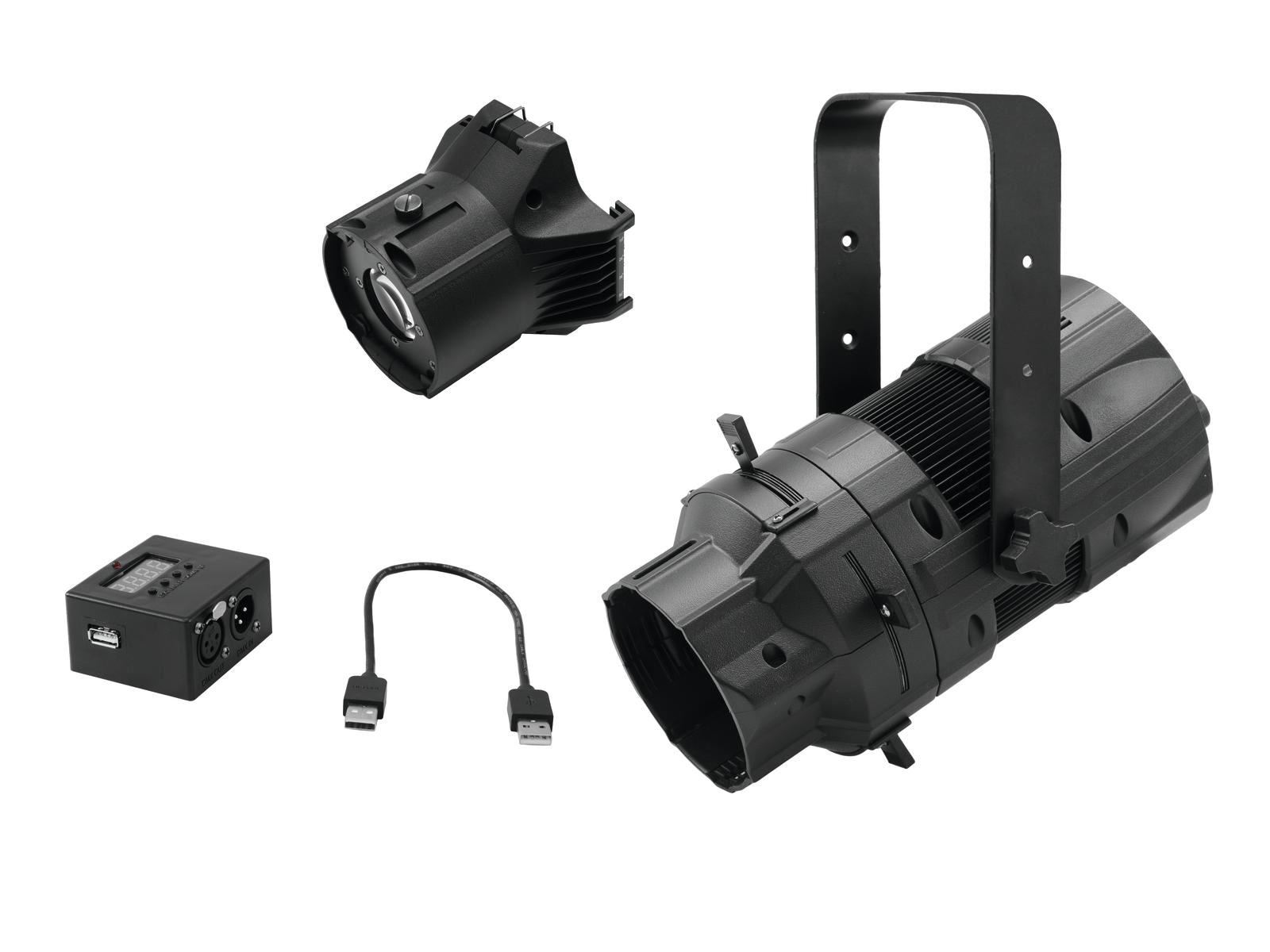

EUROLITE Set LED PFE-50 + Lens tube 26° + DMX Interface

Handy stage spotlight including 26° lens tube and control modul with DMX interface

EUROLITE LED PFE-50 3000K Profile Spot

Handy stage spotlight with 50 W COB LED in modular construction system, CRI >80

• Modular construction kit that can be customized to individual preferences
• Locking possibility at the mounting bracket
• 4 shutter blades
• Color-filter frame
• Gobo holder for own gobos with an outside diameter between 35 and 60 mm, image diameter max. 27 mm
• Delivery without lens tube (necessary accessory)
• Matching lens tube (beam angle 19°/26°/36°/50°), adjustable iris and DMX interface available as accessories
• Dimmer and strobe, master/slave functions adjustable via optional DMX interface
• Mains input and output for power linking up to 8 units
• LED: 1 x COB (chip-on-board) 50 W warm white (WW)
• The device is cooled by cooling fan
• Controlling by on/off switch on device
• Preprogrammed in LED PC-Control 512 Light Captain
• Flicker-free projection
• Very high color rendering index (CRI)

EUROLITE Lens Tube 26° for LED PFE-50

Lens tube for EUROLITE LED PFE-50 3000 K Profile Spot

• 26° beam angle
• Lens tube available with a beam angle of 19°, 26°, 36° or 50°

EUROLITE DMX-Interface for LED PFE-50

Control unit with DMX interface for EUROLITE LED PFE-50 3000 K Profile Spot

• Adds full DMX functionality to the spotlight
• Control panel with LED display for easy configuration
• Dimmer and strobe, master/slave functions adjustable
• 3-pin XLR connectors for DMX IN/DMX OUT
• USB port for connecting the spotlight (incl. cable)
• Can be operated in 2 CH mode
• Controlling by DMX
• Weight: 2,35 kg
• Noise classification: Class 1 (very slight noise, suitable for noise-
• sensitiveenvironments)
• EUROLITE LED PFE-50 3000K Profile Spot
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 55 W
• IP classification: IP20
• Power connection: Mains input 3-pin screw plug connector (M) IP power
• supply cord with safety plug (provided)
• Power output: 1 x 3-pin screw plug connector (F) IP
• Lamp type: LED lamp
• LED: 1 x COB (chip-on-board) 50 W warm white (WW)
• Color temperature: 3000K
• Cooling: Cooling fan
• Control: On/off switch on device LED PC-Control 512 Light Captain
• Beam angle: 19°
• Beam angle (1/2 peak): 19° (optional)
• 26° (optional)
• 36° (optional)
• 50° (optional)
• Color rendering index (CRI) more than: 90 Ra
• Illuminance in Lux (lx): Warm white (WW) 1m: 0 lx, 3m: 1669 lx, 6m: 432
• lx
• Housing color: Black
• Dimensions: Length: 30,5 cm
• Width: 13,4 cm
• Height: 23,8 cm
• Weight: 2,01 kg
• Noise classification: Class 1 (very slight noise, suitable for noise-
• sensitiveenvironments)
• Legal specifications
• Special product: Not designed for household room illumination
• Intended use: Show effect lighting
• EUROLITE Lens Tube 26° for LED PFE-50
• Weight: 220 g
• EUROLITE DMX-Interface for LED PFE-50
• IP classification: IP20
• DMX channels: 2
• Control: DMX
• Housing color: Black
• Weight: 120 g
