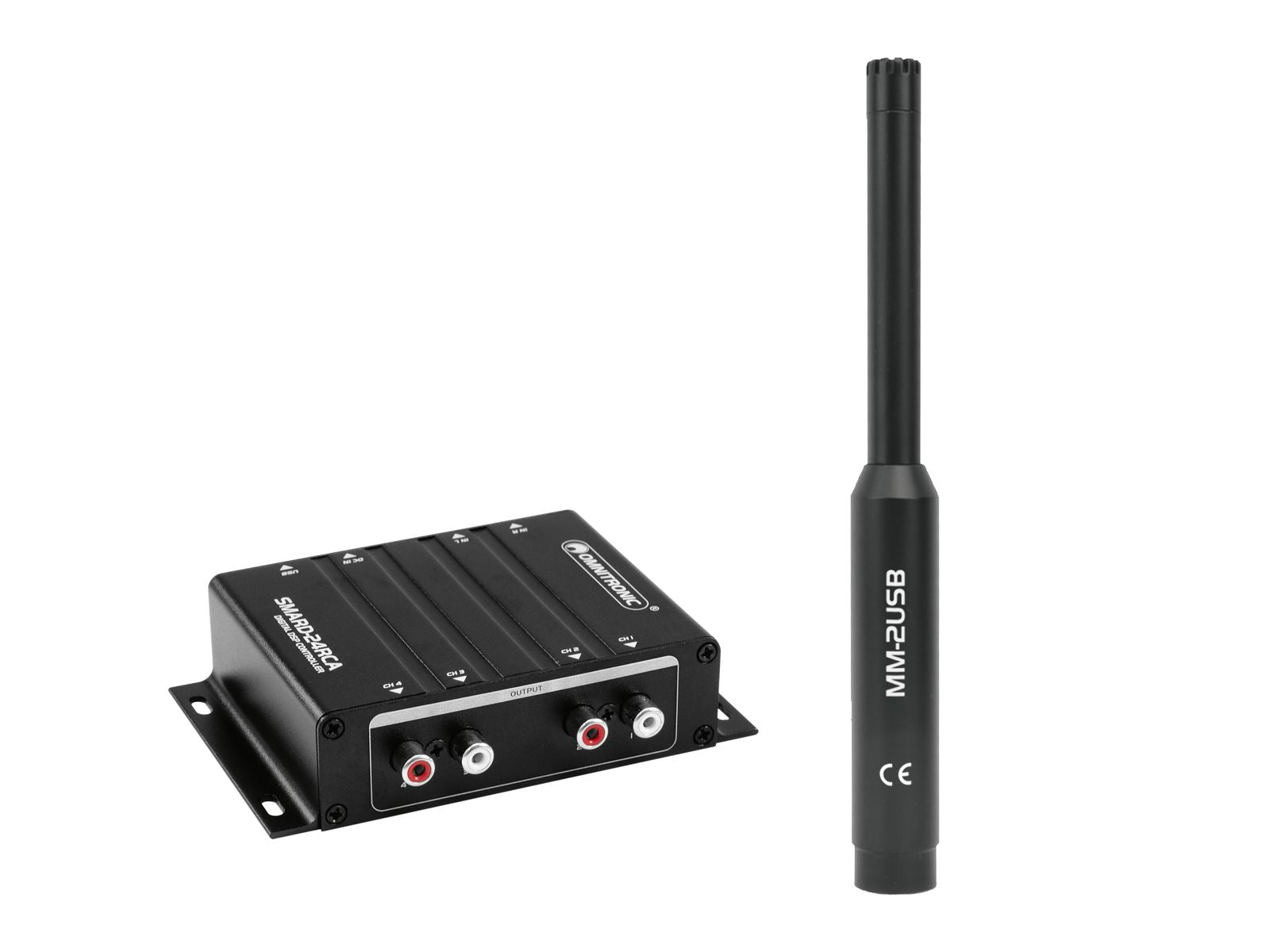

OMNITRONIC Set SMARD-24RCA + MIC MM-2USB

Digital signal processor in minature format including USB Condenser Measurement Mic

OMNITRONIC SMARD-24RCA Digital DSP Controller

Digital signal processor (DSP) in miniature format, software included

• Flexible routing configurations for all standard mono and stereo output operating modes
• 2 analog RCA inputs
• 4 analog RCA outputs
• 10-band parametric EQ per input and output
• Parametric filters can be set as Bell, High Shelf, Low Shelf, Notch, Allpass
• Active crossover with Bessel, Butterworth and Linkwitz-Riley filter with slopes up to 24 dB/octave
• The intelligent software for PC and Mac allows convenient control with a computer
• Up to 50 user presets storable in the device via software
• Up to 10 ms signal delay adjustable for the inputs and outputs
• Limiter and compressor for each input and output
• Switchable phase per output (180°)
• Lock function for prevents undesired changes to settings
• 24-bit AD/DA converter
• 48 kHz sampling rate
• FIR filters
• Real-Time-Analyzer function (RTA)
• Incl. control software for programing and remote control via computer through micro USB interface
• Wall mounting
• Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
• Digital signal processor FIR Filter
• The device can be connected via USB to the PC in connection with DXO Software
  The firmware can be updated via the PC connection

OMNITRONIC MIC MM-2USB USB Condenser Measurement Mic

Precise USB measuring microphone with flat frequency response

• USB measuring microphone for high-grade audio measurements with a computer
• Plug & play: connects to PC and Mac without driver installation
• Designed for measuring PA systems, speakers and room acoustics
• Perfect complement to any real-time analyzer
• Flat frequency response for high precision
• True omnidirectional pattern
• Sturdy all-metal construction and narrow design
• Power supply via USB
• Incl. USB A/B cable, microphone clip, thread adapter (9 mm/3/8") and windscreen
• Polar pattern: Omnidirectional
• The device can be connected via USB to the PC
• Weight: 420 g
• OMNITRONIC SMARD-24RCA Digital DSP Controller
• Power supply: 5-6 V DC 500 mA
• Pin configuration: Inside + outside -
• Power connection: Mains input Coaxial power connector (M) power supply
• cord with AC adapter (optional)
• Mains input micro USB (F) mounting version power supply cord for USB A
• mains connection (provided)
• Frequency range: 20 - 20000 Hz
• DSP: Digital signal processor FIR Filter
• Crossover frequency: 20-20000 Hz
• Filter: Linkwitz-Riley Butterworth Bessel 6db/oct 12db/oct 18db/oct 24db/oct
• Delay: 0 - 10 ms
• Dynamic range: Input: 113 dB
• Output: 103 dB
• Sample rate: 48 kHz
• Connections: Input: line via 1 x stereo RCA
• Output: line via 2 x stereo RCA
• Max. level: Input: +9 dBu
• Output: +6 dBu
• USB port: Typ micro USB (F) mounting version
• PC connect: DXO Software via USB, firmware can be updated
• Dimensions: Width: 13 cm
• Depth: 10 cm
• Height: 3,1 cm
• Weight: 240 g
• OMNITRONIC MIC MM-2USB USB Condenser Measurement Mic
• Type: Microphone for measurements
• Cable length: 1,2 m
• Capsule type: Condenser
• Polar pattern: Omnidirectional
• Frequency range: 20 - 20000 Hz
• S/N ratio: >76 dB
• Sensitivity: -37 dB
• Max. SPL: 134 dB
• Impedance: 200 Ohm
• Connections: Microphone via USB B (F) mounting version
• USB port: Typ B
• Switch: Without
• PC connect: Via USB
• Dimensions: Length: 19,2 cm
• Diameter: Ø 13 cm
• Weight: 180 g
