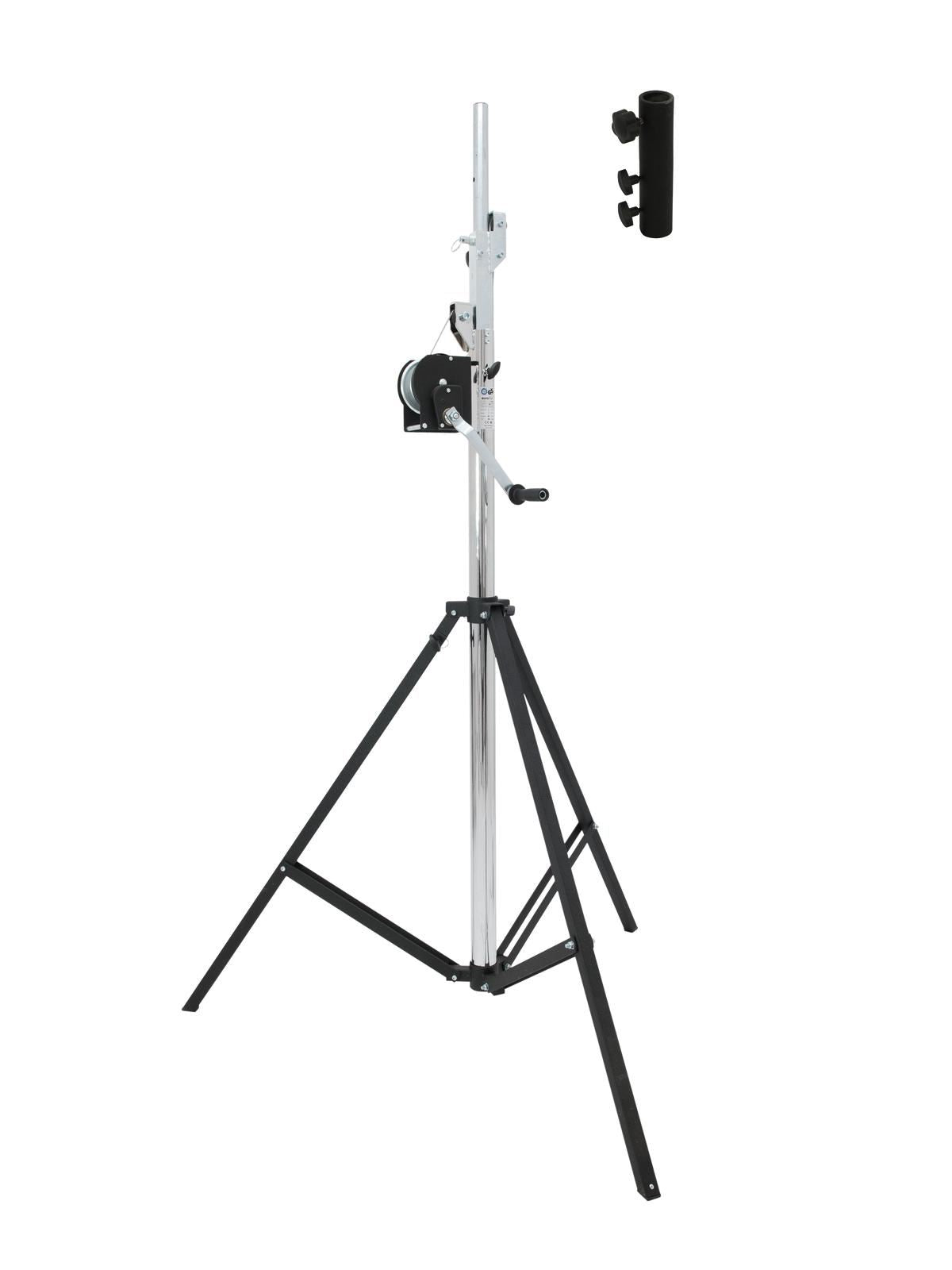

EUROLITE Set STT-400/85 Winch stand + STV-3529

High-quality winch-stand with matching massive adapter

EUROLITE STT-400/85 Winch Stand TÜV/GS

High-quality winch-stand, maximum load 85 kg, maximum height 400 cm

• Made of steel
• TÜV/GS certified, certificate available
• CE certified complying with DIN EN ISO 12100-2, DIN 15560-27, certificate available
• 1-gear winch for easy lifting of the loads
• Automatic braking system
• Safety-pins for mechanic locking
• Ideal for mobile, professional lighting-systems or PA-systems
• Easy handling
• TÜV Süd certified

EUROLITE STV-3529 Adapter long

Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg

• For stands with 35 mm telescopic tube
• Connection element for cross beam with 28 mm spigot
• With M6 and M8 fixation screw
• Heavy version for highest stability
• Weight: 25,62 kg
• EUROLITE STT-400/85 Winch Stand TÜV/GS
• Maximum carrying capacity: 85 kg
• Minimum load: 25 kg
• Height: Maximum: 400 cm above 3 sections
• Minimum: 175 cm
• Attachment system: Ø 35mm
• Construction by: DIN 15560-27, DIN EN ISO 12100-2
• Steel rope: Ø 4 mm
• Type (general stands): Light stand/wind up
• Transport dimensions: 1,75 m x 30 cm x 27 cm
• Base area: Ø 1,6 m
• Weight: 24,10 kg
• EUROLITE STV-3529 Adapter long
• Maximum load BGV C1 (8-fold): 50 kg
• Max. load WLL (4fold): 100 kg
• Attachment system: TV spigot Ø 28mm
• Ø 35mm
• Type (general stands): Accessory
• Material: Steel, 6 mm, powder-coated
• Dimensions: Width: 8,50 cm
• Depth: 5 cm
• Height: 19,50 cm
• Weight: 1,52 kg
