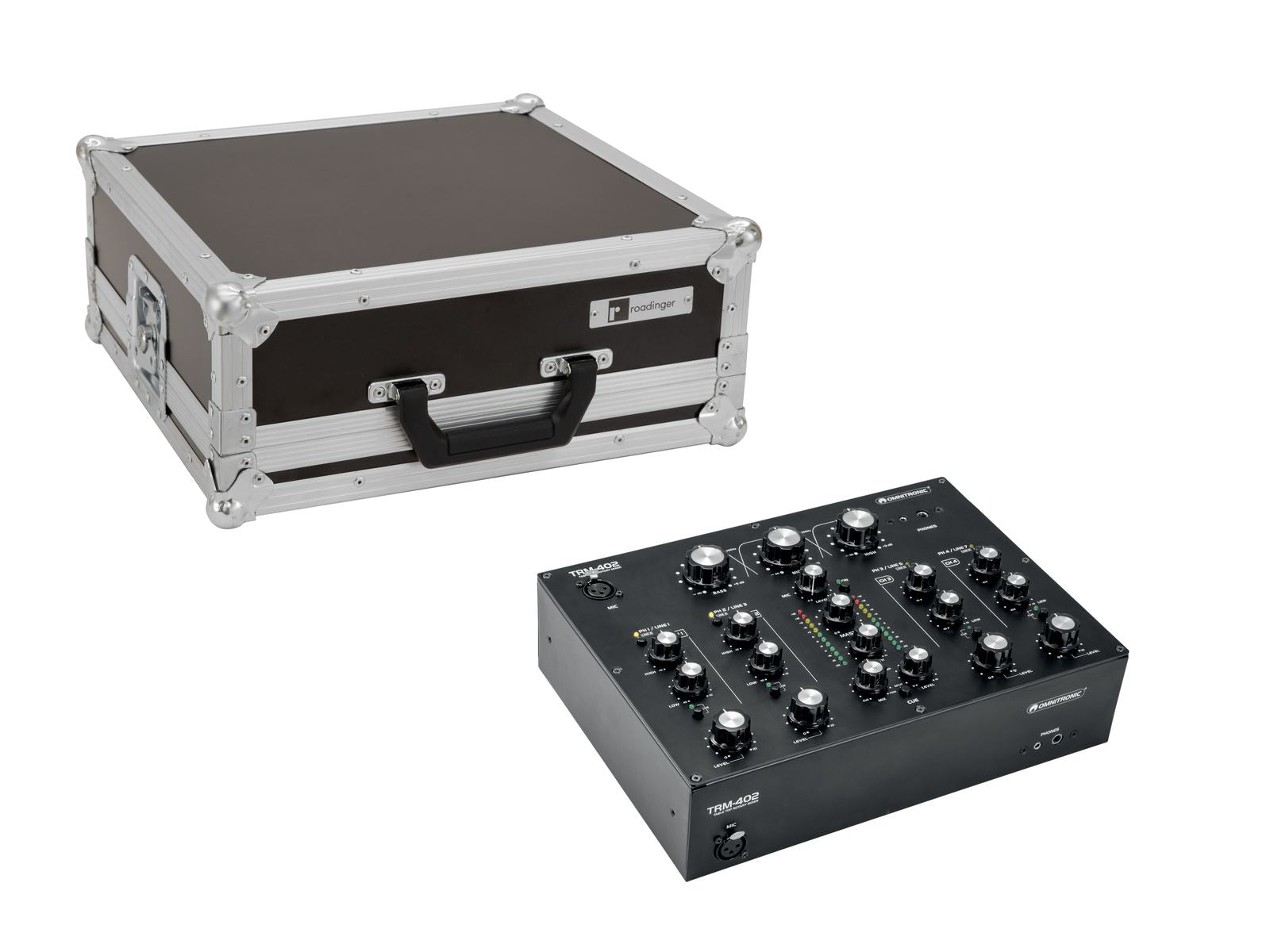

OMNITRONIC Set TRM-402 + Case

OMNITRONIC TRM-402 4-Channel Rotary Mixer

4-channel rotary mixer with 3-band frequency isolator for DJs

• Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs
• Gain control, 2-way equalizer (highs/lows) and phono/line switching per channel
• Dedicated boost and kill cut
• Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing
• Vintage ALPS potentiometers (Blue Velvet RK27)
• High-grade components ensure long life and excellent sound quality
• DJ microphone input with separate level control
• Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function
• 12-digit stereo LED level meter and master level control
• Booth output with separate level control
• Dual inputs for DJ microphone and headphones on the top and front panel
• Inputs: 8 x line and 4 x phono (RCA L/R)
• Outputs: master and booth (XLR/RCA L/R), record (stereo RCA)
• Matching woodkits available at www.omniwoodkit.com
• Desktop console housing

ROADINGER Flightcase TRM-402

PRO flightcase for 1 x TRM-402 Rotary Mixer

• Compartments upholstered with foam
• High-quality workmanship with 6.5 mm birch multiplex, dark brown laminated
• Additional accessory compartment
• Aluminum profile frames with rounded edges
• Three-leg steel ball corners
• 2 high-quality spring locks
• 4 rubber feet
• 1 carrying handle
• 6,5 mm, dark brown, laminated
• Made in Europe
• Weight: 8,55 kg
• OMNITRONIC TRM-402 4-Channel Rotary Mixer
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 7,2 W
• Protection class: Class I
• Power connection: Mains input IEC connector (M) mounting version power
• supply cord with safety plug (provided)
• Frequency range: Microphone 20 - 20000 Hz
• Line 20 - 20000 Hz
• Phono 40 - 18000 Hz
• S/N ratio: >77 dB phono
• >80 dB Microphone
• >85 dB line
• THD: Line <0,03 % at 1 kHz
• Phono <0,1 % at 1 kHz
• Gain: Microphone 44 dB
• Line 20 dB
• Phono 60 dB to +75 dB
• Isolators: Master Gain:- ∞ bis +9
• Low/mid 300 Hz, 18db/oct , Butterworth
• Mid/high 4000 Hz, 18db/oct , Butterworth
• Control elements: Power switch, source selector, Crossfader, Cue mix split
• function, EQ controls
• Status LED: Power, master level meter, chanal source, CUE, Microphone
• Connections: Input: line via 4 x stereo RCA
• Input: line/phono via 4 x stereo RCA
• Input: Microphone via 2 x 3-pin XLR
• Output: headphones via 2 x 6.3 mm jack socket (stereo) mounting version
• Output: headphones via 2 x 3.5 mm jack (stereo) mounting version
• Output: rec. via 1 x stereo RCA
• Output: booth via 2 x 3-pin XLR
• Output: booth via 1 x stereo RCA
• Output: master via 2 x 3-pin XLR
• Output: master via 1 x stereo RCA
• Channels: Input chanel: 4 x stereo with Line-Line/Phono switch via RCA,
• channel control via Rotary, 2-band tone control EQ, gain control, Phono gain
• rotery, CUE switch, source selector
• Microphon chanal: 1 x mono via XLR, channel control via Rotary dial, ON AIR
• switch,
• Booth output: 1 x stereo via XLR or RCA, channel control via Rotary dial
• Master output: 1 x stereo via XLR or RCA, channel control via Rotary dial
• Headphones output: 1 x stereo via Plug 6,3mm/3,5mm (Jack), channel
• control via Rotary dial, Cue mix split function,
• Max. level: Output: +22 dBu
• Material: Metal
• Housing design: Desktop console housing
• Dimensions: Width: 33 cm
• Depth: 24,7 cm
• Height: 10,7 cm
• Weight: 4,05 kg
• ROADINGER Flightcase TRM-402
• Maximum load: 25 kg
• Color: Dark brown, laminated
• Device compartment: 33 cm x 23,5 cm x 4 cm
• Accessory compartment: 37 cm x 6,5 cm x 4,5 cm
• Inside dimensions: 37 cm x 30 cm x 4,5 cm
• Material thickness: 6,5 mm
• Dimensions: Width: 40 cm
• Depth: 37 cm
• Height: 17,5 cm
• Weight: 3,85 kg
