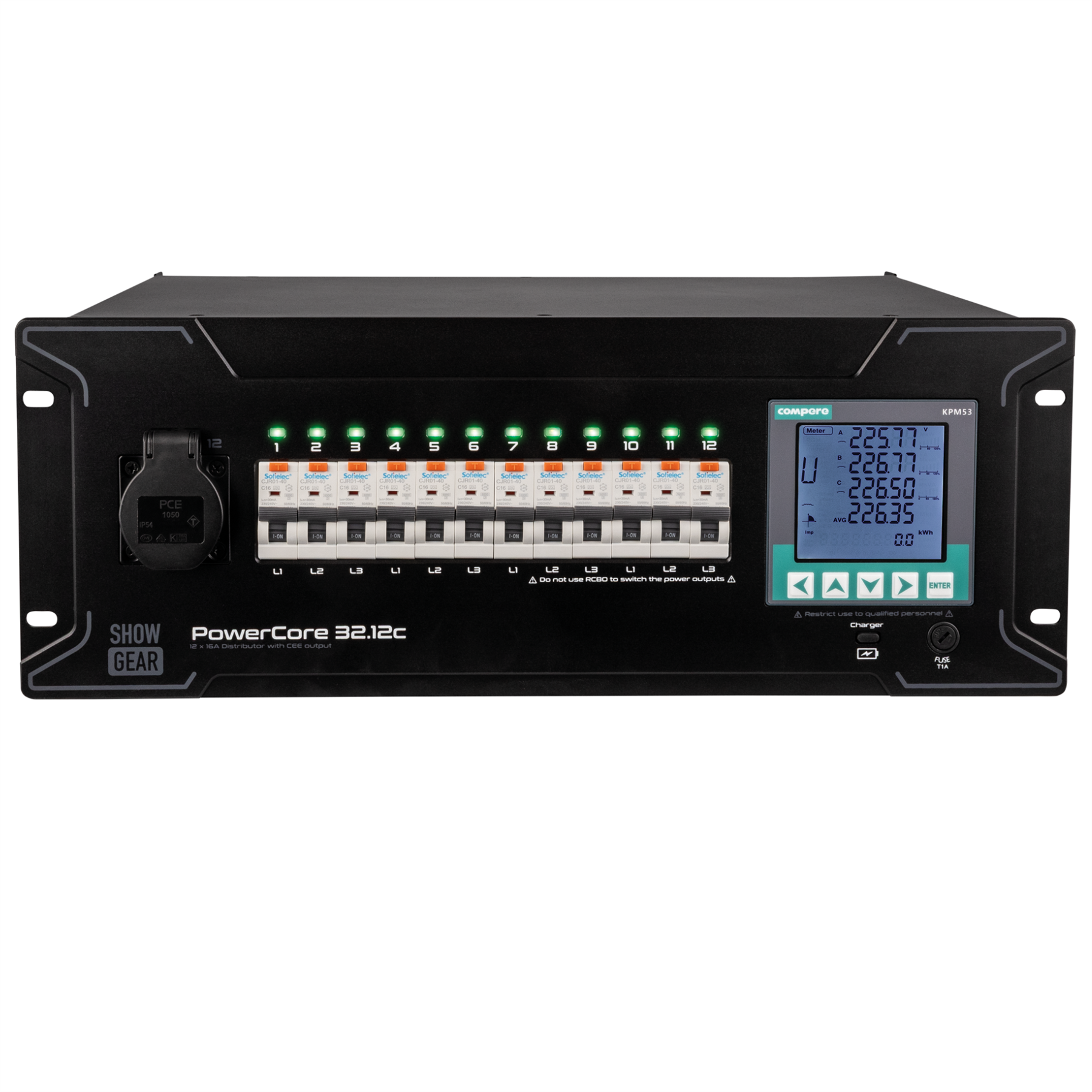

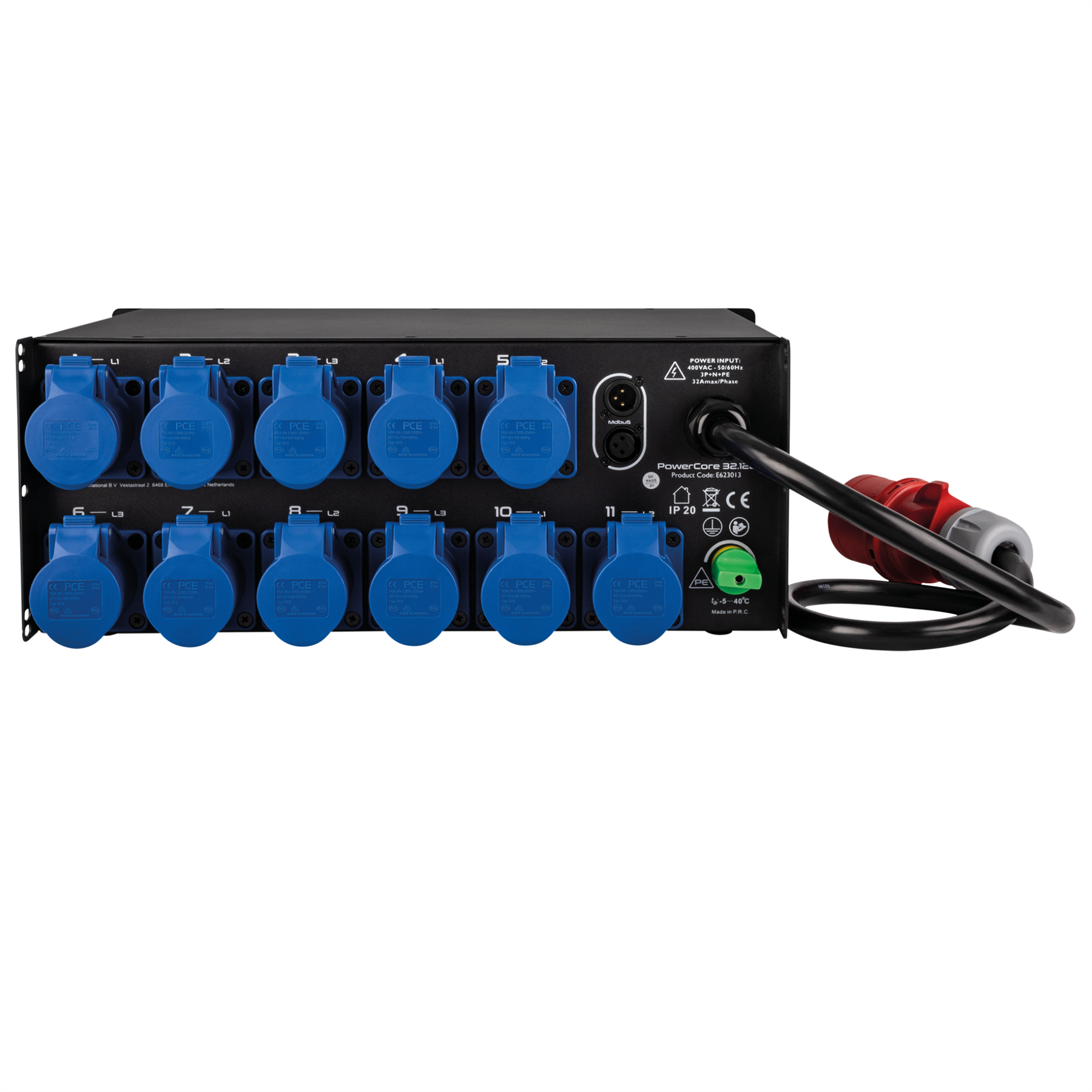

Showgear PowerCore 32.12c Rack Power Distro RCBO 3 Phase 32A to 11 x 16A

Description

The Showgear PowerCore 32.12c provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.

With an LED for each output, it's also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.

A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.

Display - LCD
Protocols - Md-bus
Display Size - 3.14 "

Rated Voltage - 400 V
Power Consumption - 7.5 W
Nature of the Supply voltage (multi-phase)
AC 3-Phase+N+PE
Rated Current (A) - 32 A
Rated Frequency - 50 Hz
Fuse - 1 A
Data Connector In - XLR 3P
Data Connector Out - XLR 3P
Power Connector In - CEE5P 32 A
Power Connector Out - CEE3P 16 A
Cable Length - 1 m
RCBO Rated Current - 16 A
RCBO Poles - 2
RCBO Sensitivity- 30 mA

Length (mm) - 344 mm (13.543″)
Height (mm) - 183 mm (7.205″)
Width (mm) - 483 mm (19.016″)
Weight - 13.8 kg (30.424 lb)
Rack Units-  4 U
IP Rating - IP20 (indoor use only)
Housing - Aluminium, Metal
Colour-  Black

LED Indicators - Power
Ground Lug Position - 6H
Maximum Ambient Temperature
40 °C (104 °F)
Minimum Ambient Temperature
-5 °C (23 °F)
