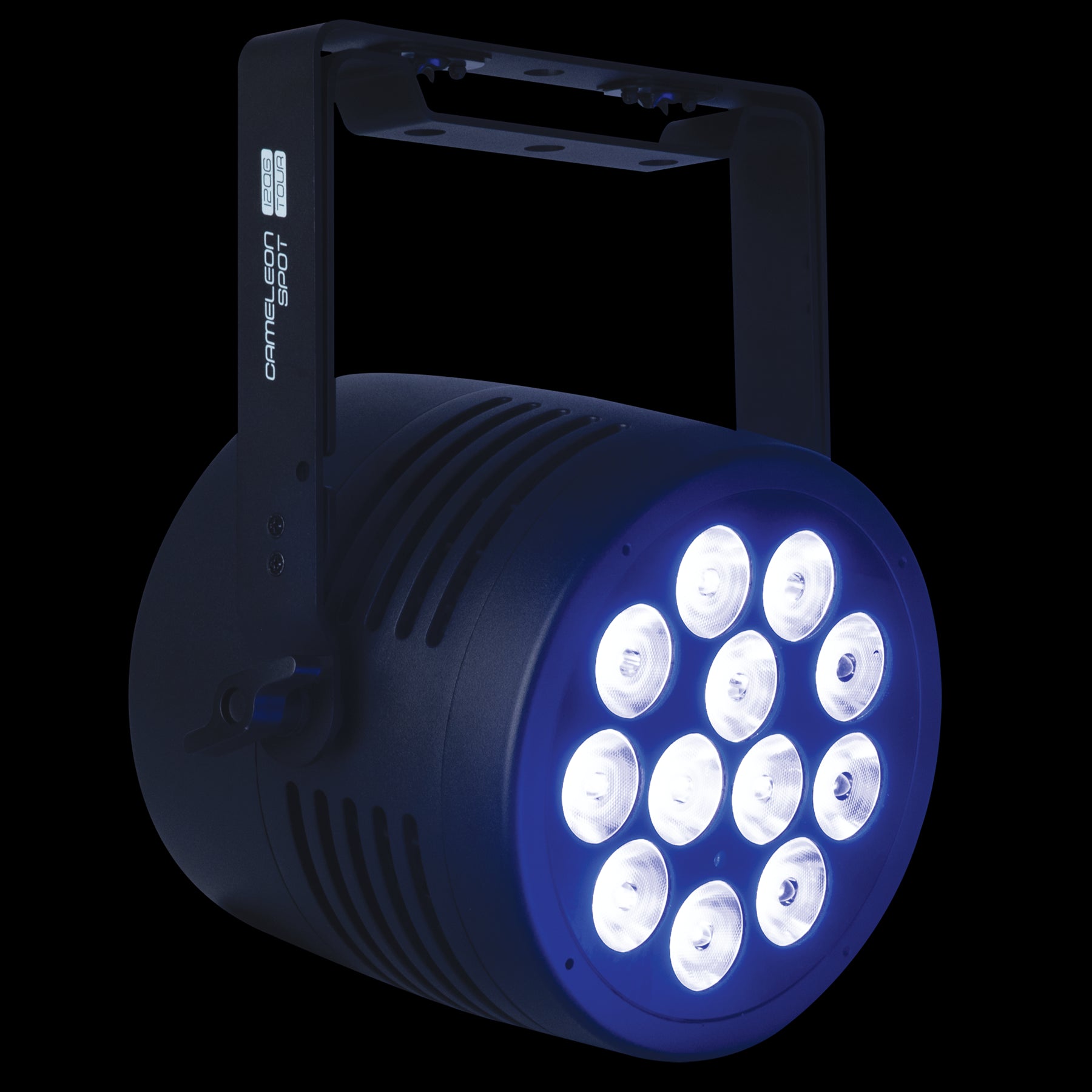

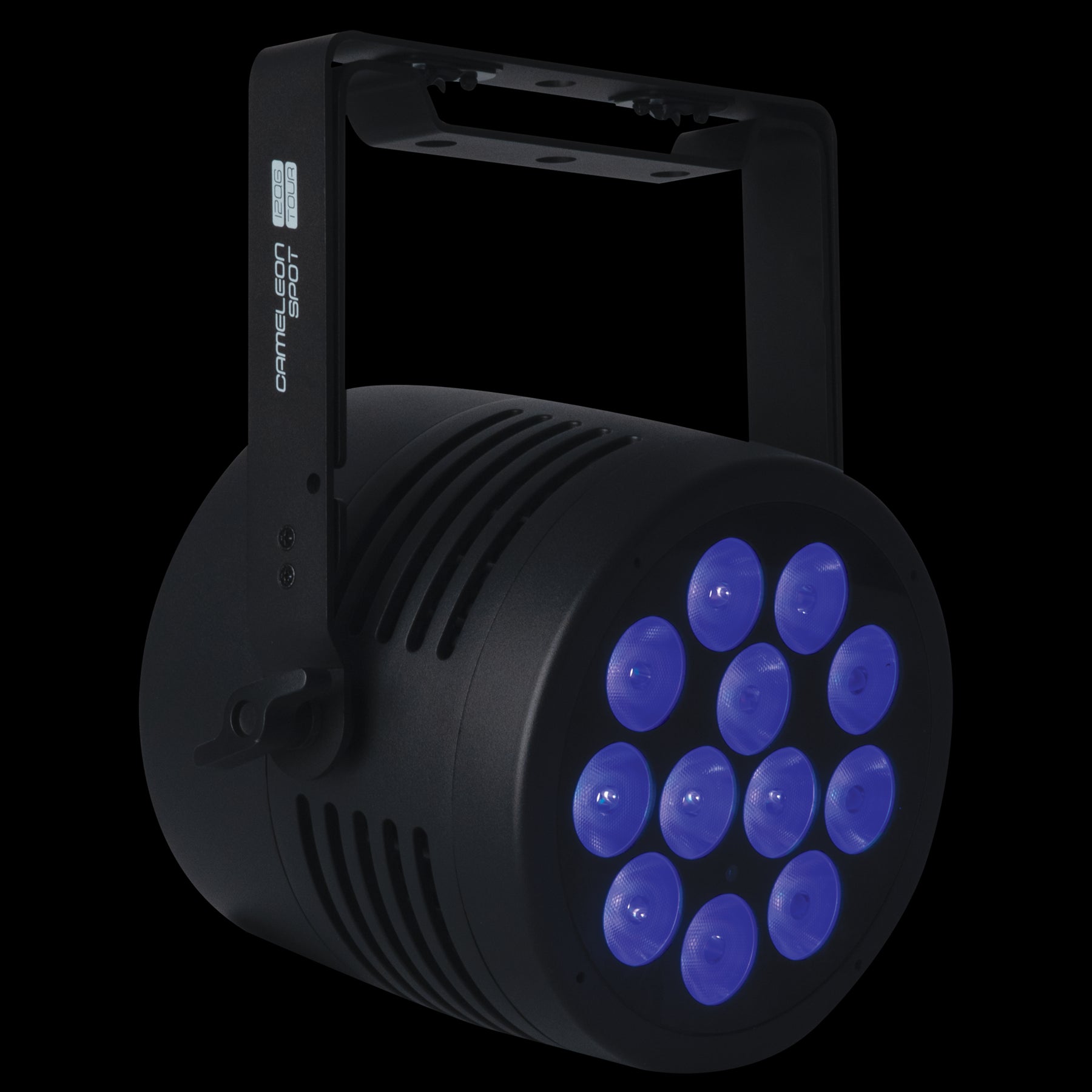

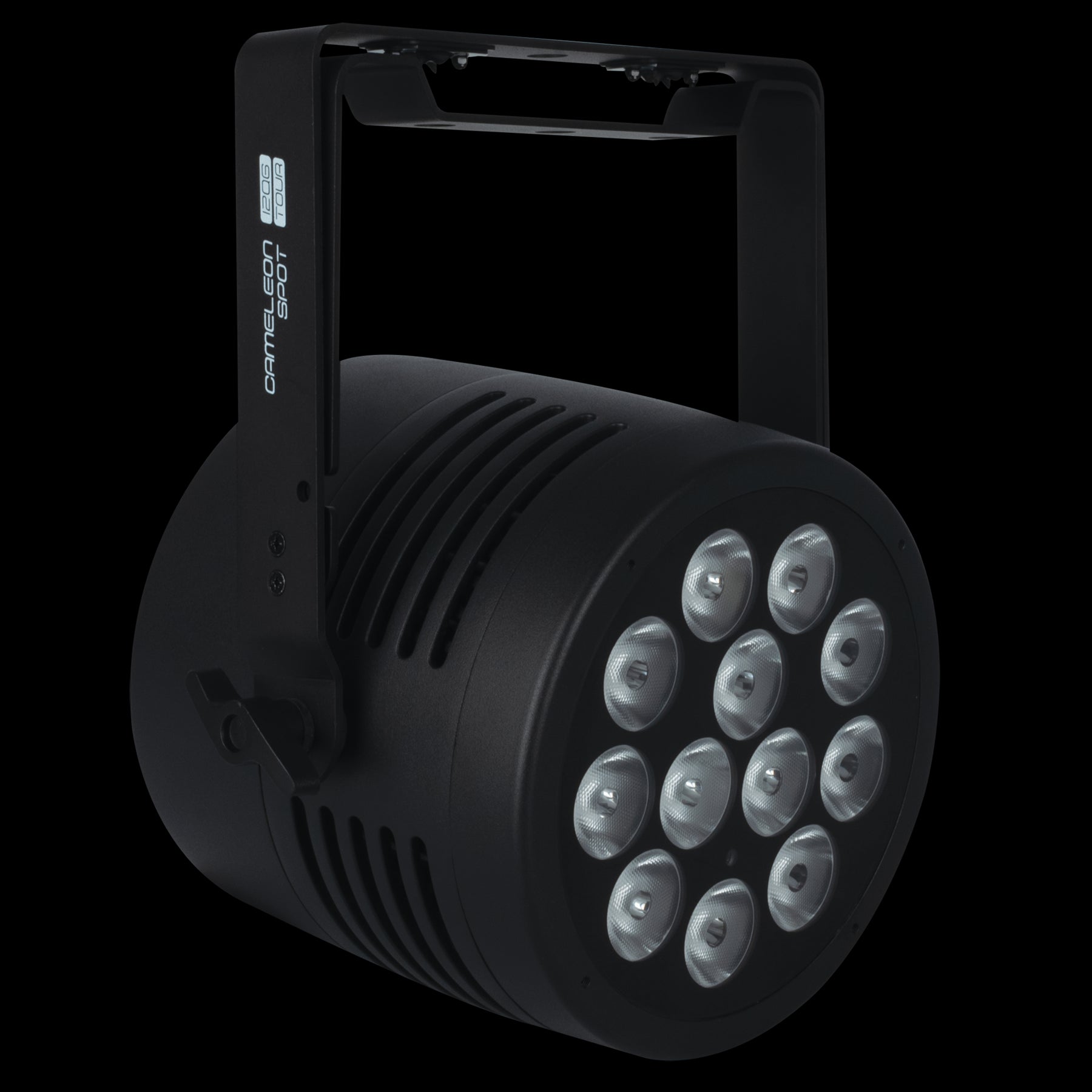

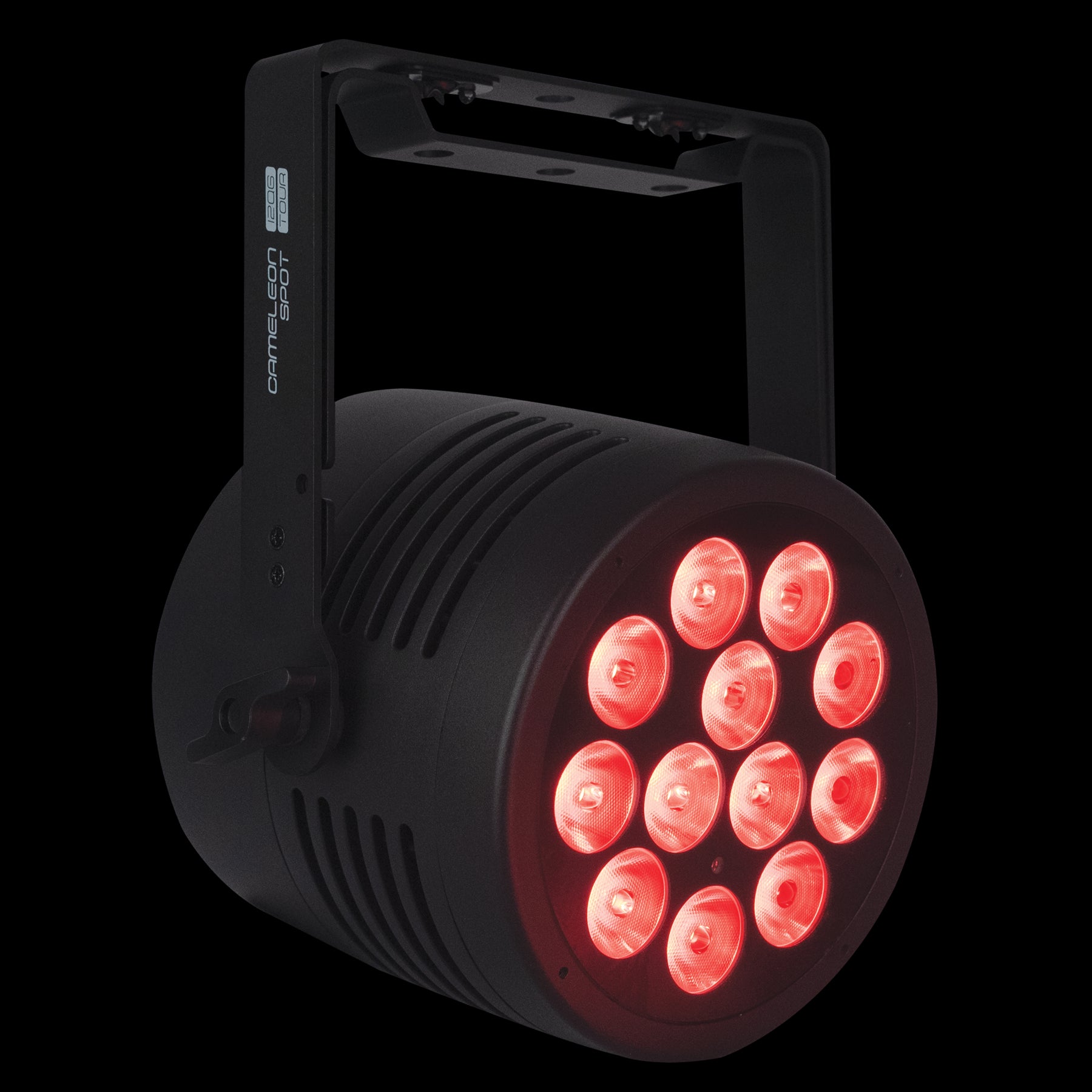

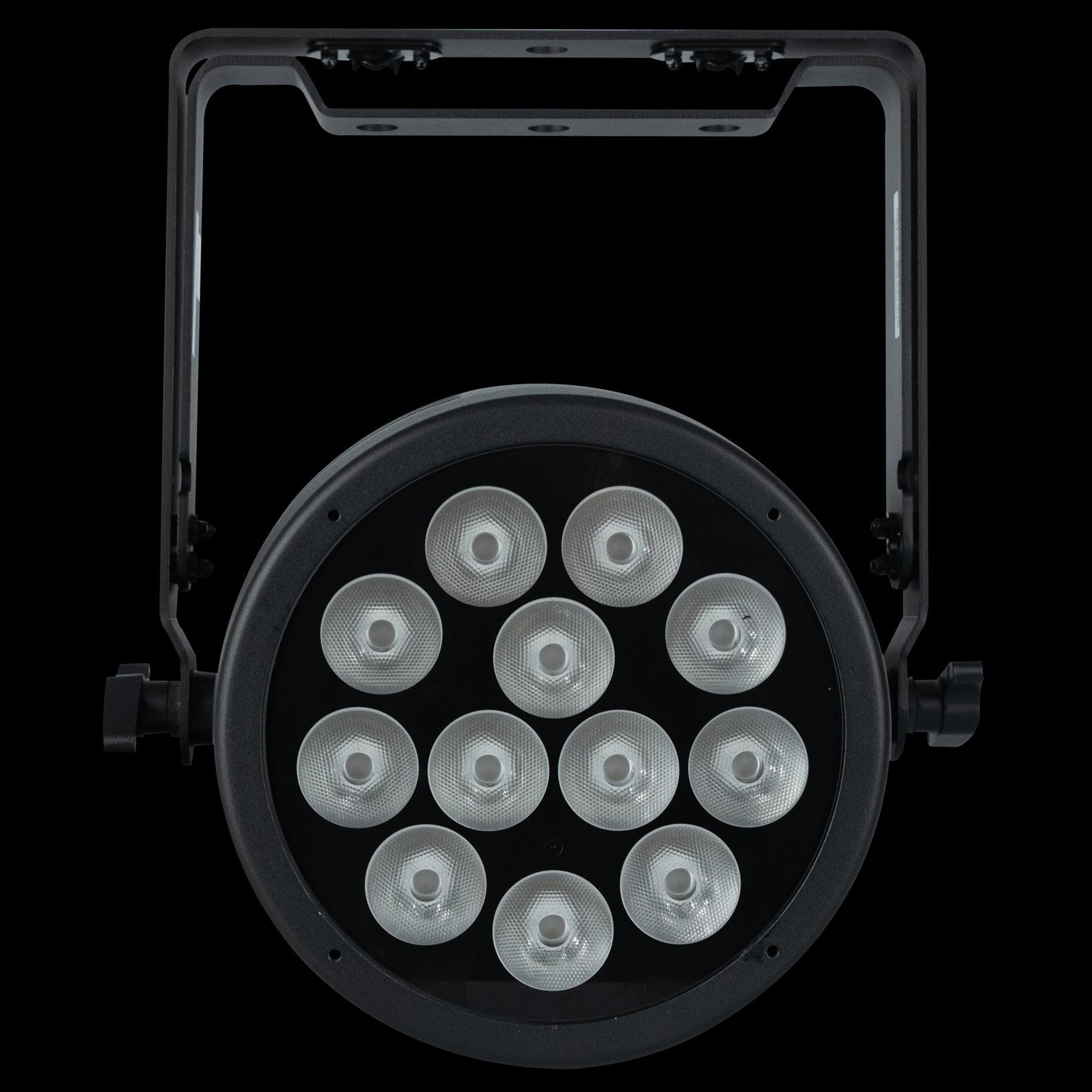

Showtec Cameleon Spot 12Q6 Tour 12x 12 W RGBWA-UV LED Spot - Power Pro True

Description:

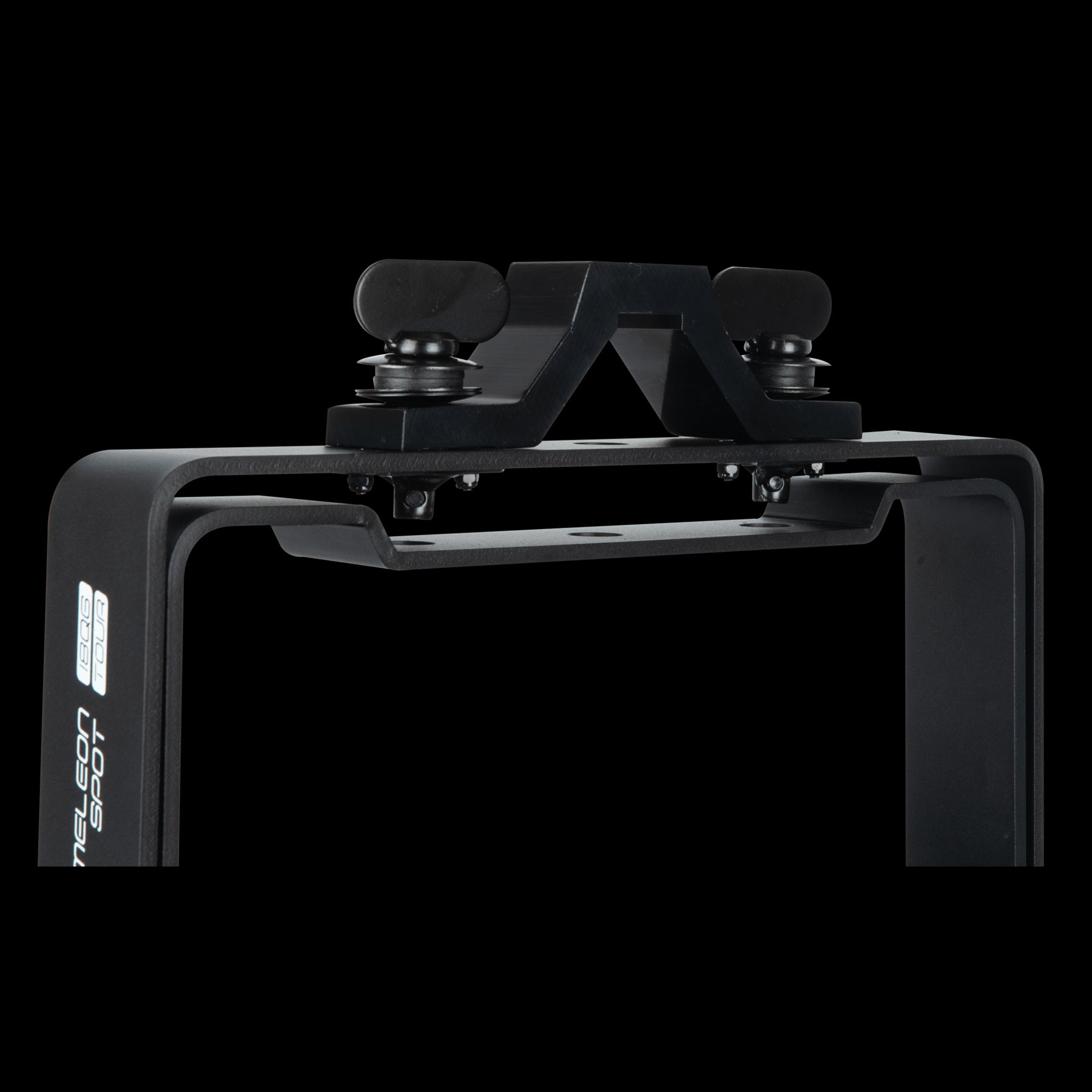

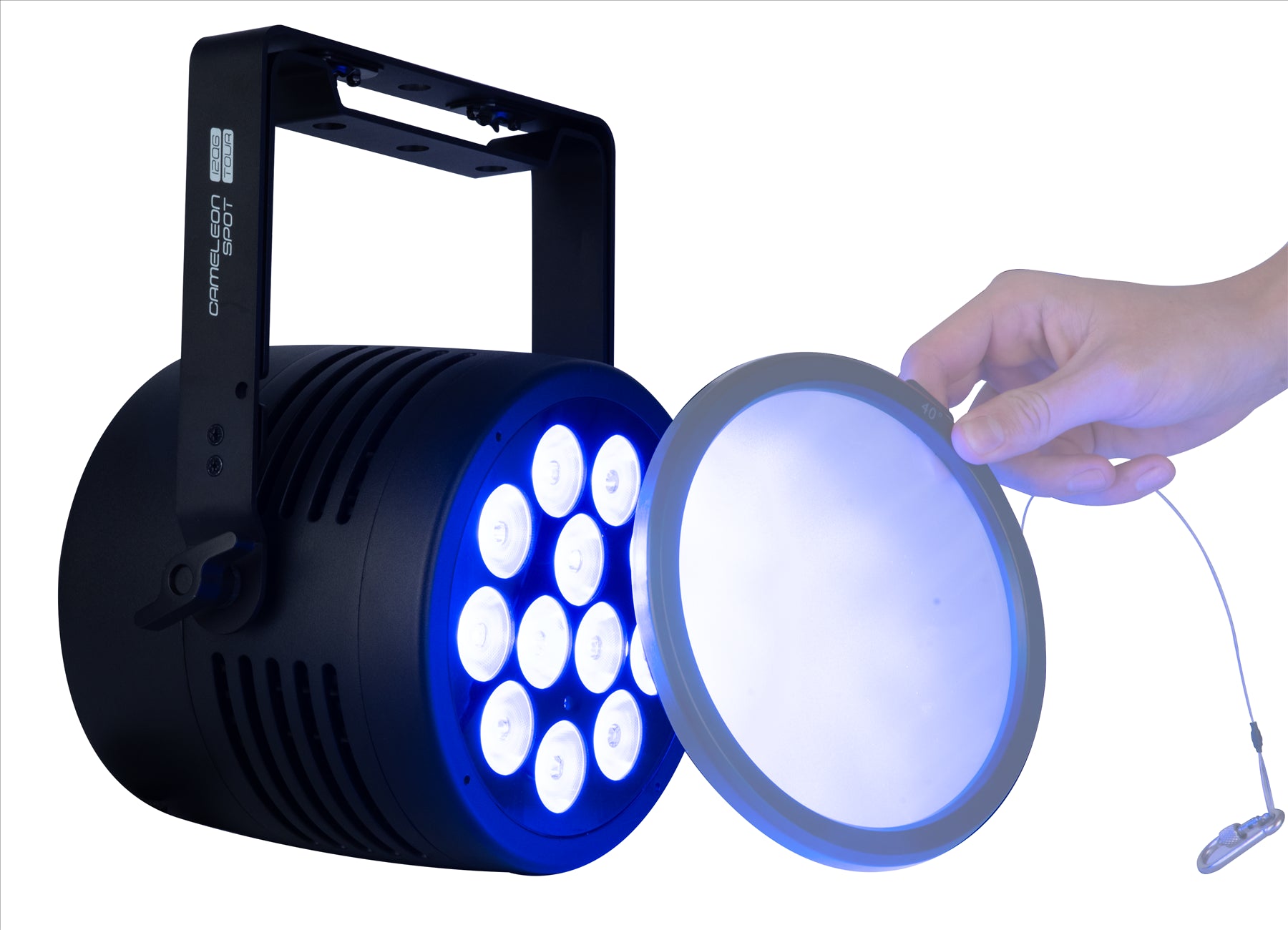

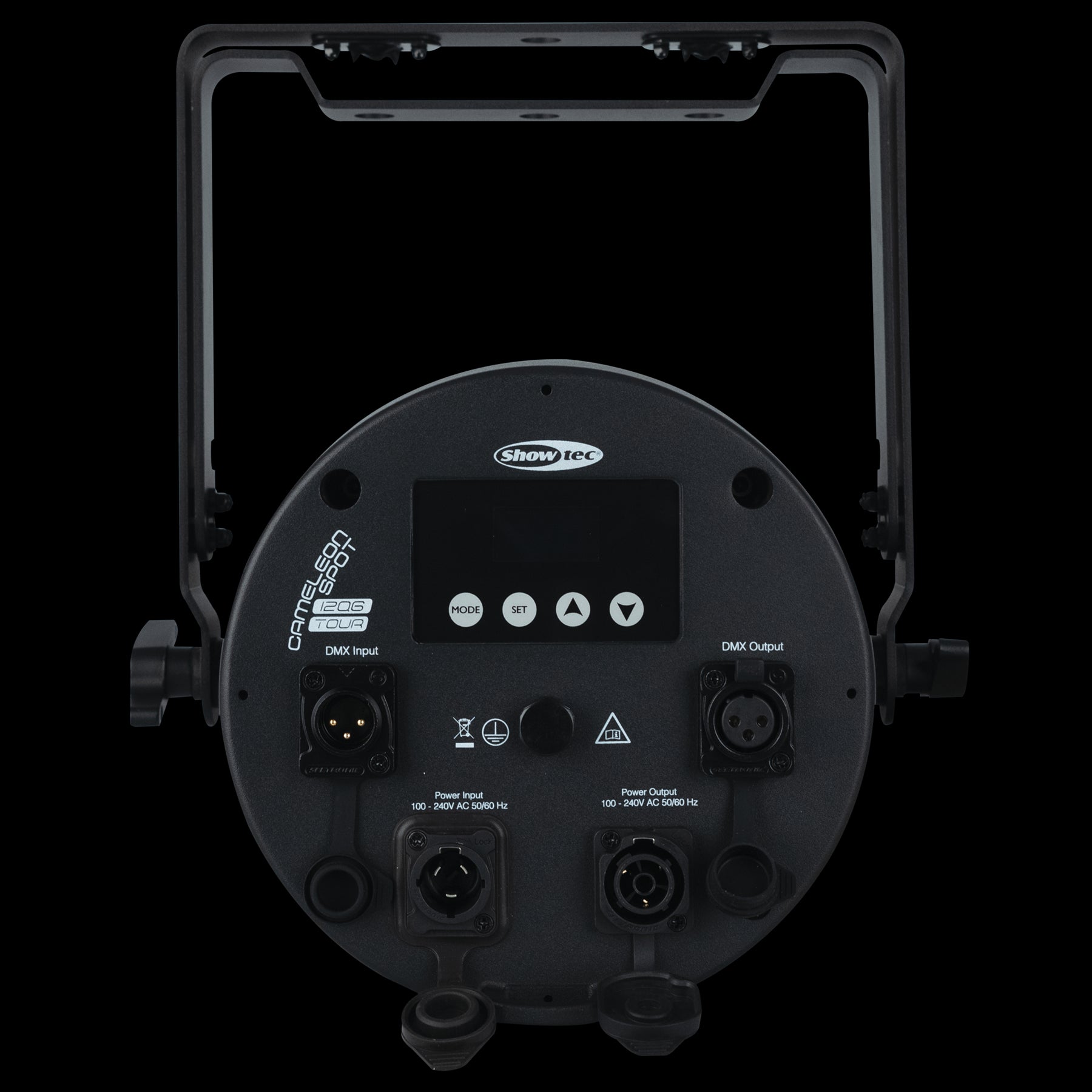

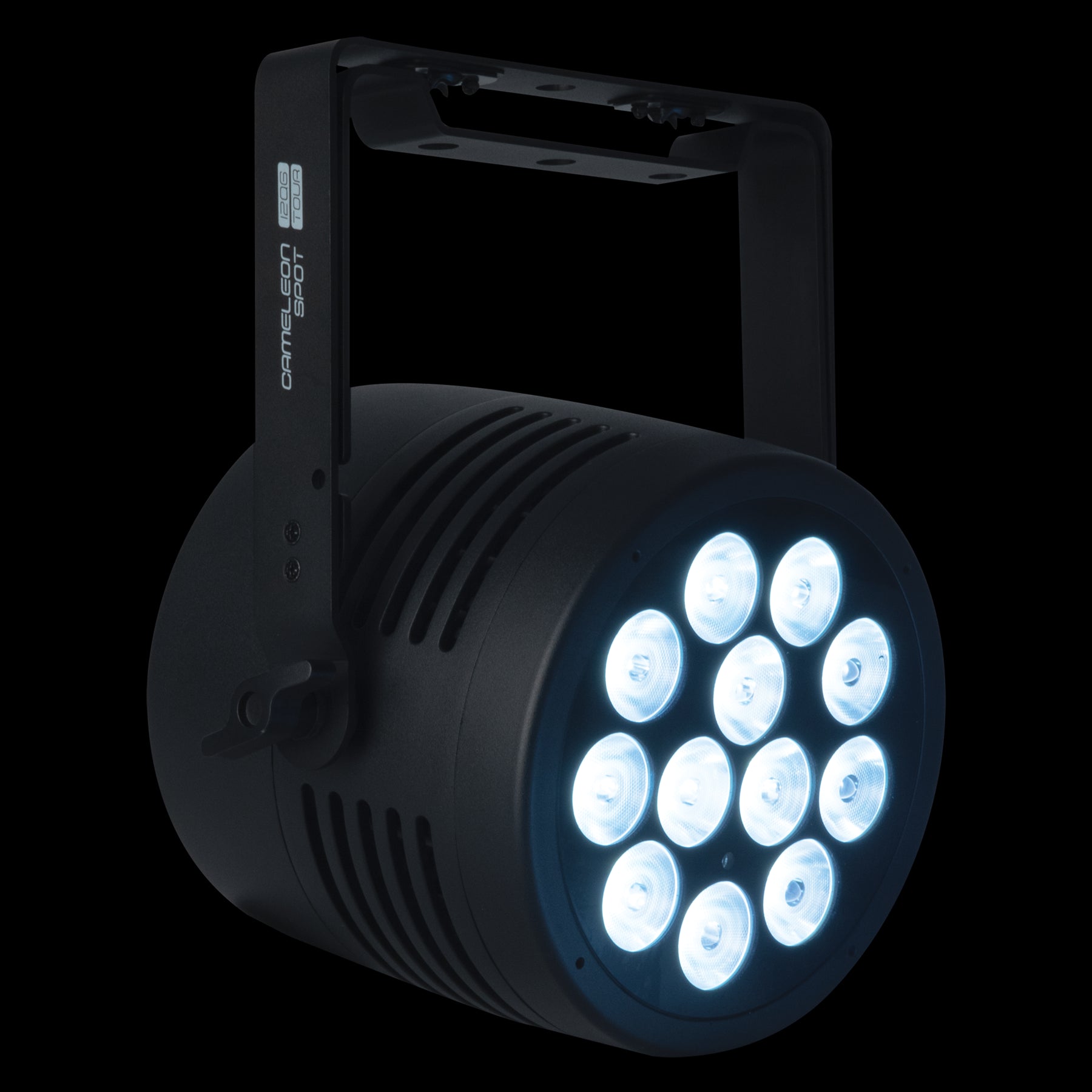

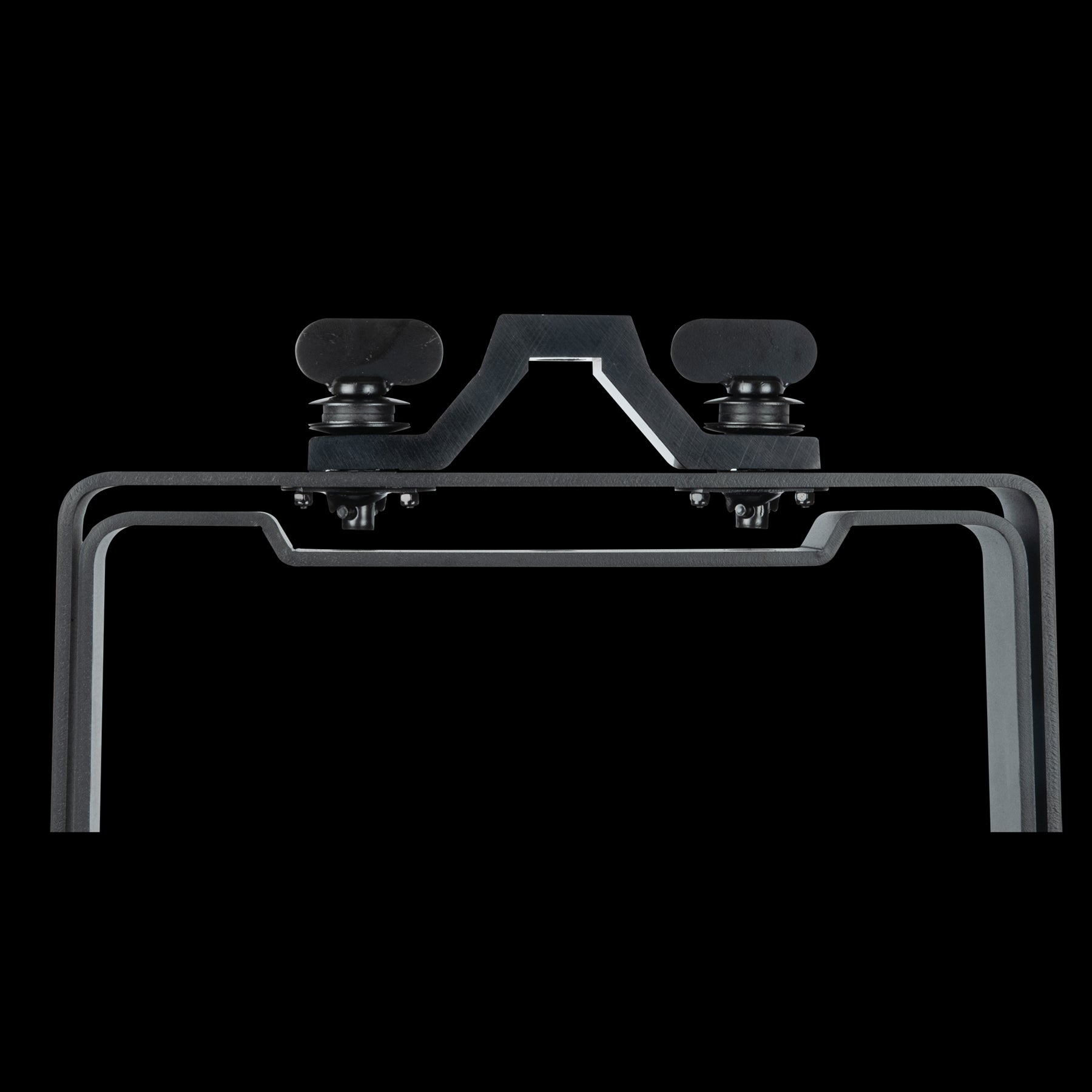

The Showtec Cameleon Spot 12Q6 Tour is a medium-sized 12x 12 watt RGBWA-UV LED spot with IP65 rating, suitable for indoor and outdoor applications. It has a fixed 15° beam angle and features 0-100 % dimmer and 0-20 Hz strobe effects. The Cameleon Spot 12Q6 Tour can be controlled manually via its OLED display with touch buttons, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It has IP65-rated Seetronic Power Pro True and 3-pin XLR connectors and a bracket. An infrared remote and 40° beam shaper are optionally available.

Specifications:

Source Light Source Type
LED
Light Source Quantity 12
Light Source Power 12 W
LED Colour Type RGBWAUV
Refresh Rate 3000 Hz
Luminous Flux (Total) 3100 lm
Luminous Flux (Red) 700 lm
Luminous Flux (Green) 1300 lm
Luminous Flux (Blue) 300 lm
Luminous Flux (White) 1150 lm
Luminous Flux (Amber) 885 lm
Luminous Flux (UV) 86 lm
Optical
Beam Angle (Circular) 15 °
Control and Programming
Control ModeAuto, DMX, Manual, Master Slave, Remote
DMX Channels 6, 8, 13
Protocols DMX, RDM
Display OLED
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50-60 Hz
Power Consumption 110 W
Power Connector In Power Pro True
Power Connector Out Power Pro True
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 252 mm
Width (mm) 184 mm
Height (mm) 264 mm
Weight 4.3 kg
IP Rating IP65
Housing Aluminium die-cast
Colour Black
Product Properties
Cooling Convection
Thermal Specifications
Maximum Ambient Temperature 40 °C
Minimum Operating Temperature -5 °C
Included Items Included Cables
Power Pro True Cable
