Showtec DMX Splitter Booster Buffer

Vendor: Showtec
SKU: 129-50780
Icon In Stock In Stock
Icon Delivery Time

4 Channel DMX BoosterDB-1-4

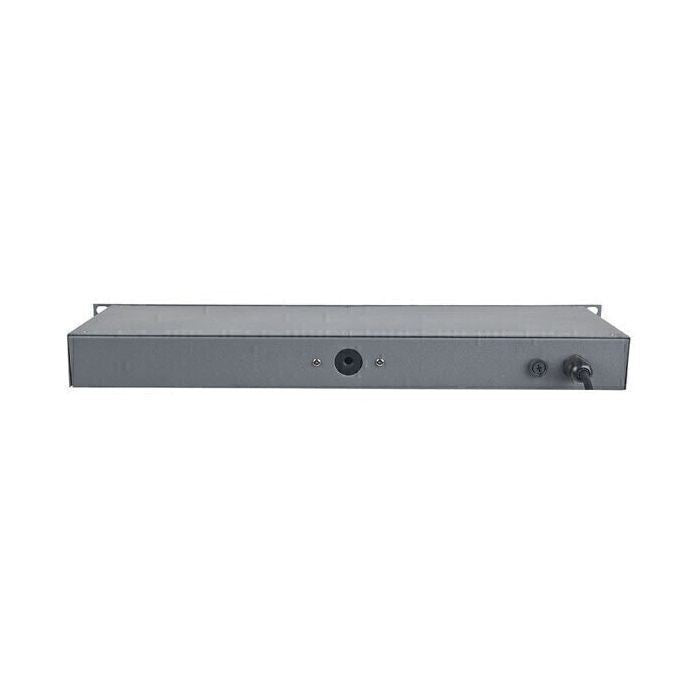

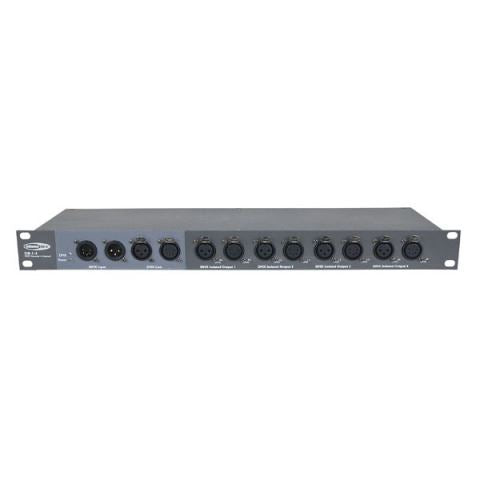

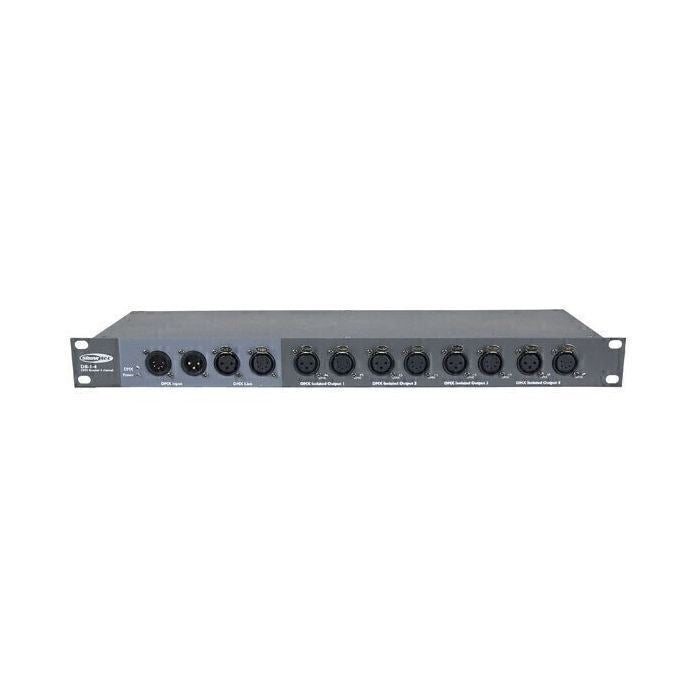

The DB-1-4 is a universal DMX-512 optical splitter. It is designed to distribute the incoming DMX signal, in daisy chain configurations, into four separate outputs with an additional –thru" port. It has both 3 pole and 5 pole XLR connectors for easy connection. The DB-1-4 can be mounted in any 19" rack or into the truss by the M10 nut on the rear end of the unit. It has clear LEDs to show the DMX signal status of each output and input.DB-1-4

Universal DMX-512 optical splitter
One input to four outputs (3-pin and 5-pin)
Additional thru output (3-pin and 5-pin) (for linking to other Data Streams)
Electrical isolation between input and output
1-space (1U) rack mount
AC power: Autoswitching 100V - 240V 50/60Hz


483 x 134 x 46 mm

2,6 kg
