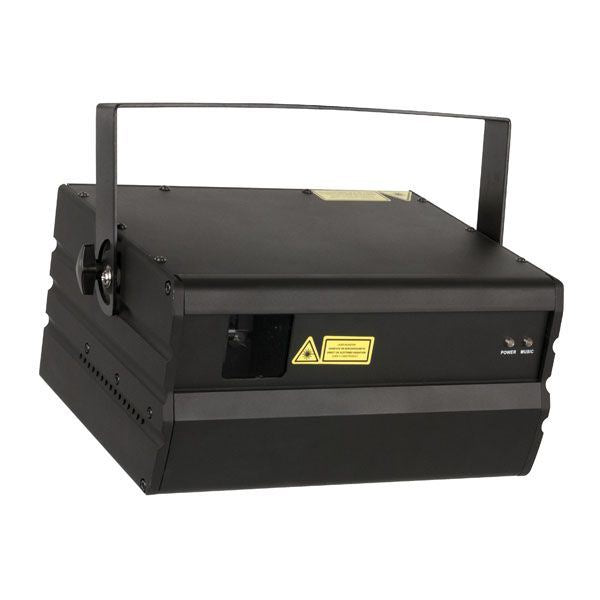

Showtec Galactic RGB850 Professional Laser ILDA

The Galactic RGB 850 is the top model of the Galactic Series. Though the power is only 850mW, with help of the new 200mW 638nm red laser, the visual brightness is around a 1.2W traditional RGB laser with a 660nm red laser. It has beautiful clear colours created by these 3 separate laser-diodes, Red, Green and Blue with TTL modulation. The RGB850 can be controlled by DMX and has many built-in figures and patterns. It can project two built-in patterns at the same time. You can also create your own designs and shows with any kind of ILDA laser software. The RGB850 is equipped with a 20K scanner pair which makes faster and bigger projections possible with less flickering. For rental solutions, you can use the SD card slot to run pre-programmed shows without any controller. Attention, the laser only works when the interlock connector is connected with a remote interlock. You can test if the laser works properly with the included test connector. If you use the laser in public area’s a remote interlock is necessary for safety regulations.

Sealed Optics
DMX & ILDA control
20K Scanner pair
Very wide beam angle
Runs pre-programmed shows from SD card
Flightcase, ILDA cable & 1G SD card included

Specifications
Power Input: AC 100-240V, 50/60Hz
Power Consumption: 68 Watt
Laser Color: Red, Yellow, Green, Blue, Purple, Cyan, White
Laser Power: 850mW (200mW 638nm Red, 150mW 532nm Green, 500mW 450nm Blue)
Laser Modulation: TTL
Laser Class: 4
Scan Speed: 20K
Scan Angle: +/-60˚
Control Modes: Auto, Sound, Master/Slave, DMX, ILDA, SD-Card
Control Display: LCD
DMX Channels: 13
Data Connector: In/Out, XLR 3Pin & Sub-D 25 Pole
Safety Features: Key switch, Interlock, Safety eye
Laser Safety: EN/IEC 60825-1 Ed 2, 2007-03
Accessories: 2 Keys, Interlock test connector, flightcase, ILDA cable, 2G SD card

Dimensions
Unit: 335 x 240 x 165 mm (excl. bracket)
Flightcase: 760 x 435 x 315 mm

Weight
11.5 kg
