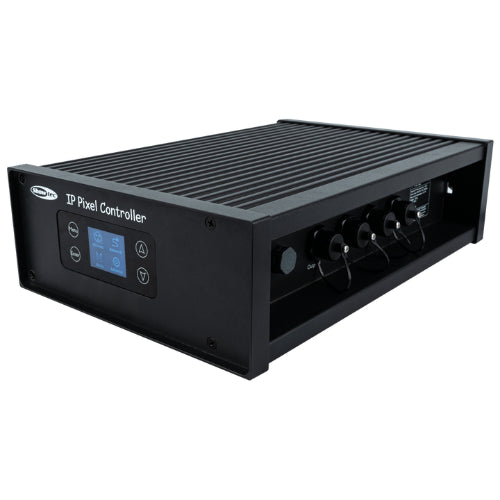

Showtec IP Pixel Controller IP65 Control Unit for IP Pixelstrip 40 & 80 DMX, Art-Net, sACN & Kling-Net Support

The Showtec IP Pixel Controller is a powerful and weather-resistant control unit built to drive up to 16 metres of IP Pixelstrip 40 and 80 LED fixtures. With four outputs supporting 4 metres each, it enables full pixel-level control for vibrant and detailed light displays. The controller supports a wide range of protocols including DMX, Art-Net, sACN, and Kling-Net, making it adaptable for professional lighting networks. Designed for both indoor and temporary outdoor use, its IP65-rated housing offers durability in challenging environments. It also features simplified control options such as Master/Slave, manual operation, and integrated programs for standalone setups. A Power Pro True cable and quick-lock bracket are included for streamlined installation.

Features
Controls up to 16 metres of IP Pixelstrip (4 x 4 m outputs)
Compatible with IP Pixelstrip 40 and 80
Supports DMX, Art-Net, sACN, and Kling-Net protocols
Pixel-level control with up to 3840 channels (8 universes) via Art-Net/sACN
Integrated section control modes to reduce channel usage
Selectable 8- and 12-channel simplified control modes
Stand-alone operation with Master/Slave, manual control, and built-in programs
IP65-rated aluminium housing for temporary outdoor or indoor use
Quick-lock bracket and Power Pro True cable included for fast setup
Ideal for stage, event, and architectural lighting control systems

Specifications

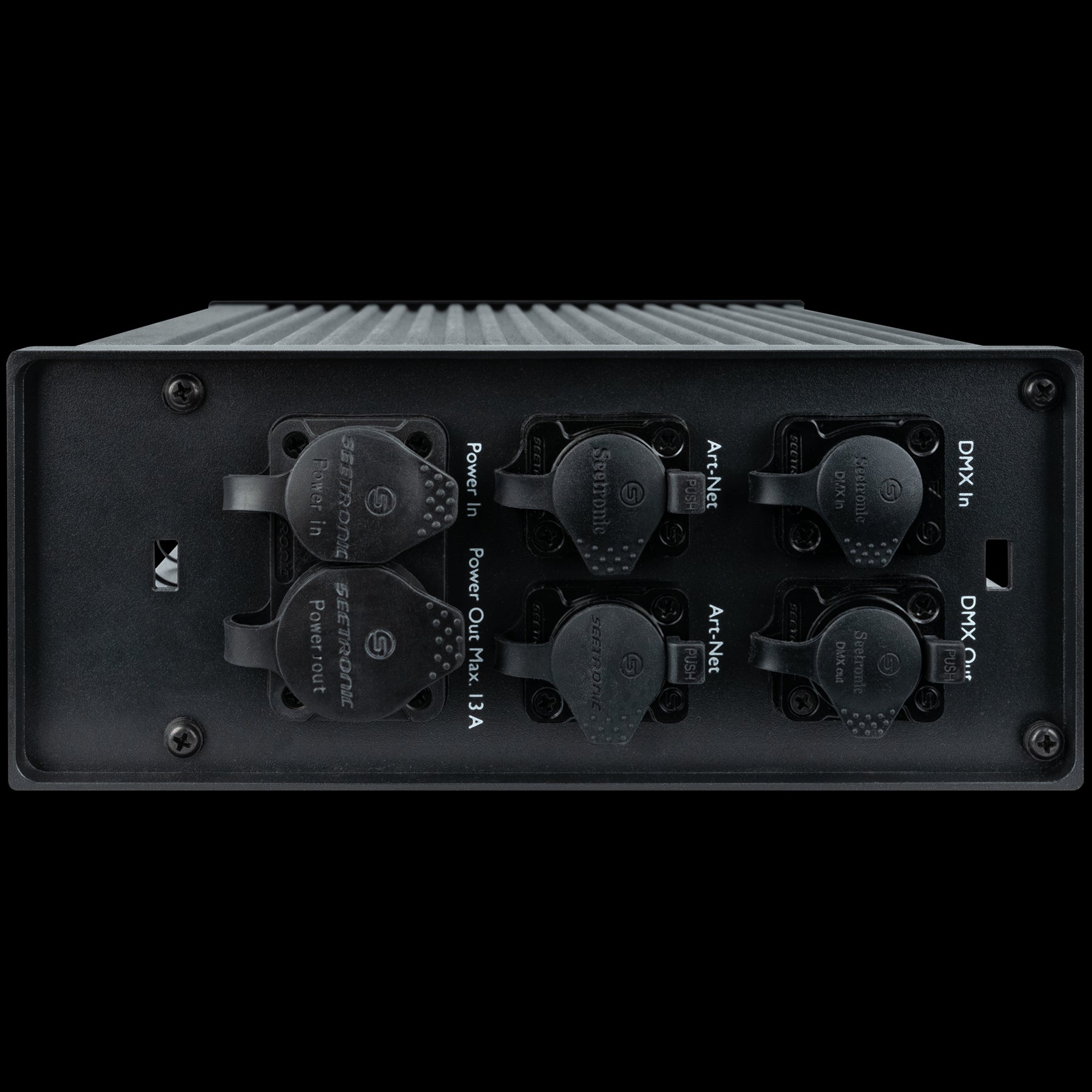

Control Protocols
DMX512
Art-Net
sACN
Kling-Net

Output Capacity

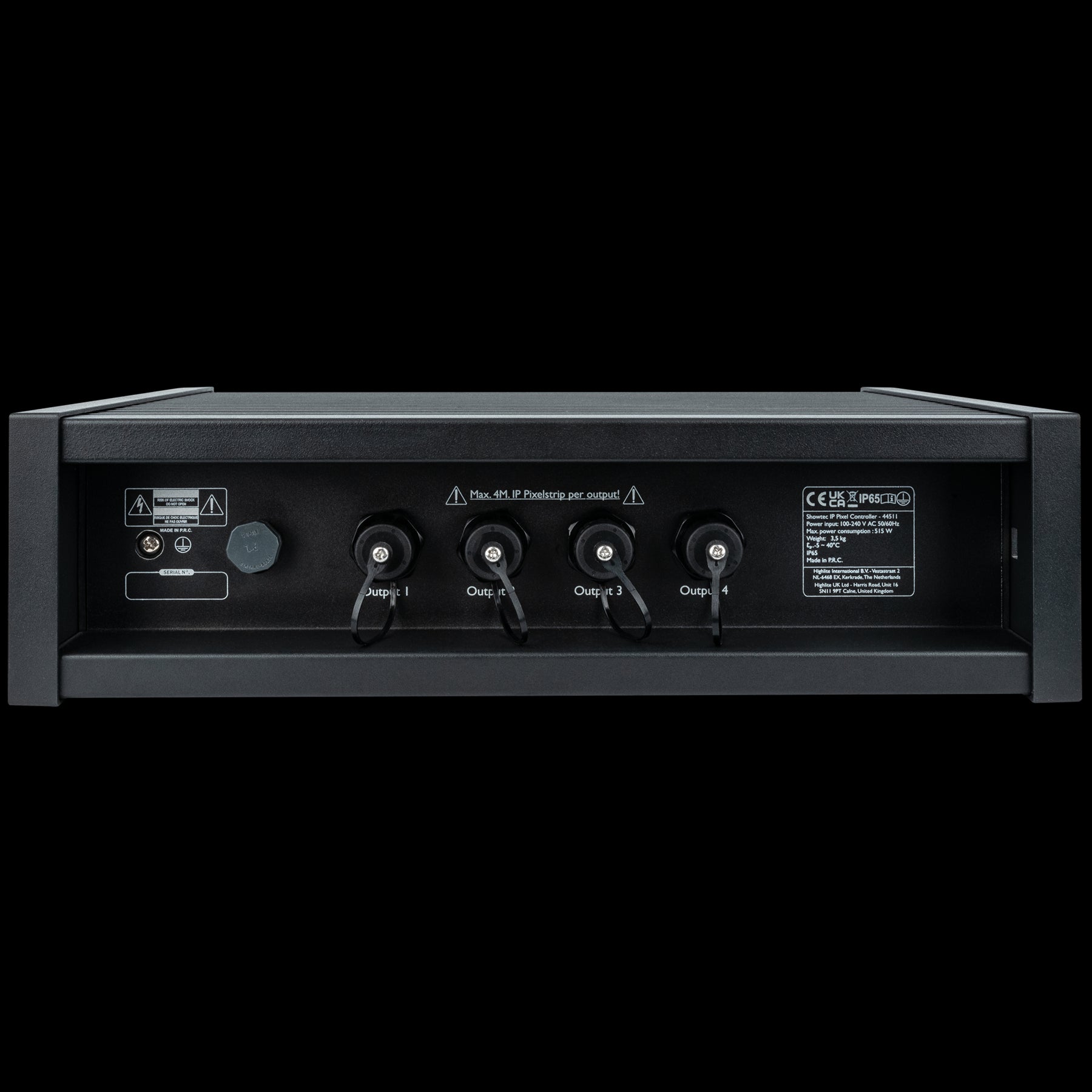

4 outputs, each supporting up to 4 m of mixed IP Pixelstrip 40/80
Maximum total length: 16 m
Max DMX channels: 3840 (pixel-level via Art-Net/sACN)

Control Modes
Pixel control
Section control
8-channel and 12-channel compact modes
Master/Slave and manual operation
Built-in stand-alone programs

Electrical & Connections
Power input: Power Pro True (cable included)
Dedicated hybrid output cables for data and power to Pixelstrips (sold separately)

Mechanical
Housing: Aluminium
Color: Black
IP rating: IP65 (outdoor rated)
Dimensions: 322 x 219 x 89 mm (12.677″ x 8.622″ x 3.504″)
Weight: 5 kg (11.023 lb)

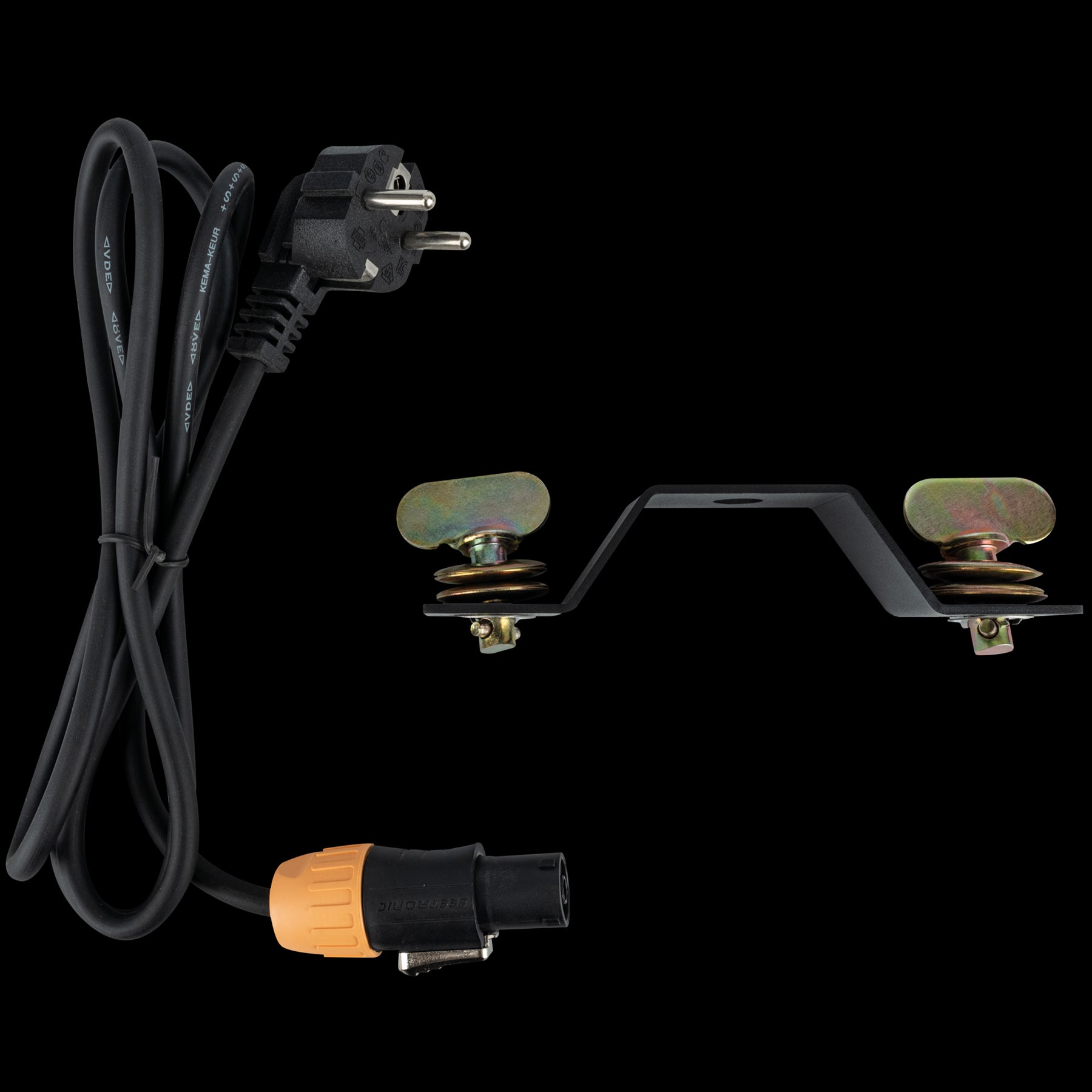

Included: Power Pro True cable, quick-lock bracket
