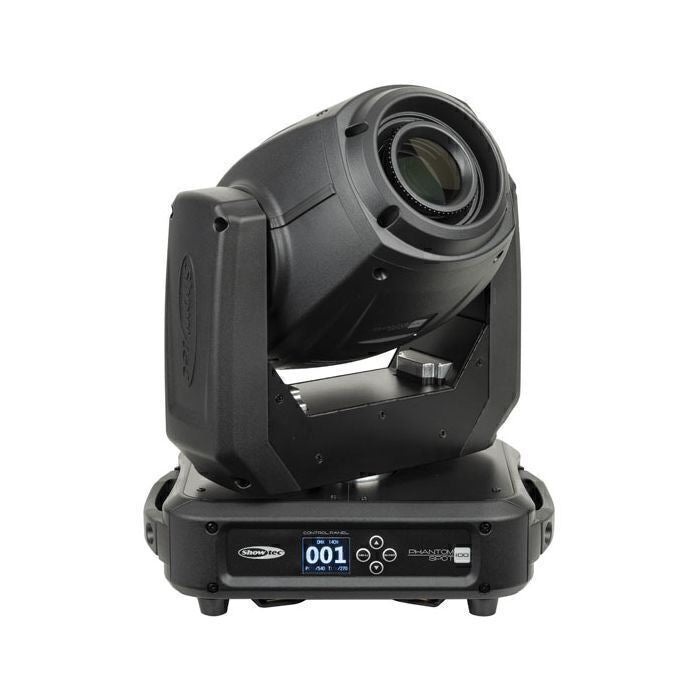

Showtec Phantom 100 Moving Head Spot


A compact, yet powerful moving head with all the features from it's smaller brother the Phantom 65 and some additional features.

Vendor: Showtec
SKU: 129-40077
Icon In Stock In Stock
Icon Delivery Time

As an addition to the successful Phantom Range, Showtec presents the Phantom 100. A compact, yet powerful moving head with all the features from it's smaller brother the Phantom 65 and some additional features. For instance, the Showtec Phantom 100 packs a 100W white LED engine, is equipped with a 3-facet circular & 5- facet linear rotating prism and with a manually controllable beam angle of 12°-17° you can create the beam you like.

Razor-sharp beams
Colourful matrix effects
Spectacular gobo imagery
7 Bi-Rotating gobo's & 8 colours
Pro Power In- & Output
Dual rotating overlaying prisms
Quick-Lock Brackets

Lux @ 5m: 5500 (12°)
Beam Angle: 12°-17° (manual)
Light Source: 100W White LED
Input voltage: 100~240VAC, 50/60Hz (auto-ranging)
Power consumption: 360W max.
On-Board: Full-colour display
Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave
Control Personality: Advanced 14ch /Basic 10ch
Dimmer: 0-100%
Strobe: 0-20Hz
Focus: Motorized
Prism: 6-facet circular & 5- facet linear, rotating prism
Pan: 540°
Tilt: 270°
Pan/Tilt resolution: 16 bit
Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement
Rotating Gobo wheel: 7 gobos
Gobo functions: Gobo-flow effect,Gobo shake
Rotation: Bi-directional
Colourwheel: 8 dichroic-filters + white
Colour functions: Split colours, Rainbow-flow effect
Colour: Black
Housing: Metal & Flame-retardant plastic
Data Connection: XLR 3p in- & output
Power connection: Pro Power in- & output
Certification and Safety
Certification: CE
Max. ambient Temp.: 40°C


325 x 210 x 420mm
