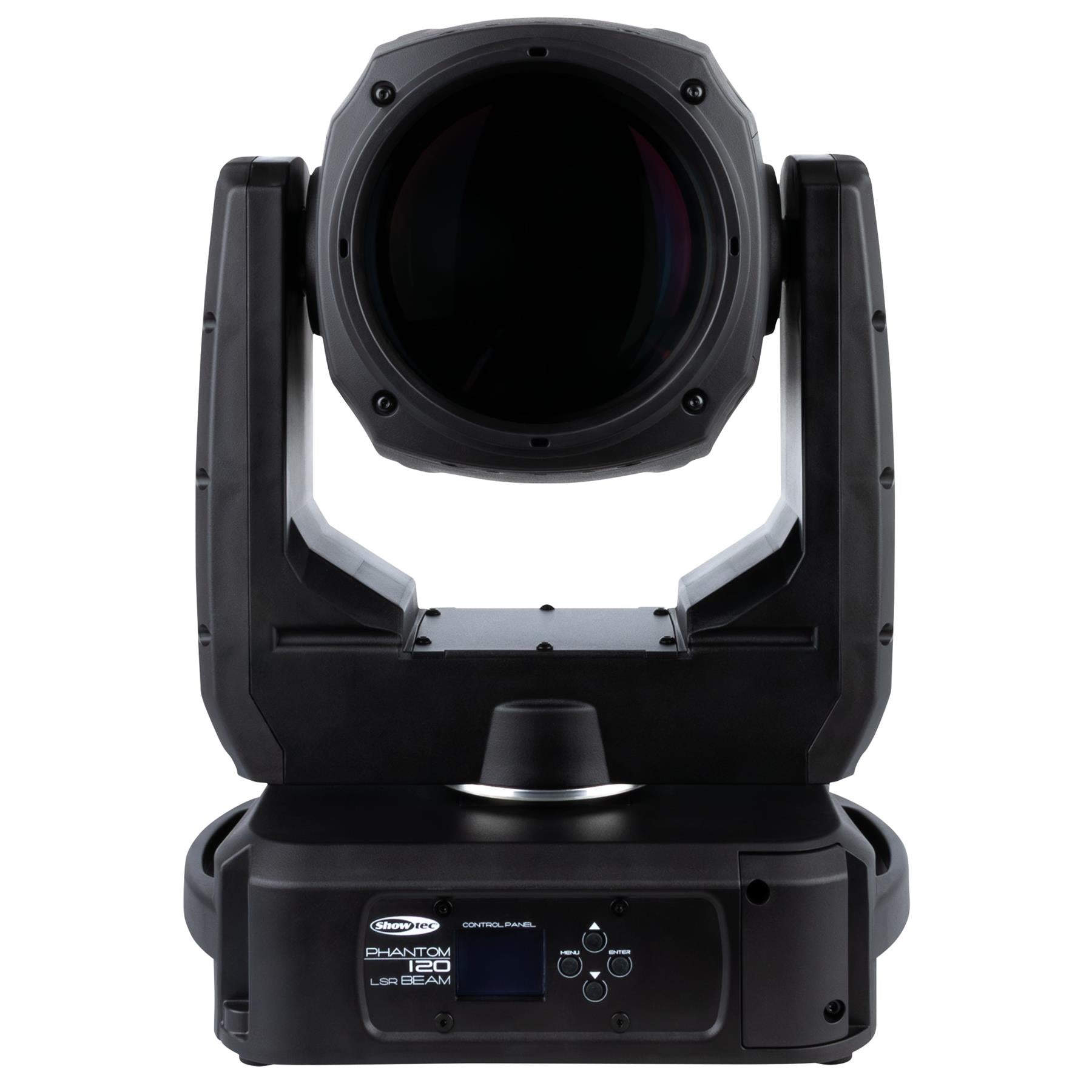

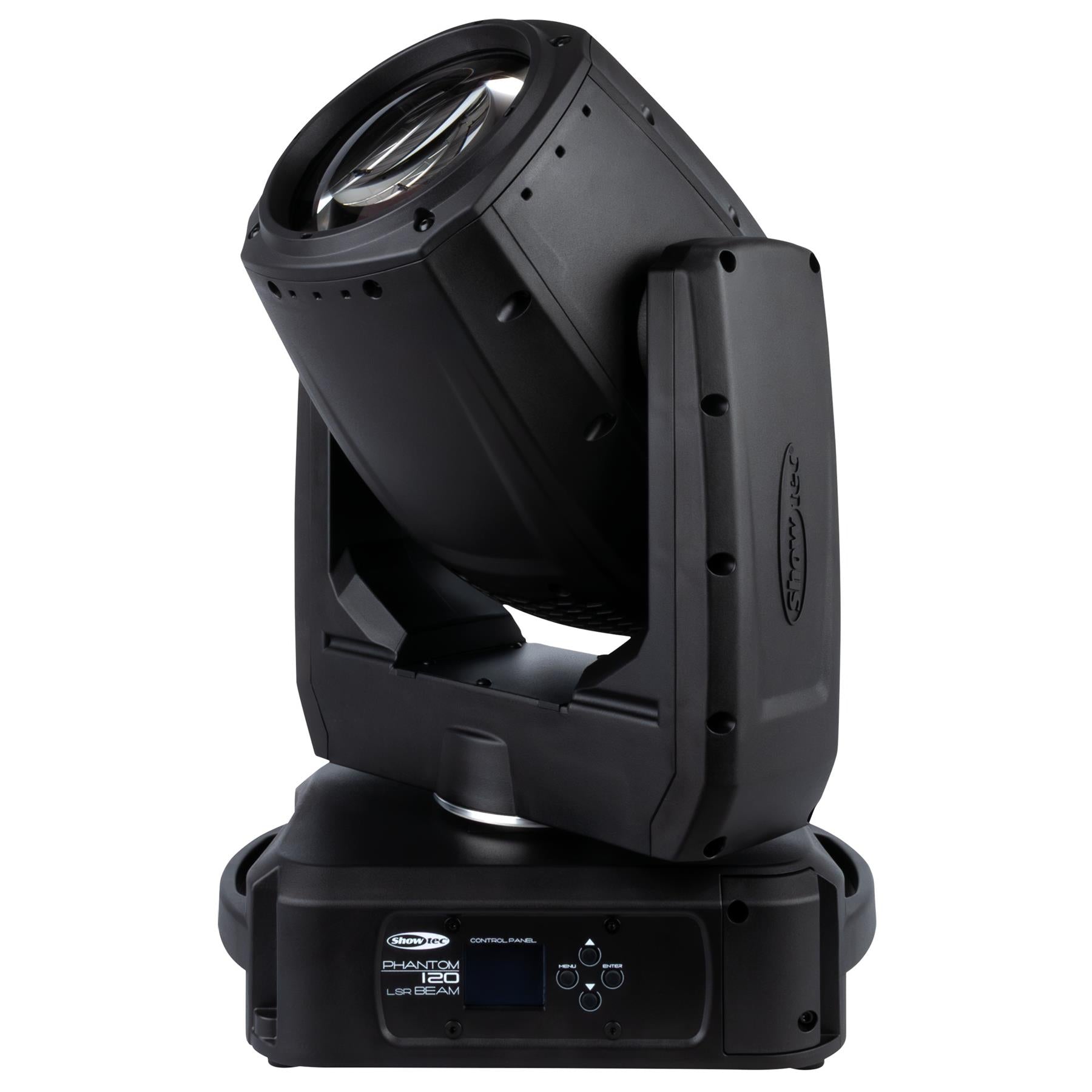

Showtec Phantom 120LSR Beam 120W Laser Moving Head Outdoor IP65

Description

The Showtec Phantom 120LSR Beam is a high-output IP65-rated moving head designed to deliver razor-sharp aerial effects for professional stages, festivals, touring productions, clubs and outdoor events. Powered by a 120 W laser-based light source, it produces an exceptionally tight 1° beam with a total luminous flux of 4200 lumens, creating intense, clearly defined effects that remain visible across large venues and event spaces. Endless pan and tilt rotation gives lighting designers additional creative freedom for fast, continuous movement effects.

A comprehensive effects system includes a colour wheel with 22 dichroic colours plus open, a gobo wheel with 28 gobos plus open, an 8-facet circular prism and a 6-facet linear prism. These can be combined to produce layered aerial effects, beam multiplication and dynamic patterns, while the integrated frost filter allows the fixture to move beyond traditional beam effects by producing softer-edged gobos and smooth wash-style output. Motorised focus and 16-bit pan and tilt resolution provide precise control over both projection and movement.

Control is available via DMX, RDM, manual operation and built-in programs, with optional CRMX Classic and W-DMX wireless compatibility for flexible professional installations. The battery-powered LCD display allows configuration even when the fixture is disconnected from mains power, making setup and addressing quicker during rigging. Its lightweight yet rigid carbon fibre reinforced plastic housing provides IP65 protection for outdoor use, while Power Pro True connections, 5-pin DMX and supplied Quick-Lock brackets make the Phantom 120LSR Beam well suited to demanding touring and production environments.

Features

120 W laser-based light source

Razor-sharp 1° beam angle

4200 lumen total luminous flux

IP65-rated construction for indoor and outdoor use

Endless pan and tilt rotation

22 dichroic colours plus open

28 gobos plus open

8-facet circular prism

6-facet linear prism

Integrated frost filter for soft-edged gobos and wash effects

Motorised focus

16-bit pan and tilt resolution

14 or 20 channel DMX modes

DMX, RDM, manual and built-in program control

Optional CRMX Classic and W-DMX wireless control

Battery-powered LCD display for configuration without mains power

Linear and square dimmer curves

0-100% electronic dimming

Carbon fibre reinforced plastic housing

Forced convection cooling

Power Pro True power connections

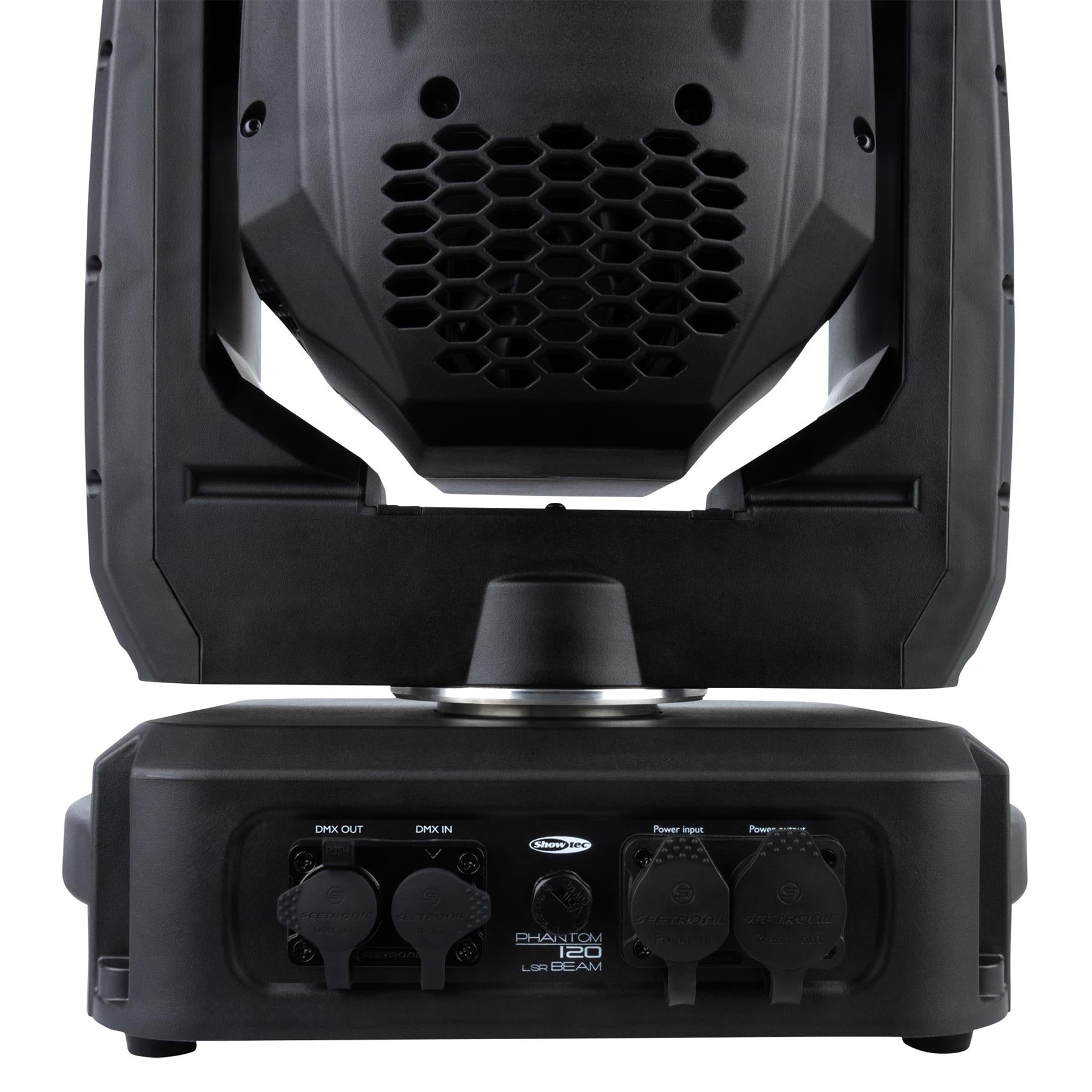

5-pin XLR DMX input and output

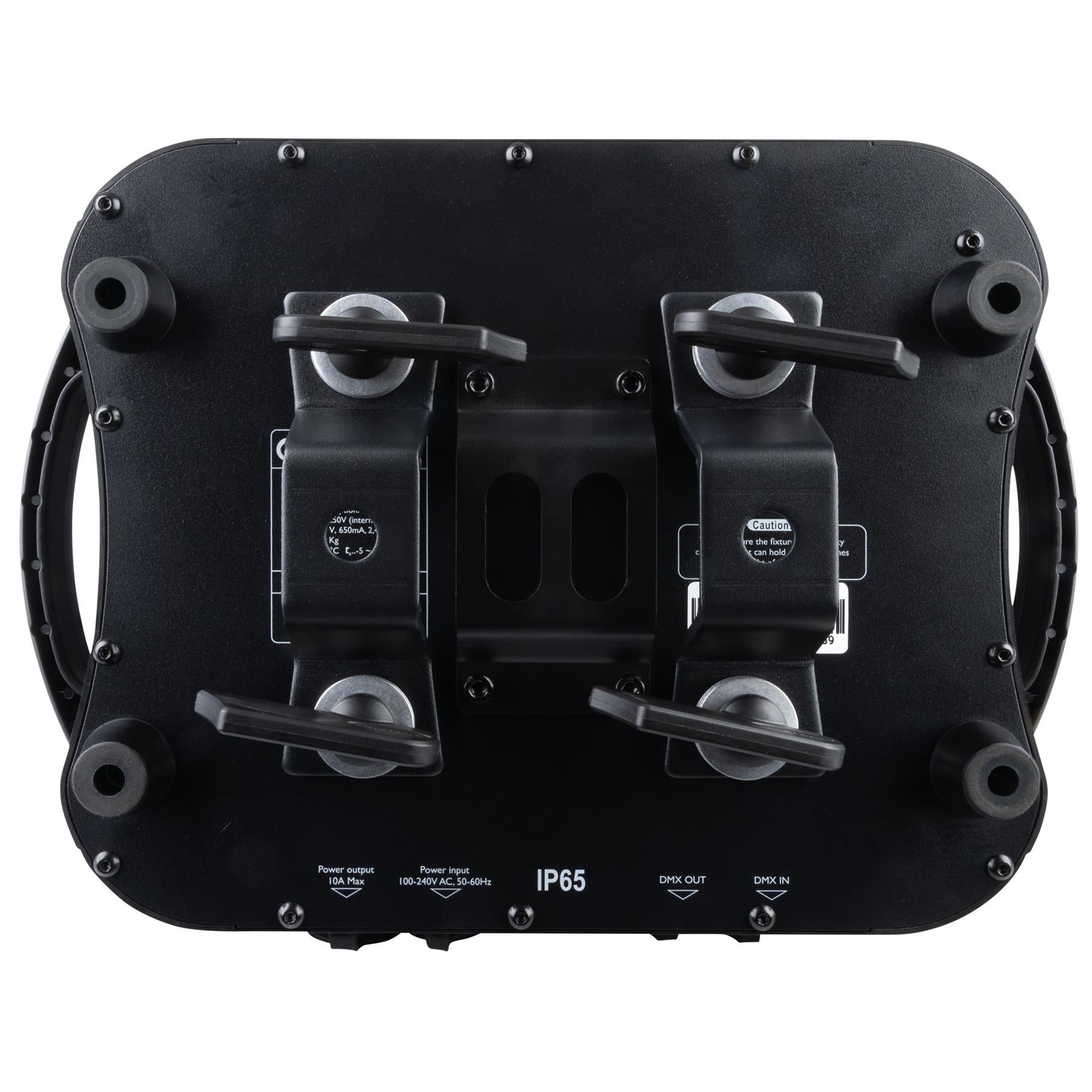

Quick-Lock rigging brackets included

Specifications

Light Source Type : Laser Source

Light Source Quantity : 1

Light Source Power : 120 W

Luminous Flux : 4200 lm

Maximum Beam Angle : 1°

Frontal Lens Diameter : 145 mm

Frost : Yes

Focus : Motorised

Control Modes : Built-in Program, DMX, Manual, RDM

DMX Channels : 14, 20

Protocols : CRMX Classic, DMX, W-DMX, RDM

Wireless Control : Optional

Display : Battery Powered LCD

Dimmer Curves : Linear, Square

Dimmer : 0-100%

Prism 1 : 8-Facet Circular

Prism 2 : 6-Facet Linear

Colour System : Colour Wheel

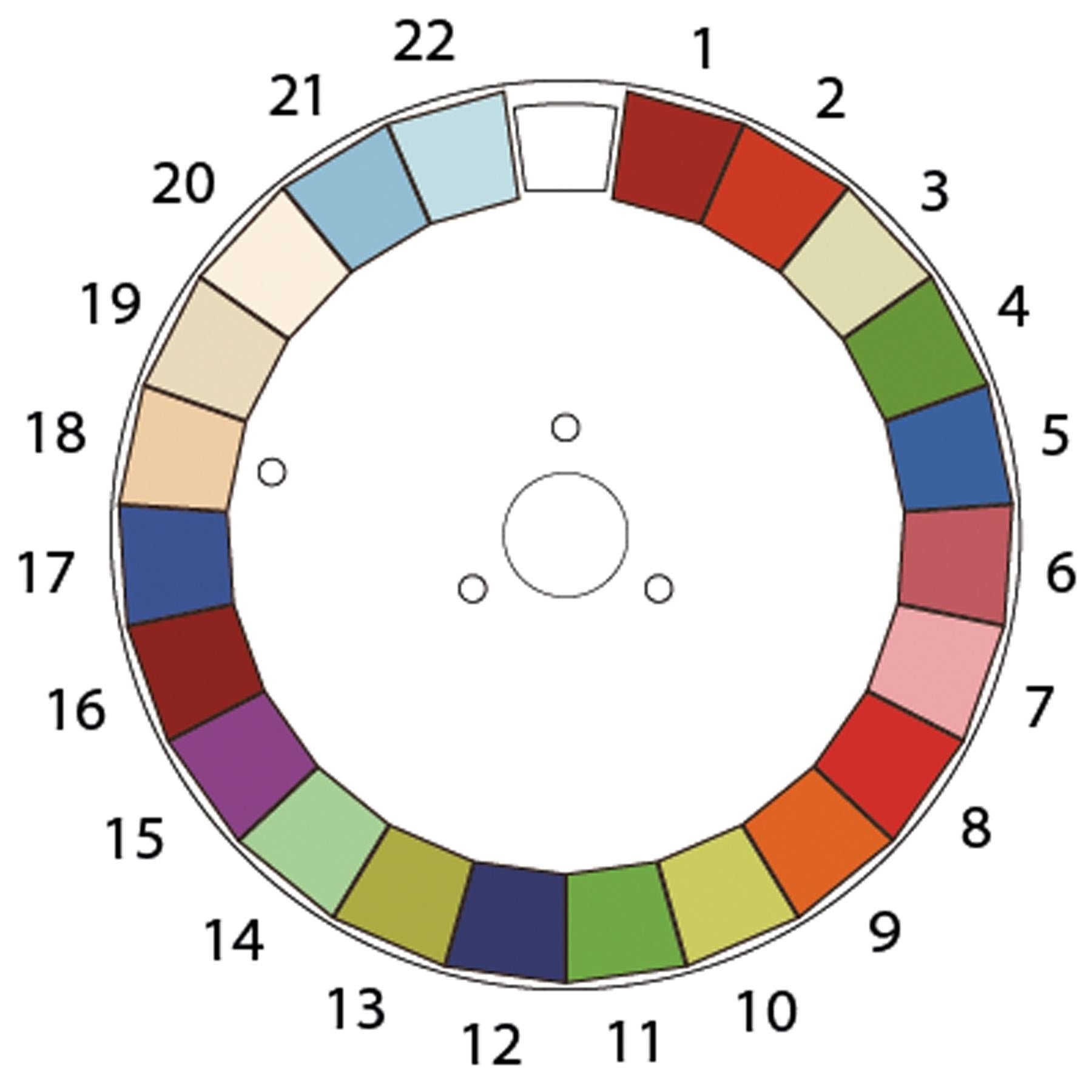

Colour Wheel : 22 Dichroic Colours + Open

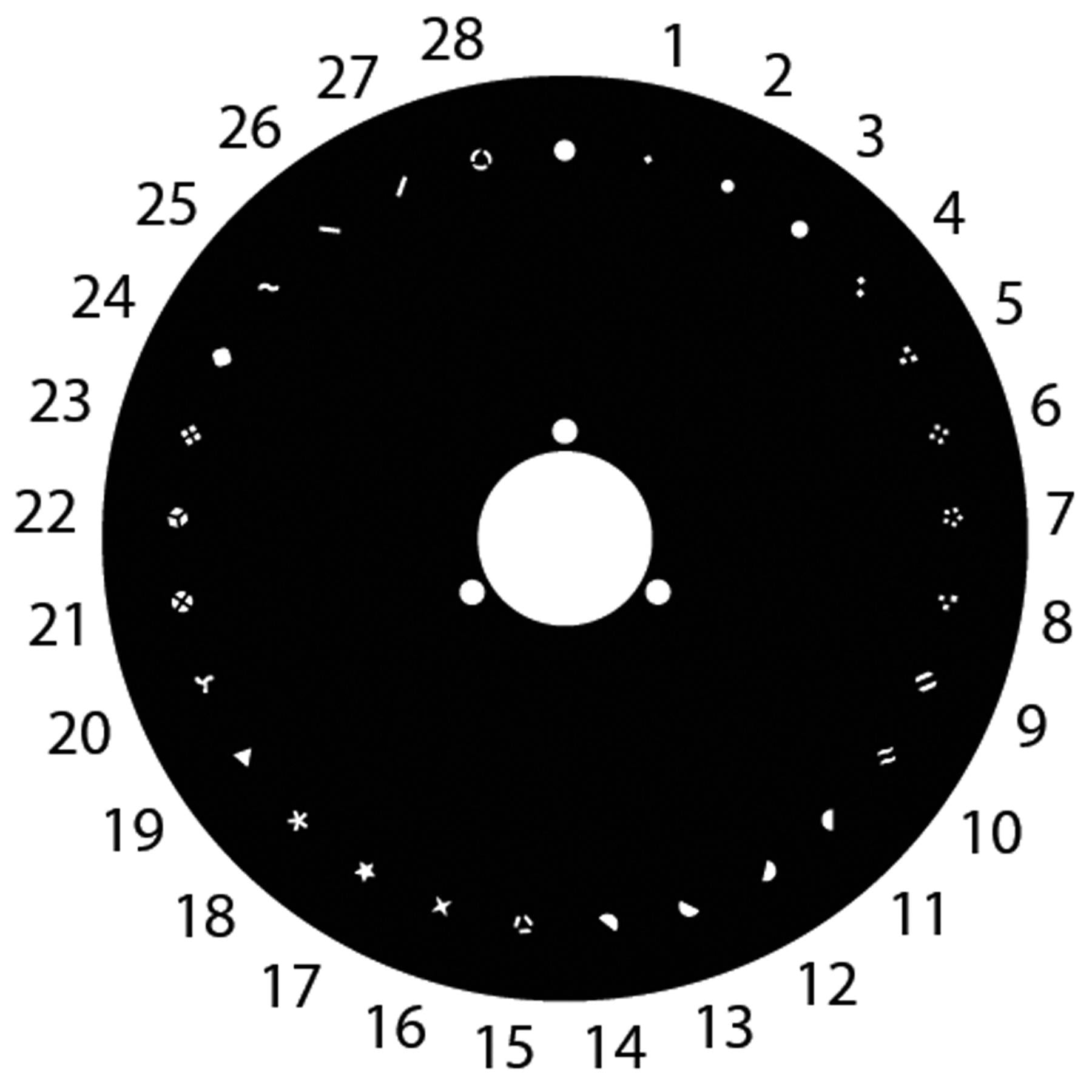

Gobo Wheel : 28 Gobos + Open

Pan : 540°

Tilt : 270°

Pan/Tilt Resolution : 16-bit

Continuous Movement : Yes

Power Supply : 100-240 V AC, 50/60 Hz

Power Consumption : 250 W

Fuse : 5 A

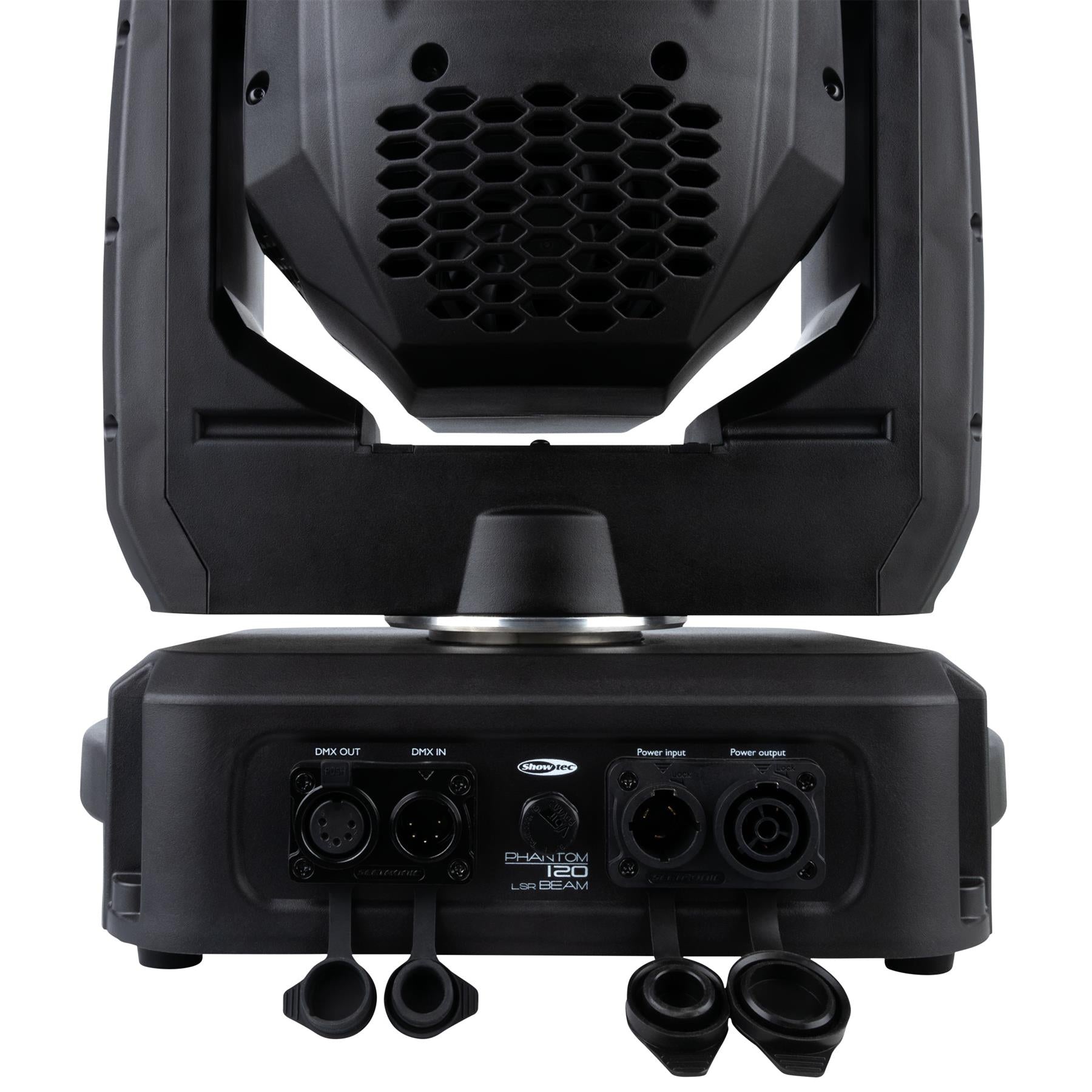

Power Input : Power Pro True

Power Output : Power Pro True

DMX Input : 5-Pin XLR

DMX Output : 5-Pin XLR

Length : 238 mm

Width : 328 mm

Height : 479 mm

Weight : 13.65 kg

IP Rating : IP65

Housing : Carbon Fibre Reinforced Plastic

Colour : Black

Cooling : Forced Convection

Maximum Ambient Temperature : 40°C

Maximum Surface Temperature : 70°C

Minimum Operating Temperature : -5°C

Included Cable : Power Pro True Cable

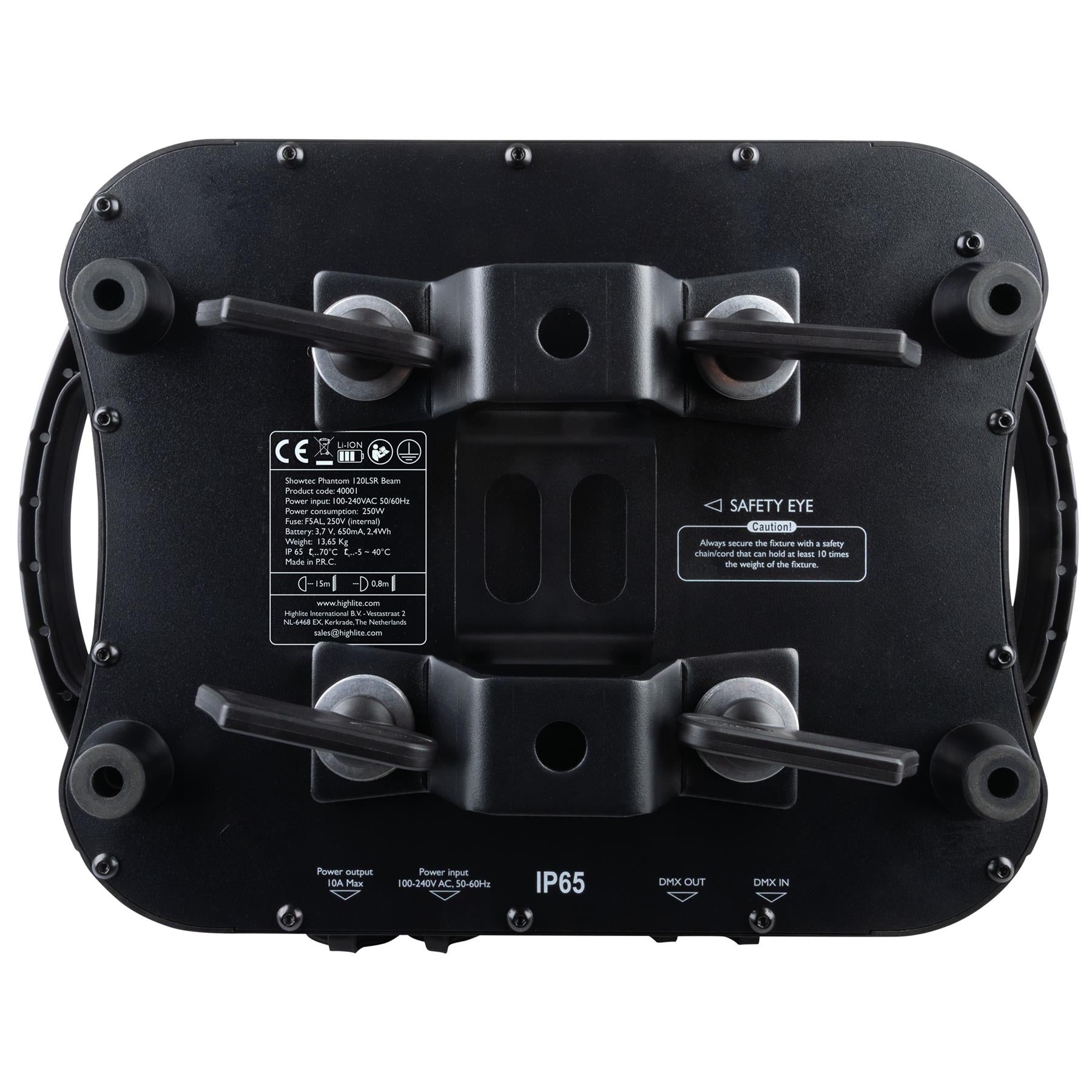

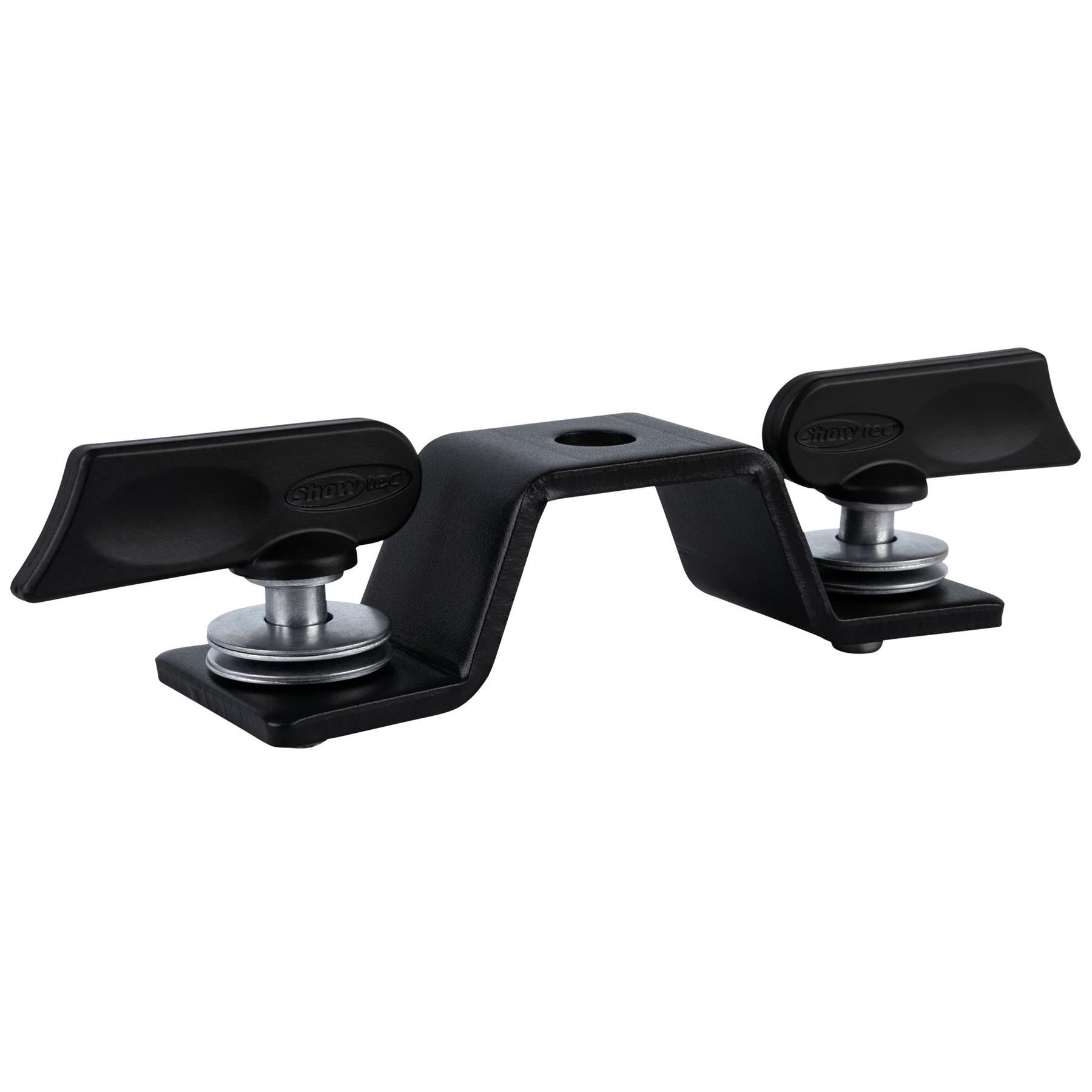

Included Rigging : Quick-Lock Bracket
