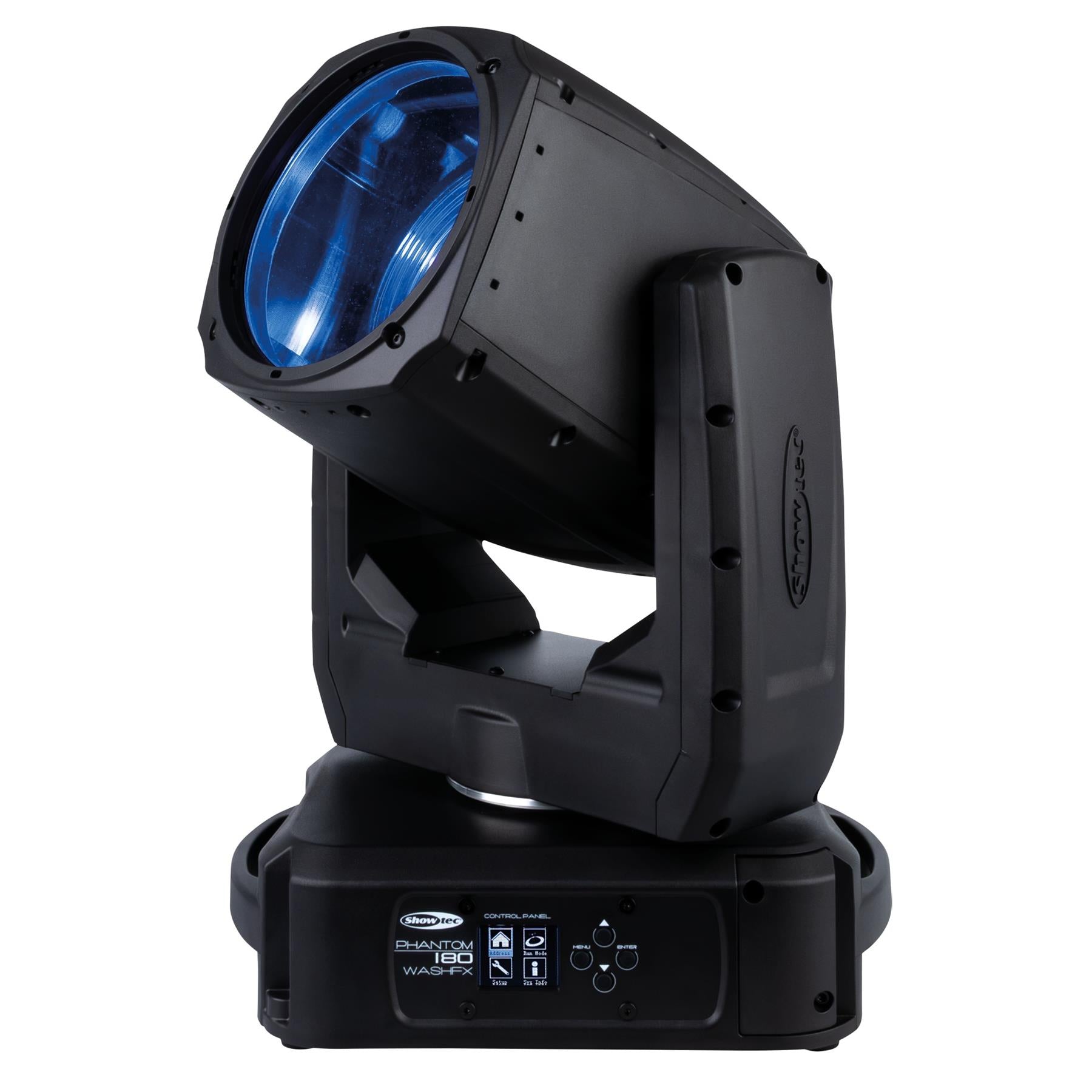

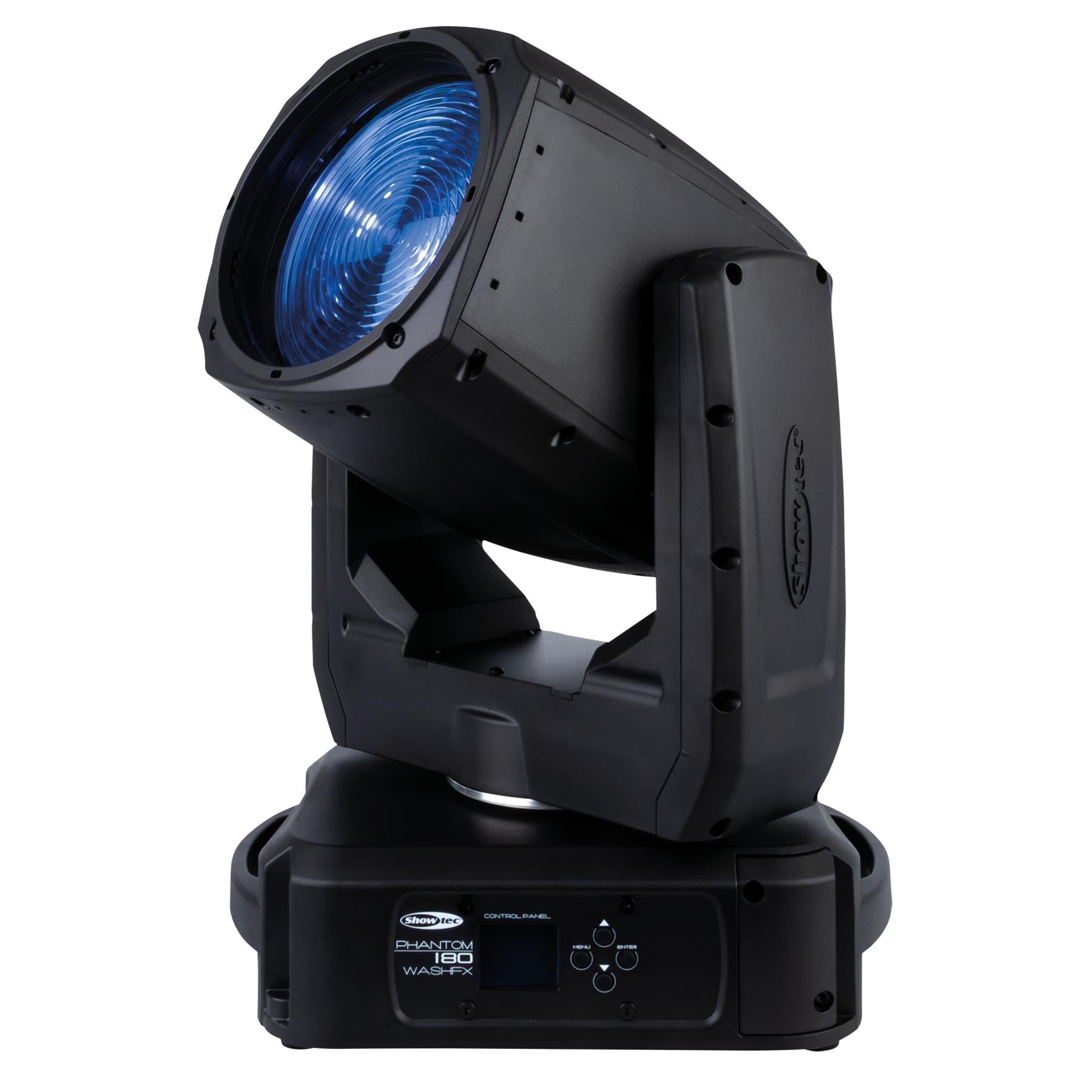

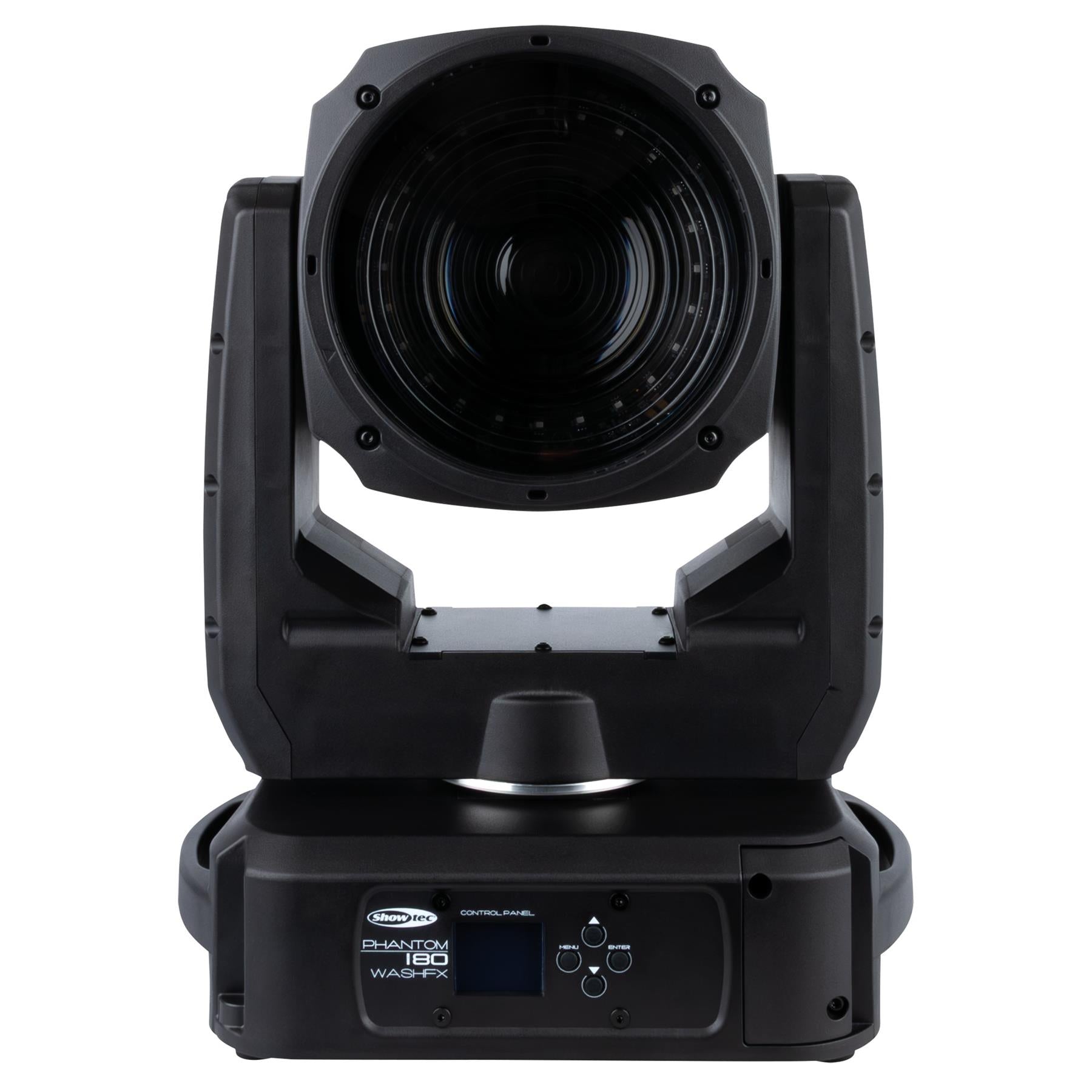

Showtec Phantom 180 WashFX 180W RGBL LED Wash Moving Head Pixel Effect IP65 Outdoor

Description

The Showtec Phantom 180 WashFX is a powerful IP65-rated moving head wash designed for professional indoor and outdoor applications including live events, touring productions, festivals, theatres and installations. Powered by a single 180 W RGBL LED engine, it delivers rich, vibrant colours and smooth colour mixing, while the inclusion of lime enhances brightness and colour quality across a wide range of shades.

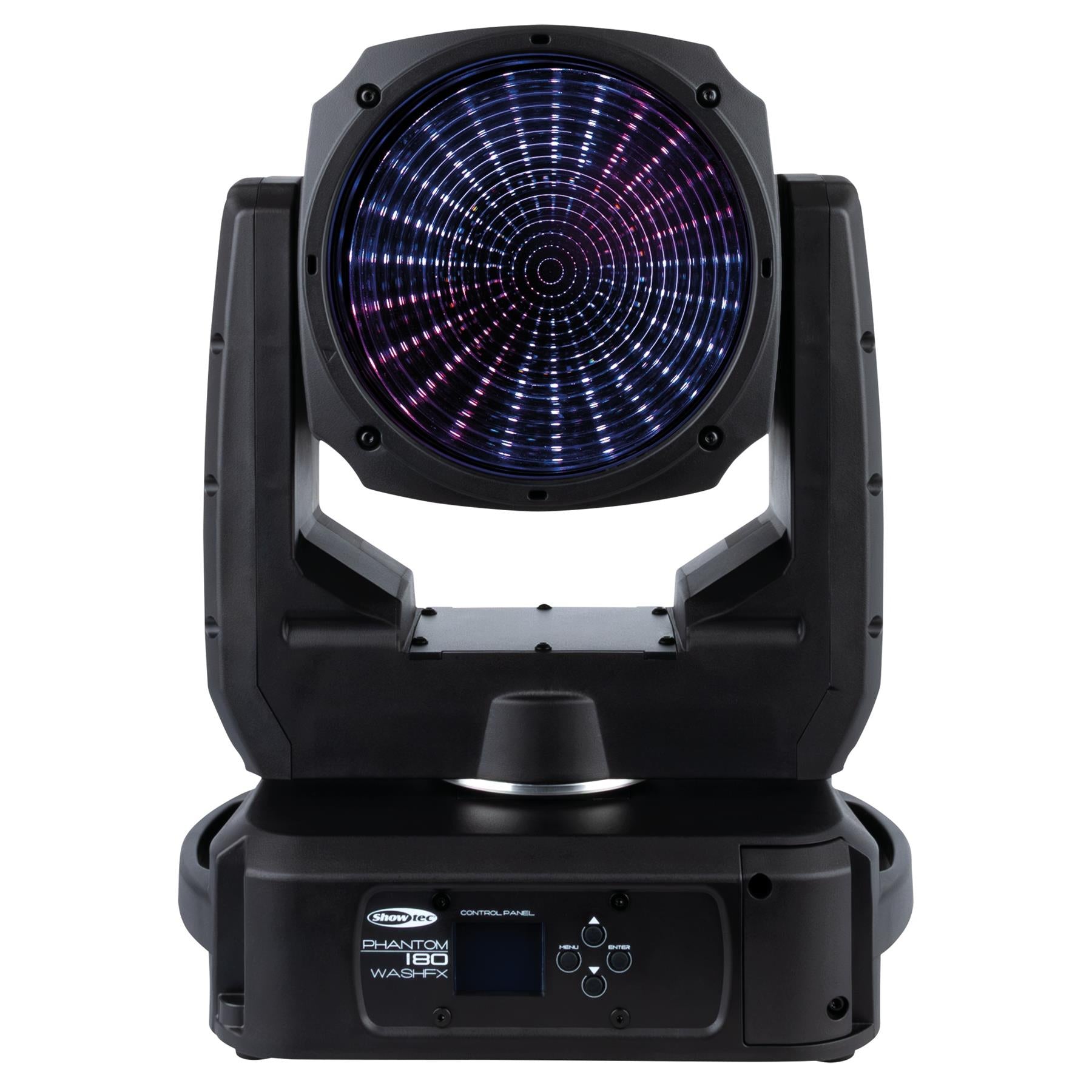

A motorised 1:5 zoom system provides excellent versatility, with a beam angle ranging from 4.8° to 27° and a field angle of up to 33.3°, allowing the fixture to move seamlessly between tight beam effects and broad wash coverage. In addition to the main output, the Phantom 180 WashFX features a 24-pixel RGB background effect with individually controllable pixels, opening up additional creative possibilities for animated effects, eye-candy looks and dynamic visual sequences.

Control is available via DMX, RDM, manual operation and built-in programs, with optional CRMX Classic and W-DMX wireless support. The fixture offers 26, 34 and 95-channel DMX modes, alongside linear and square dimmer curves, 0-20 Hz strobe and precise movement control. A battery-powered LCD display allows configuration without mains power, while the carbon fibre reinforced plastic housing, IP65 protection, forced convection cooling, Power Pro True connectivity and supplied Quick-Lock bracket make it well suited to demanding professional environments.

Features

180 W RGBL LED light source

IP65-rated construction for indoor and outdoor use

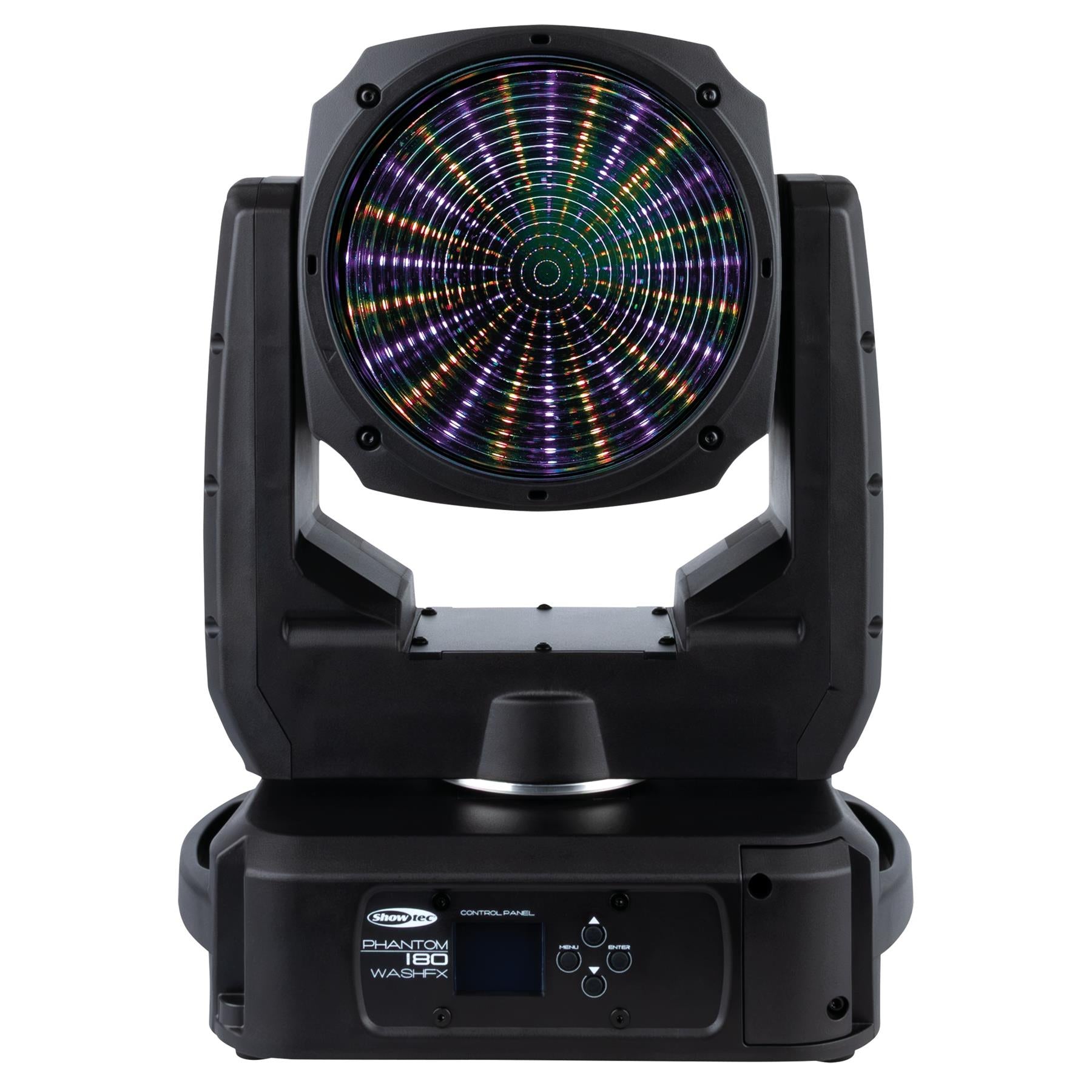

24 individually controllable RGB background pixels

Motorised zoom with 1:5 zoom ratio

4.8° to 27° beam angle

8.5° to 33.3° field angle

Rich RGBL colour mixing

Smooth dimming from 0-100%

0-20 Hz strobe

DMX, RDM, manual and built-in program control

26, 34 or 95-channel DMX modes

Optional CRMX Classic and W-DMX wireless control

Battery-powered LCD display for configuration without mains power

Linear and square dimmer curves

540° pan movement

270° tilt movement

Carbon fibre reinforced plastic housing

Forced convection cooling

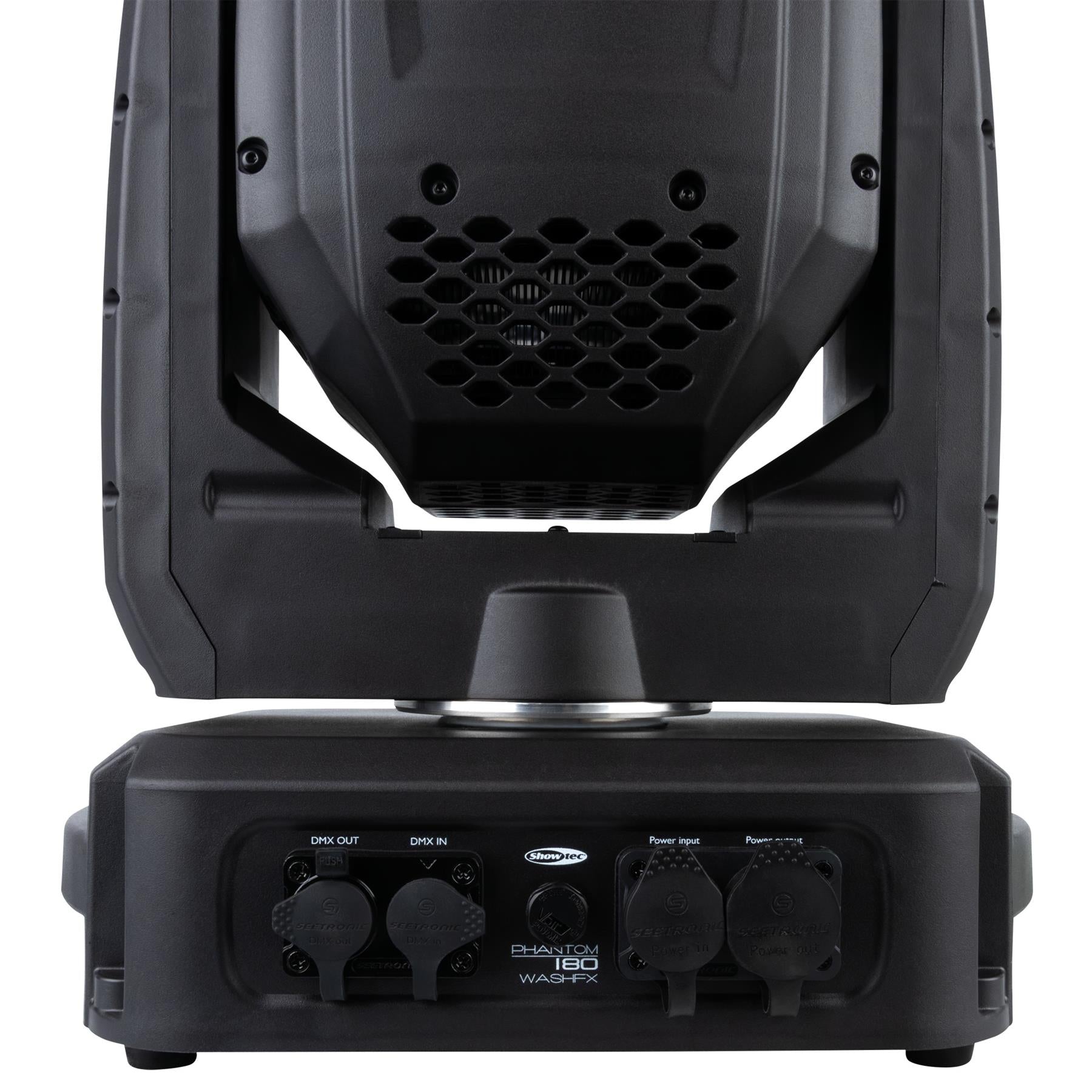

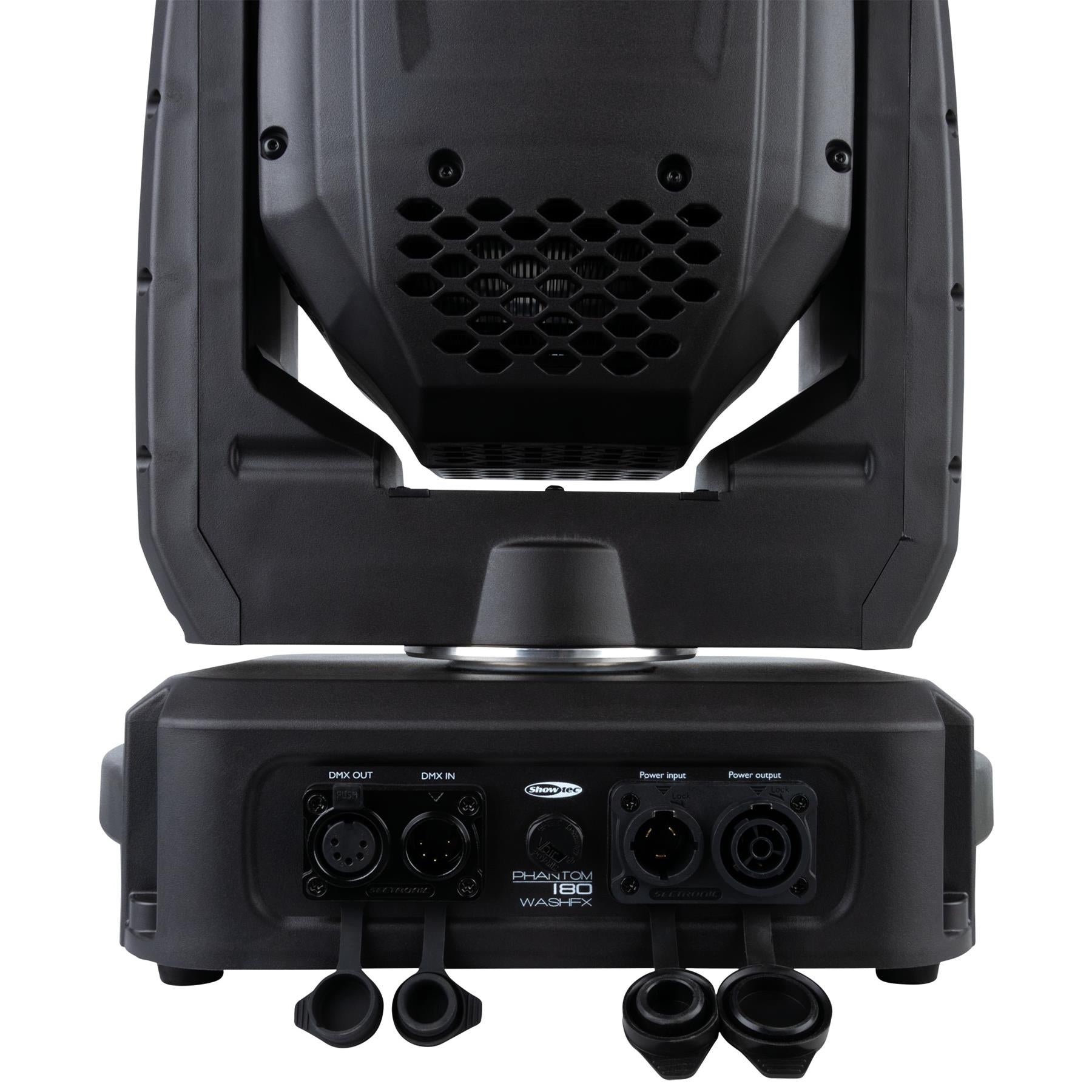

Power Pro True power input and output

5-pin XLR DMX input and output

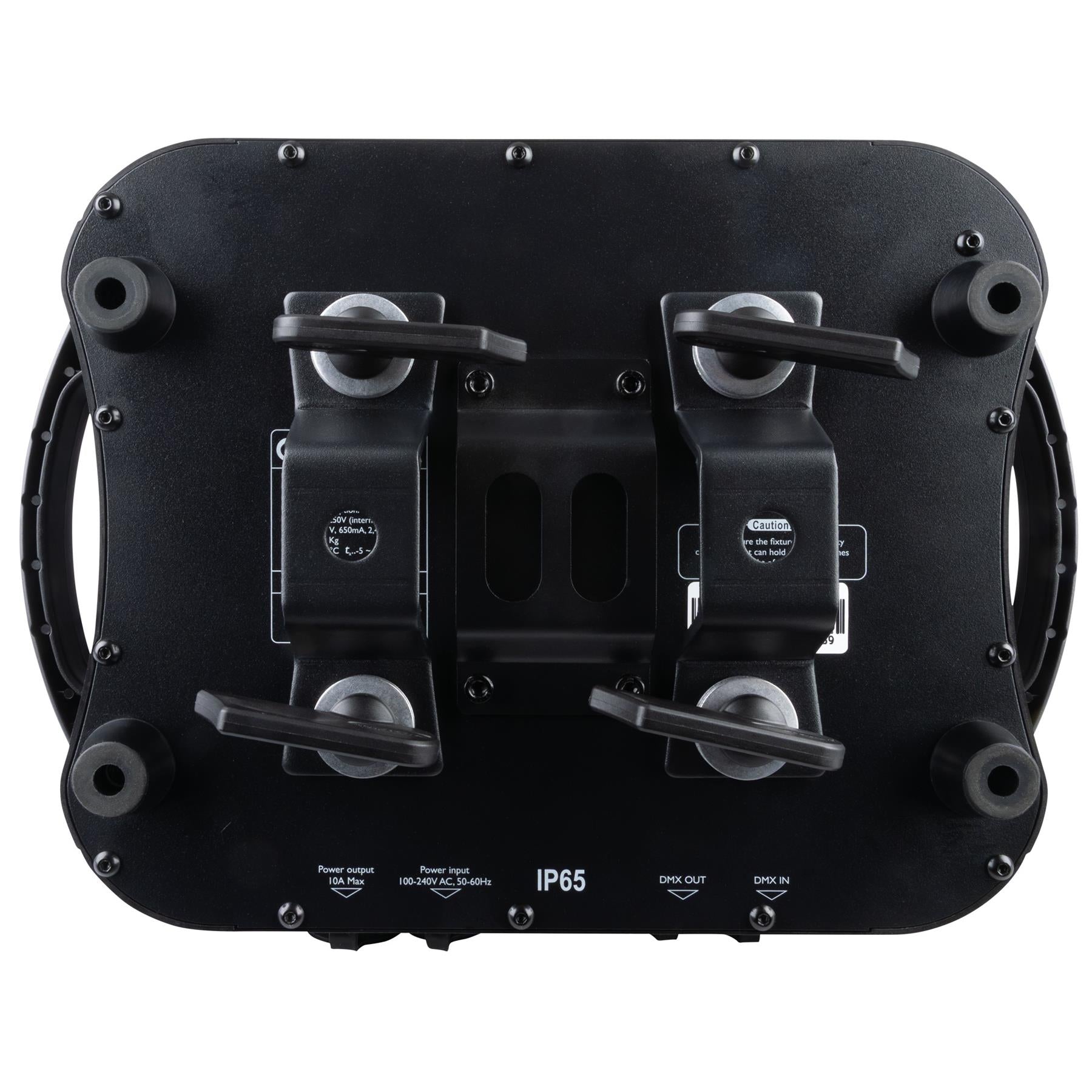

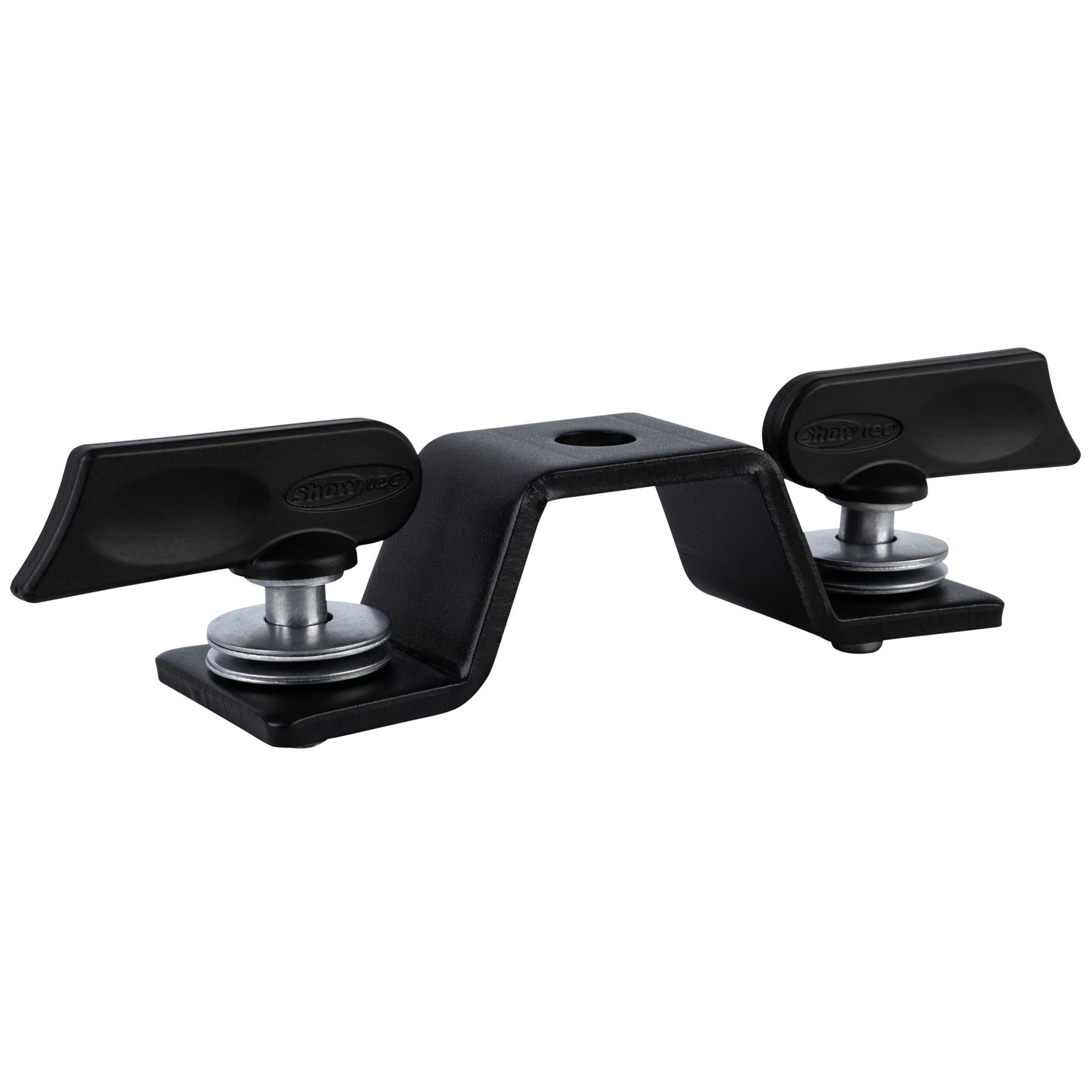

Quick-Lock rigging bracket included

Specifications

Light Source Type : LED

Light Source Quantity : 1

Light Source Power : 180 W

LED Colour Type : RGBL

Life Expectancy : 20,000 Hours

Illuminance @ 2 m : 65,110 lx

Illuminance @ 3 m : 28,938 lx

Illuminance @ 5 m : 10,418 lx

Total Luminous Flux : 3884 lm

Red Luminous Flux : 628 lm

Green Luminous Flux : 1558 lm

Blue Luminous Flux : 372 lm

Lime Luminous Flux : 2163 lm

CRI : 79

Minimum Beam Angle : 4.8°

Maximum Beam Angle : 27°

Minimum Field Angle : 8.5°

Maximum Field Angle : 33.3°

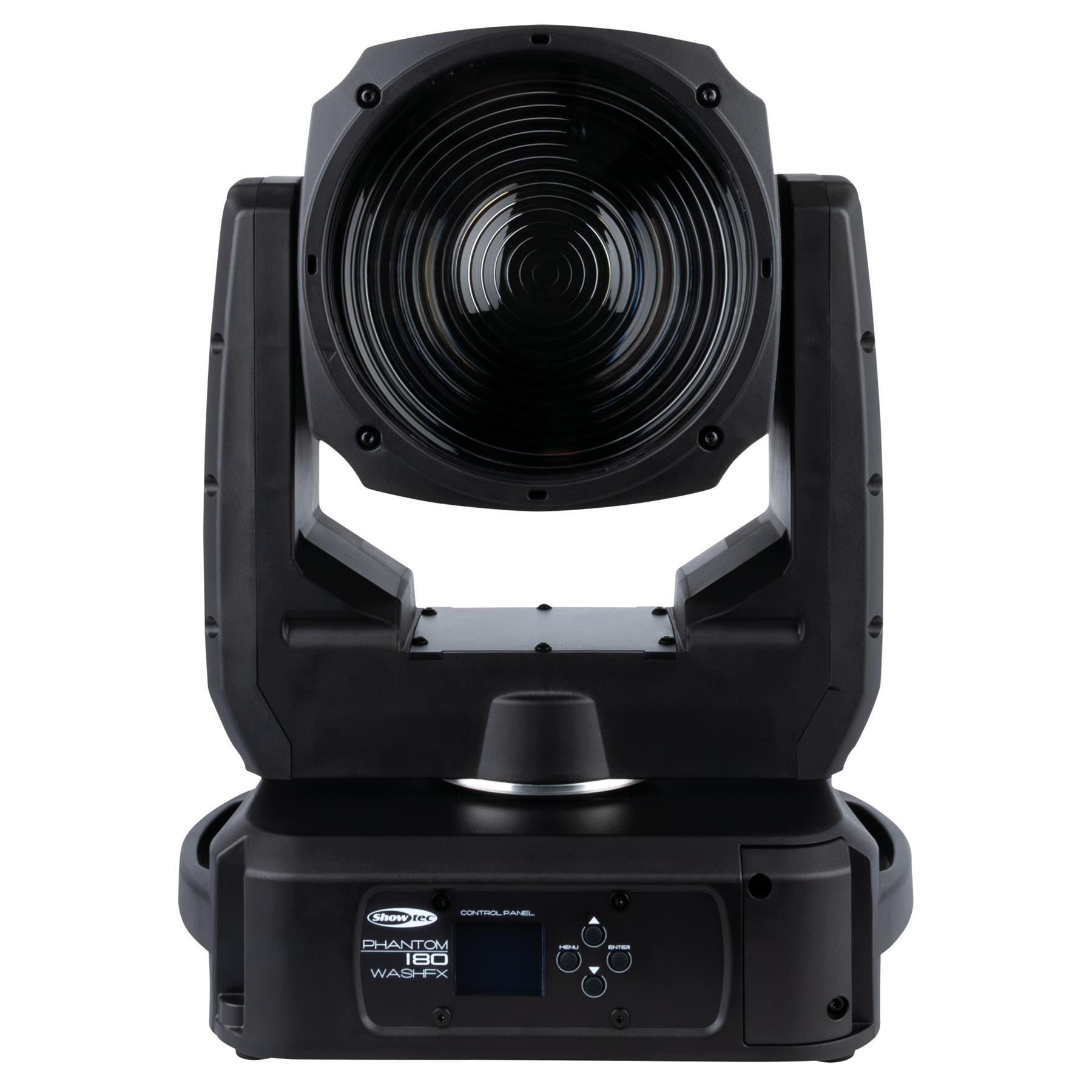

Frontal Lens Diameter : 164 mm

Zoom Type : Motorised

Zoom Ratio : 1:5

Control Modes : Built-in Program, DMX, Manual, RDM

DMX Channels : 26, 34, 95

Protocols : CRMX Classic, DMX, W-DMX, RDM

Wireless Control : Optional

Display : Battery Powered LCD

Fan Mode : Yes

Dimmer Curves : Linear, Square

Dimmer : 0-100%

Strobe : 0-20 Hz

Pan : 540°

Tilt : 270°

Power Supply : 100-240 V AC, 50/60 Hz

Power Consumption : 275 W

Fuse : 5 A

Power Input : Power Pro True

Power Output : Power Pro True

DMX Input : 5-Pin XLR

DMX Output : 5-Pin XLR

Length : 238 mm

Width : 328 mm

Height : 479 mm

Weight : 10 kg

IP Rating : IP65

Housing : Carbon Fibre Reinforced Plastic

Colour : Black

Cooling : Forced Convection

Maximum Ambient Temperature : 40°C

Maximum Surface Temperature : 70°C

Minimum Operating Temperature : -5°C

Included Cable : Power Pro True Cable

Included Rigging : Quick-Lock Bracket
