Showtec TED Pack CEE 7/5 4ch Dimmer Pack LED Incandescent DMX

Description

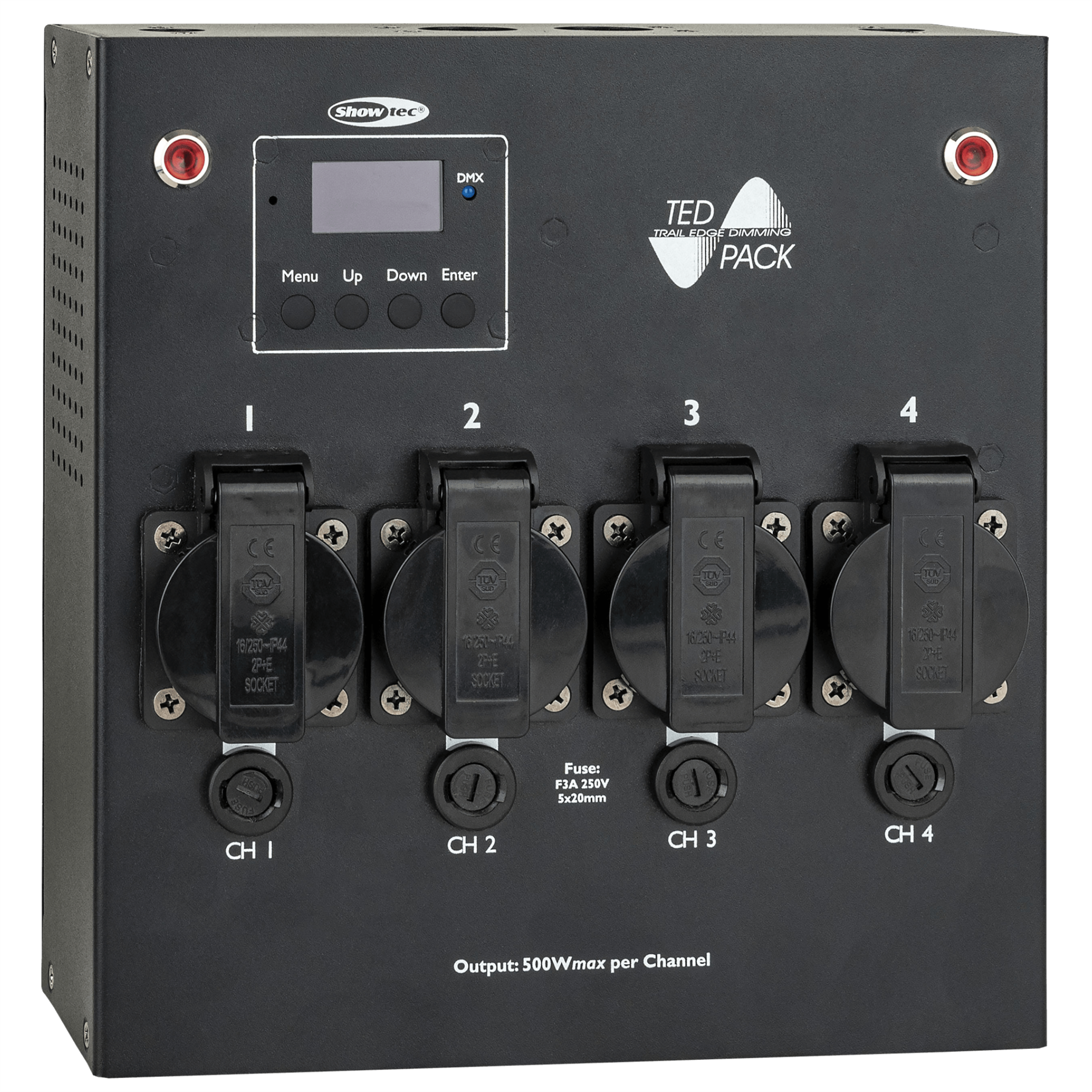

The Showtec TED Pack CEE 7/5 is a 2000 W leading and trailing edge 4-channel dimmer for indoor use with dim, switch and FX modes. The output is independent of the connected load and can be used with LEDs and incandescent lights up to 2 A per channel. Its channels can be linked or controlled individually.

The TED Pack CEE 7/5 uses MOSFETs to dim the output and can be switched between leading edge and trailing edge dimming. The Special FX mode offers a safety channel that prevents unintentional activation which can be helpful for controlling shooters, canons, drops, et cetera. The unit can be controlled manually and via DMX. The included Quicklock bracket clicks on easily from the back or the top.

Control and Programming
Control Mode
DMX, Local Control, Manual
Protocols
DMX, RDM
DMX Channels
1, 2, 3, 4, 5
Electrical Specifications and Connections
Power Supply
220-240 V AC 50 Hz
Power Consumption
4 W
Output Current per Channel
2 A

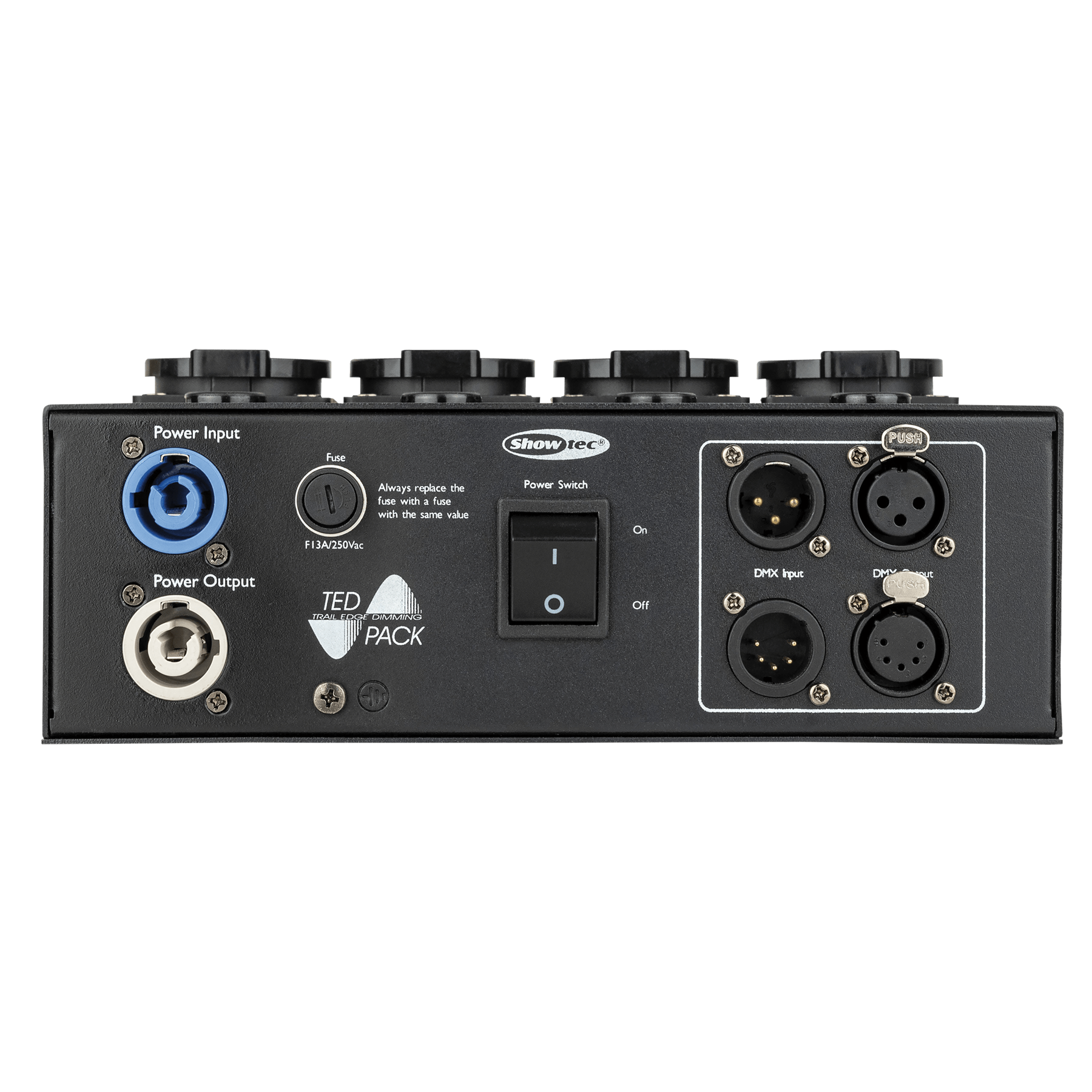

Power Connector In
Power Pro Blue

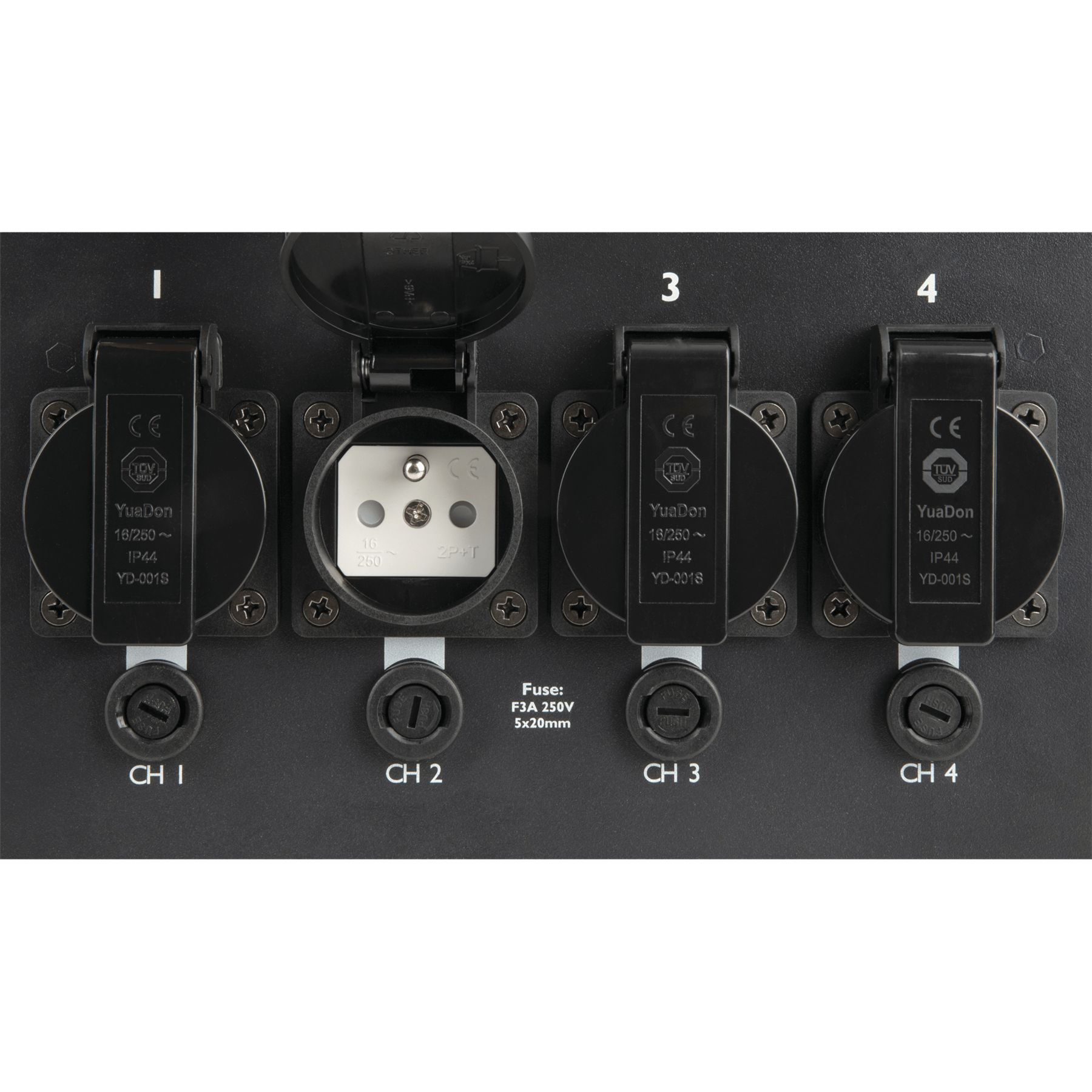

Power Connector Out
Schuko Socket, Type F
DMX Connector In
XLR 3P, XLR 5P
DMX Connector Out
XLR 3P, XLR 5P
Mechanical Specifications
Length (mm)
240 mm (9.449″)
Width (mm)
230 mm (9.055″)
Height (mm)
92 mm (3.622″)
Weight
2.7 kg (5.952 lb)
IP Rating
IP20 (indoor use only)
Housing
Metal
Colour
Black

LED Indicators
Signal
