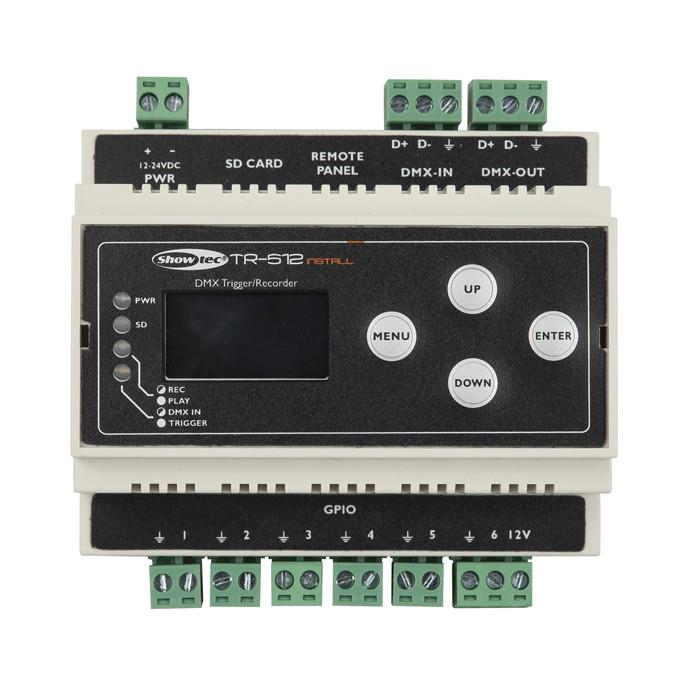

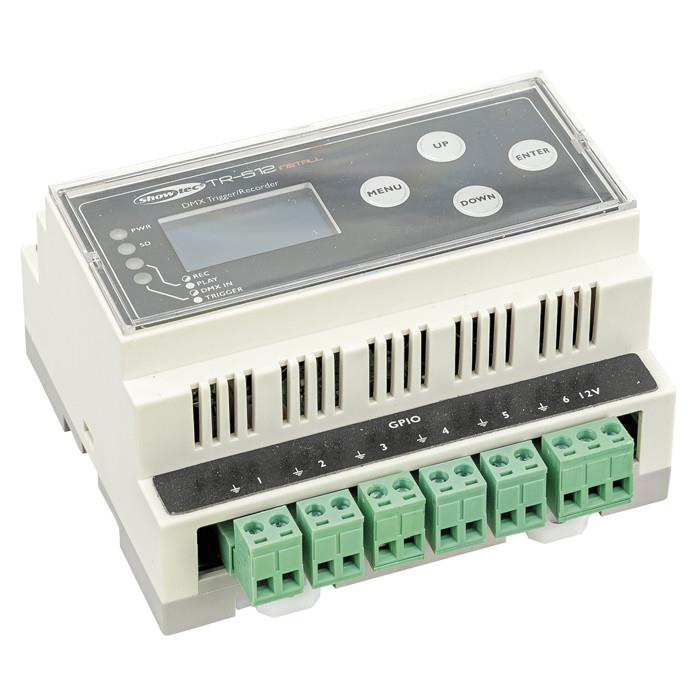

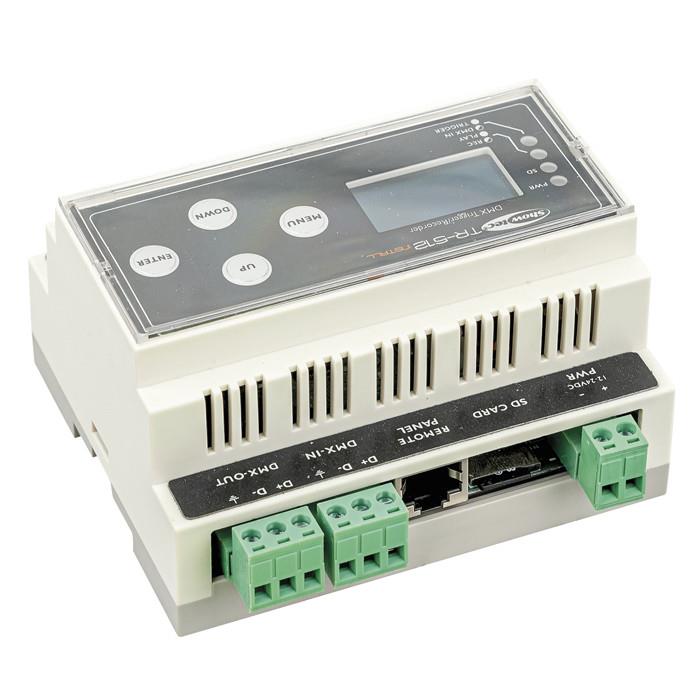

Showtec TR-512 Install DIN Rail DMX Trigger Recorder for Lighting

Description

The Showtec TR-512 Install is the ideal compact fixed-installation DMX Recorder/Playback unit which can trigger any lightshow in a simple way.

The TR-512 Install can record and playback several shows which can be stored on the included micro-SD card. Each show can be played in loop mode ore single play. Even an auto start on power-up or delayed start can be set in order to have precise control over your show.

There are 6 GPIO pins available to start or stop your shows by external triggers like switches or motion detection sensors. Also a dedicated wall remote panel can easily be connected by normal cat-5 cable. The din-rail mounted TR-512 is the right product to trigger your shows or scenes in theme parks, museums, shops or other system integration projects.

Please note that this DM Recorder/Playback unit is ONLY for use with Wall Panel Remote (50827/50828).

Suitable ONLY for use with Wall Panel Remote (50827/50828)
Bi-directional communication to wall panel
6 external universal triggers (GPIO)
Optical isolated DMX ports
Record and playback function

Power Supply 12 VDC
Power Consumption 6W
Power Connector in Phoenix
DMX Connector Phoenix In/Out
DMX Connector in Phoenix
DMX Connector out Phoenix
Connector 1 RJ45

Length (mm) 106 mm
Width (mm) 87 mm
Height (mm) 58 mm
Weight 0.18 kg
IP Rating IP20 (indoor use only)
Housing Plastic
Colour Gray
