Showtec TR-512 Pocket DMX Trigger Recorder Playback DMX Scene

Description

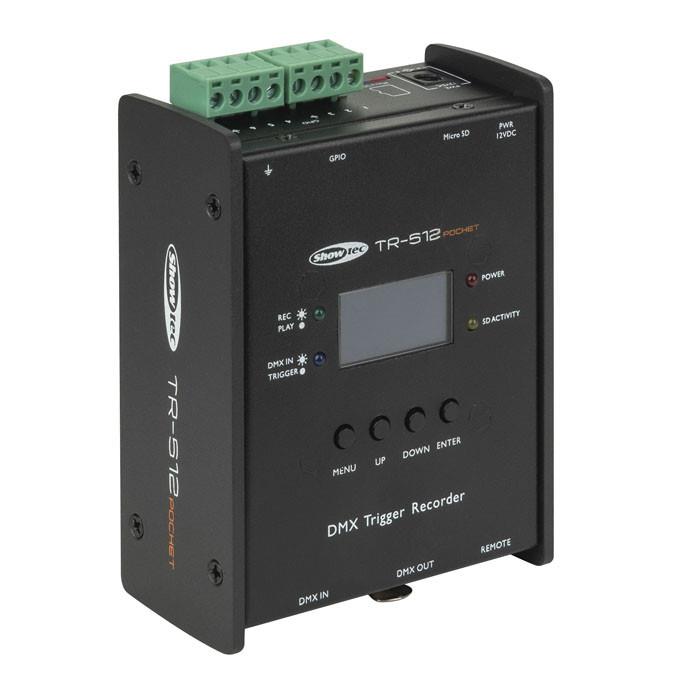

The TR-512 Pocket is a compact DMX Recorder/Playback unit that can trigger your light show in an uncomplicated way. The TR-512 Pocket can record and playback several shows, which are stored on the included micro-SD card. The card is big enough to hold shows lasting 24 hours. Each show can be played in loop mode or single play. An auto start on power-up or delayed start can be set. There are 6 GPIO pins available to start or stop your shows using external triggers, like regular switches, relays, motion detection sensors, et cetera. Bidirectional communication with the dedicated Wall Panel Remote for TR-512 (order codes 50827, 50828) can be set up via the RJ45 terminal using regular CAT5 cable. The TR-512 Pocket is the right product for triggering your shows or scenes in theme parks, museums, shops, and other system integration projects.

Bi-directional communication to Wall Panel Remote

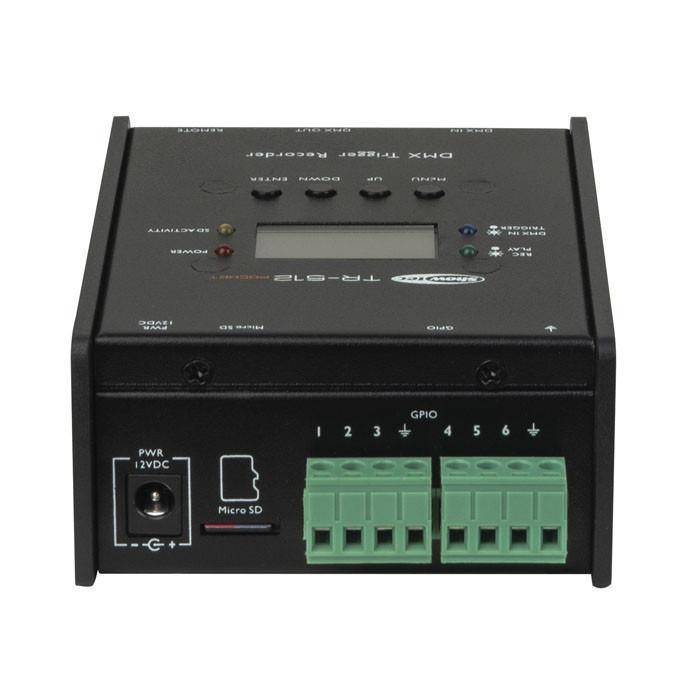

6 External universal triggers (GPIO)
Dedicated Wall Panel Remote for TR-512 Install/Pocket (50827/28)
Optically isolated DMX ports
Record and playback function

Power Supply 12 VDC
Power over Ethernet (PoE) No
Power Consumption 6W
Power Connector in - Low Voltage DC plug

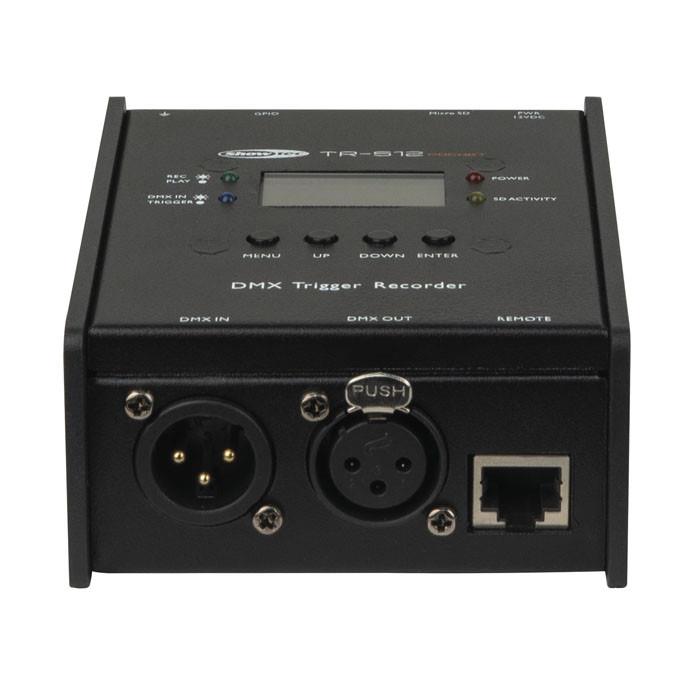

DMX Connector - XLR 3P In/Out
Data Connector in - RJ45

Length (mm) 115 mm
Width (mm) 85 mm
Height (mm) 45 mm
Weight 0.45 kg
IP Rating IP20 (indoor use only)
Housing Metal
Colour Black

LED Indicators
Operation mode, Power, Signal

Control Mode DMX, GPIO, Manual, Remote
DMX Channels 512
Protocols DMX
Display OLED
Universes 1
