Block And Block Sigma-70 Truss Lifter 160Kg 5.3M
Block And Block Sigma-70 Truss Lifter 160Kg 5.3M
Block And Block Sigma-70 Truss Lifter 160Kg 5.3M
Block And Block Sigma-70 Truss Lifter 160Kg 5.3M
Block And Block Sigma-70 Truss Lifter 160Kg 5.3M

Block And Block Sigma-70 Truss Lifter 160Kg 5.3M

£1,285.50
£1,285.50
High-quality ground support for weights up to 160 kg, made in EU
Vendor: Block And Block
SKU: 154-59000410
Icon In Stock In Stock
Icon Delivery Time
iFrame
×
DETAILS

Description


High-quality ground support for weights up to 160 kg, made in EU

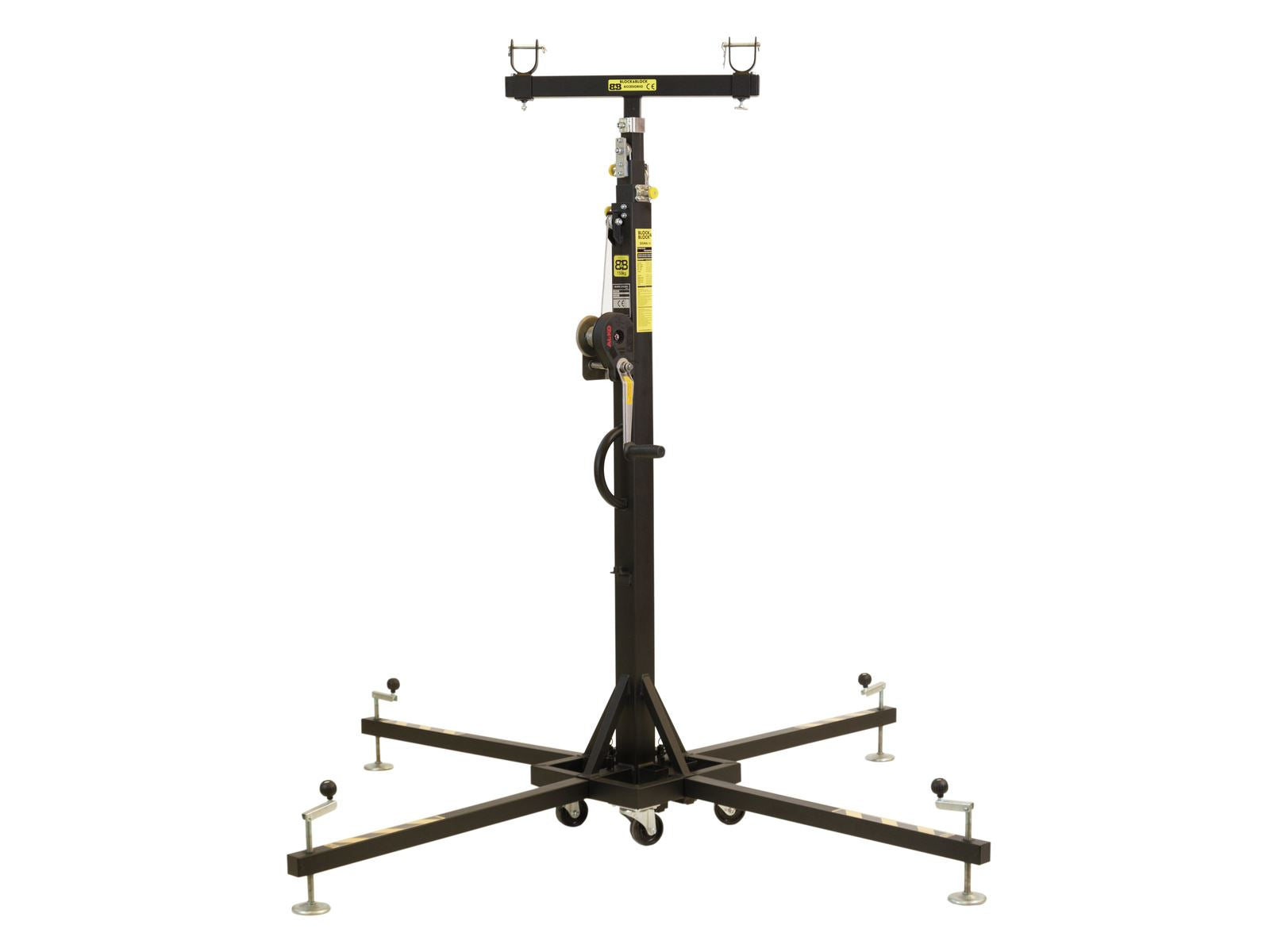

  • Four-part telescopic ground support
  • 4 mm steel rope
  • Safety bolts to lock the different sections at different heights
  • Locking bolts in the base area to lock the booms
  • Booms with adjustable spindle and steel plate with non-slip rubber base
  • Corrosion protection through epoxy coating
  • Water level to ensure a vertical position
  • Earthing connection

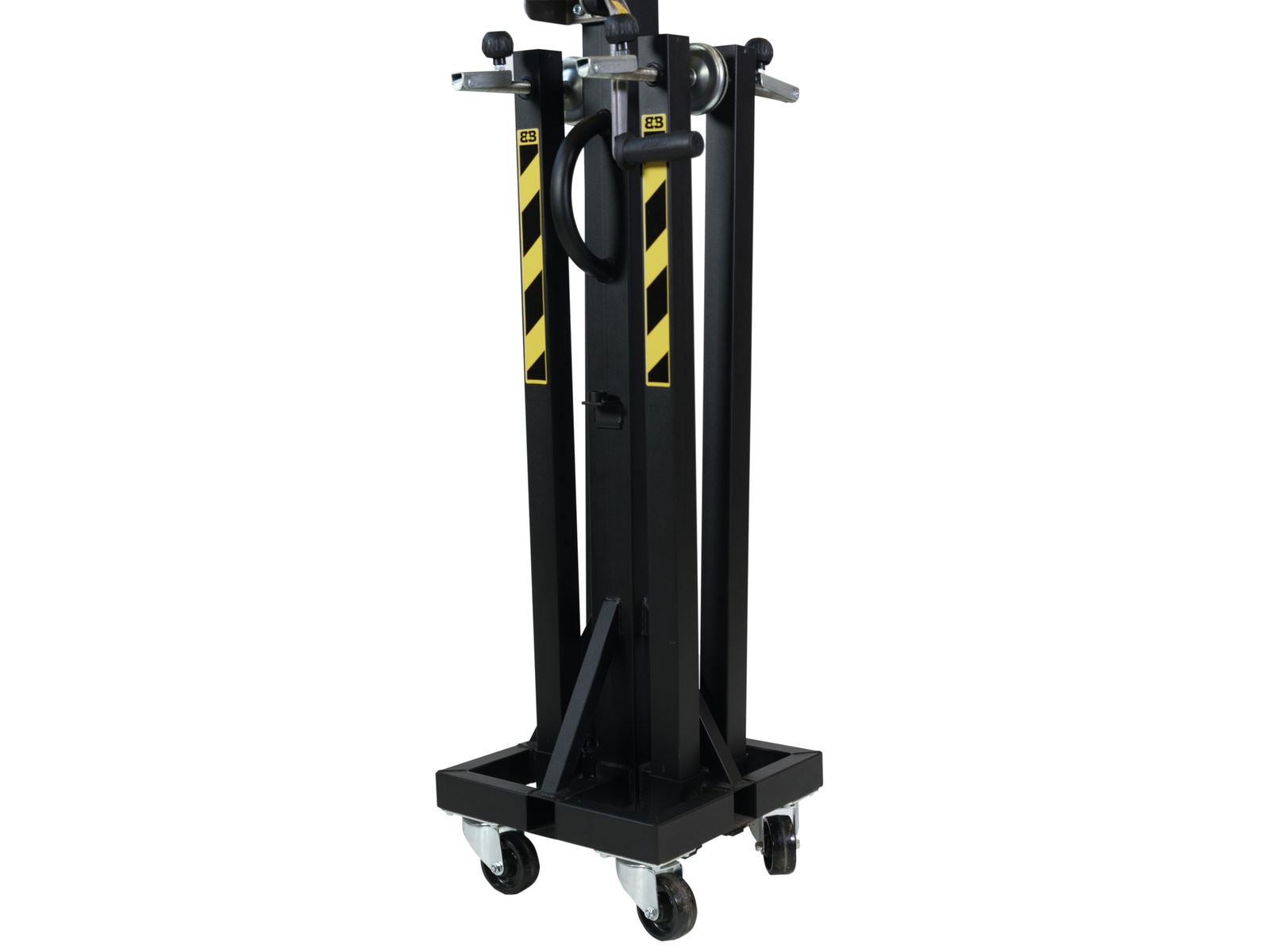

  • Transport rolls to move the lift when retracted

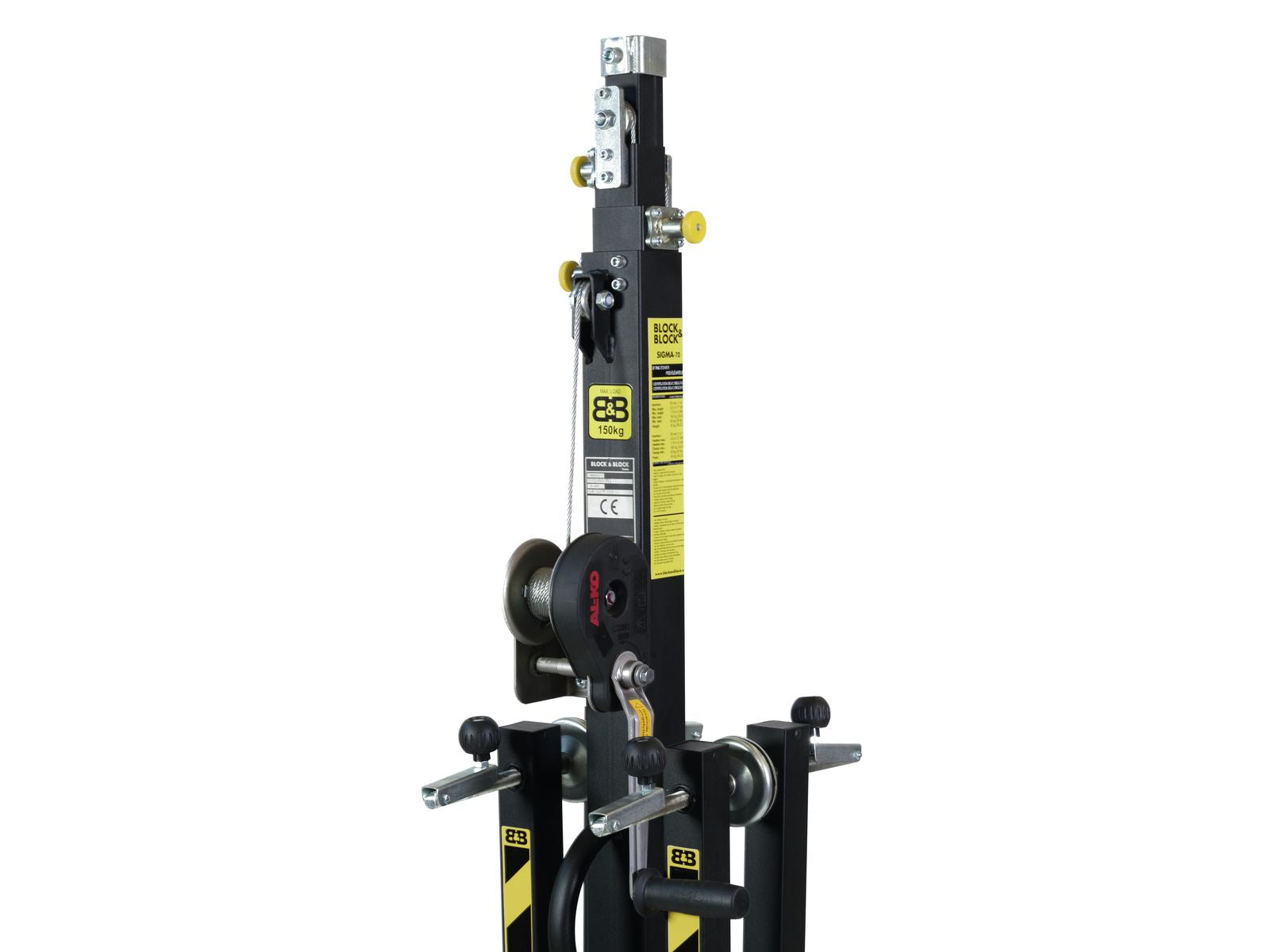

  • AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC?Machinery Directive 2006/42/CE
  • Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
  • Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
  • Made in Europe


Maximum carrying capacity: 160 kg
Minimum load: 25 kg
Nominal tensile strenght of rope: 1770 N/mm?
Height: Maximum: 5.30 m above 4 sections
Minimum: 1.70 m
Attachment system: ? 35mm
Steel rope: ? 4 mm
Type (general stands): Truss lifter
Material: Steel (powder-coated)
Additional dimensions: 175 cm x 36 cm x 38 cm
Base area: ? 207 cm
Weight: 43.50 kg
