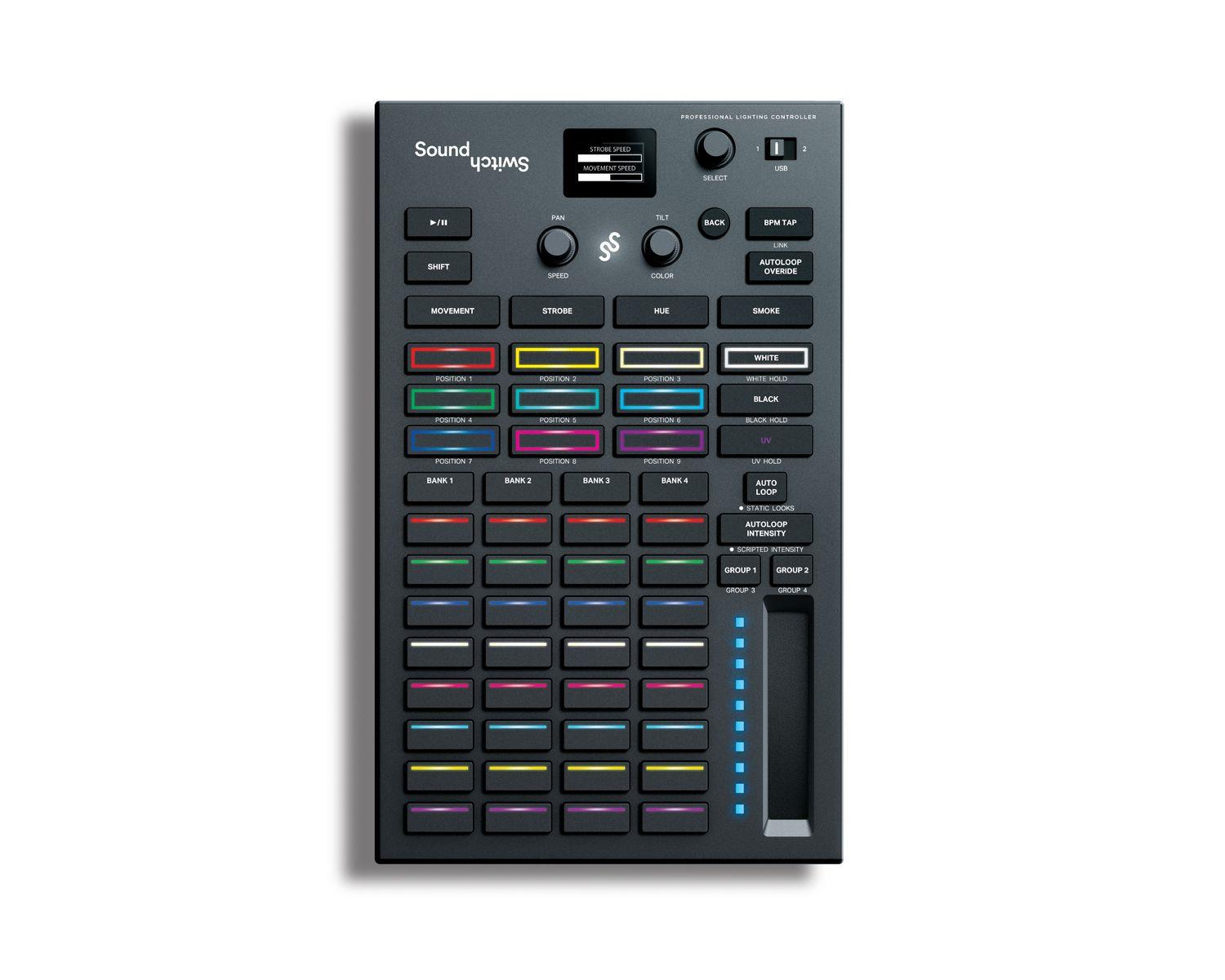

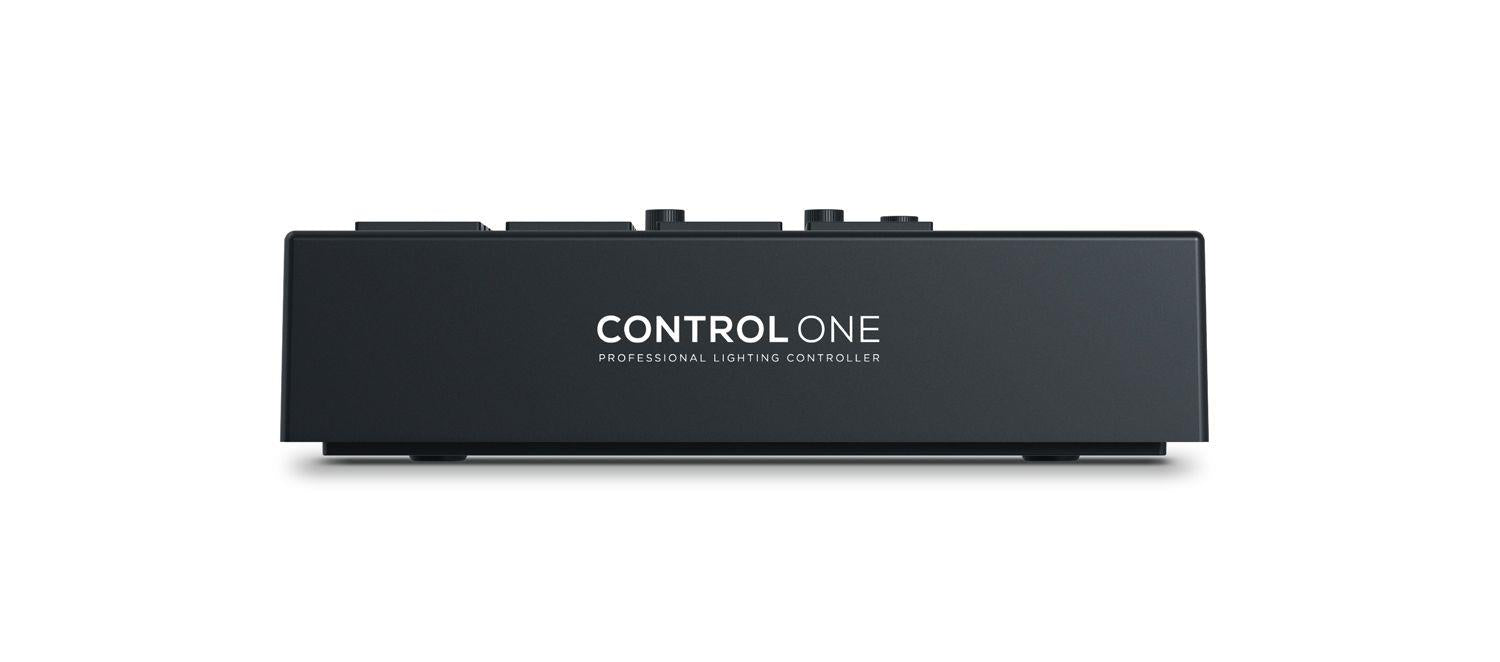

Soundswitch Control One DMX Controller

Description

DMX + Philips HUE Lighting Control Simplified!
SoundSwitch is the world’s most advanced lighting automation software. With the release of the Control One, DJs and lighting
designers have more control over the powerful SoundSwitch software features. SoundSwitch supports both DMX and Philips HUE
lighting hardware. Users can be as creative as they like in the Digital Lighting Workstation (DLW) or let the software do the work via
the automation features or pre-built lighting scenes. Combining the SoundSwitch software with the Control One hardware allows
DJs and lighting designers to sync lighting visuals with live audio seamlessly and easily.
With the SoundSwitch Control One, users can connect two DMX universe outputs + connect two incoming DMX universe allowing
for integration with larger and installed lighting setups. The one-to-one mapped hardware controls makes it easier than ever to
control lighting effects on the fly in combination with the auto generated lighting displays created in the SoundSwitch software
providing a complete hardware and software lighting solution. From the get-go, the SoundSwitch Control One doesn’t disappoint
with 3 months free SoundSwitch software access so you can jump right in and create automatic light show with beat grids.
SoundSwitch and Control One are compatible with Engine DJ, Serato DJ, Virtual DJ, Ableton LINK and MIDI Clock.

1:1 Hardware Control for SoundSwitch Software
Plug and Play with Engine DJ Hardware (Engine Lighting)
Automatic Light Shows Synced with Beat Grids
On-board Memory for Storing Light Patch and Settings

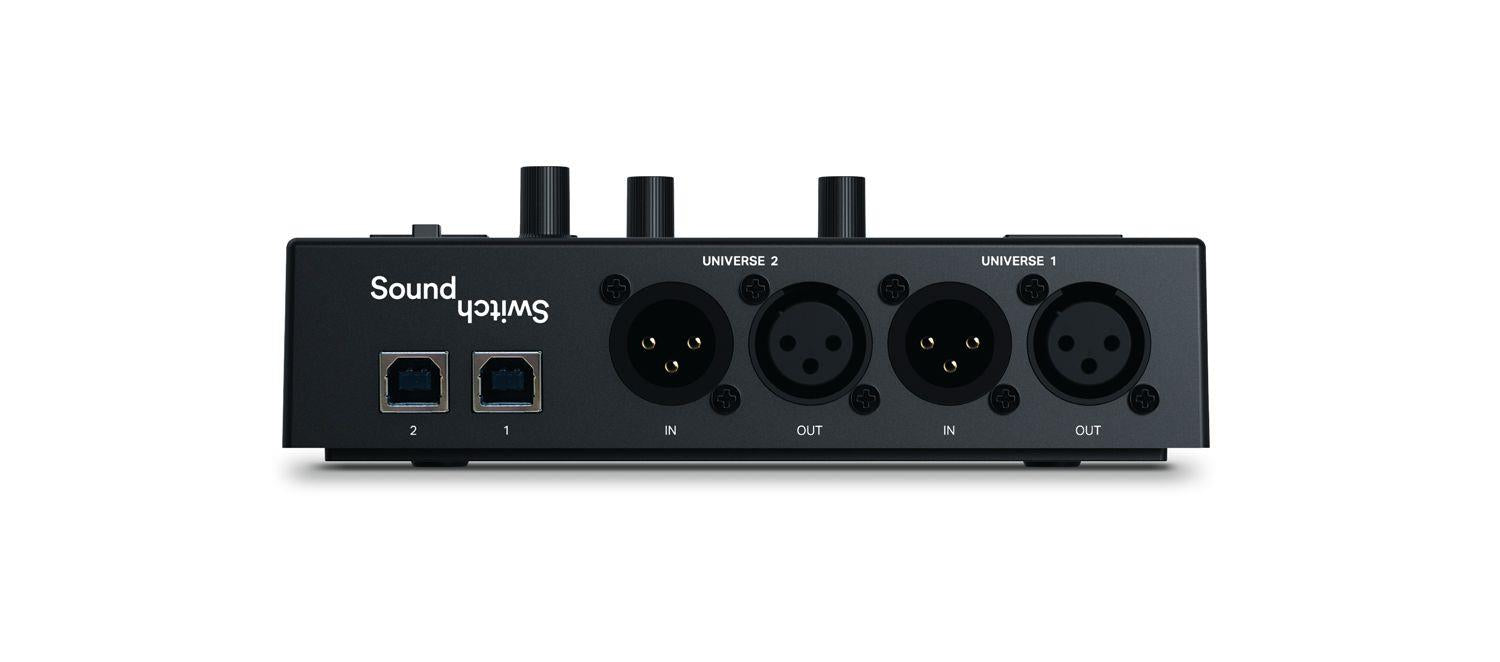

(4) Pro-grade DMX Connections for 2 DMX Universes
DMX Input for Merging with Install Lighting Systems
Dual USB for Seamless DJ Transitions
Built-in OLED Display for Heads Up Info
Performance Pads with Customisable RGB
Pan, Tilt, and Intensity Controls
3 Months Free SoundSwitch Software Access

Edit Mode - Digital Lighting Workstation Specifically Designed for DJs
SoundSwitch’s Edit Mode is where users can be as custom or automated as they like. Users can work in the Digital Lighting
Workstation (DLW) to edit their preset light scenes or build and customise their own lighting displays. The work low and user
interface has been designed to be similar to audio editing and music production software providing a familiar look and feel for DJs.

Create Custom Lighting Displays
SoundSwitch allows for full customisation and lighting control. Users can control every feature of their lighting hardware including
colour, brightness, strobe, movement, gobos, prism and more.

Autoloops - Automatic Light Shows Synced with DJ Software
The Autoloops feature automatically syncs lighting scenes with audio iles that don’t have scripted light shows as the DJ performs.
The software ships with 32 pre-built Autoloops which are all customisable and will always cue perfectly on the beat when needed.

AutoScripting - Automatic Light Show Creation
Batch analyse audio files, playlists, collections and crates for Automated lightshow creation.

Static Looks - Lighting Scenes
Static Looks provide users with an easy way to create lighting scenes; a common tool in the mobile DJ field. These static scenes
can be created to light speeches, the dinner service or provide ambient lighting at any event. Static Looks can also be MIDI mapped
allowing for complete touch control.

Supports Leading DJ Software and Hardware
SoundSwitch connects with the following DJ software and hardware providing precision timing and synchronisation while the DJ
performs. Connect Control One directly to Engine DJ hardware for a standalone audio and lighting experience - no laptop required.

Denon DJ / Engine DJ | PRIME 4, PRIME 2, PRIME GO, SC6000/M, SC5000/M, X1800, X1850

Numark / Engine DJ | MixStream Pro

Serato DJ Pro

Virtual DJ

Ableton LINK + MIDI Clock and MIDI Time Code

Standalone Mode
In Standalone Mode, SoundSwitch users can control lighting effects for other DJs and performers such as bands and live acts.
Easily tap in the tempo with TAP button. The OLED display provides real time BPM feedback.

Editable Presets and Effects
SoundSwitch includes a number of presets and effects which users can edit to their liking, saving time and effort.

MIDI Map Lighting Effects
The software includes MIDI mapping functionality to allow users to map and control lighting effects with any standard controller,
mixer or MIDI device and all software features are pre-mapped to the Control One.

Multiple Universe Support
SoundSwitch supports two DMX Universes with 1024 DMX channels, allowing for control over both small and professional sized
lighting rigs.

SoundSwitch – Key Features

Support for both DMX & Philips HUE Lighting

Automatic Light Shows Synced with Beat Grids

Compatible with DJ and DAW software

Create Custom Light Shows

MIDI Mapping and Control of Lighting Effects
Technical Specifications
Type
2 X USB to DMX (3-pin) Connection
Power
USB powered
Refresh rate
37 Hz
DMX Universe
2
Dimensions
20.7 x 16.5 x 4.5
Weight
0.778 kg
