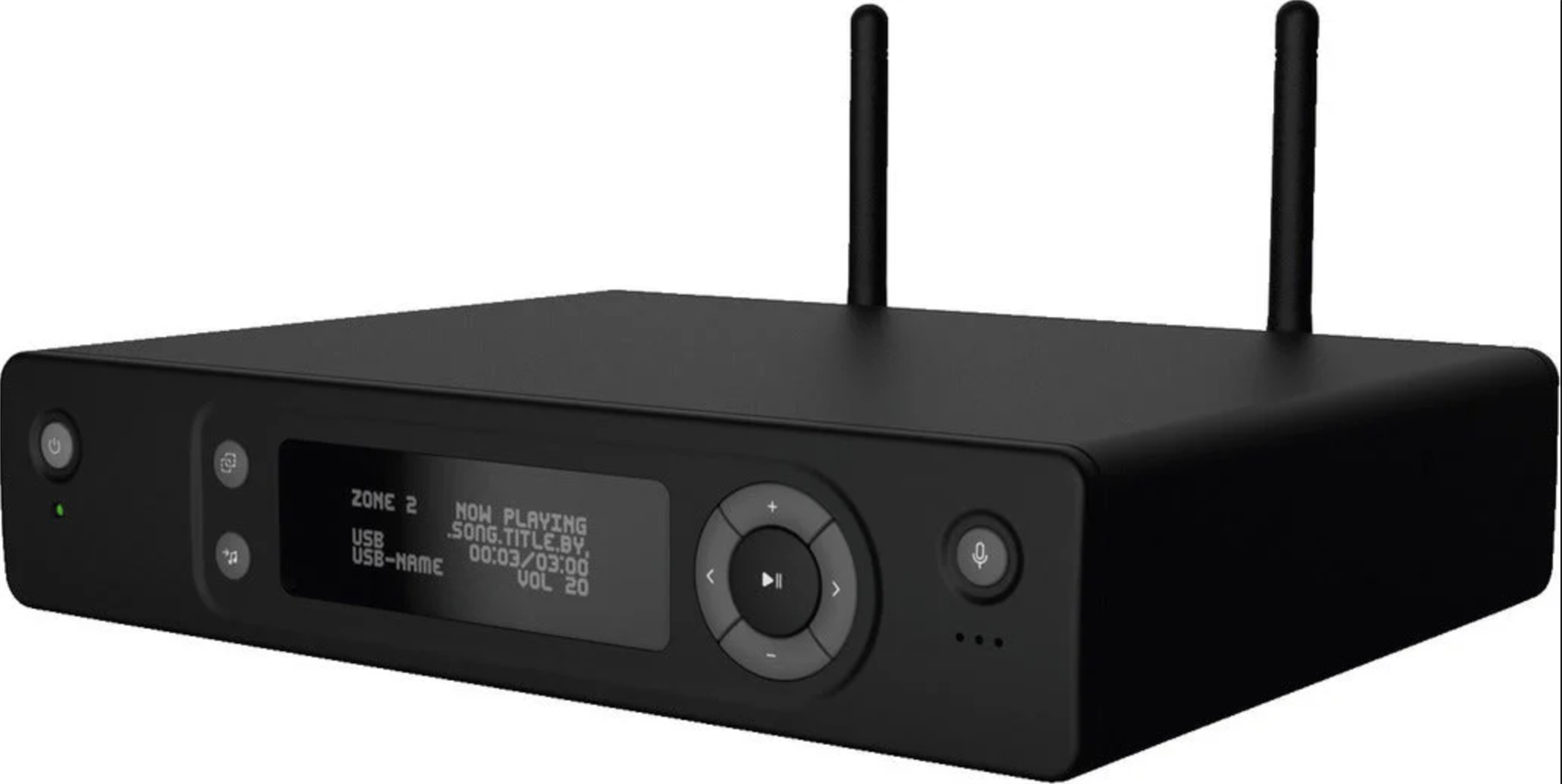

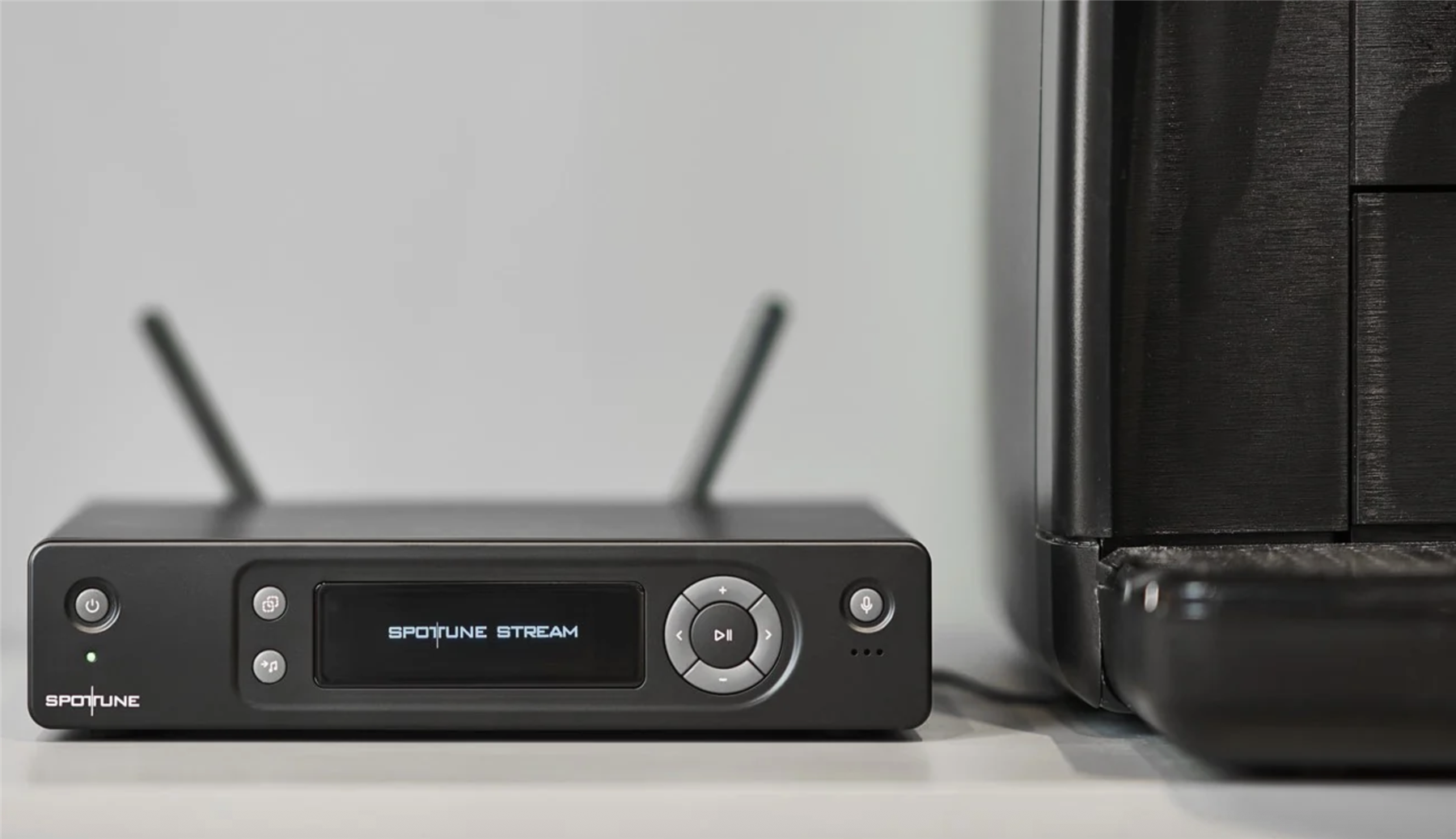

SPOTTUNE STREAM Central audio/music streamer for Spottune Speaker Systems

Description

The Spottune Stream is the central wireless audio transmitter for the Spottune speaker system. It provides stable, synchronized audio to all connected Spottune speakers using digital broadcasting technology.

Key features and benefits:

Wireless audio transmission: Delivers wireless audio to all Spottune speakers using proprietary Audio-BroadCasting-Digital (ABD) technology operating in the 1.8–1.9 GHz RF band (DECT). This technology is designed for professional audio use and is resistant to Wi-Fi interference.

Multi-source input: Accepts audio from multiple sources for high versatility. Ethernet ports support online streaming services, including Spottune Enterprise Cloud streaming and Spotify Connect. A mini-jack AUX input allows connection of existing audio players. A USB 2.0 Type A port supports USB flash and memory drives and common audio formats such as zip, mp3, ogg, flac, and wav. A mini-jack microphone input supports external microphone or PA systems and has priority, muting all other inputs when active.

Zone management: Supports output to one or two music zones.

Scalable coverage: Provides an operating range of approximately 50 to 100 meters in radius, depending on environmental conditions. Multiple Spottune Stream units can be daisy-chained for expanded coverage.

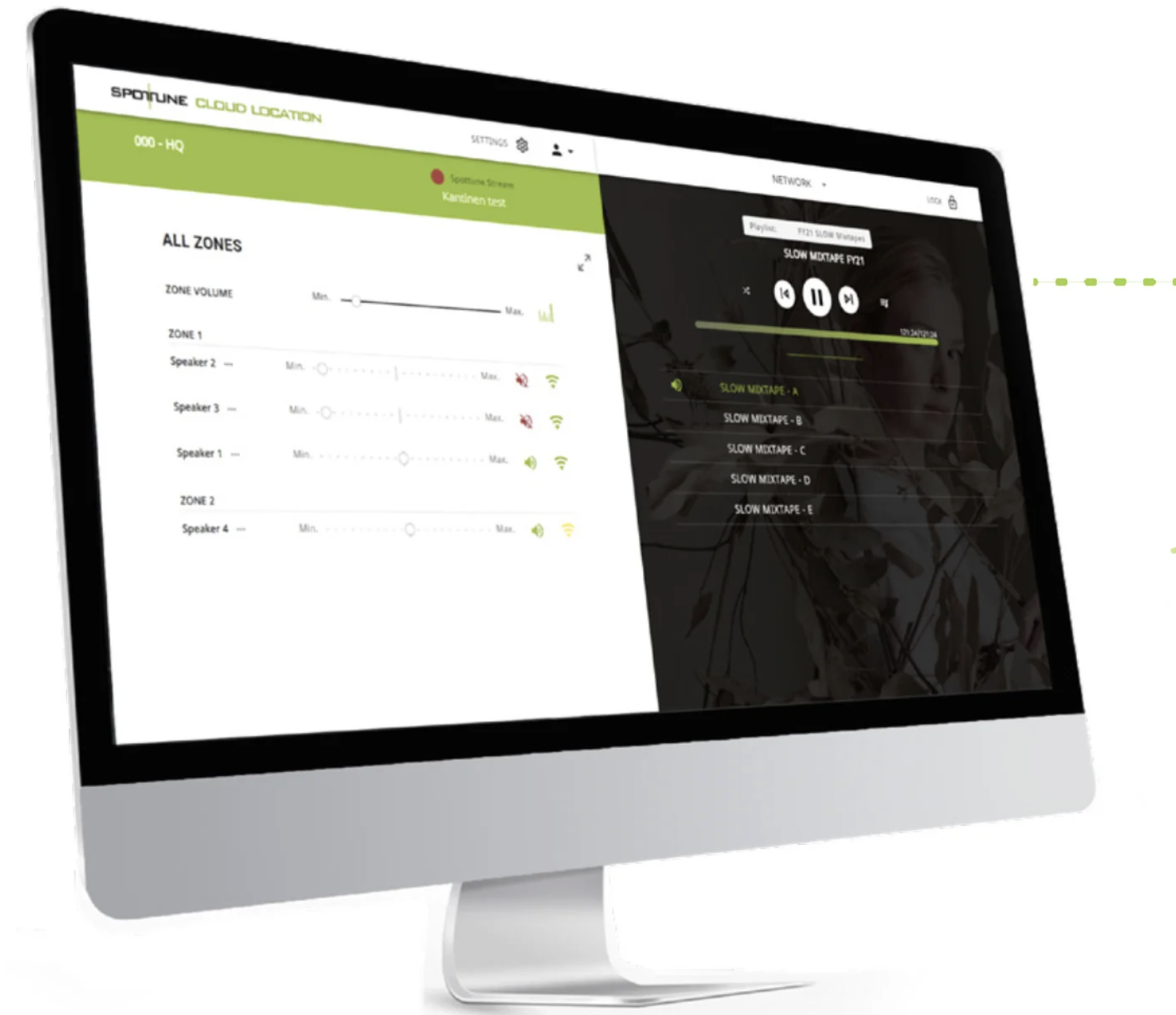

Control methods: Can be controlled manually, through the Spottune App, or centrally via the Spottune Cloud system. The Enterprise Cloud service enables multi-location control, scheduling, and system status monitoring.

Compact design: Lightweight and compact.

Technical specifications:

Product type: Wireless audio transmitter/receiver
Wireless technology: Audio-BroadCasting-Digital (ABD) / 1.9 GHz DECT
RF band: 1.8 – 1.9 GHz
Range: Up to 50 – 100 m radius, depending on conditions
Output zones: 1 or 2 music zones

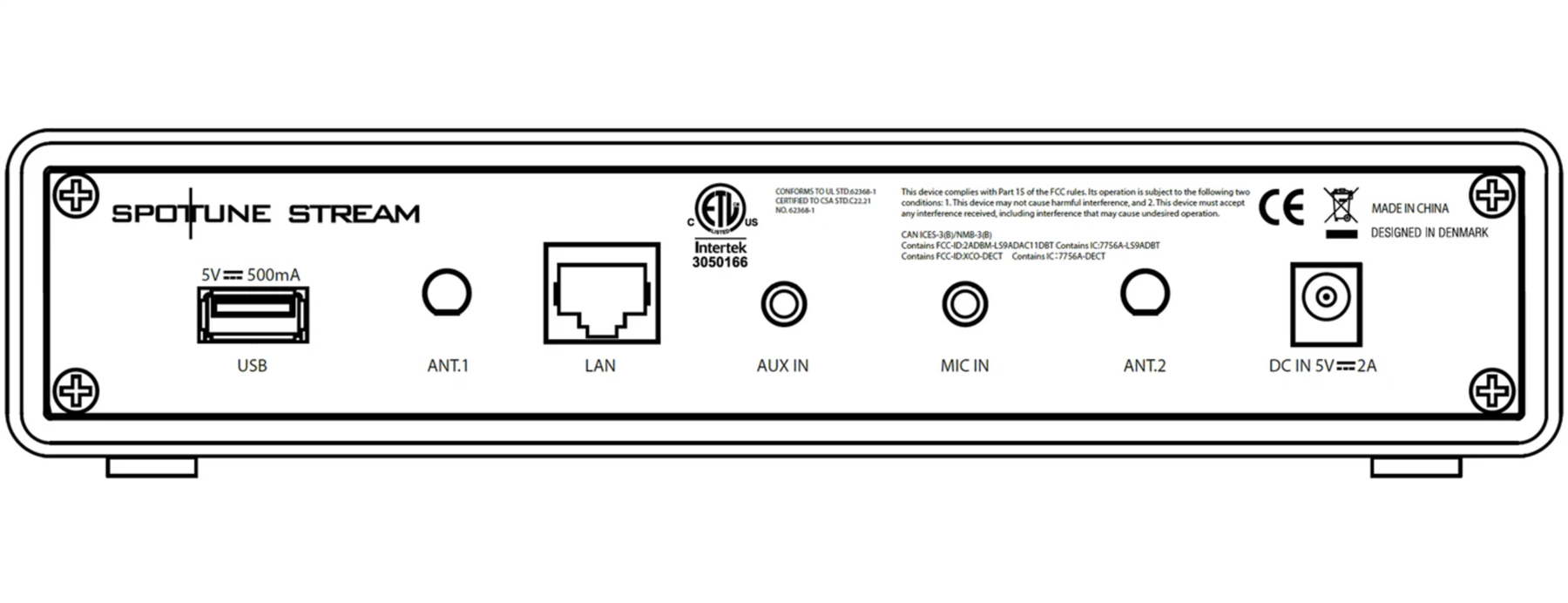

Inputs: Ethernet for streaming, mini-jack AUX input, mini-jack microphone input with priority, USB 2.0 Type A
Control: Manual control, Spottune App, Spottune Cloud online management
Power adapter: 100 – 220 V, 50/60 Hz input, 5 V DC 2 A output
Dimensions: 45 mm x 215 mm x 168 mm (H x W x L)
Weight: 0.6 kg
