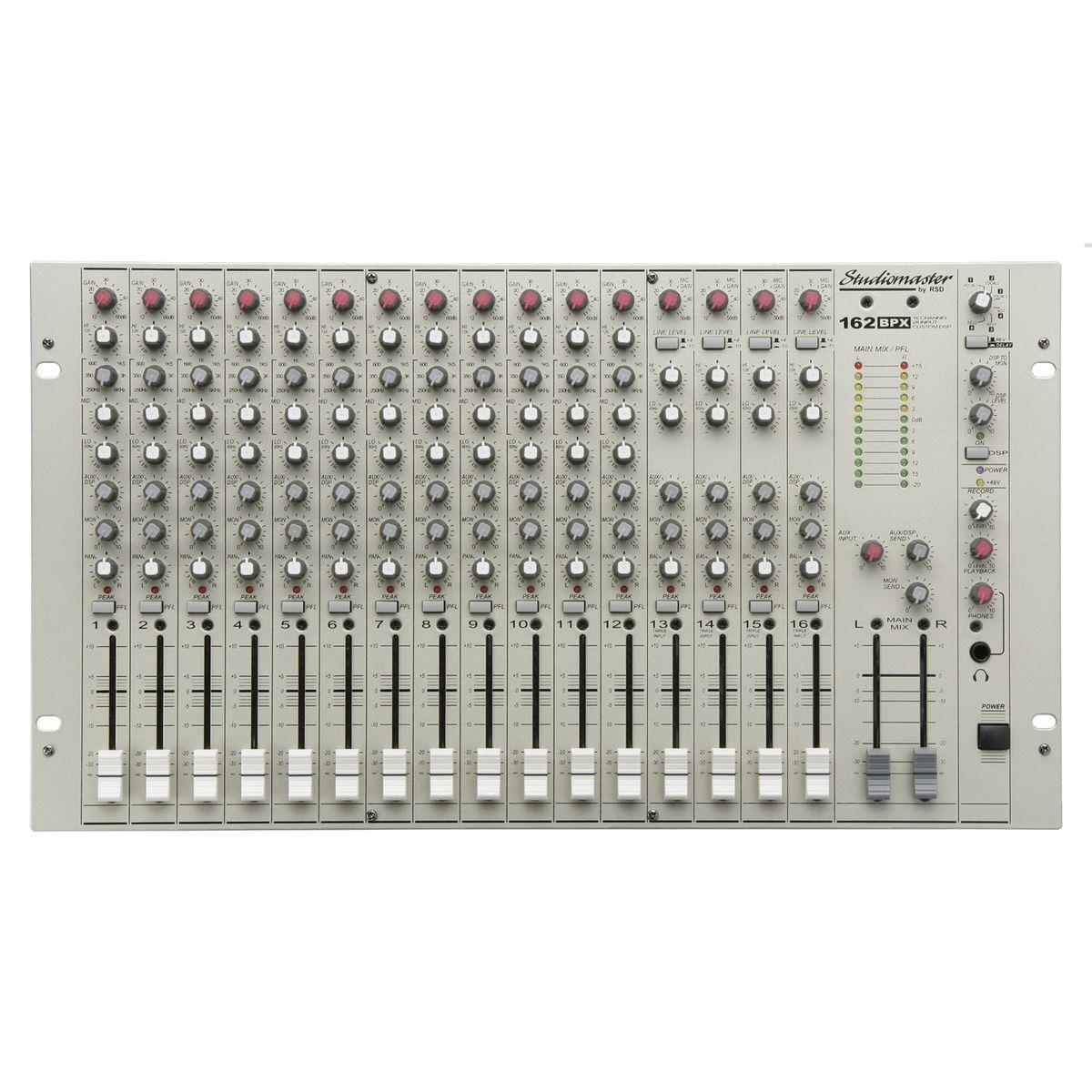

Studiomaster 162BPX Rackmount 16CH 28 Input Audio Mixer Sound PA Studio Karaoke DJ


The 162BPX is a 16 channel rack mount mixer with balanced mic/line inputs, custom DSP and all connections on the rear panel.

Vendor: Studiomaster
Icon Out of Stock Out Of Stock

This product has been discontinued.

Please find alternative products or check out similar products below.

The 162BPX is a 16 channel rack mount mixer with balanced mic/line inputs, custom DSP and all connections on the rear panel. The solid build and reassuring feel of the controls leave you in no doubt that you are dealing with a serious, professional workhorse. The 162BPX boasts a total of 28 inputs, regulated internal power supply and takes up just 6 spaces in a 19" rack.

The 16 channels are made up of twelve mics/lines and four combinations of mic/stereo line inputs. This gives you the flexibility to connect 16 mics and 4 stereo devices simultaneously. Phantom power (+48V) is available on all mic XLR inputs so you can use condenser mics with confidence. The stereo line inputs are on 6.35mm (1/4") phone jacks - a much more reliable connector than the traditional RCA inputs. There is a recording out (on RCA pair) and playback in (on RCA pair) for connecting a tape deck cd recorder or laptop.

16 Channels, 28 Inputs
3 Band EQ with mid sweep on mic channels
High-quality DSP effects
Compact 6 rack space mounting
Robust internally modular construction for long term reliability


Mic (to L/R) : 12dB / 60dB / 48dB
Line (to L/R): -8dB / 40dB / 48dB
Stereo (to L/R): 0dB / 12dB / 12dB
Mic channels : 60Hz / 250Hz - 6kHz / 12kHz
Stereo channels: 45Hz / - / 12kHz
Noise : Mic: EIN -128dBu
Signal to noise ratio : >85dB
Dynamic range : >105dB
Frequency response : 20Hz - 20kHz +/- 0.5dB
DSP : Reverb mode : 3 vocal, 1 adt, 2 reverb
DSP : Delay mode: 6 settings 100ms to 720ms
Metering : : 2x 12 LED bar- peak reading
Mic: -38dBu / +10dBu
Line: -21dBu / +28dBu
Stereo: +10dBu / +22dBu
Aux input: +16dBu / +22dBu
Mono insert: +4dBu / +22dBu / <22ohms
Aux sends: NA / +22dBu / 100ohms
L/R outputs: +4dBu / +28dBu / 75ohms
L/R insert: -2dBu / +22dBu / <22ohms
Phones: NA / +22dBu / 33 ohms
Power Requirements: 115V/230V +/-10% ~ 50/60Hz

482 x 120 x 266 mm

7.0 kg
