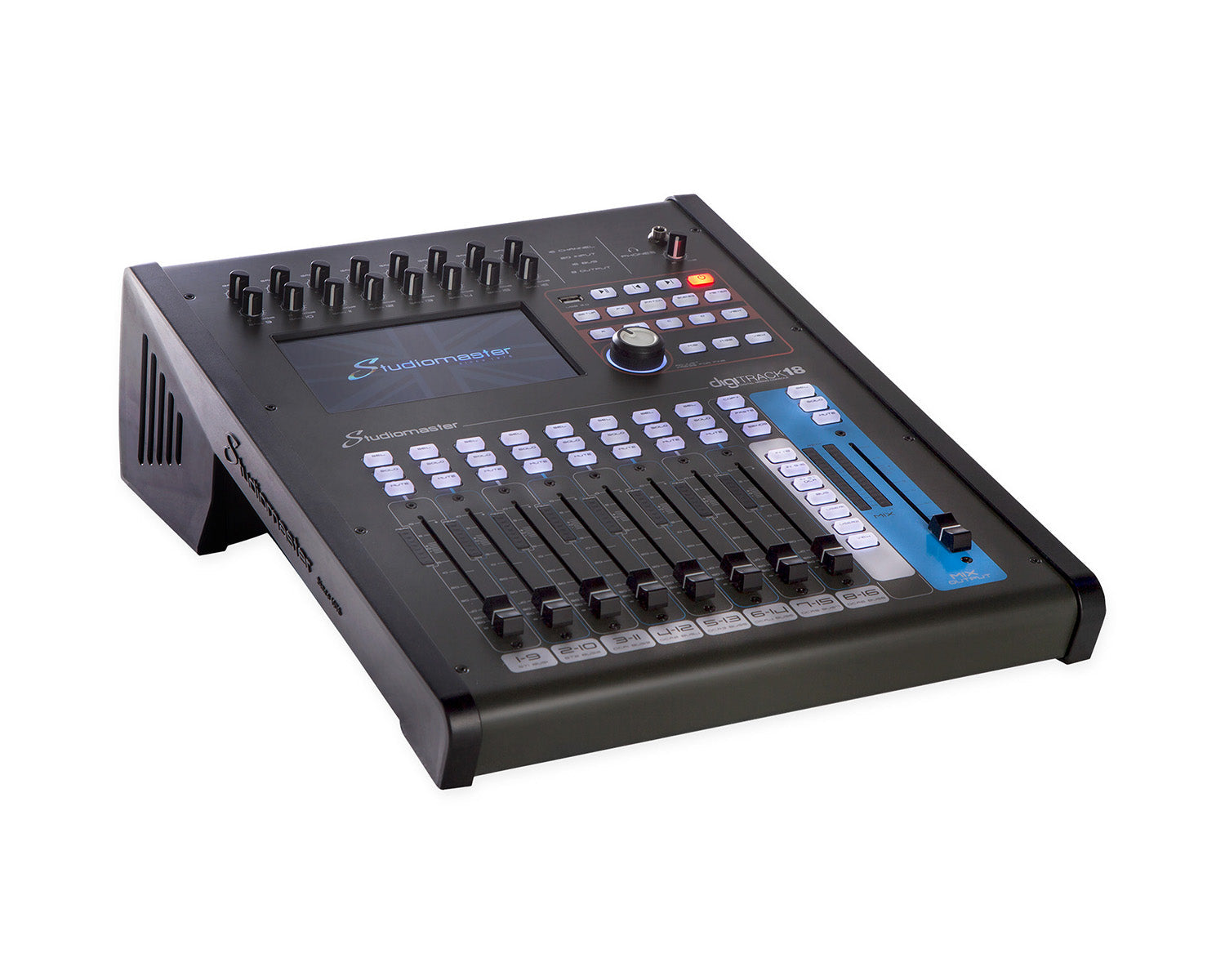

Studiomaster digiTrack 18 Digital Mixer USB 16 Input

Description:
The digiTrack 18 is a versatile and compact digital mixing console ideal for live sound reinforcement, FOH control, recording, and fixed installations. It offers 16 input channels—12 featuring professional-grade mic preamps and 2 stereo line inputs—paired with a robust 16‑bus architecture for flexible routing and sub-mix control. Featuring 40‑bit SHARC DSP processing, USB recording/playback, AES/EBU and S/PDIF I/O, and RS485 remote control, the digiTrack 18 is tailored for environments requiring performance, reliability, and connectivity in a streamlined design. It also supports computer integration via optional USB B 16×16 interface and can be remotely controlled through Wi‑Fi using any web browser.

Features:
Compact form factor suitable for live, recording, and installation use
12 XLR mic preamps and 2 stereo line inputs for broad connectivity
16 buses for flexible routing and mix configurations
40‑bit floating‑point DSP with SHARC processor for pristine audio quality
Up to 8 assignable effects modules including reverb, delay, modulation, and 31‑band GEQ
Dual USB‑A ports for recording/playback, scene storage, and system updates
Optional USB‑B port enables 16×16 USB audio interface with DAWs
AES/EBU XLR output and S/PDIF I/O for digital interconnectivity
RS485 and optional Wi‑Fi network control via web browser
Fully remote-controllable via iPad or browser interface
Manufacturer-grade construction, weighing just 7.5 kg, for portability
Universal power supply supports 90–240 VAC operation

Specifications:
Total Inputs: 16 input channels
Mic Inputs: 12 XLR mic preamps
Stereo Inputs: 2 RCA/line stereo inputs
Buses: 16
DSP Processing: 40‑bit floating‑point SHARC DSP
Effects: Up to 8 assignable modules (reverb, delay, modulation, GEQ)
USB Ports: 2 × USB‑A (recording, playback, scenes, updates); optional USB‑B for 16×16 audio interface
Digital I/O: 1 × AES/EBU output; 1 × S/PDIF input/output (RCA)
Network Control: RS485; optional Wi‑Fi/LAN control
Remote Compatibility: iPad, browser-based control
Sample Rate: 24‑bit / 44.1 kHz
Form Factor: Desktop or rack-mountable
Dimensions (W x D x H): 585 x 230 x 465 mm
Weight (Net): 7.5 kg
Power Supply: 90–240 VAC © 50/60 Hz
