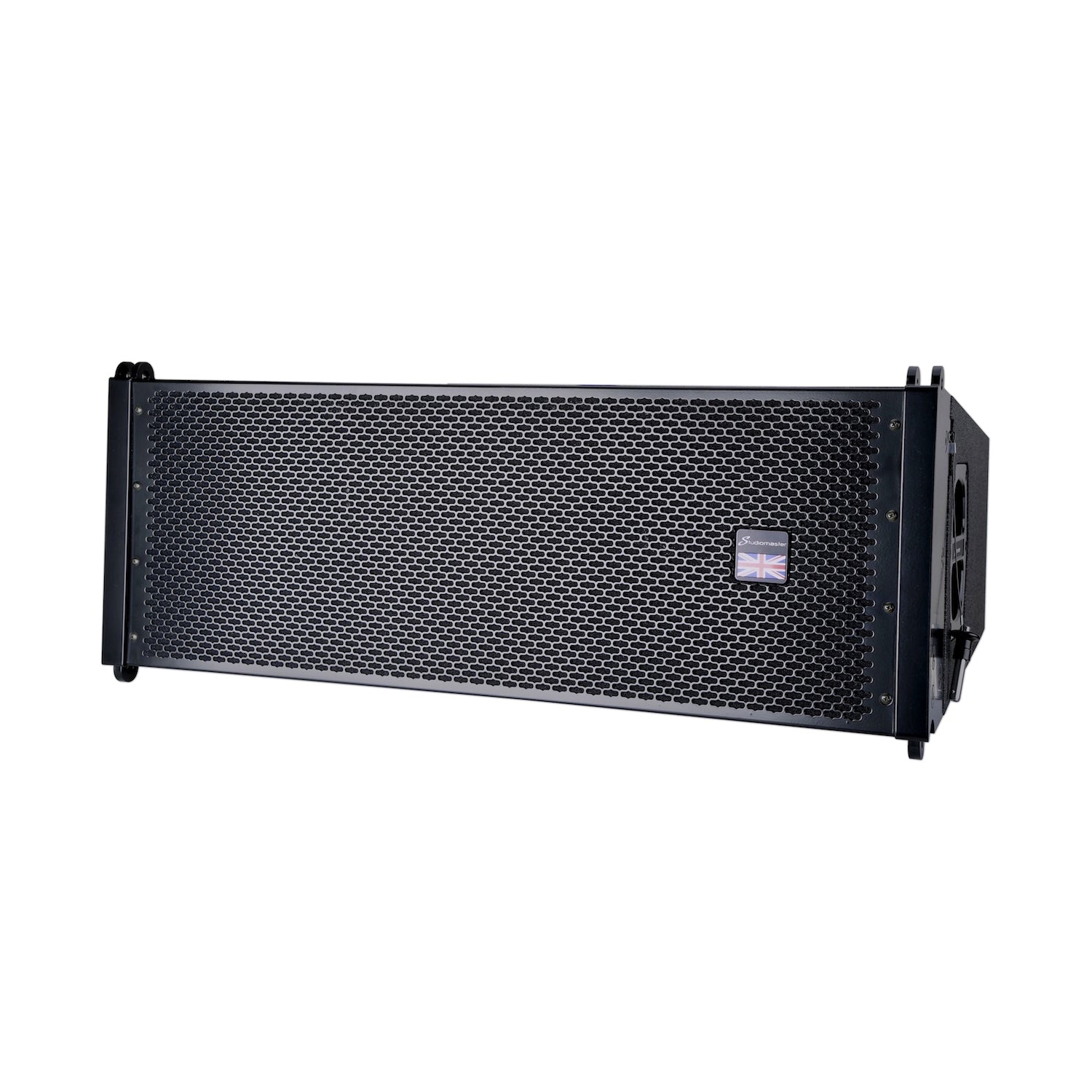

Studiomaster V10 – Waterproof Passive Line Array Speaker (2×10")

The Studiomaster V10 is a premium 2×10" passive line array speaker module, purpose-built for high-performance mid-top reproduction in flown or ground-stacked configurations. Designed for large-scale sound reinforcement—indoors or outdoors—the V10 delivers powerful, rich audio output with excellent clarity, making it ideal for festivals, concerts, stadiums, churches, and touring rigs.

Featuring two neodymium 10" LF/MF drivers and a high-power 1.75" compression driver, the V10 achieves a peak SPL of 137 dB with wide horizontal dispersion (120°) and tight vertical control (10°). Built to endure the elements, its 18mm birch plywood cabinet is weatherproofed with a durable water-based coating, while its integrated suspension system allows precise, angle-adjustable rigging.

Engineered for compatibility with other V10 series components—including the V10S dual 15” low-frequency enclosure and V10SA active sub—the V10 provides consistent performance, efficiency, and unmatched sound projection in scalable arrays.

Features:
2×10” weatherproof passive line array speaker module
High-output neodymium LF/MF drivers for wide dynamic range
1.75” HF compression driver with 44mm voice coil for clear, detailed highs
120° horizontal x 10° vertical coverage pattern for controlled dispersion
Adjustable integrated rigging system with 1° step vertical tilt
Robust 18mm birch plywood cabinet with water-based protective finish
Protected NL4 input and loop output connectors
Compatible with other V10 series components for full system deployment
Compact and rugged for demanding live and touring environments

Specifications:
Cabinet Type: 2-way passive line array
LF Drivers: 2 x 10" NdFeB
HF Driver: 2 x 1.75" (44mm VC) NdFeB compression drivers
Frequency Response: 70 Hz – 20 kHz
Max SPL: 137 dB
Power Handling (LF): 700W RMS / 1400W program / 2800W peak
Power Handling (HF): 80W RMS / 160W program / 320W peak
Sensitivity (1W@1m): LF 102 dB / HF 110 dB
Coverage (H x V): 120° x 10°
Vertical Spread Angle: 0–10° (1° step)
Impedance: LF 8 ohms / HF 16 ohms
Crossover Frequency: – (external crossover required)
Construction: 18mm birch plywood
Finish: Hard-wearing water-based weatherproof coating
Connectors: NL4 input + loop output
Weight: 28 kg

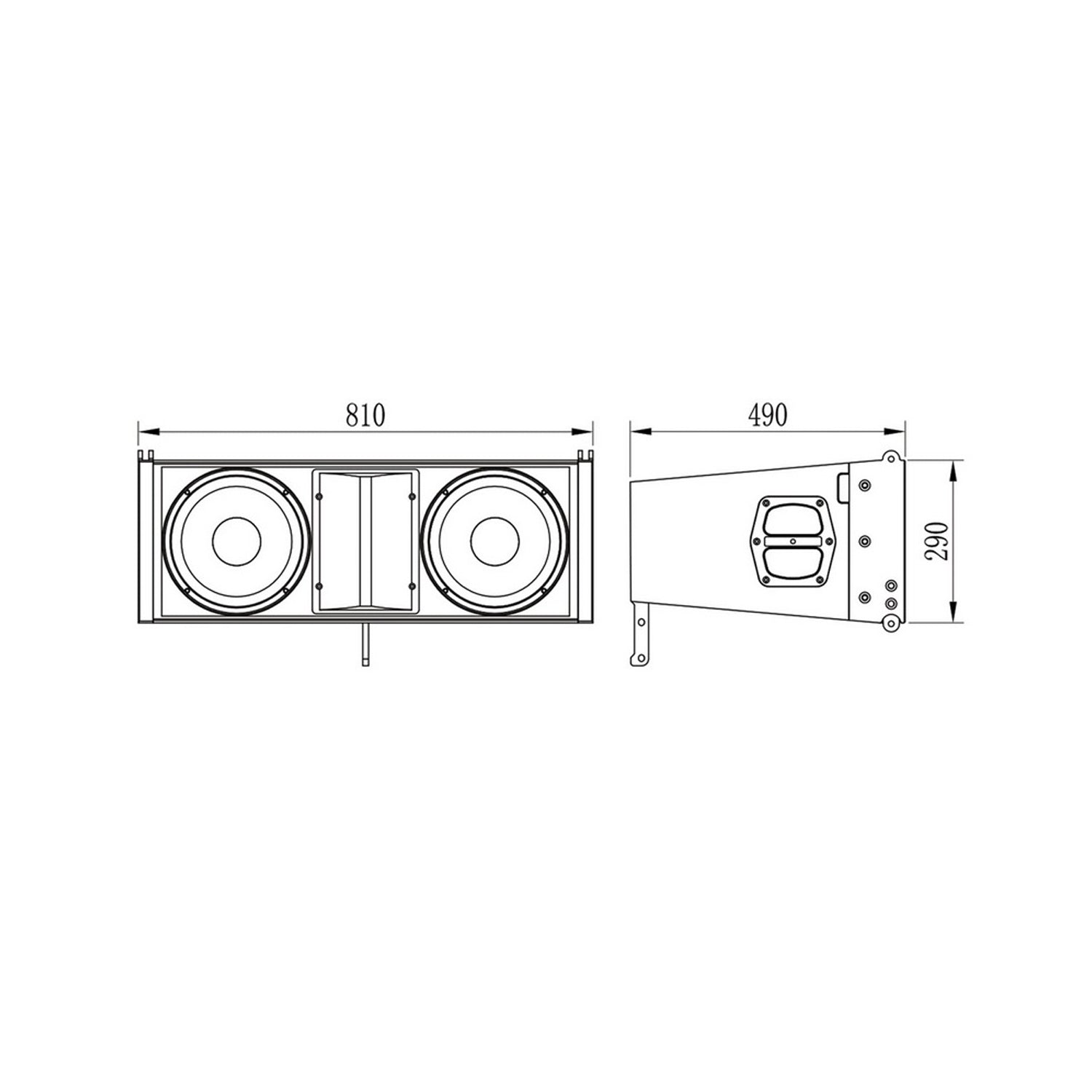

Dimensions (W x H x D): 810 x 290 x 490 mm
MPN: V10
