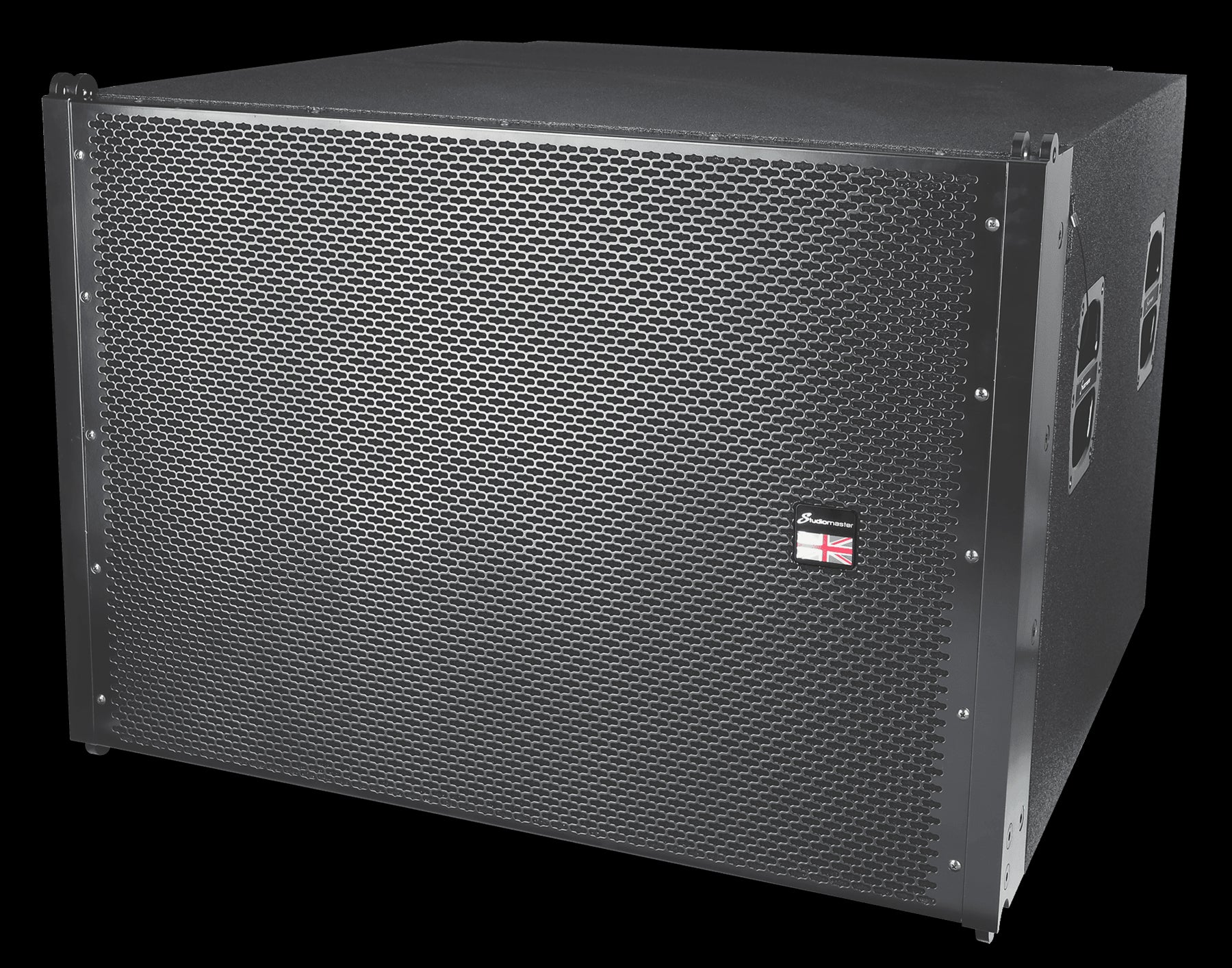

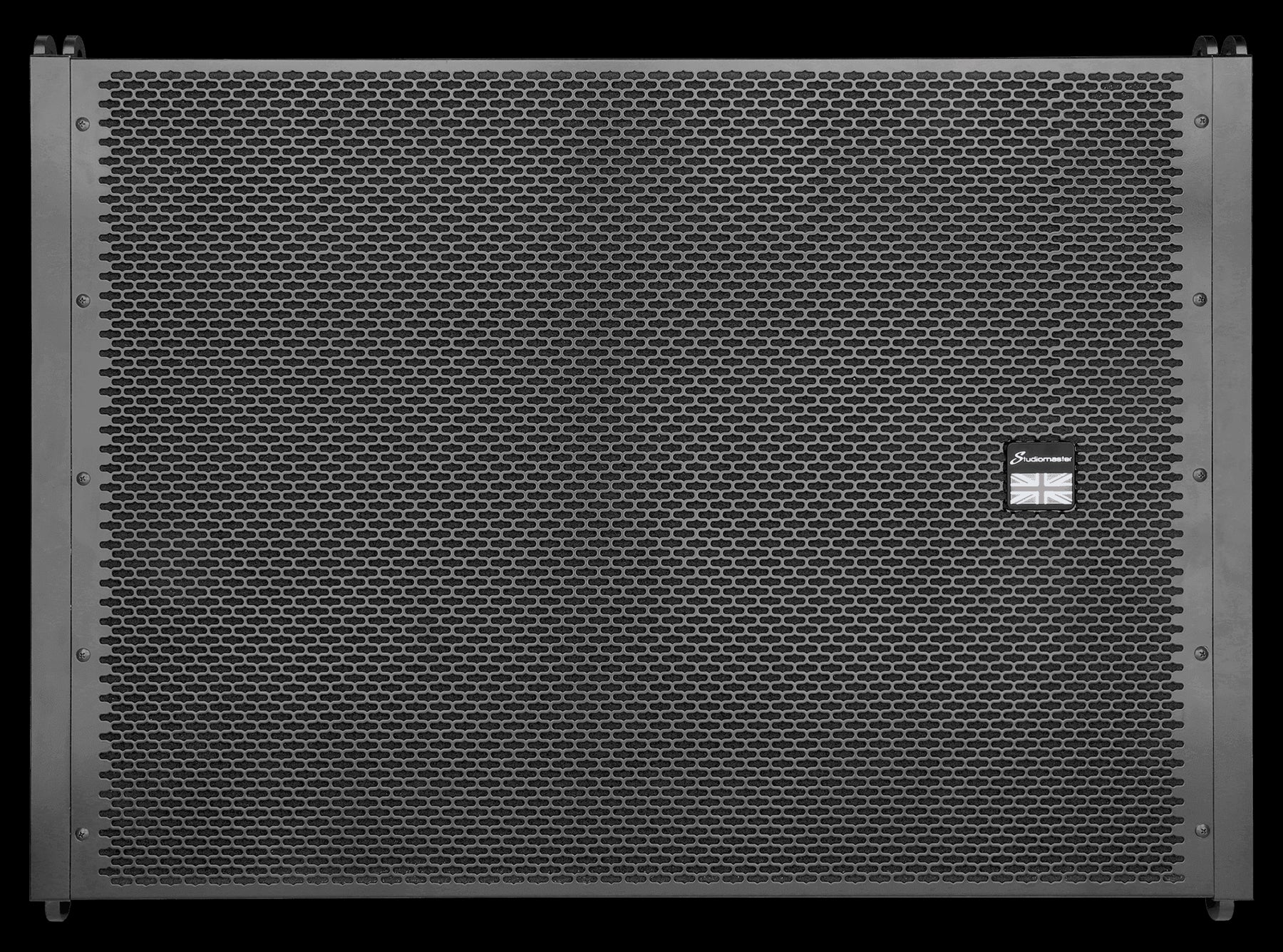

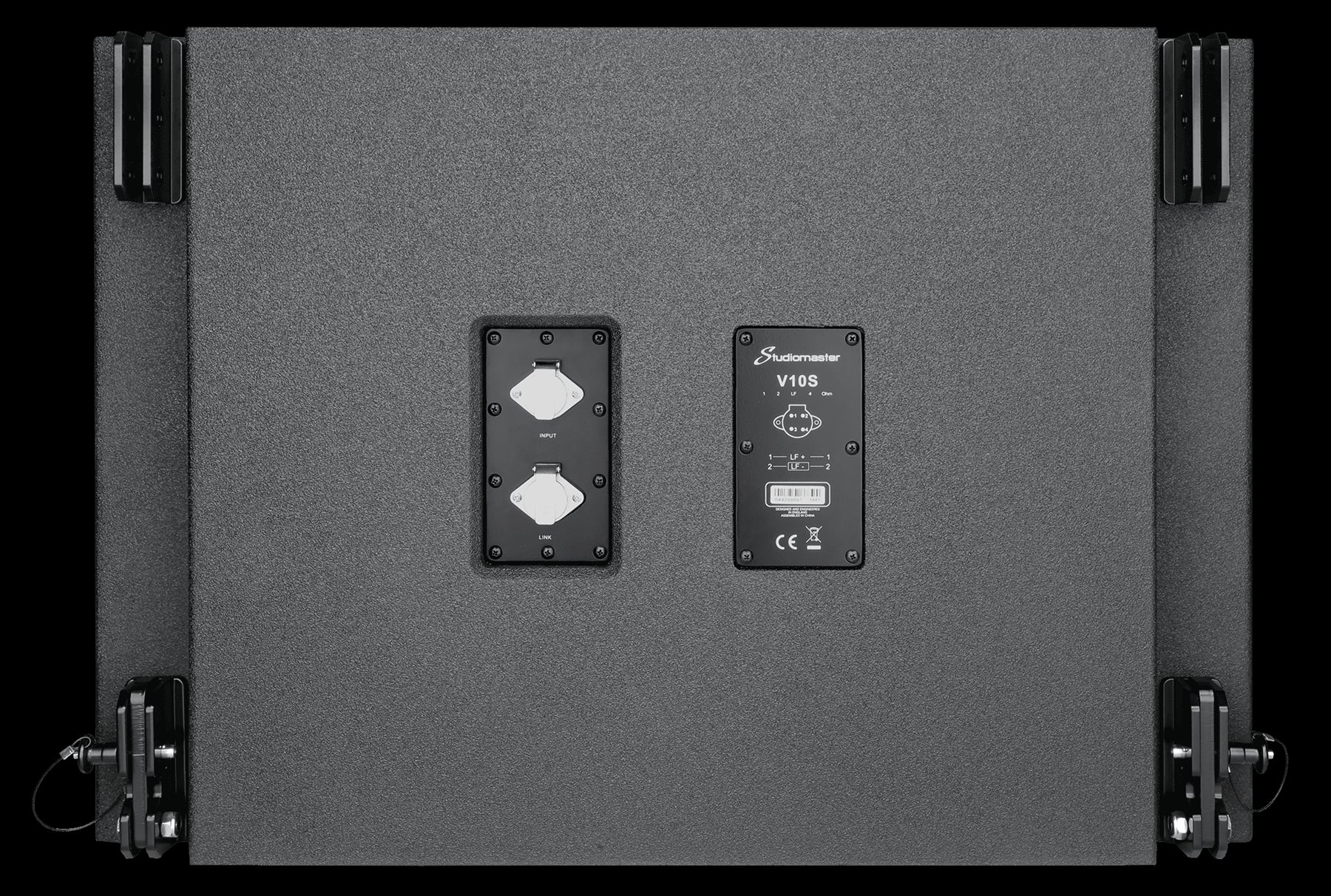

Studiomaster V10S Dual 15" Passive Line Array Low-Mid Cabinet

The V10 Series is a professional-grade compact line array system designed to deliver superior sound performance across a wide range of live sound applications. The low-mid section of the system—featuring dual 15" drivers—is engineered for powerful, accurate reproduction of low and mid frequencies with minimal distortion. Built with high-output neodymium components and housed in a rugged 18mm birch plywood cabinet, the V10 low-mid module offers a peak SPL of 139 dB and exceptional durability for touring and fixed installations alike.

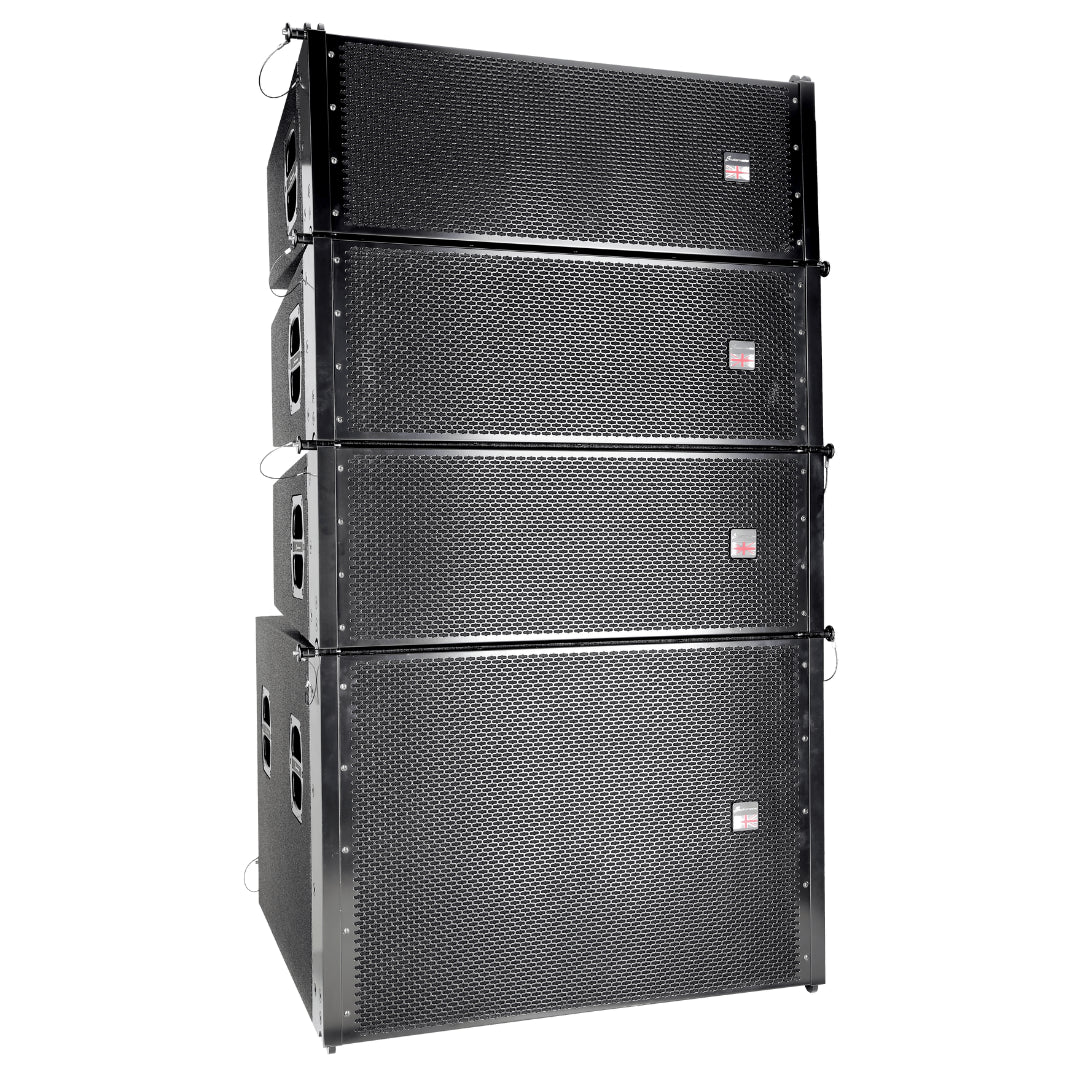

Crafted for seamless integration into a full V10 array system, the passive low-mid cabinet is optimized to work in combination with 2x10" mid/top enclosures and 2x18" subwoofers. It delivers clean, dynamic performance with a flat phase response and smooth crossover at 200 Hz. The cabinet’s slotted CNC-routed design ensures acoustic precision and structural integrity, while the weather-resistant coating and fast-fix suspension system make it ideal for demanding professional environments.

Features:
Compact, high-output passive low-mid cabinet for line array use
Two 15" low-frequency drivers with 100mm voice coils
Maximum SPL of 139 dB for impactful performance in large venues
Rated at 1400W RMS / 2800W program / 5600W peak
Frequency response from 40 Hz to 400 Hz (+/-3 dB), extending to 5 Hz (-10 dB)
Flat phase response for consistent tonal accuracy and superior Hi-Fi sound
Premium neodymium components for high sensitivity and lightweight construction
18mm birch plywood enclosure with CNC-routed slotted design for rigidity and acoustic control
Weatherproof water-based surface treatment for long-term durability
Integrated fast-fix intelligent suspension system for easy rigging and setup

Specifications:
Cabinet Type: Passive line array low-mid cabinet
LF Drivers: 2 x 15” with 100mm voice coils
Frequency Response (-10 dB): 5 Hz – 500 Hz
Frequency Response (+/-3 dB): 40 Hz – 400 Hz
Crossover Frequency: 200 Hz
Maximum SPL: 139 dB
Power Handling: 1400W RMS / 2800W program / 5600W peak
Sensitivity (1W@1m): 101 dB
Impedance: 4 ohms
Enclosure Material: 18mm birch plywood
Finish: Water-based weatherproof coating
Suspension: Fast-fix intelligent rigging system
Dimensions (W x H x D): 810 x 560 x 820 mm
Weight: 79 kg
Coverage (H x V): –
Vertical Spread Angle: –
HF Driver: Not applicable (low-mid cabinet only)
