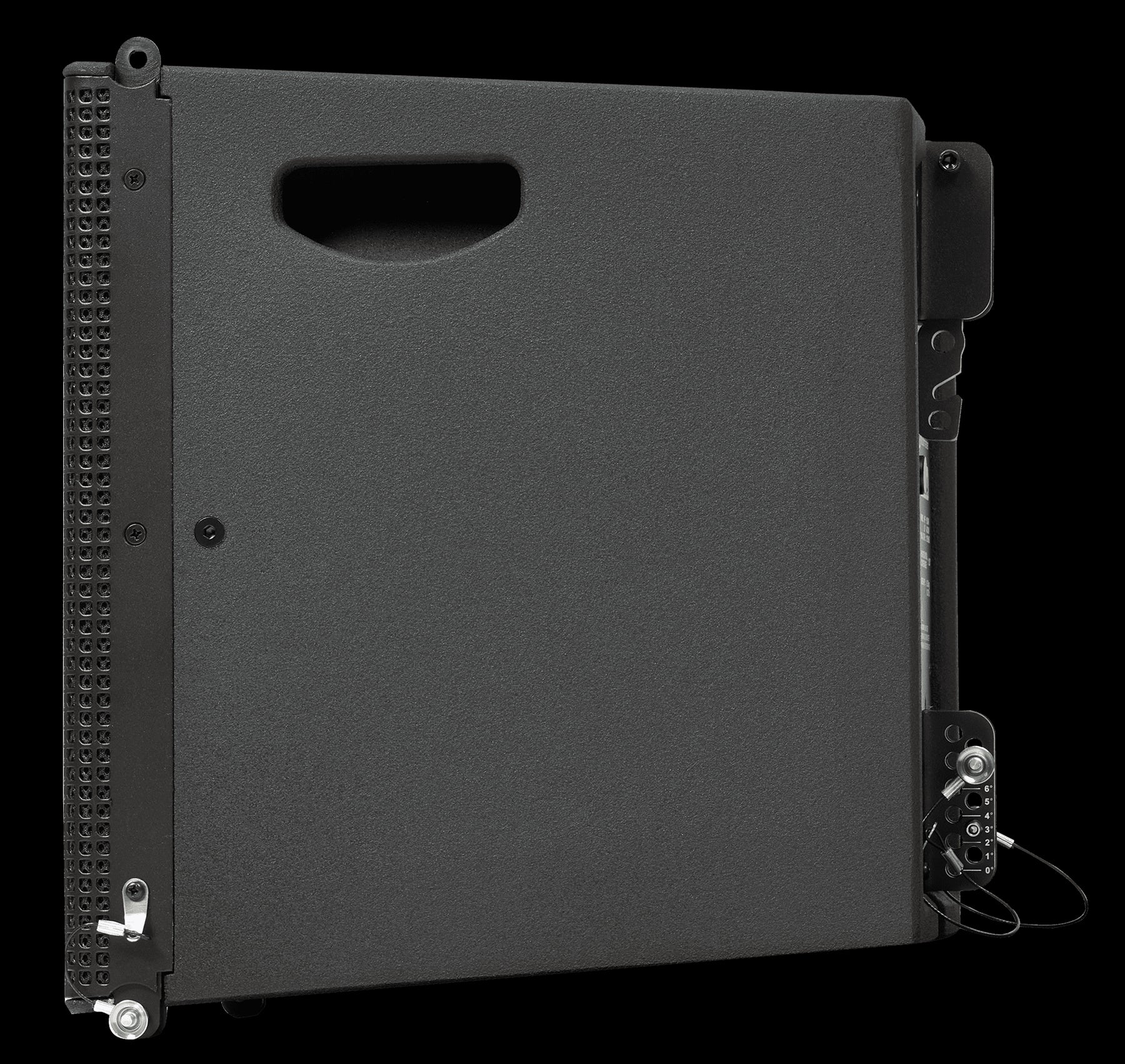

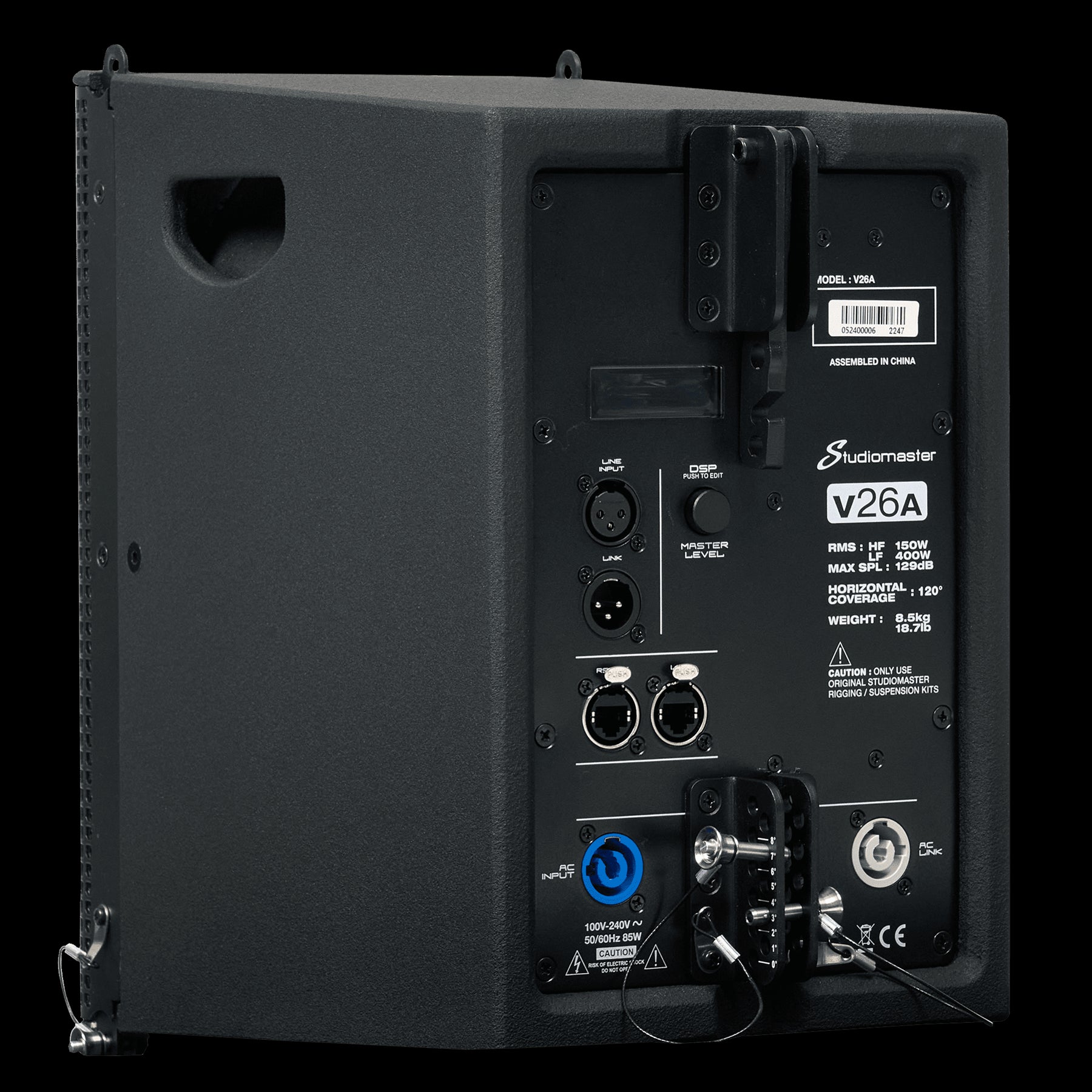

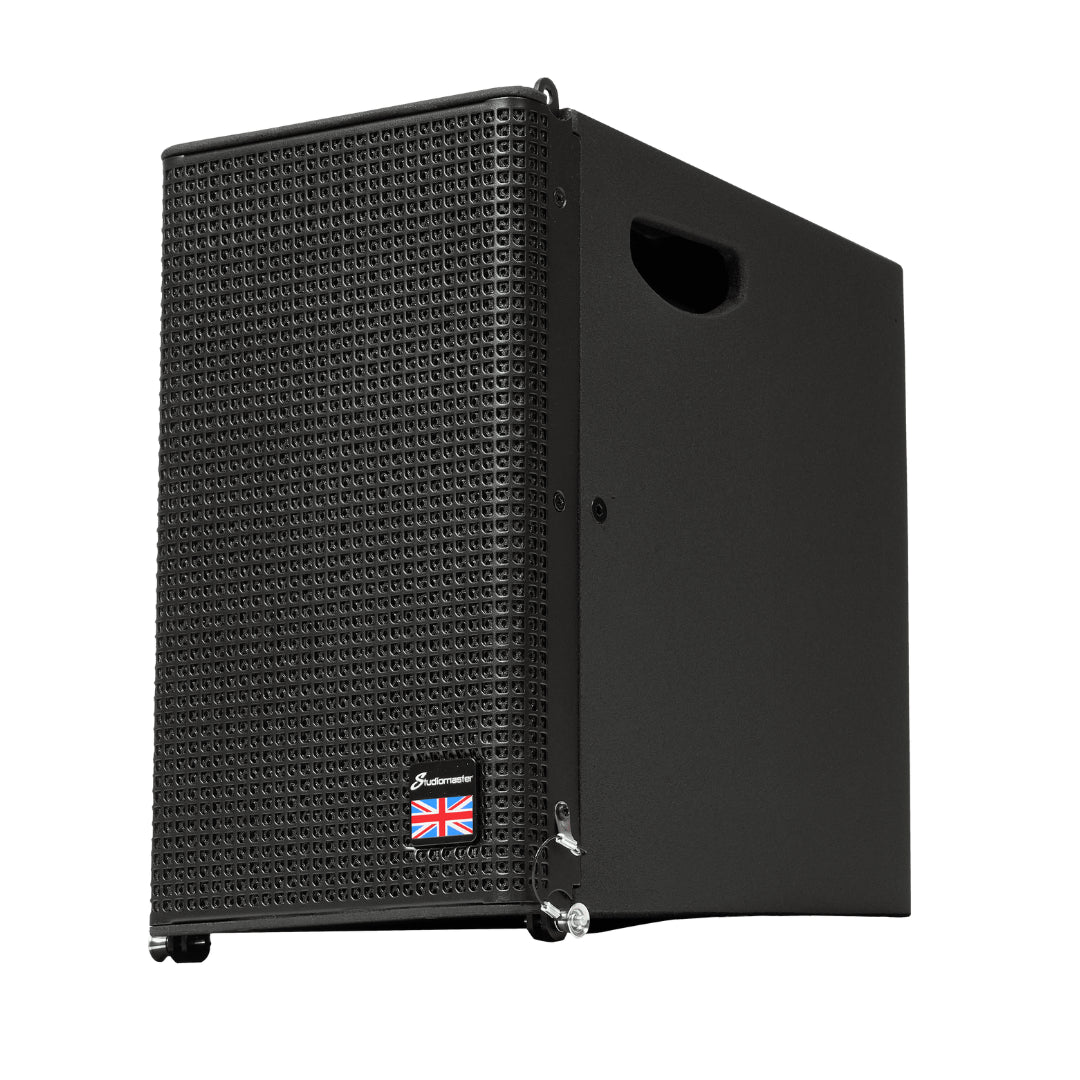

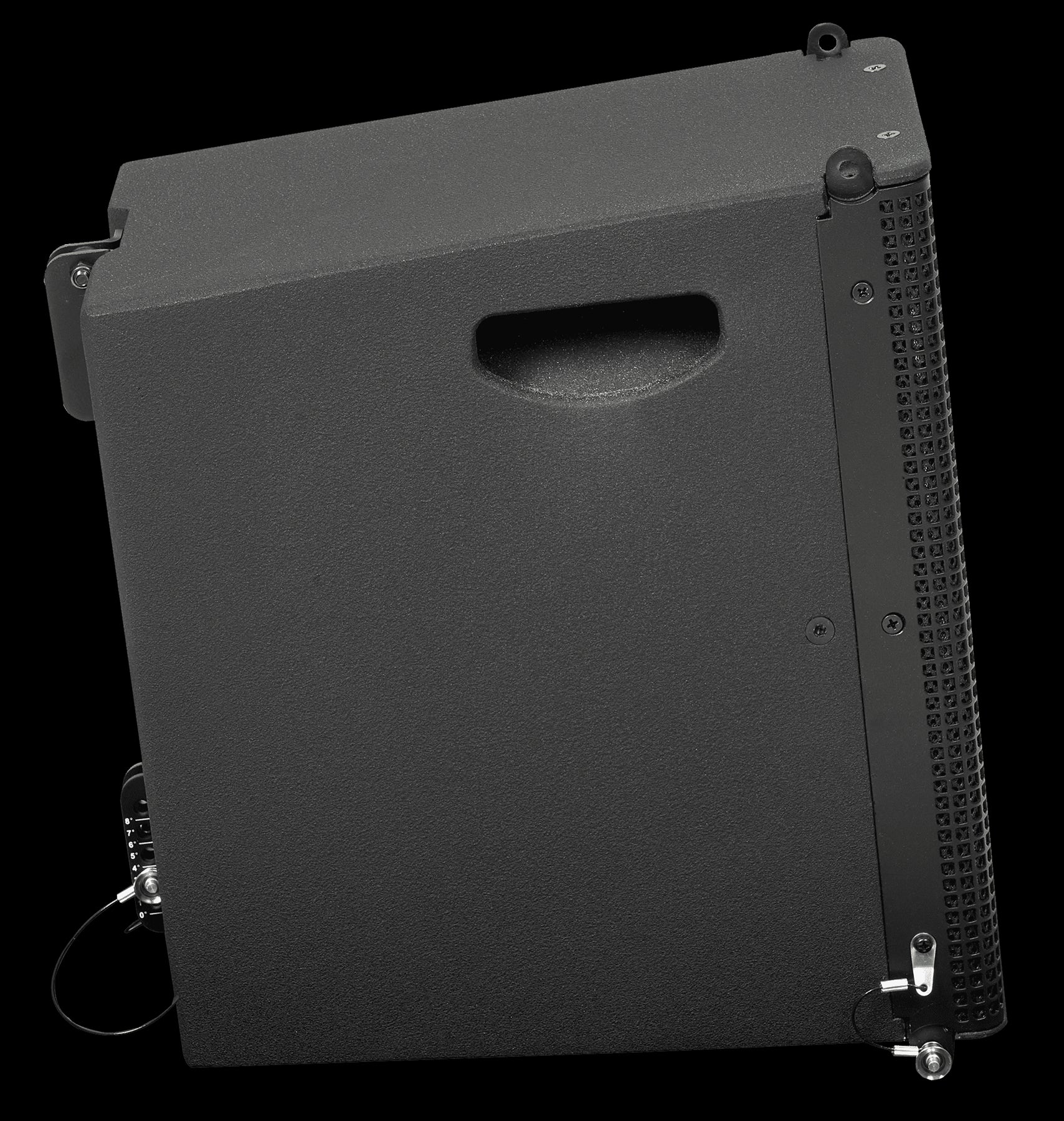

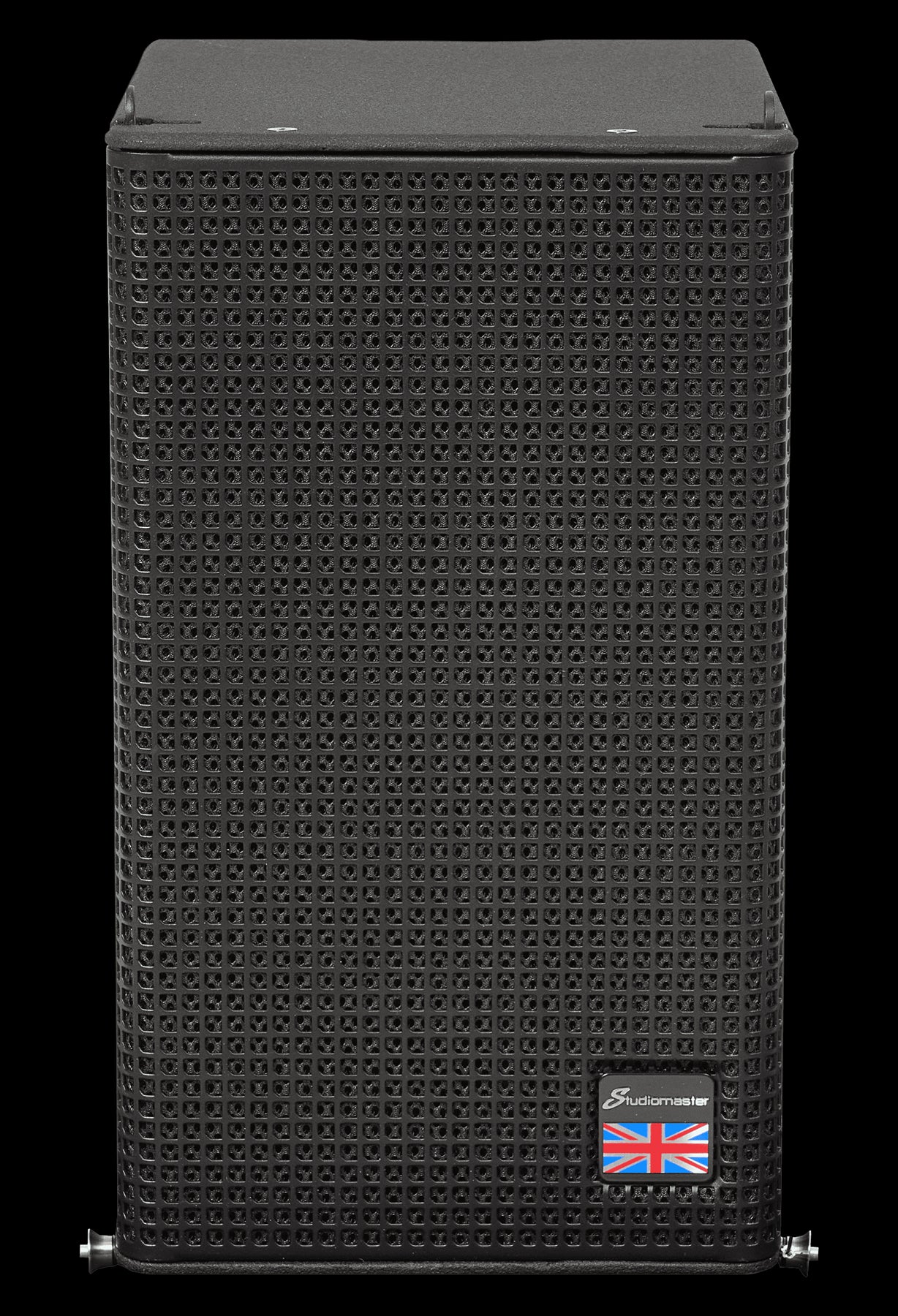

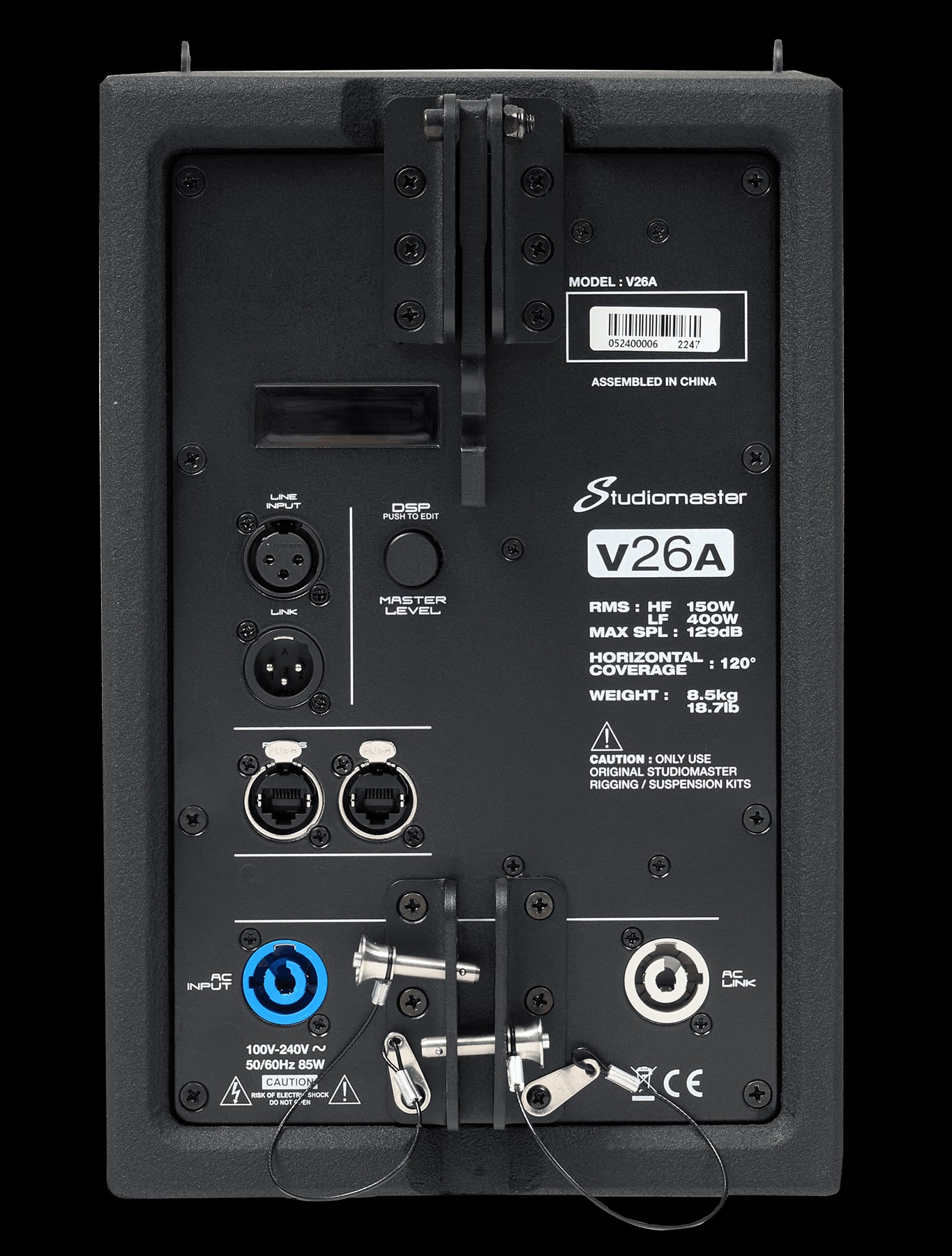

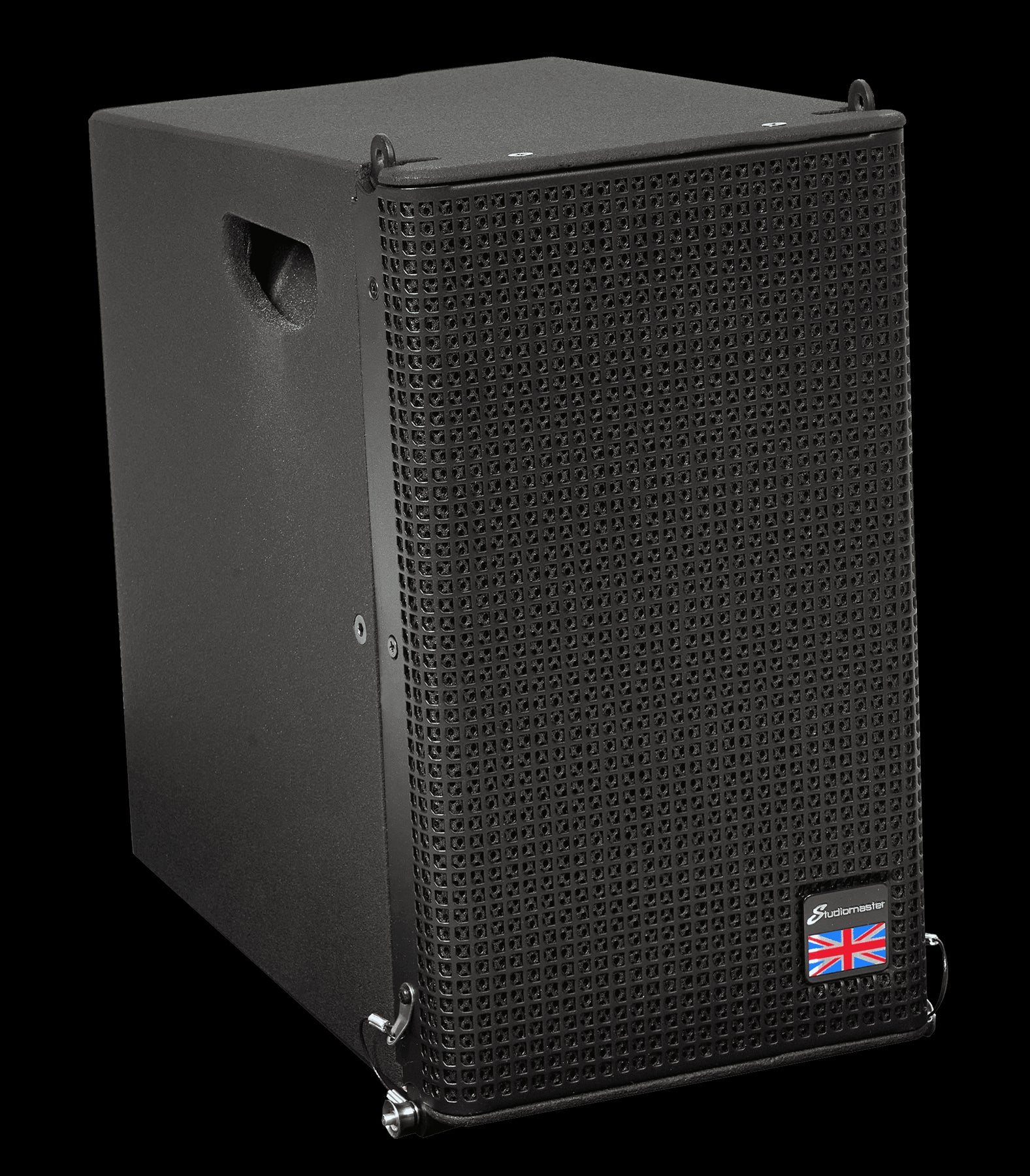

Studiomaster V26A Line Array Speaker Active 2 x 6.5"

The Studiomaster V26A is a compact coaxial active line array system designed for maximum flexibility, powerful output, and high-fidelity sound in a lightweight enclosure. Ideal for medium to large venues and touring applications, each cabinet integrates a 2-way active configuration with two 6.5" mid-frequency drivers and eight 1" neodymium dome tweeters arranged in a precise coaxial array. The V26A is engineered for vertical stacking or flying and offers up to 8° adjustable splay angles between units. The onboard DSP offers advanced control over gain, EQ, crossover, delay, and limiting—delivering remarkable SPL levels with clarity and precision.

Features:
Compact coaxial active vertical array design
Equipped with 2 x 6.5" MF drivers and 8 x 1" neodymium dome HF drivers
Built-in high-performance amplification with DSP control
DSP features include adjustable gain, EQ, crossover, delay, and threshold
Vertically stackable or flyable with adjustable angles from 0° to 8°
Each cabinet offers powerful output in a lightweight format
Designed for high SPL, controlled dispersion, and wide coverage

Specifications:
Cabinet Type: 2-way active line array
Mid-Frequency Driver: 2 × 6.5" with 38 mm voice coils
High-Frequency Driver: 8 × 1" with 25 mm voice coils

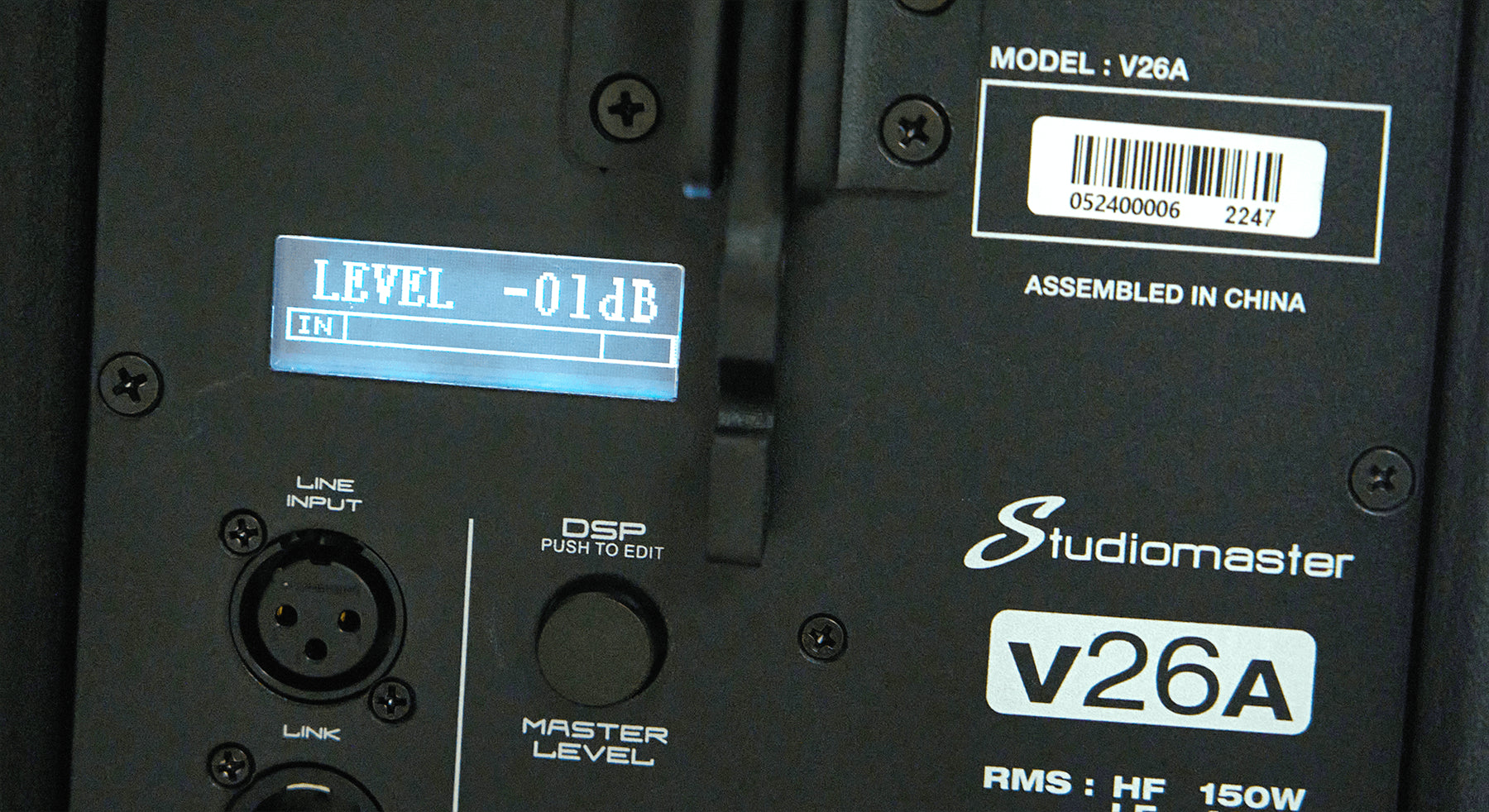

DSP: Gain, EQ, Crossover, Delay, Threshold, Preset Memory
Amplifier Power: 400W (MF) / 150W (HF)
Maximum SPL (1): 129 dB
Frequency Response: 70 Hz – 20 kHz (-10 dB)
Coverage (Horizontal × Vertical): 120° × 8°
Vertical Splay Angle: 0° to 8° in 2° steps
Crossover Frequency: DSP controlled
Dimensions (W × H × D): 205 × 354 × 340 mm
Weight: 8.5 kg
