Studiomaster V26SA Active Sub Array Speaker 15" Subwoofer

The Studiomaster V26SA is a high-performance active subwoofer designed to complement the V26A line array system, delivering powerful low-end response and extensive control via onboard DSP. Equipped with a 15” LF driver featuring a massive 4” voice coil, the V26SA delivers thunderous bass down to 40 Hz with remarkable precision. It integrates a 1200W amplifier and advanced DSP for fine-tuning crossover, EQ, delay, gain, and limiting settings. This unit is designed for stacking or flying in vertical array configurations and is ideal for professional sound reinforcement setups in live venues, tours, or fixed installations.

Features:
Equipped with a high-output 15” LF driver with 100 mm (4") voice coil
Integrated 1200W high-efficiency amplifier for powerful low-end reproduction
Advanced DSP offers control over gain, EQ, crossover, delay, and threshold

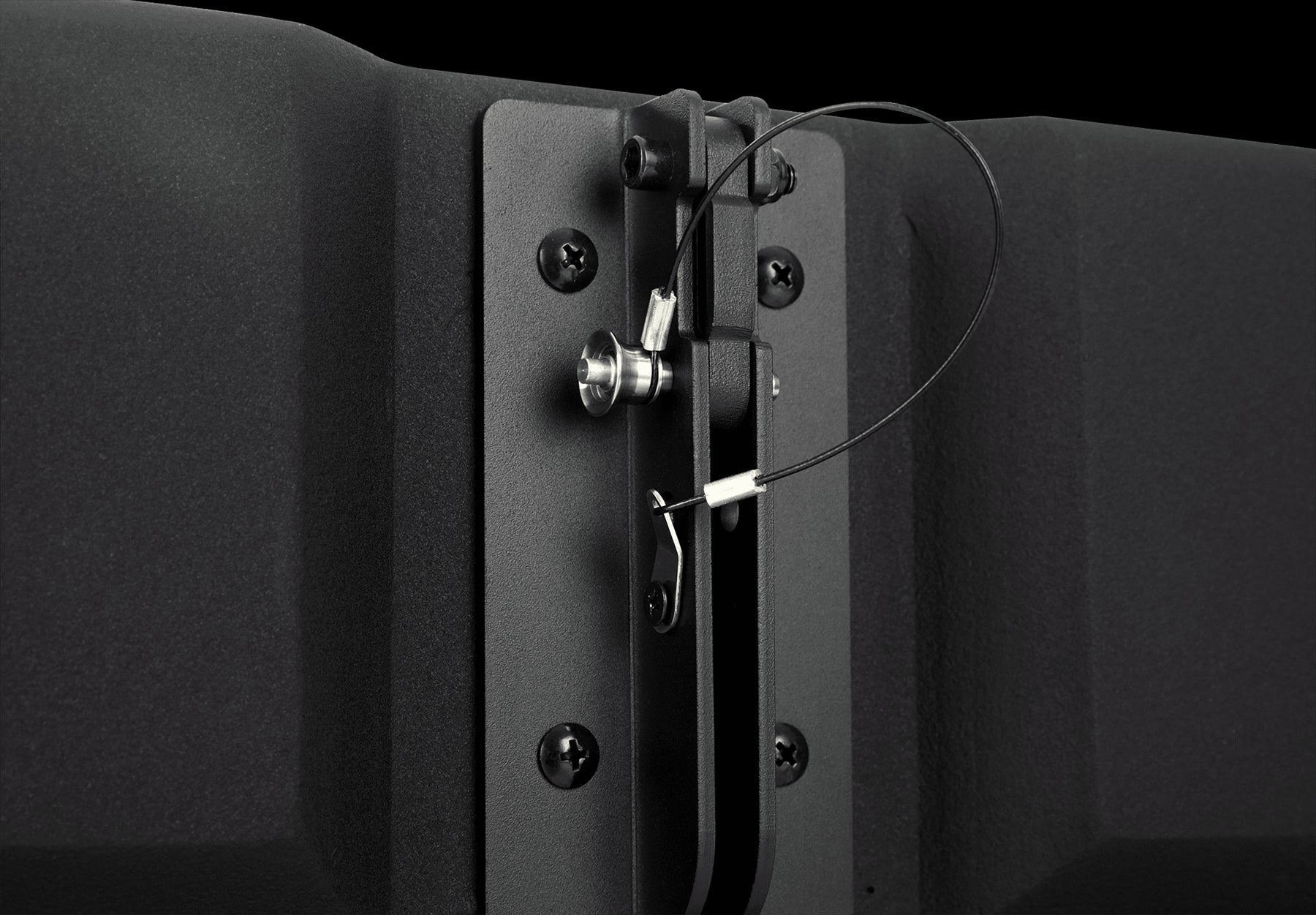

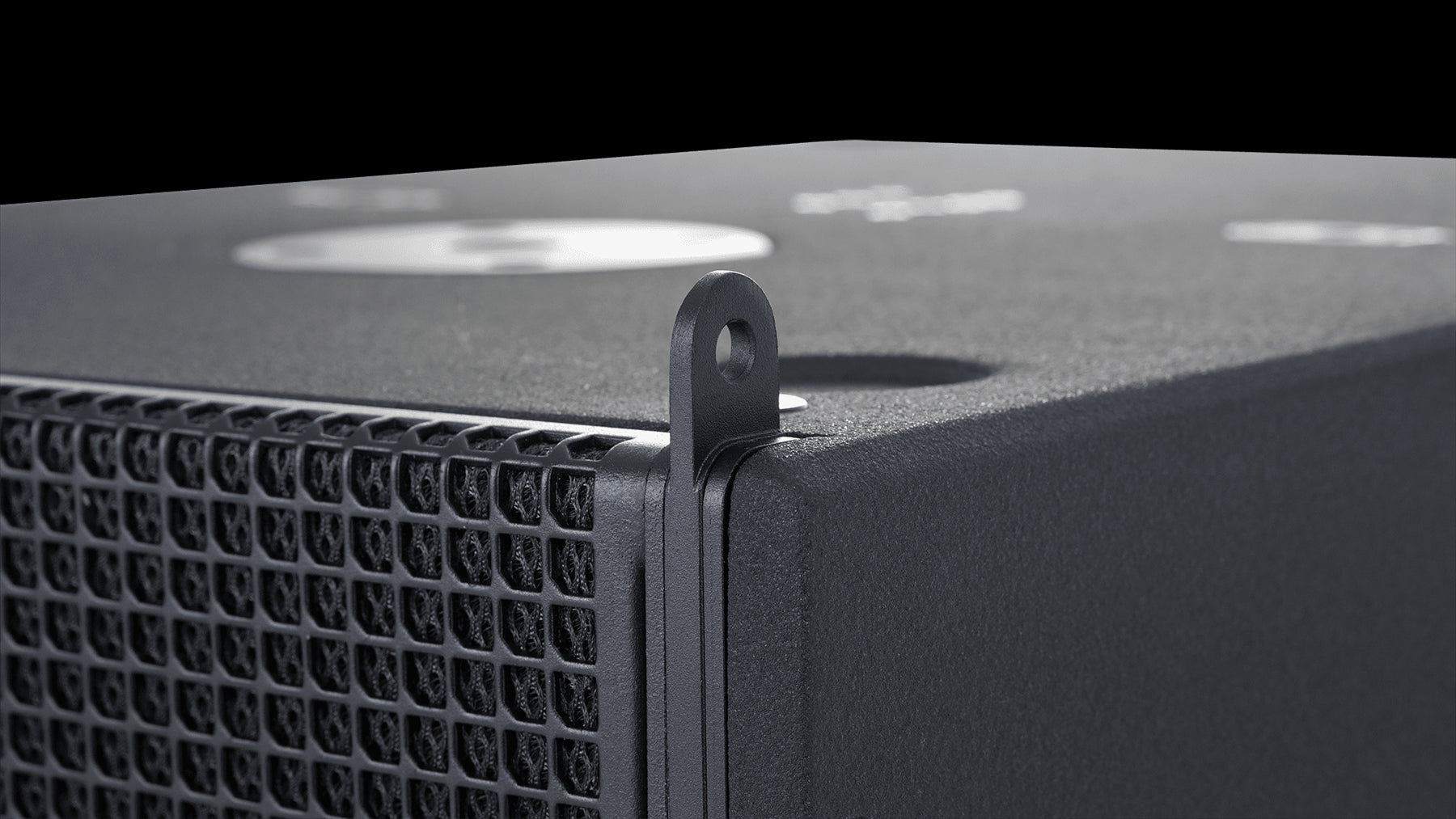

Optimized for stacking and flying configurations in line array systems

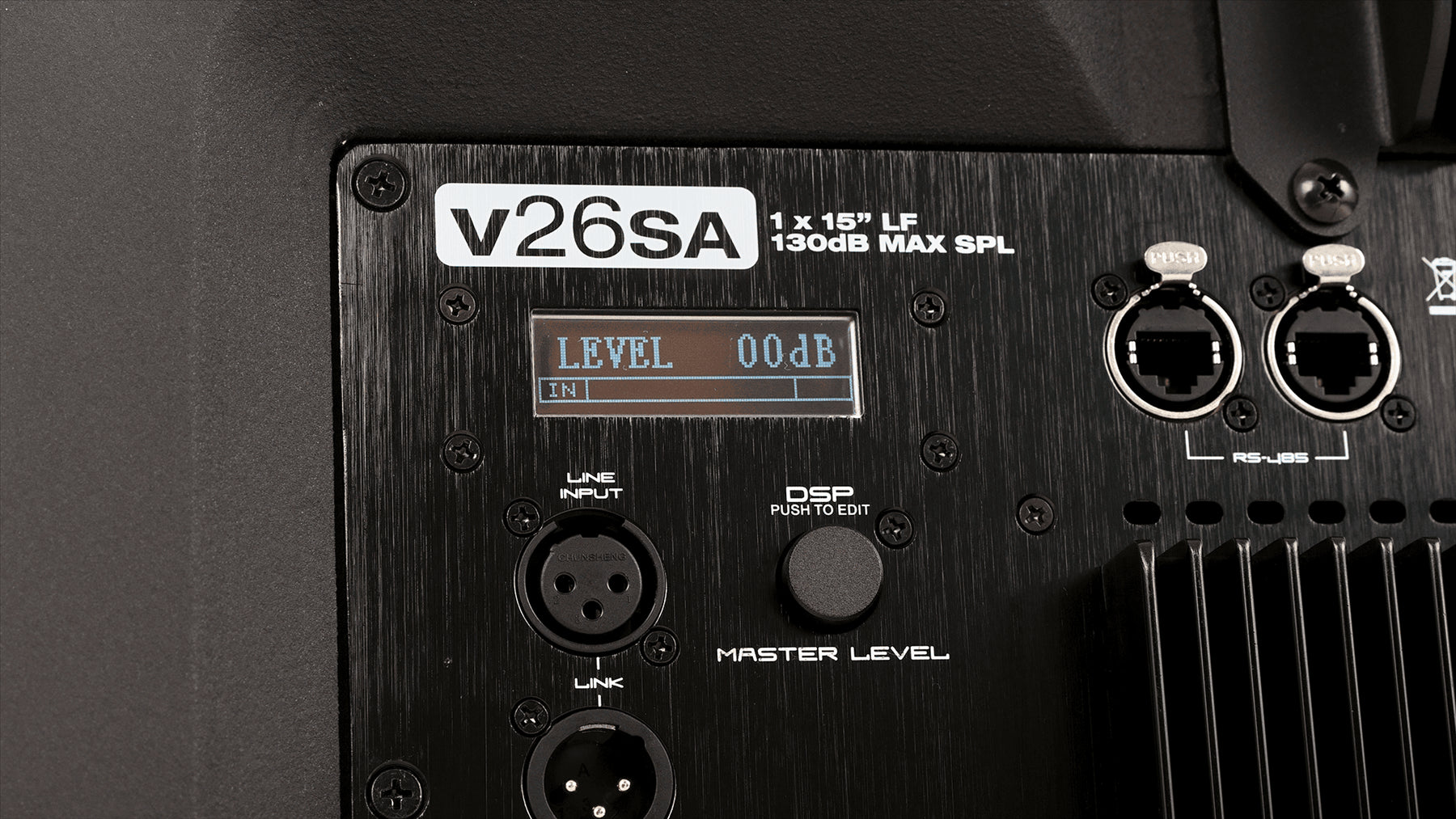

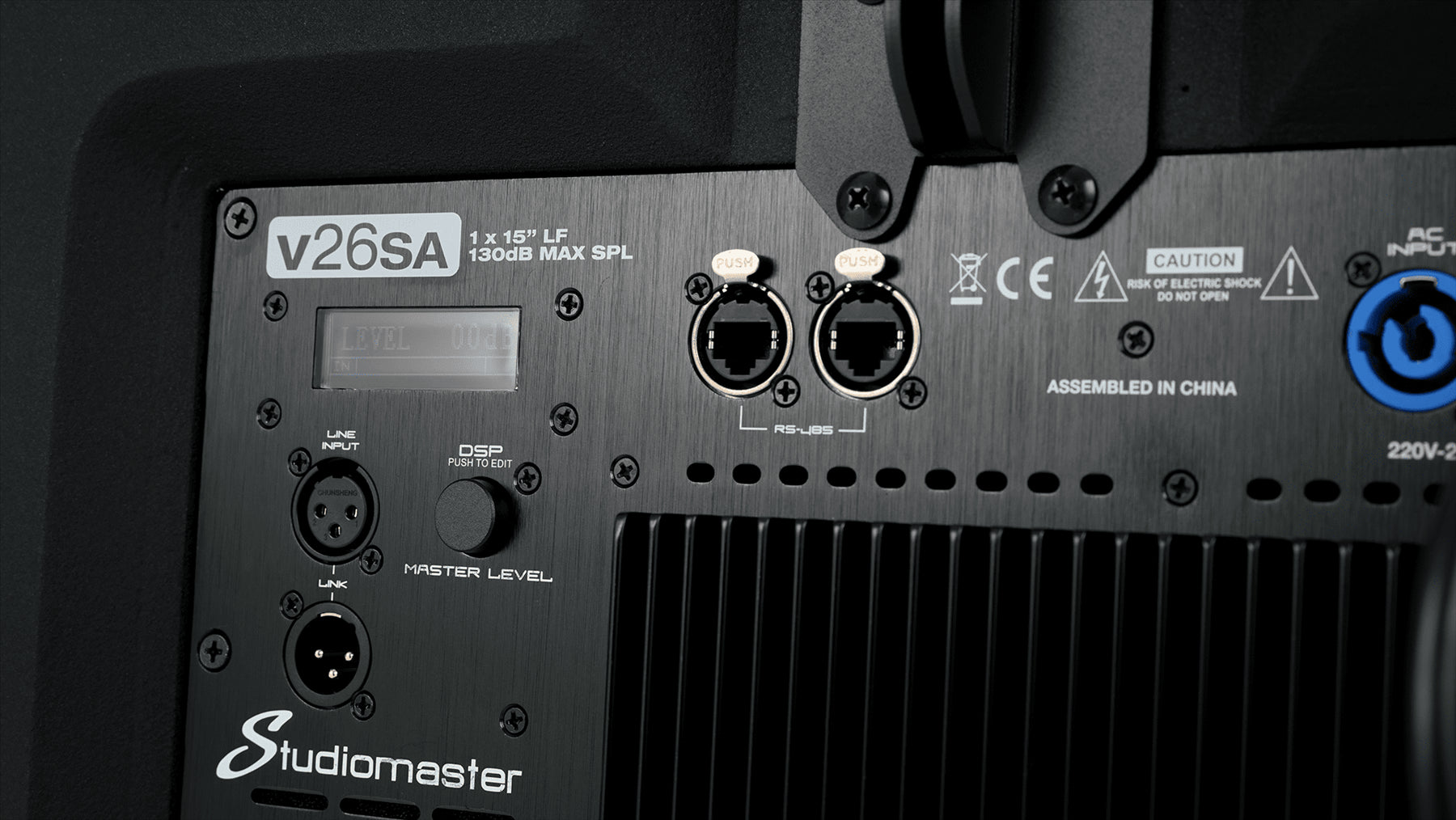

Built-in display and encoder with RS485 remote control connectivity

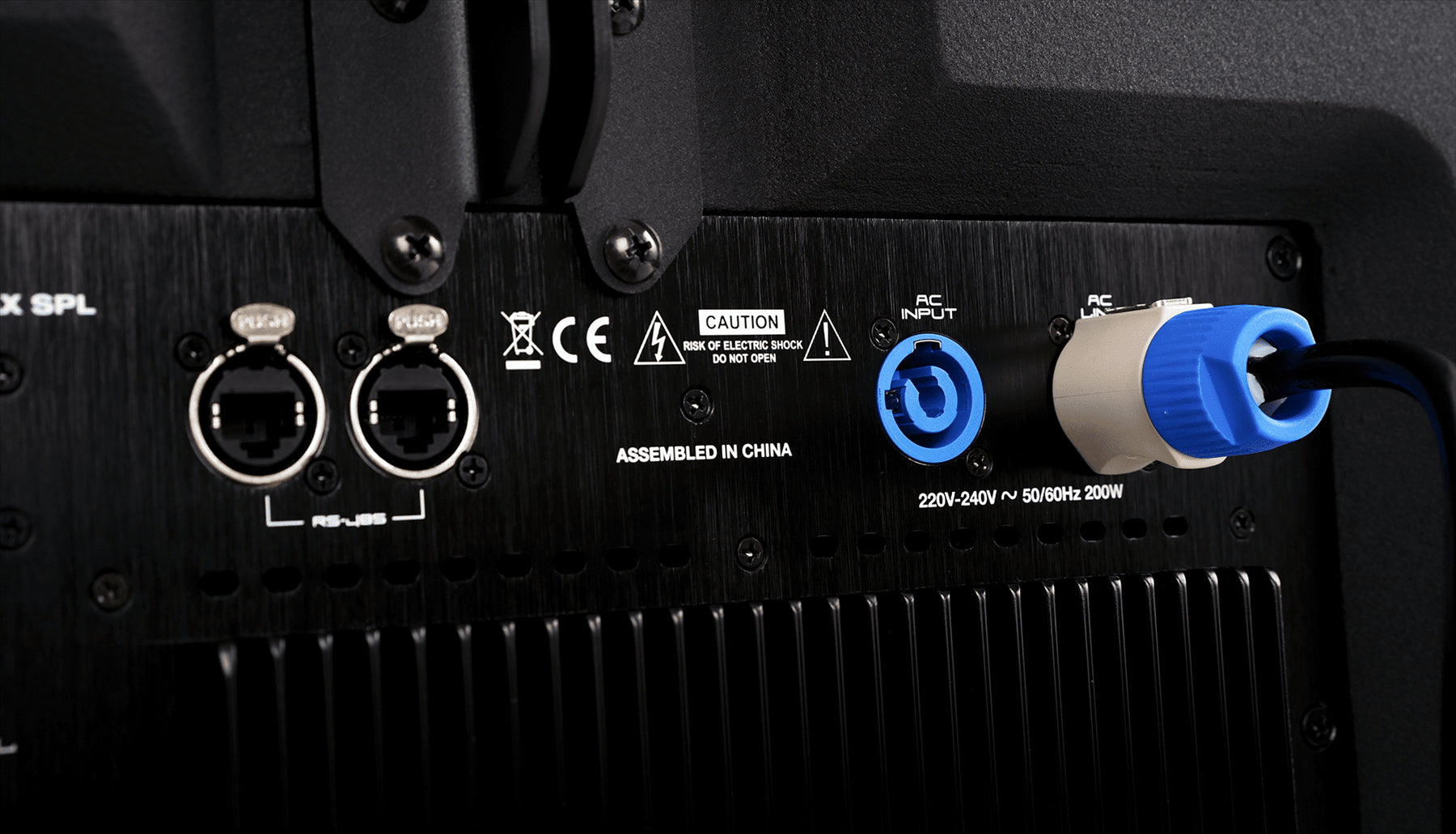

Thru power connector reduces cabling by allowing multiple cabinets per power feed
Convenient scoop handles for easy transport and rigging

Specifications:
Cabinet Type: Active line array woofer
Low-Frequency Driver: 1 × 15" with 100 mm voice coil
Amplifier Power: 1200W
Maximum SPL (1): 137 dB
Frequency Response: 40 Hz – 150 Hz (-10 dB)
DSP Control: Gain, EQ, crossover, delay, threshold
Crossover Frequency: DSP controlled
Vertical Splay Angle: N/A
Dimensions (W × H × D): 474 × 506 × 673 mm
Weight: 41 kg
