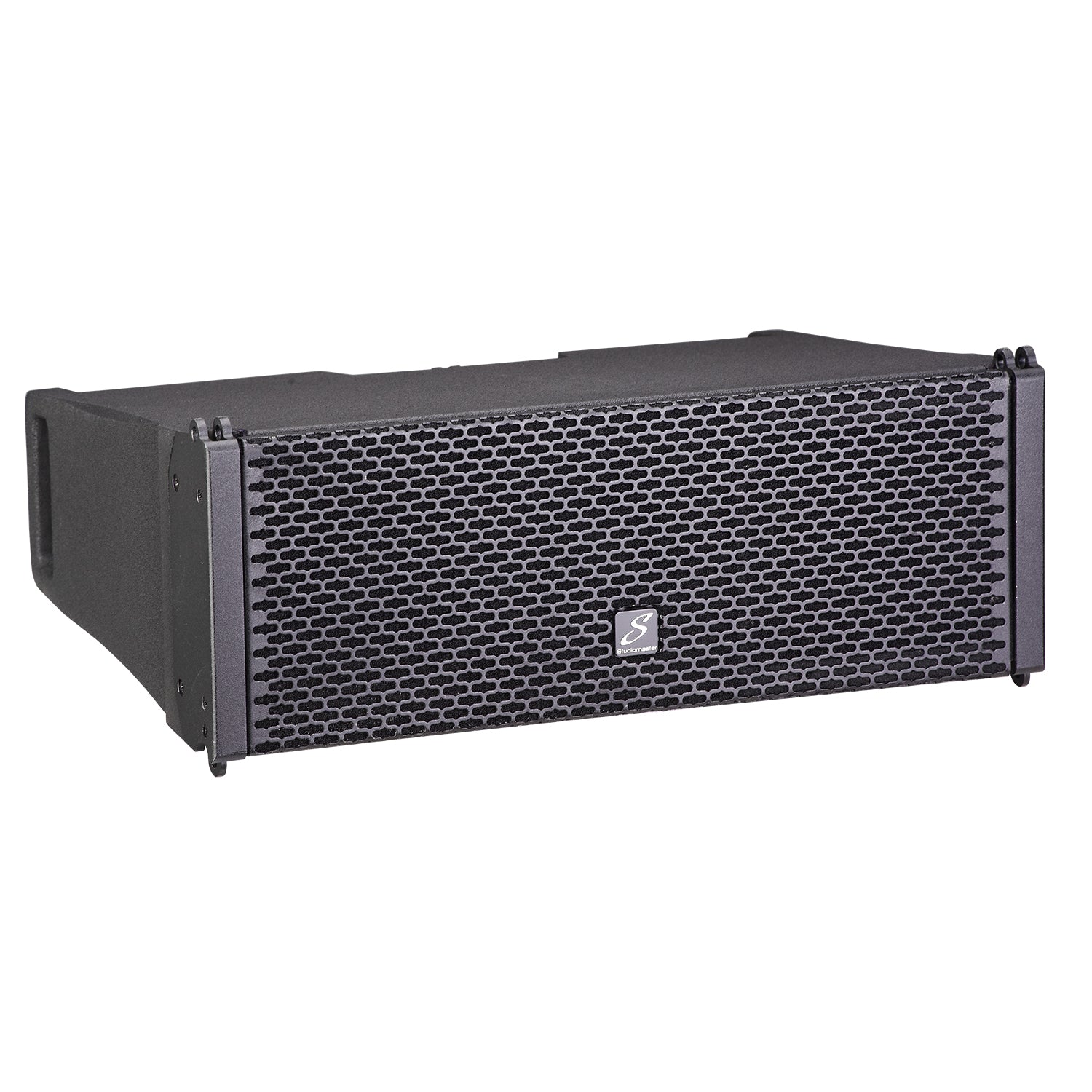

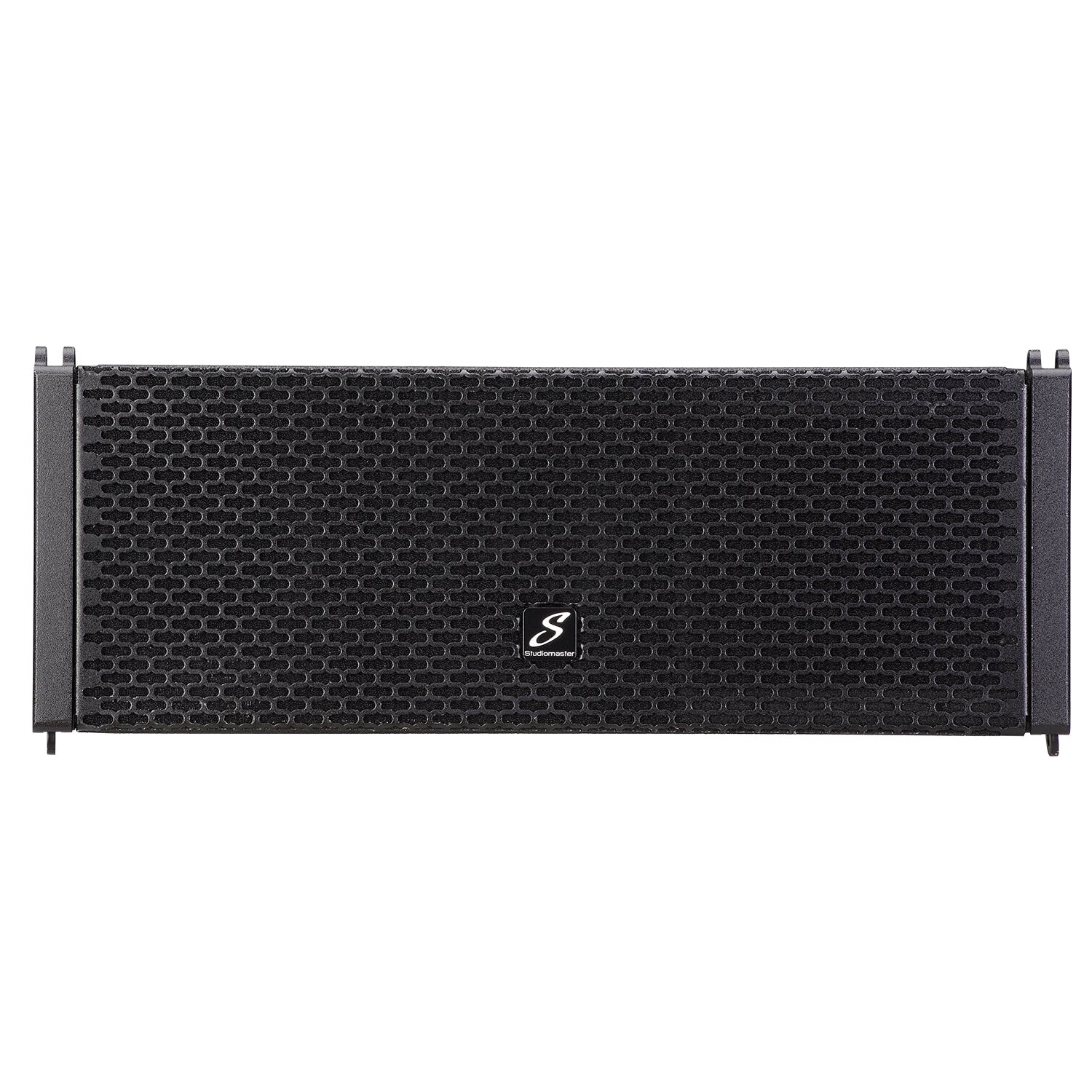

Studiomaster V5 Passive Line Array Speaker 2× 5"

The Studiomaster V5 is a compact and high-performance passive 2-way line array speaker module, purpose-built for modern sound reinforcement applications where space, clarity, and projection matter. Featuring dual 5" midrange woofers and a precision 44mm compression driver, the V5 delivers exceptional detail and controlled coverage, making it ideal for church sound systems, small festivals, and both indoor and outdoor live performances.

Engineered for use in multi-speaker array configurations, the V5’s trapezoidal wooden enclosure ensures consistent horizontal dispersion and vertical throw. With an SPL rating of up to 127 dB (HF), it produces tight, well-defined audio across a wide frequency range of 60 Hz to 20 kHz. The speaker includes an integrated aluminium rigging system with adjustable vertical angles from 0° to 10° in 2° increments—perfect for tailoring the projection in flown or ground-stacked setups.

Durable inside and out, the V5 features a rugged rubberised black paint finish and a protective metal grille. It pairs seamlessly with the Studiomaster V5S passive or V5SA active subwoofers for a full-range modular system that excels in acoustic precision and scalability.

Features:
Compact, passive 2-way line array speaker module
Dual 5" HF/MF drivers for clear and dynamic midrange
44mm (1.75") compression driver for crisp, extended highs
Adjustable suspension system with 0–10° tilt (2° steps)
Designed for flown or ground-stacked deployment
Ideal for large indoor venues, modern churches, and mobile sound setups
Durable black rubberised finish with protective grille
Integrates with V5S and V5SA subwoofers for full system configurations

Specifications:
Cabinet Type: 2-way passive line array
LF Drivers: 2 x 5" with 25mm voice coils
HF Driver: 1 x 1.75" (44mm VC) compression driver
Frequency Response (-10 dB): 60 Hz – 20 kHz
Frequency Response (+/-3 dB): 80 Hz – 18 kHz
Crossover Frequency: 80 Hz / 1.7 kHz
Maximum SPL: LF 116 dB / HF 127 dB
Power Handling:
LF – 100W RMS / 200W Program / 400W Peak
HF – 50W RMS / 100W Program / 200W Peak
Sensitivity (1W@1m): LF 90 dB / HF 104 dB
Coverage Pattern: 90° horizontal x angle dependent vertical
Vertical Spread Angle: 0° to 10° (adjustable in 2° steps)
Impedance: LF 16 ohm / HF 16 ohm
Construction: Wooden trapezoidal enclosure
Finish: Rubberised black paint
Grille: Black metal grille
Weight: 11 kg
Dimensions (W x H x D): 483 x 171 x 351 mm
MPN: V5
