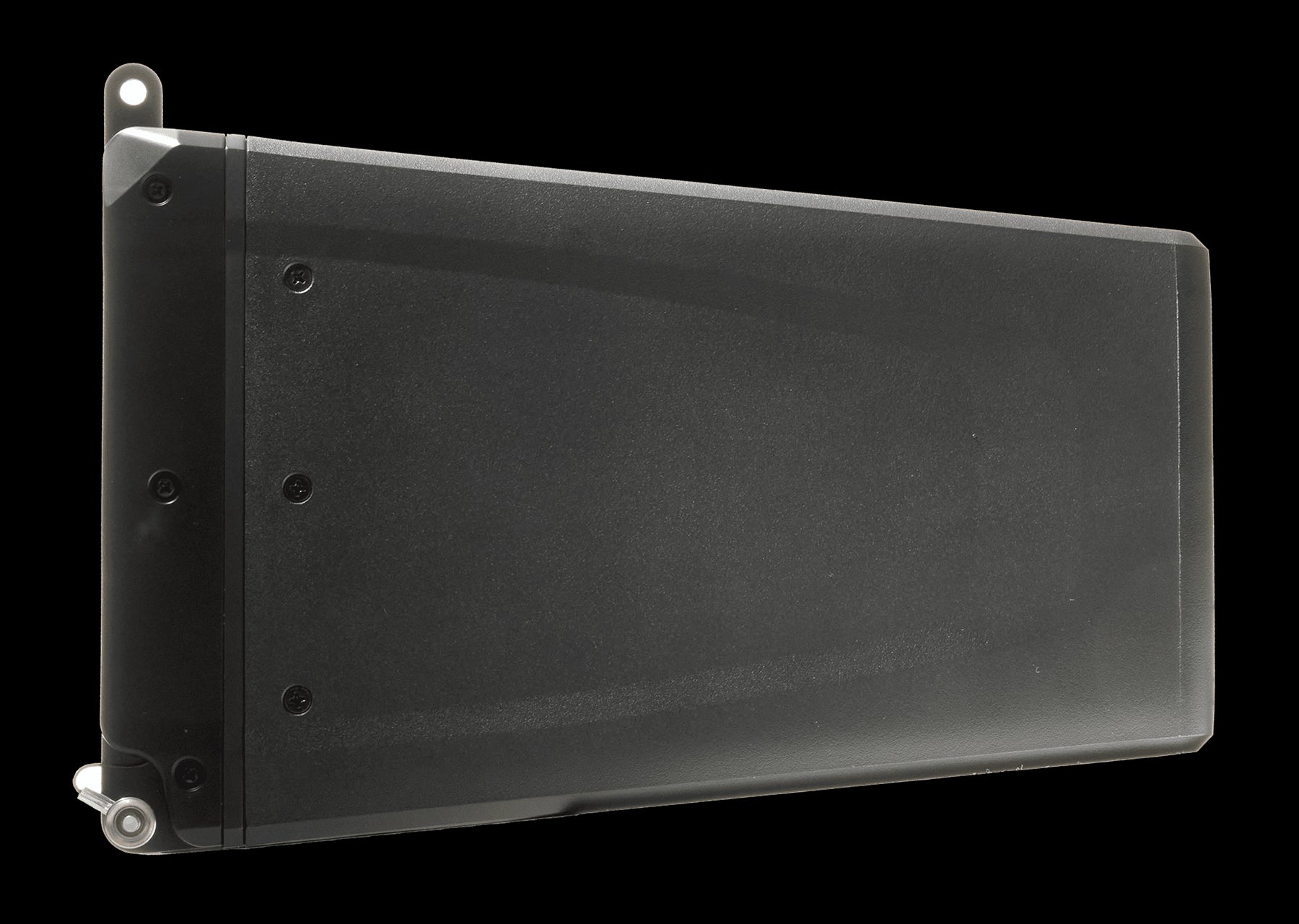

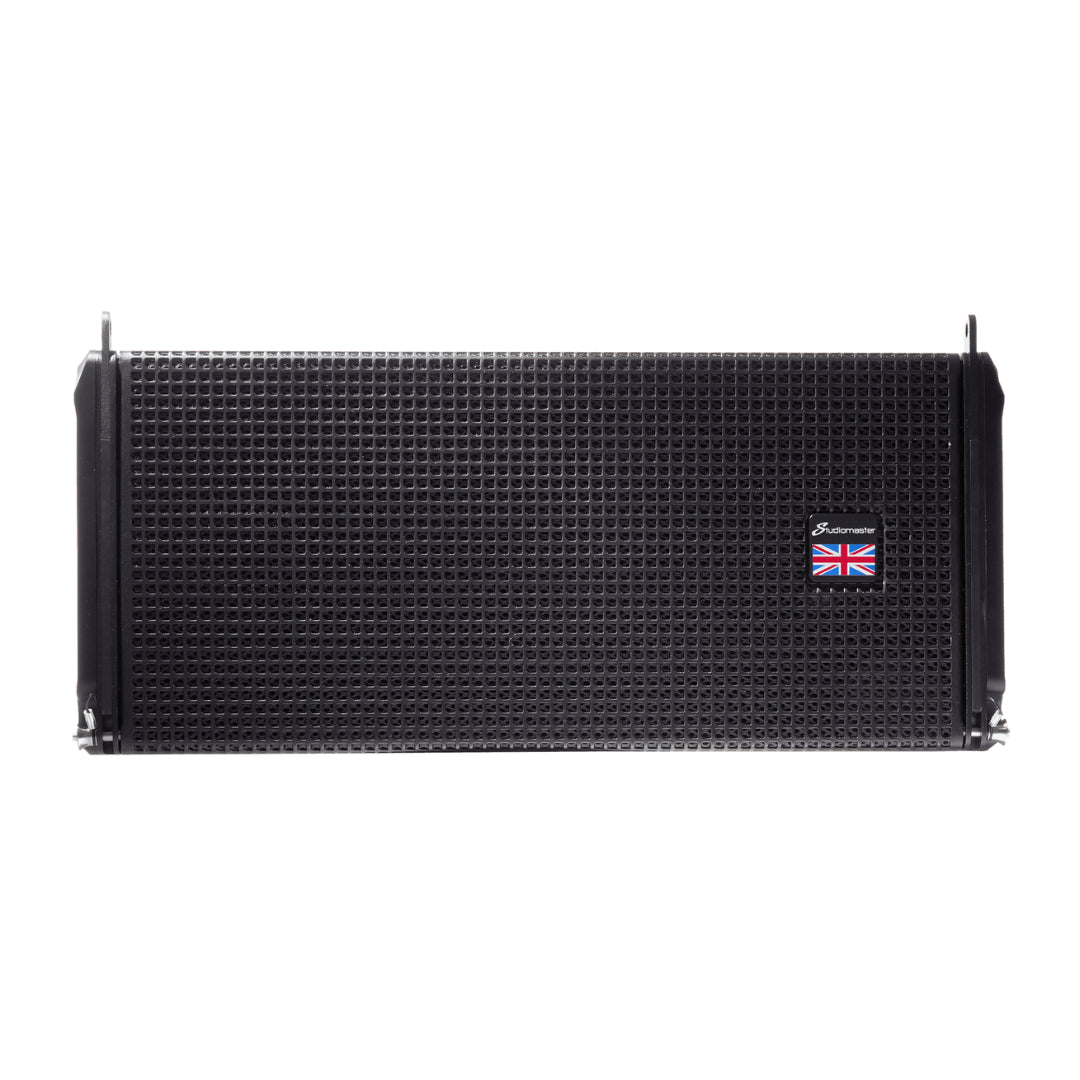

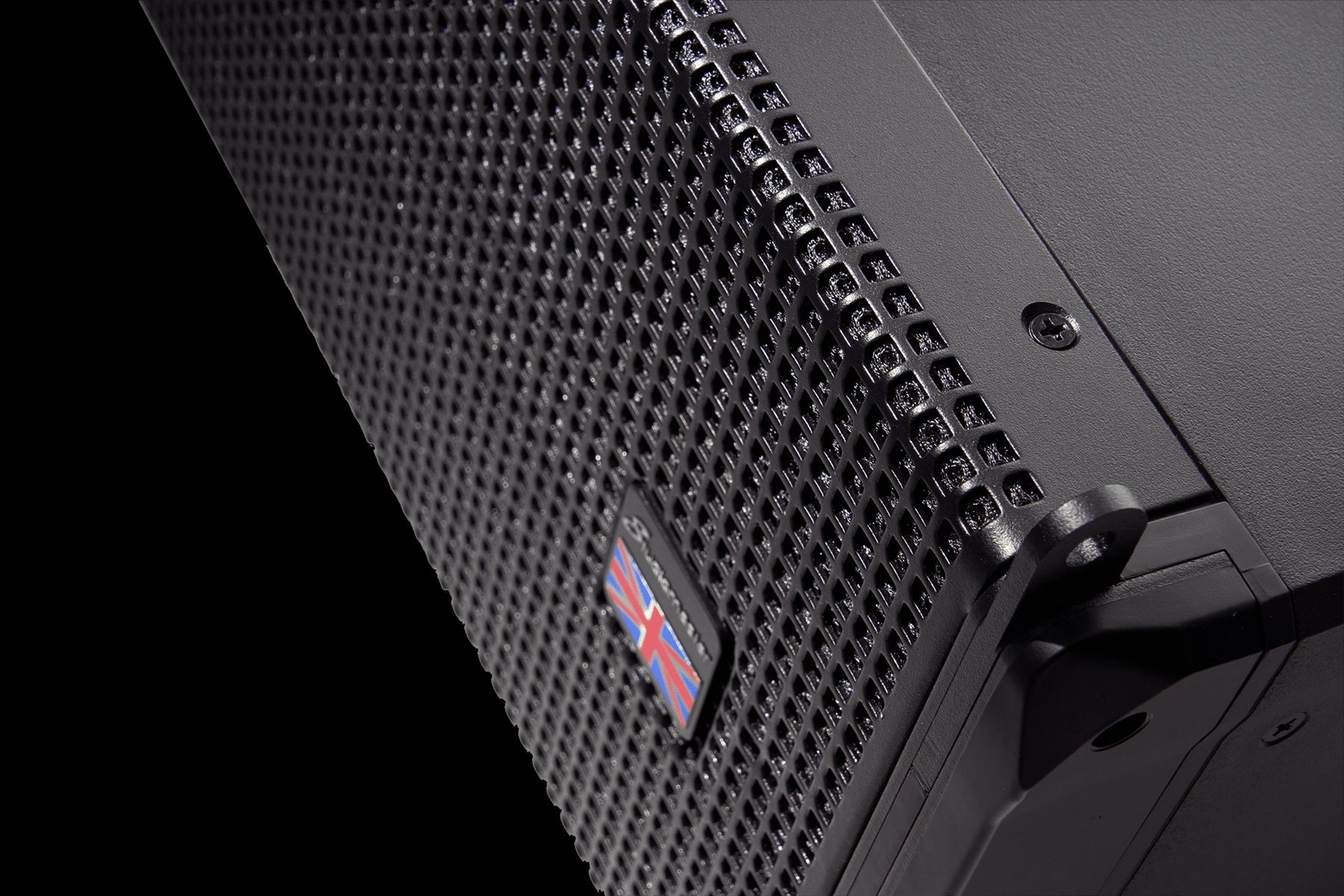

Studiomaster V6 Passive Line Array Speaker Cabinet – Dual 6.5"

The Studiomaster V6 is a rugged and compact 2-way passive line array speaker cabinet built to deliver powerful sound in demanding live and rental applications. Housed in a reinforced polypropylene composite enclosure, the V6 offers exceptional durability and portability without compromising performance. It features dual 6.5” mid-frequency drivers with 38 mm voice coils and a high-efficiency 3” neodymium HF driver with a 74 mm voice coil, enabling a maximum SPL of 132 dB. Designed for both stacking and flying, the V6 integrates seamlessly into modular array systems, making it ideal for venues, tours, and professional sound setups.

Features:
Constructed from reinforced polypropylene composite for lightweight strength
Fitted with 2 × 6.5" mid-frequency drivers (38 mm VC) for clean and powerful mids
Includes 1 × 3" neodymium high-frequency driver (74 mm VC) for precise highs
Delivers up to 132 dB SPL for impactful sound in medium to large venues
Wide horizontal coverage of 100° with a vertical splay range of 0–10° (adjustable in 1° steps)
Designed for both flying and stacking configurations in line array systems
Optimized for seamless integration with V6SA subwoofers

Specifications:
Cabinet Type: 2-way passive line array
Mid-Frequency Drivers: 2 × 6.5" with 38 mm voice coils
High-Frequency Driver: 1 × 3" with 74 mm voice coil (neodymium)
Amplifier Power (Required): MF 400W / HF 150W
Maximum SPL: 132 dB
Frequency Response: 70 Hz – 20 kHz (-10 dB)
Coverage: 100° horizontal × 10° vertical
Sensitivity (1W @ 1m): 100 dB
Impedance: 16 ohm
Crossover Frequency: Not applicable (external crossover or DSP recommended)
Vertical Splay Angle: 0–10° (1° step)
Dimensions (W × H × D): 470 × 207 × 341 mm
Weight: 13 kg
